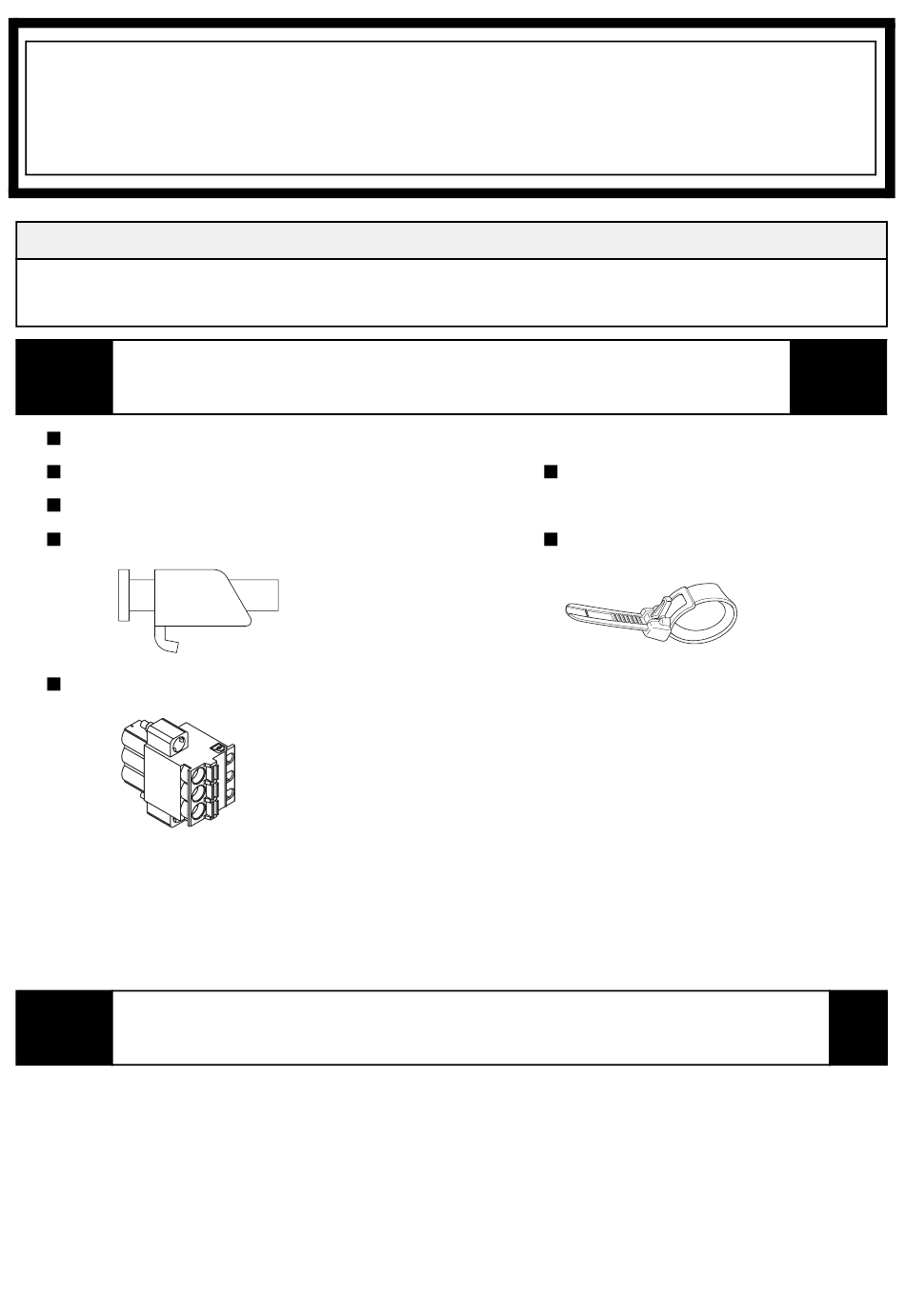

FP-3900T Series Installation Guide
Be sure to read the "Warning/Caution Information" on the attached sheet before using
the product.
FP unit (1)
Installation Guide (1) (this manual)
Installation Gasket (1)(attached to the FP unit)
Installation Brackets (4/set, 3sets)
AC Power Connector (1) (attached to the FP unit)
This unit has been carefully packed, with special attention to quality. However, should
you find anything damaged or missing, please contact your local FP distributor
immediately.
Required software/Reference manual
An FP-3900Tunit needs the following software for operation. As FP user manual,
provided by PDF media, describes its details, download the manual below and get the
further information. Visit our website below and get both software and reference manual.
(URL:http://www.pro-face.com/otasuke/)
• Software
: Mouse Emulation Software
• Manual
: FP-3900T series User Manual
Caution
Package Contents
1
Warning/Caution Information (1)
USB Cable Clamp(1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP-3900T Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro-face FP-3900T Series

Summary of Contents for Pro-face FP-3900T Series

  • Page 1 PDF media, describes its details, download the manual below and get the further information. Visit our website below and get both software and reference manual. (URL:http://www.pro-face.com/otasuke/) • Software : Mouse Emulation Software • Manual : FP-3900T series User Manual...

  • Page 2: Ul/C-Ul/Csa Application Notes

    If you don’t change the setting values, the touch position may not be accurate, a little off the point. UL/c-UL/CSA Application Notes The FP-3900T Series is a UL/c-UL/CSAlisted product.(UL File No.E220851,CSA File No.219866) This unit conforms as a product to the following standards:...

  • Page 3: Part Names

    Part Names A: TFT Color LCD Front View Acts as a display monitor for your host. B: Touch Panel Allows you to switch screens or write data to the host. C: Power Connector (Socket) Provides the input and ground terminals for a power cable.
  • Page 4 Dimensions 419[16.50] Unit: mm [in] 77.7 Top View [3.06] [0.14] 12.7 460[18.11] [0.50] center of display area center of unit Side View Front View Dip Switches and Slide Switch The Dip Switches and Slide Switch are located in the bottom of the FP unit. Loosen the screws of the cover with a Phillips head screwdriver and then remove the cover.

  • Page 5: Analog Rgb Interface

    Interfaces Analog RGB Interface Input signal type Analog RGB Image signal : analog RGB Input signal Synchronous signal :TTL level, negative true or positive true characteristic Scanning type : non-interlace •CONTRAST •BRIGHTNESS •H-POSITION •V-POSITION Setting by OSD •H-size •PHASE (On Screen Display) •DIMMER(BACKLIGHT) •SHARPNESS •ALL RESET (DEFAULT)

  • Page 6: Dvi-D Interface

    DDC Clock Connector....Mini Dsub 15 pin male Connector set screw.. Inch type (4-40) Cable ......RGB cable manufactured by Pro-face. FP-CV02-45 <4.5m> (VGA standard) • If a cable other than the specified RGB cable is used, product performance cannot be guaranteed due to the possibility of noise interfering with the FP unit’s operation.
  • Page 7 24 TMDS CLOCK- Connector....DVI-D 24-pin male Connector set screw.. Inch type (4-40) Cable ......DVI-D cable manufactured by Pro-face. (FP-DV01-50 <5 m>, FP-DV01-100 <10 m>) • If a cable other than the specified DVI-D cable is used, product performance cannot be guaranteed due to the possibility of noise interfering with the FP unit’s operation.

  • Page 8: Serial Interface

    Therefore, connect each pin’s signal to the same signal name on the PC side. For example, pin #2 ‘RD’ should be connected to the ‘RD’ input terminal on the PC’s connector. Refer to the FP-3900T series User Manual’s section “Cable Diagrams” for each signal’s direction. USB Interface (Type-B connector : Up-Stream Port) Pin Assignments and Signal Names for USB Interface Pin No.
  • Page 9 (2) Check that FP has instllation fastners. Insert the FP from the front. • Installation gasket must be used even though it is not necessary for its environment. For installation, refer to the FP-3900T series User Manual. • Check that the installation panel or cabinet's surface is flat, in good condition and has no jagged edges.
  • Page 10 • To avoid the dangers of fire, electric hazards and equipment damage, be sure to use only the specified voltage when operating the FP. • Since there is no power switch on the FP unit, be sure to attach a breaker-type switch to its power cord.

  • Page 11: Connecting The Power Cord

    • Kind of power cord is FKC 2,5/3-STF-5,08 which are Phoenix Contact products. Use the following wiring for FP. Those are Phoenix Contact products. Recommended Drivers SZS 0.6X3.5 (1205053) AI 0.75-10GY(3201288) AI 1-10RD(3200182) Recommended stick end terminal AI 1.5-10BK(3200195) AI 2.5-12BU(3200962) Crimp tool for recommended CRIMPFOX ZA 3 (1201882) stick end terminal...

  • Page 12: Power Supply Cautions

    USB Cable Clamp Removal Feature (1) Push in the cable clamp's stopper with a standard flat-blade screwdriver until the cable clamp is unlocked, and remove it. (2) Disconnect the USB cable. Power Supply Cautions Please pay special attention to the following instructions when connecting the power cord terminals to the FP unit.
  • Page 13 Item Function Color Settings Adjusts the contrast and the brightness. Adjusts the display position of the screen. Screen Settings (Analog RGB only) Custom Display Adjusts Sharpness and the backlight brightness. System Settings Changes settings such as activating the click sound. All Reset Resets the current OSD value to the default value.
  • Page 14 • In the OSD, pressing the button applies the set value and enables the setting. The set value won’t be canceled unless the power is turned OFF or the value is reset. If the power is turned OFF without saving the set value, that data will disappear.
  • Page 15 System Settings Adjustment button Selection of the change item Enables/disables the click sound. With this parameter, Click Tone the sound level can also be adjusted. (Default value: OFF <Click sound disabled>) 720x400 Mode When an input data resolution of 720 x 400 is used in the VGA text mode, set this parameter to ON.
  • Page 16 Regardless of the above clause, Digital 8-2-52 Nanko Higashi, Suminoe-ku, Electronics Corporation shall not be held Osaka 559-0031, Japan responsible for any damages or third-party URL:http://www.pro-face.com/ claims for damages or losses resulting from the use of this product. 086226F .FP3900-MT01E-BTH 2007.5. JM/A...
