Pro-face FP-790T User Manual

Pro-face FP-790T User Manual

Flat panel display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Flat Panel Display

FP-790T

User Manual

Digital Electronics Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP-790T and is the answer not in the manual?

Questions and answers

Related Manuals for Pro-face FP-790T

Summary of Contents for Pro-face FP-790T

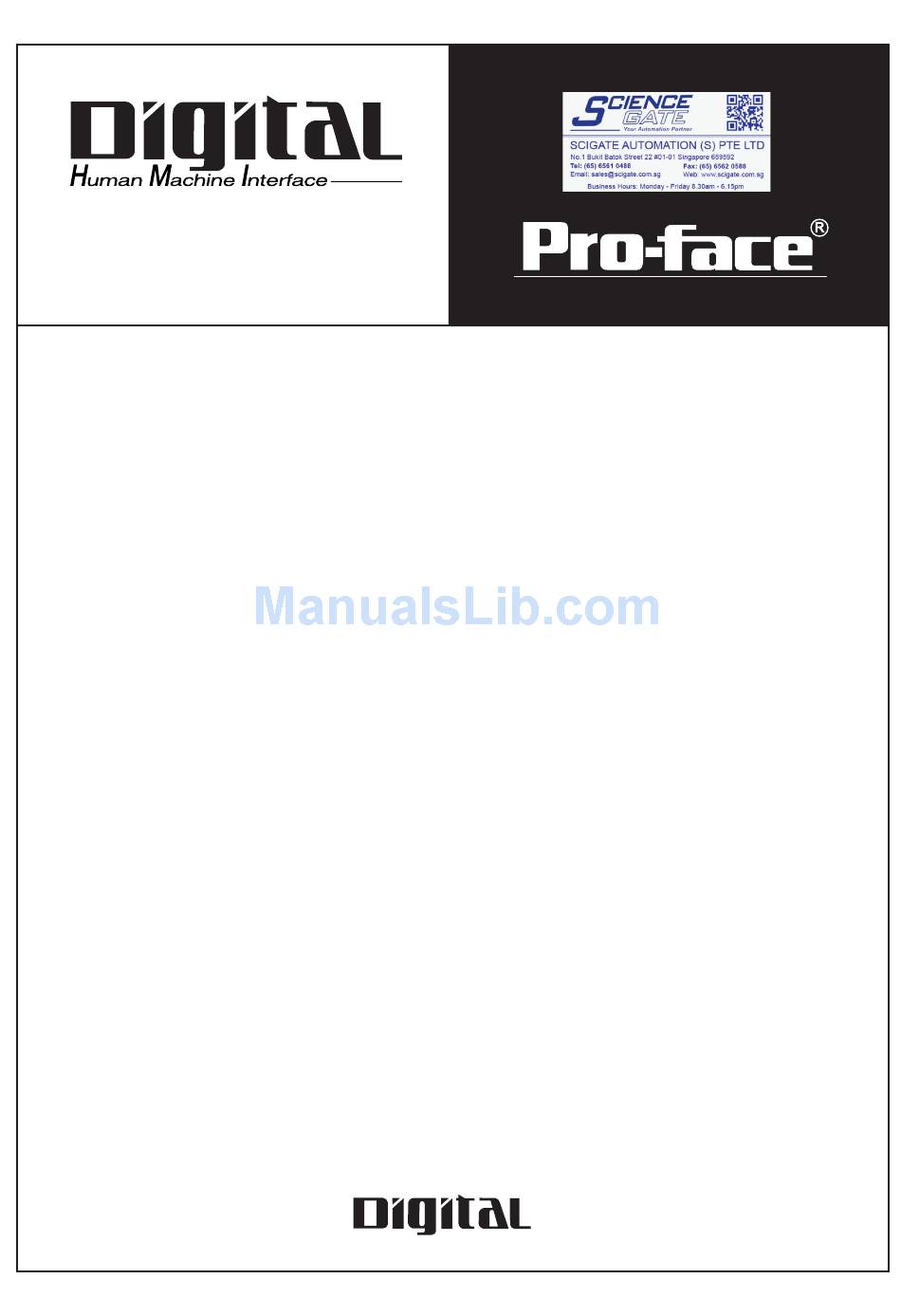

  • Page 1: Flat Panel Display

    Flat Panel Display FP-790T User Manual Digital Electronics Corporation...

  • Page 2: Preface

    Preface Thank you for purchasing Digital's TFT type color display panel, the 'FP-790T'(hereafter referred to as "the FP").  The FP is a TFT type color liquid crystal display monitor for Windows compatible personal computers (VGA, XGA and SVGA modes).

  • Page 3: Essential Safety Precautions

    This is due to the possibility of a malfunction in the FP or its cable(s), causing the output of a signal that could result in a major accident. All of a system’s major, safety-related switches should be designed to be operated separately from the FP. FP-790T User Manual...
  • Page 4 • When using the FP with transportation vehicles (trains, cars and ships), disaster and crime prevention devices, various types of safety equipment, non-life support related medical devices, etc. redundant and/or failsafe system designs should be used to ensure the proper degree of reliability and safety. FP-790T User Manual...
  • Page 5 • Displaying a single image for long periods can cause an afterimage to remain when the display is changed to another screen. To prevent this, periodically turn the FP OFF and then ON again to remove this afterimage. FP-790T User Manual...

  • Page 6: Table Of Contents

    2-3-4 Mouse Type Host Connector ..................2-6 2-4 Option Cable Pin Diagrams....................2-7 2-5 Parts Names and Functions ....................2-9 2-6 Dimensions ........................... 2-10 2-6-1 FP-790T External Dimensions ..................2-10 2-6-2 Installation Fasteners ....................2-11 2-6-3 Panel Cut Dimensions ....................2-10 FP-790T User Manual...
  • Page 7 5-1-1 Possible Device Problems ....................5-1 5-1-2 No Display ........................5-2 5-1-3 The Touch Panel Does Not Function ................5-4 Chapter 6—Maintenance 6-1 Cleaning the FP's Display ...................... 6-1 6-2 Periodic Check-Up ........................6-2 6-3 Changing the Backlight ......................6-3 FP-790T User Manual...

  • Page 8: Ce Marking Notes

    FP will enter power save mode and the display will go blank. • Be sure to turn FP-790T and PC ON at the same time, or before turning PC ON. If PC is turned ON first, a touch panel and an exter- nal mouse will not work.

  • Page 9: Fp-790T Features

    Thus, the FP can be used even in harsh industrial environments. • Touch panel can be operated while PLC data is monitored (Standard feature) The FP's touch panel is standard equipment and is suitable for monitoring systems that require touch operations. FP-790T User Manual...

  • Page 10: Package Contents

    Package Contents The FP's packing box contains the items listed below. Please check to be sure each is included and is not damaged. FP-790T Installation Guide FP unit (FP790-T21) FP-790T Installation Guide CD-ROM *1 Installation brackets (12) (contains the PDF manuals) <GP070-AT01>...

  • Page 11: Symbol Information

    Used to refer to useful or important supplemental information. Used to provide useful or important supplemental information. Used to provide useful or important supplemental information. Indicates steps in a procedure. Be sure to perform these steps in the order 1) , 2) given. FP-790T User Manual...

  • Page 12: Chapter 1-Introduction

    For a description of each reference no. used ( , etc.) refer to the next page (page 1–2) The interface connecting a touch panel to a host PC is only RS-232C. It cannot be communicated with the PS/2 interface. FP-790T User Manual...
  • Page 13 Page 1–1 Item Description FP Interface Personal Align Computer Interface Mouse Connector Mouse interface Serial I/F Connector Serial interface Analog RGB I/F Connector Analog RGB interface Host Connector for Mouse 2-5 Names and Functions of FP Parts FP-790T User Manual...

  • Page 14: Optional Equipment

    *1 The FP-ME000 (Mouse Emulator) can only be used with a PC running the Japanese version of Windows. When an English version of Windows is used, the English version of the U-TP (Gunze Corporation) software is required. For purchasing information, contact your local Pro-face dis- tributor.
  • Page 15 MEMO FP-790T User Manual...

  • Page 16: Chapter 2-Specifications

    In-Rush Current 30A (at normal temperature), 45A (at 40 AC 1500V 20mA 1 minute Voltage Endurance (between the live wire and grounding terminals) DC 500V 10M Ω greater Isolation Resistance (between the live wire and grounding terminals) FP-790T User Manual...

  • Page 17: Structural Specifications

    Noise Immunity Pulse Duration : 50ns, 500ns, 1 µ s (via noise simulator) Rise Time : 1 ns Electrostatic Discharge 4k V IEC 61000-4-2 Immunity 2-1-4 Touch Panel Specifications 1024 X 1024 Resolution (dot) Resistive Film (Analog) Method FP-790T User Manual...

  • Page 18: Functional Specifications

    285.7mm [11.25 in.] x 214.3mm [8.44 in.] 640 x 480 (VGA) Display Mode 720 x 400 (US Text) (selected via switch) 800 x 600 (SVGA) 1024 x 768 (XGA) Backlight (under continuous 24 hour operation, lifespan = 30,000 hours) FP-790T User Manual...

  • Page 19: Interface Specifications

    85.039 Hz 35.500 MHz The allowable frequency fluctuation range in both the horizontal and vertical frequencies is +/- 1%. If fluctuations exceed these ranges, the FP will enter power save mode and the display will go blank. FP-790T User Manual...

  • Page 20: Rs-232C Interface

    PC connector. For example, pin #2 'RD' should be connected to the 'RD' input terminal on the FP's connector. Refer to section "2-4 Option Cable Pin Diagrams" for information about each signal's direction. FP-790T User Manual...

  • Page 21: Mouse Connector

    TCS7568-43-201 or equivalent> • The mouse connection can be used for all equipment conforming to the PS/2 mouse standards. However, Pro-face cannot guarantee the FP will operate normally for all types of host and mouse combinations. This unit was developed using the Microsoft Mouse ®...

  • Page 22: Option Cable Pin Diagrams

    FP and the PC, it can be connected in either direction. Since the PC connector's pitch is designated in “inch” units, the interface cable and the FP connector's pitch are also designated in “inch” units (4-40UNC). FP-790T User Manual...
  • Page 23 CK01) conform to those of the personal computer interface. To prevent accidents and connector damage, please be aware that the ends of this connector are different. Connect the 4 pin (white) connector to the FP, and the 6 pin (black) connector to the PC. FP-790T User Manual...

  • Page 24: Parts Names And Functions

    Analog RGB interface connector J: Front Maintenance Cover (unused) Be sure that all cables are connected correctly and that the FP is turned OFF before any cables are disconnected, since either of these can cause the FP to malfunction. FP-790T User Manual...

  • Page 25: Dimensions

    Specifications Dimensions 2-6-1 FP-790T External Dimensions Unit: mm [in.] (excluding projections) 389 [15.31] Top View 74 [2.91] 405 [15.94] 13.5 [0.53] Front View Side View Rear View 2-10 FP-790T User Manual...

  • Page 26: Installation Fasteners

    • If the FP's mounting panel is not sufficiently thick or strong, the speci- fied level of moisture-resistance may not be possible. • If the dimensions of the Panel Cut are larger than those given here, the panel can warp and distort the FP unit’s display. FP-790T User Manual 2-11...
  • Page 27 MEMO 2-12 FP-790T User Manual...

  • Page 28: Chapter 3-Installation And Wiring

    Using these FP installation dimensions as a guide, create (cut) the correct sized installation opening. The FP's seal, installation brackets and screws are all required when installing the FP. 2-6-3 FP Panel Cut Dimensions Installation Plate/Panel Panel FP-790T User Manual...
  • Page 29 When installing the unit horizontally or sideways (portrait style), use a fan or air conditioning unit to prevent overheating. Horizontal Installation (Landscape type) Side Front View View (Flat Type) (Looking down at) Vertical Installation (Portrait Style) Side Front View View FP-790T User Manual...
  • Page 30 When installing the FP in a panel with an angled face, the face should not incline either backwards or forwards more than 30 less than 30 Insert the FP into the panel cut from the front of the panel. Panel Side view FP-790T User Manual...
  • Page 31 Tighten the installation fastener's screw with a screwdriver. To ensure the FP's front panel is sufficiently moisture-resistant, tighten the screw with no more than 0.5 to 0.6 N-m of torque. Panel Excessive torque may cause damage to the unit. FP-790T User Manual...

  • Page 32: Wiring

    Ring terminal *1 *1 L = Live line for AC input N = Neutral line for AC input FG = Ground terminal to be connected to the FP housing Recommended ring terminal: V2-MS3 or equivalent (Manufactured by JST Co.) FP-790T User Manual...
  • Page 33 4) Remove the screws from the 3 middle terminals, align the ring terminals and re-attach the screws. (Check that each wire is securely connected) 5) Replace the terminal block's transparent plastic cover. Use no more than 0.5~0.6N•m of torque to tighten the screws. FP-790T User Manual...

  • Page 34: Fp Power Supply Connection Procedures

    Installation and Wiring 3-2-3 FP Power Supply Connection Procedures Please pay special attention to the following points when connecting the power cable to the FP-790T's Terminal Block. • If the voltage supplied exceeds the Twisted FP's designated range, connect a Fig.1...

  • Page 35: Fp Grounding Cautions

    3-2-5 FP Input/Output Signal Line Cautions Input and output signal lines must be separated from power cables. If this is not possible, use a shielded cable and connect the shield to the FP chassis. FP-790T User Manual...

  • Page 36: Setup Of Operation Mode And Positioning Of Display

    Setup of Operation Mode and Positioning of Display 3-3-1 Operation Mode Setup and Adjustment The setup switches (dip-switches) are located in the rear of the FP. FP-790T (rear view) Dip-Switch (SW1) Dip-Switch (SW2) Prior to shipment, the FP's DIP switches have been set as shown above. These 8...
  • Page 37 Normal Mode (turn OFF when adjusting the Switch screen) Reserved Set this switch to OFF *1 A menu display disappears after about 10 seconds, and when touching SELECT area (screen's lower left corner), the menu display reappears. 3-10 FP-790T User Manual...

  • Page 38: Screen Adjustment Using Osd

    Menu mode. SELECT Used to select each setting item in the OSD menu. EXIT When EXIT is pressed, the changed value is saved, and the previous menu is displayed. FP-790T User Manual 3-11...
  • Page 39 4) Use the [DOWN/LEFT] or [UP/RIGHT] switches to change the value of the selected item. 5) Press the [EXIT] switch to return to the OSD menu. (Control will return to the OSD menu after 5 seconds when no panel operation is performed.) 3-12 FP-790T User Manual...

  • Page 40: Chapter 4-Touch Panel Commands

    The above commands cannot be used with the FP-ME000 Touch Panel Driver (Mouse Emulator) or the English version of the U-TP (Gunze Corporation) software. For details, contact your local Pro-face rep- resentative. All data and command codes are expressed in hexadecimal numbers. (Example:...
  • Page 41 Starts touch panel calibration mode. (Same function as when SW1-5 is ON.) Calibration mode OFF 74h Ends touch panel calibration mode. (Same function as when SW1-5 is OFF.) Touch data ON Enables touch panel data output. Touch data OFF Disables touch panel data output. FP-790T User Manual...

  • Page 42: Touch Panel Data Input

    OS, please observe the following instructions: (1) Resolution The FP has “1024” resolution in both the X and Y axes. The origin point (0,0) is in the upper right corner. (0,0) (1023,1023) FP-790T User Manual...
  • Page 43 Connect the RS-232C connector provided at the rear of the FP to the host’s serial interface through the optional SIO cable. Chapter 1 Introduction Connect the host (PLC) data cable to the FP's rear-mounted RS-232C connector. (Digital's optional SIO cable is recommended) FP-790T User Manual...

  • Page 44: Boot-Up Initialization

    • Initializes the serial communication mode. Baud rate 9600bps Data length 8 bits Parity None Stop bit 1 bit • Initializes the system default values. Function Default setting Backlight Backlight condition Click sound Buzzer Touch panel data output FP-790T User Manual...
  • Page 45 MEMO FP-790T User Manual...

  • Page 46: Chapter 5-Troubleshooting

    FP off and wear gloves. This section assumes that the FP is the cause of a problem, not the host (PLC). When the host is the problem, please refer to that device's manual. FP-790T User Manual...

  • Page 47: No Display

    (turned ON?) Correct the screen coordinate Even though the display positioning. isn't perfect, does an image 3-3 Run Mode and appear? Display Position Settings There is a problem with the FP. Please contact your local FP distributor. FP-790T User Manual...
  • Page 48 Check that the FP's backlights are Have the FP's backlights correctly connected and change been set up correctly? them if required. 6-3 Changing the Backlight There is a problem with the FP. Please contact your local FP distributor. FP-790T User Manual...

  • Page 49: The Touch Panel Does Not Function

    For the mouse connection, set up the PS/2 mouse driver included in your There is a problem with the FP. Please contact your local FP distributor. FP-790T User Manual...

  • Page 50: Chapter 6-Maintenance

    Acidic agents Do not press the touch panel display with sharp objects, such as a mechanical pencil; otherwise, the display may be damaged. Protection sheet Attach the protection sheet when using the FP in a harsh environment. FP-790T User Manual...

  • Page 51: Periodic Check-Up

    Is the power supply frequency correct (50/60 Hz) ? Attachments Is the cable connected properly? Is it loose? Are the mounting brackets holding the unit securely? Are there many scratches, cuts or traces of dirt on the installation gasket? FP-790T User Manual...

  • Page 52: Changing The Backlight

    1) Place the FP on a flat worktable with the front panel facing down. 2) Loosen the nine (9) rear cover attachment screws, and remove the rear cover. Rear cover 3) Remove the three (3) inner unit attachment screws. Inner unit Inner unit attachment screws FP-790T User Manual...
  • Page 53 • Be sure to pull out the backlights gently if they become stuck in their holders, or they can be damaged. • When pulling out the backlight and holding the Positioning Tab, be sure not to cut or pinch your fingers. FP-790T User Manual...
  • Page 54 FP, do not connect the FP unit’s power cord until the screw has been removed. After changing the backlight, be sure to check that your FP display operates correctly. If a problem occurs, contact your local FP dis- tributor. FP-790T User Manual...
  • Page 55 MEMO FP-790T User Manual...
