Summary of Contents for Ecostrad Magma HHR

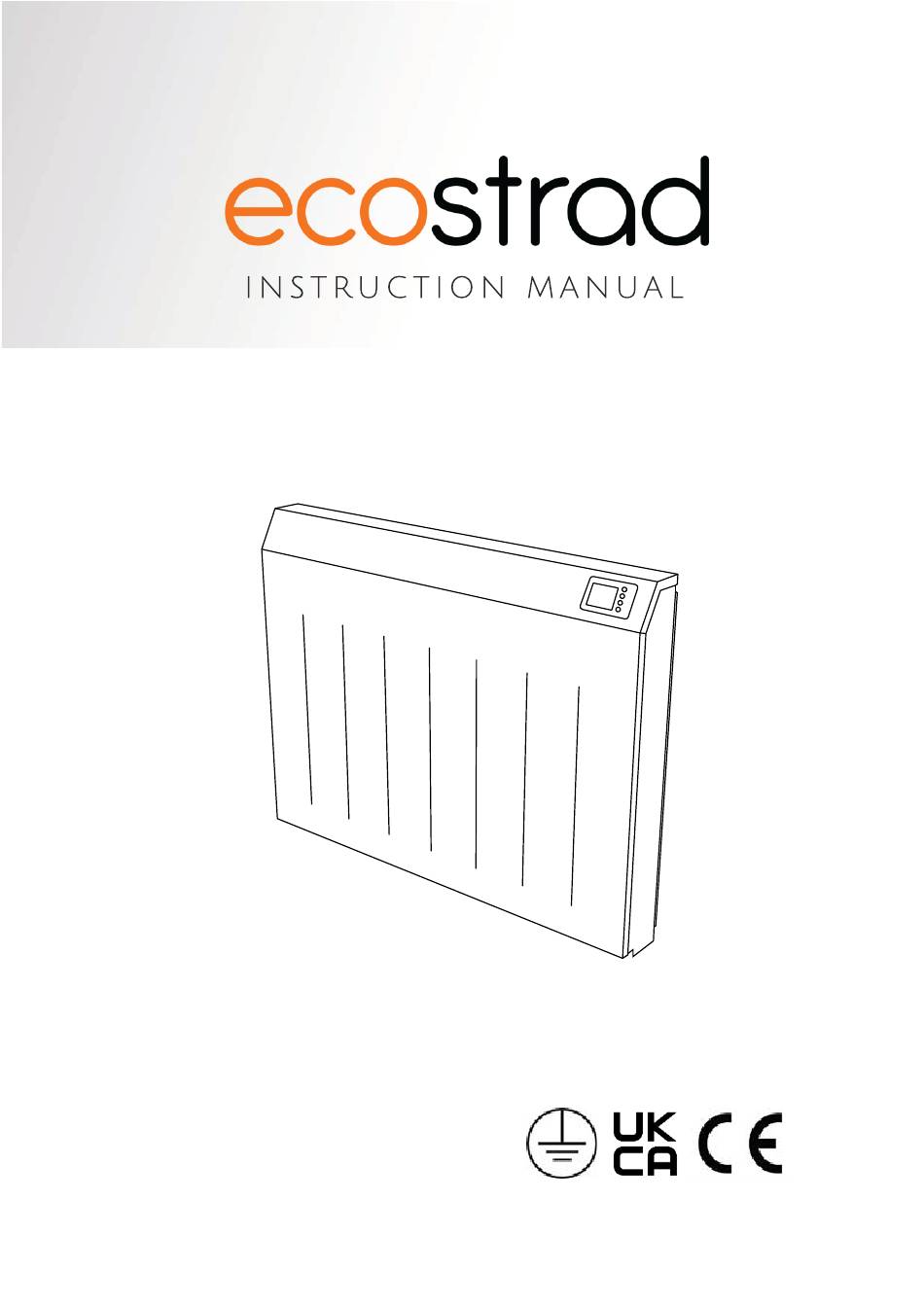

- Page 1 Ecostrad Magma HHR German Storage Heater PLEASE READ AND SAVE THESE INSTRUCTIONS...
- Page 3 Symbols Warning This symbol indicates a hazard with an average risk level which, if not avoided, could result in serious injury or death. Warning of electrical voltage This symbol indicates danger to the life and health of persons due to electrical voltage. Do not cover This symbol located on the device indicates that it is prohibited to place objects (such as towels, clothes etc.) above or directly in front of the device.
- Page 4 Ecostrad_Magma_HHR_User_V1-01_14022025...
-
Page 5: Table Of Contents
Contents About the Product - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Warnings & Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5 Technical Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8 Manual Operation- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 Getting the most out of your storage heater - - - - - - - - - - - - 9... -
Page 6: About The Product
It is important to thoroughly review this manual before operating the product. The accompanying installation manual details how to install the Ecostrad Magma HHR. Store the installation manual and user manual near the installed heater. Heat Performance The Ecostrad Magma HHR’s patented silent automatic vent system allows the... -
Page 7: Warnings & Precautions
2 | Warnings & Precautions READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Read this manual carefully before operating or installing the storage heater. Always store the manual in the immediate vicinity of the storage heater or its site of use. Failure to follow the warnings and instructions may result in electric shock, fire, serious injury, or all of the above. - Page 8 Warnings & Precautions READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Warning Some parts of this product can become very hot and cause burns. Do not touch the surface when in operation. Do not install close to curtains or other combustible materials. Particular attention should be given where children and vulnerable adults are present.
- Page 9 Warnings & Precautions • For installation in commercial buildings (e.g. workshop, hair salon, laboratories, etc.), please contact your professional association. • Do not use the device in rooms or environments that have a corrosive atmosphere. • Do not operate the device when wet. If the device gets wet during cleaning, allow it to dry out before using.
-
Page 10: Technical Information
3 | Technical Information Model E-MAGMA-HHR- E-MAGMA-HHR- E-MAGMA-HHR- SH-17 SH-25 SH-34 Nominal power 1700 W 2550 W 3400 W Nominal voltage 230V 50 Hz 230V 50 Hz 230V 50 Hz Nominal charge 13.6 kWh 20.4 kWh 27.2 kWh Maximum nominal 15.5 kWh 23.2 kWh 30.9 kWh... -
Page 11: Manual Operation
2. Set your heating schedule. The Ecostrad Magma HHR will automatically calculate how long it needs to charge to maintain your daily heating schedule, adjusting as needed to ensure no wasted energy. -
Page 12: Screen And Buttons
Manual Operation 4-2 | Screen and buttons The Ecostrad Magma HHR German Storage Heater has a TFT LCD screen and 4 push-buttons to control the device: Increase temperature. Navigate (when in menu). Decrease temperature. Navigate (when in menu). / OK Power the heater on or off. -
Page 13: Operation Modes
Manual Operation 4-3 | Operation Modes The Ecostrad Magma HHR has 4 operation modes Upon first power-on, select either fixed temperature or weekly schedule mode. Figure 1 | Operation modes from left to right: off, fixed temperature, weekly schedule, boost To toggle between OFF and your preferred heating mode, press ... -
Page 14: Weekly Schedule Mode
Manual Operation To change the set temperature 1. While in heating mode, use to select your desired temperature To change the 2. Press Save to confirm operating mode, refer to section The heater will enter the boost wizard, displaying possible durations ... -
Page 15: Device Pairing
Manual Operation 4-4 | Device pairing The Ecostrad Magma HHR must be paired with the SmartBox if WiFi When using the functionality is desired. WiFi control is available via the SmartControl app. heater without WiFi, all functions are available via... -
Page 16: Device Settings
Manual Operation 4-6 | Device settings To enter the device settings menu 1. Press and hold Menu for 5 seconds The settings menu will appear 2. Use to navigate 3. Press OK to select an option 4. Press Save to confirm and go back 4-6-1 | Temperature settings In the temperature settings menu, the preset temperatures can be adjusted. -
Page 17: Program Settings
Manual Operation To set the time and date 1. Press and hold Menu for 5 seconds The settings menu will appear 2. Select TIME & DATE and OK to select and change the TIME, DATE, or TIME FORMAT 3. Use 4. -
Page 18: Device Type
Manual Operation 4-6-4 | Device type Use the device type setting to change the operation mode of the heater between fixed temperature and weekly schedule modes. The weekly schedule operation mode is recommended for optimal energy savings and accuracy of charging times. To select the preferred heating mode 1. -
Page 19: Frost Protection
Manual Operation 4-6-5 | Frost protection The frost protection function can be enabled or disabled. • When enabled, the heater will ensure that the room temperature never drops below 3 °C, even while the heater is in OFF mode While in OFF mode, if frost protection is enabled, the display will ... - Page 20 Manual Operation Available periods include Disabled Top-up heat is never used Peak only allows Peak & Off-peak Top-up heat is used in both off-peak and peak intervals. the storage heater to keep Not recommended. your room warm Off-peak only Top-up heat is used only in off-peak intervals (during the even if it runs out charging schedule).
-
Page 21: Units
Manual Operation To set the charging days 1. Hold Menu down for 5 seconds to enter the settings menu and OK to navigate the menu 2. Select ADVANCED 3. Select CHARGE CONF. 4. Select PERIOD SCHEDULE 5. Select CHARG. DAYS 6. -
Page 22: Beep
3. Select BEEP 4. Select DISABLED or ENABLED 4-6-11 | Control type The Magma HHR is equipped with two different control types for the heating cycle; Hysteresis (HYST) and Proportional Integral Derivative (PID) control. PID 15 min (default) PID 30 min Hysteresis 0.25 °C... -
Page 23: Open Window Detection
Manual Operation To change the control type 1. Hold Menu down for 5 seconds to enter the settings menu and OK to navigate the menu 2. Select ADVANCED 3. Select CONTROL TYPE 4. Select the desired control type. 5. Press Save. Hysteresis (HYST) Hysteresis control simply releases heat until the room temperature is a specific value above the set temperature, then turns off the heat until the... -
Page 24: Smart Start
Manual Operation 4-6-13 | Smart start Smart start is a type of adaptive start that intelligently heats a room to reach Smart start only the scheduled temperature at the scheduled time. Smart start can be enabled works in weekly or disabled via the advanced settings menu. schedule mode •... -
Page 25: Parameters
Manual Operation 4-6-15 | Parameters WARNING The parameters option is for service engineer use only! Never change parameters without guidance from the manufacturer. Improper parameter changes could lead to malfunction and injury. 4-6-16 | Language The language option allows the user to choose between English, German, or Spanish. -
Page 26: Warranty
What does the warranty cover? Within the stated period, starting from the date the customer receives their unit, Ecostrad guarantee to repair or replace the unit where a fault is due to defects in materials or manufacturing. What does the warranty NOT cover? The warranty does not cover any defect arising from damage, negligence, usage outside the product’s intended purpose or fair wear and tear. -
Page 27: Disposal
For queries, contact: The UK manufacturer The ROI Importer Ecostrad Ltd. Ignition Heatco Ireland Limited Unit 21 Ash Way Unit 282 Avenue C Block G...
