Summary of Contents for Ecostrad Magma HHR

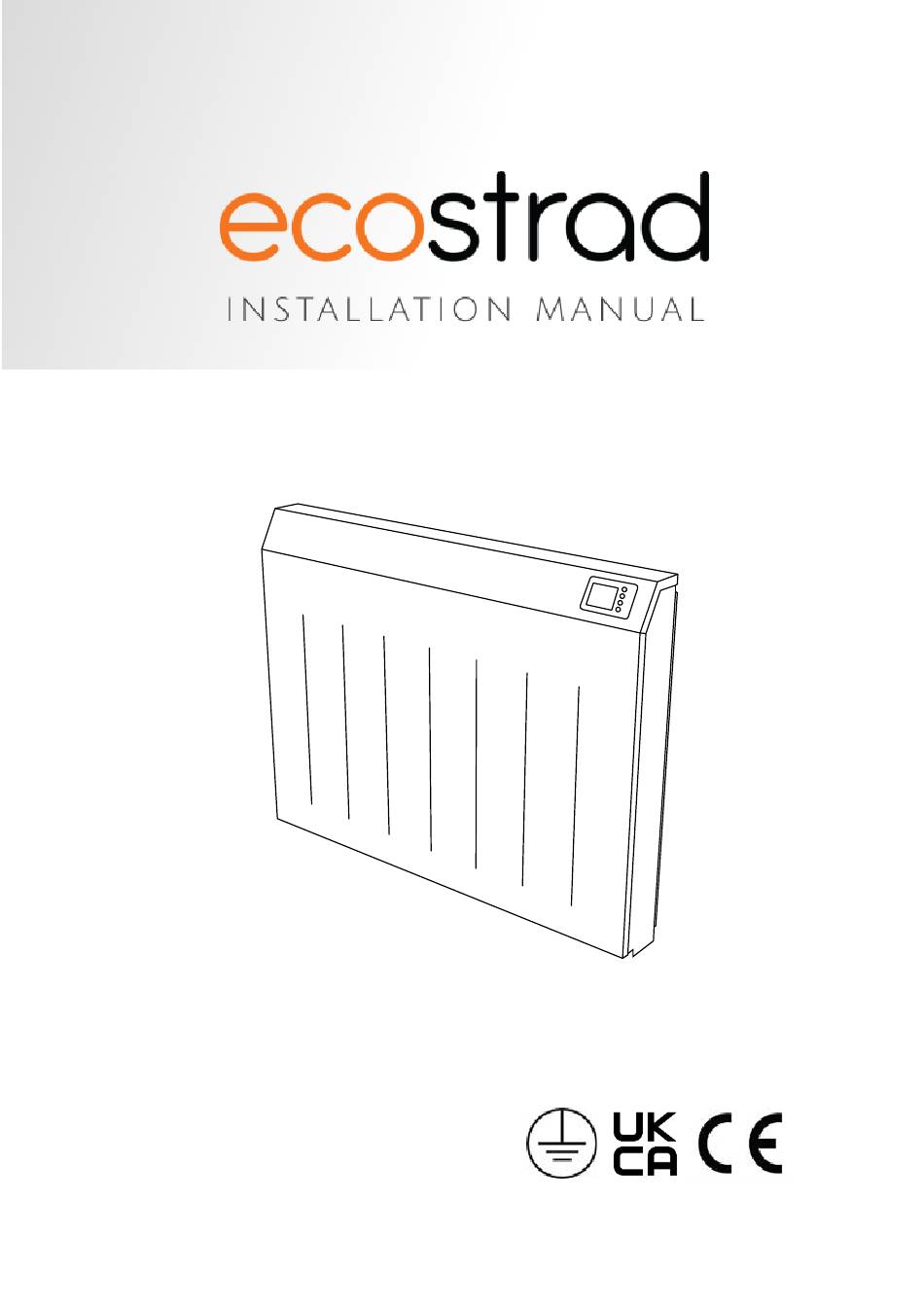

- Page 1 Ecostrad Magma HHR German Storage Heater PLEASE READ AND SAVE THESE INSTRUCTIONS...
- Page 2 Bl ank...
- Page 3 Symbols Warning This symbol indicates a hazard with an average risk level which, if not avoided, could result in serious injury or death. Warning of electrical voltage This symbol indicates danger to the life and health of persons due to electrical voltage. Do not cover This symbol located on the device indicates that it is prohibited to place objects (such as towels, clothes etc.) above or directly in front of the device.
- Page 4 Ecostrad_Magma_HHR_Install_V1-02_17032025...
-
Page 5: Table Of Contents
Contents About the Product - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Warnings & Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5 Technical Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8 Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 Minimum clearances - - - - - - - - - - - - - - - - - - - - - - - - - 9... -
Page 6: About The Product
HHR. Store the installation manual and user manual near the installed heater. Heat Performance The Ecostrad Magma HHR’s patented silent automatic vent system allows the storage heater to control heat release without a noisy fan. This storage heater generates and stores heat by heating elements that are surrounded by insulated stone bricks. -
Page 7: Warnings & Precautions
2 | Warnings & Precautions READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Read this manual carefully before using or installing the storage heater. Always store the manual in the immediate vicinity of the storage heater or its site of use. Failure to follow the warnings and instructions may result in electric shock, fire, serious injury, or all of the above. - Page 8 Warnings & Precautions Warning Some parts of this product can become very hot and cause burns. Do not touch the surface when in operation. Do not install close to curtains or other combustible materials. Particular attention should be given where children and vulnerable adults are present.
- Page 9 Warnings & Precautions • For installation in commercial buildings (e.g. workshop, hair salon, laboratories, etc.), please contact your professional association. • Do not use the device in rooms or environments that have a corrosive atmosphere. • Do not operate the device when wet. If the device gets wet during cleaning, allow it to dry out before using.
-
Page 10: Technical Information
3 | Technical Information Table 1 | Technical information Model E-MAGMA-HHR- E-MAGMA-HHR- E-MAGMA-HHR- SH-17 SH-25 SH-34 Nominal output 850 W 1300 W 1700 W Maximum room 13 m 20 m 26 m size Nominal power 1700 W 2550 W 3400 W Nominal voltage 230 V 50 Hz 230 V 50 Hz... -
Page 11: Installation
4 | Installation 4-1 | Minimum clearances When installing or operating the Ecostrad Magma HHR, always ensure that the minimum clearances are observed and respected. Risk of fire. • The floor must be stable and able to bear the combined weight of the storage heater body and its bricks. -
Page 12: Mounting Template
Installation 4-2 | Mounting template Figure 1 | Mounting distances Table 2 | Mounting distances Model E-MAGMA-HHR-SH-17 632 mm 582 mm 110 mm 325 mm 587 mm E-MAGMA-HHR-SH-25 632 mm 582 mm 103 mm 333 mm 800 mm E-MAGMA-HHR-SH-34 632 mm 582 mm 133 mm 536 mm... -
Page 13: Preparing The Radiator And Wall
B: Anchoring screws C: Inner panel screws To protect against tipping, the Ecostrad Magma HHR must be fixed to the wall with the appropriate fixings. Figure 2 | Installing the anchoring screws 5. Remove the storage heater from the wall 6. -
Page 14: Filling The Radiator With Ceramic Stones
An unsecured storage heater could tip over, causing injury or death. The inner plate To protect against tipping, the slots onto the (E) Ecostrad Magma HHR must be screws when fixed to the wall with the fully installed. appropriate fixings. -
Page 15: Connecting The Electronics
Installation 4-5 | Connecting the electronics 17. Connect the panel heater element to the temperature sensor (H). Black cable on top, brown cable on bottom. 18. Connect the control panel to the inner panel (I). Red cable to red plug, white cable to white plug, black cable to black plug, and ribbon cable to ribbon plug. - Page 16 Installation 19. Connect the power supply. Insert the 24 hour supply flex cable through The 24H flex the black box below the radiator. This black box protects the power should be connections from being strained by movement of the flex cable. connected to the primary energy 20.
-
Page 17: Finalising The Installation
Installation 4-6 | Finalising the installation 32. Carefully close the front panel, ensuring that no wires are pinched. 33. The front panel slides over the top ridge of the back panel, and is secured in place by the two screws at the bottom of the front panel. 34. -
Page 18: Post-Assembly Check
Installation 4-8 | Post-assembly check After assembling and wiring the unit, the functionality must be checked. Before using the appliance, test the following features: Test the insulation with a test voltage of at least 500 V. The insulation resistance has to be at least 0.5 MΩ ... -
Page 19: Initial Setup
When do you want your top-up heating element to be enabled? It can take up to a week for the storage heater to calibrate the overnight charge to suit the room’s heat needs. Ecostrad recommends keeping the top-up heating element active during the initial calibration period. - Page 20 Initial setup How would you like to set your weekly schedule? Choose your preferred preset temperatures. Temperatures can be set from Skip if operating 5 °C to 30 °C. Comfort > Economy > Anti-frost mode is fixed temperature Comfort temperature: Economy temperature: Anti-Frost temperature: Mark the schedule templates with the preferred hourly preset temperatures.
-
Page 21: Initial Setup
Download the app with the QR Code link below, or search for SmartControl Heating on the App Store or Google Play. https://ecostrad.com/magma-app/ To pair the SmartBox to the app 1. In the app, press the menu at the top right of the home screen. - Page 22 Initial setup 5-2-2 | Set time Skip if connected to WiFi. Time will automatically sync. To set the time and date 1. Press and hold Menu for 5 seconds The settings menu will appear 2. Select TIME & DATE and OK to select and change the TIME, DATE, or TIME FORMAT 3.
-
Page 23: Choose Operation Mode
Initial setup 5-2-4 | Choose operation mode This can also be completed via the WiFi app if preferred. To select the preferred heating mode 1. Hold Menu down to enter the settings menu and OK to navigate the menu 2. - Page 24 Initial setup To program the heater 1. Press and hold Menu for 5 seconds The settings menu will appear 2. Select PROGRAM and OK 3. Select the weekday you wish to program with 4. Press OK to select EDIT 5.
-
Page 25: Wiring Diagrams
6 | Wiring Diagrams Ecostrad_Magma_HHR_Install_V1-02_17032025... - Page 26 Wiring Diagrams Ecostrad_Magma_HHR_Install_V1-02_17032025...
- Page 27 Wiring Diagrams Ecostrad_Magma_HHR_Install_V1-02_17032025...
-
Page 28: Warranty
What does the warranty cover? Within the stated period, starting from the date the customer receives their unit, Ecostrad guarantee to repair or replace the unit where a fault is due to defects in materials or manufacturing. What does the warranty NOT cover? The warranty does not cover any defect arising from damage, negligence, usage outside the product’s intended purpose or fair wear and tear. -
Page 29: Erp Ecodesign Information
8 | ErP Ecodesign Information Table 4 | Information requirements for electrical room heaters Designation E-MAGMA-HHR- E-MAGMA-HHR- E-MAGMA-HHR- SH-17 SH-25 SH-34 Heating Capacity Nominal thermal 1.7 kW 2.55 kW 3.4 kW output (P Minimal thermal 1.7 kW 2.55 kW 3.4 kW output (indicative) Maximum 1.7 kW... - Page 30 ErP Ecodesign Information Item Unit Electronic temperature control in the room, depending on the time of Electronic temperature control in the room, depending on the weekday Other control options (multiple choice is possible) Room temperature control with presence detection Room temperature control with detection of an opened window With remote control option With adaptive start control With limitation of heating time...
-
Page 31: Disposal
For queries, contact: The UK manufacturer The ROI Importer Ecostrad Ltd. Ignition Heatco Ireland Limited Unit 21 Ash Way Unit 282 Avenue C Block G... - Page 32 Ecostrad_Magma_HHR_Install_V1-02_17032025...
