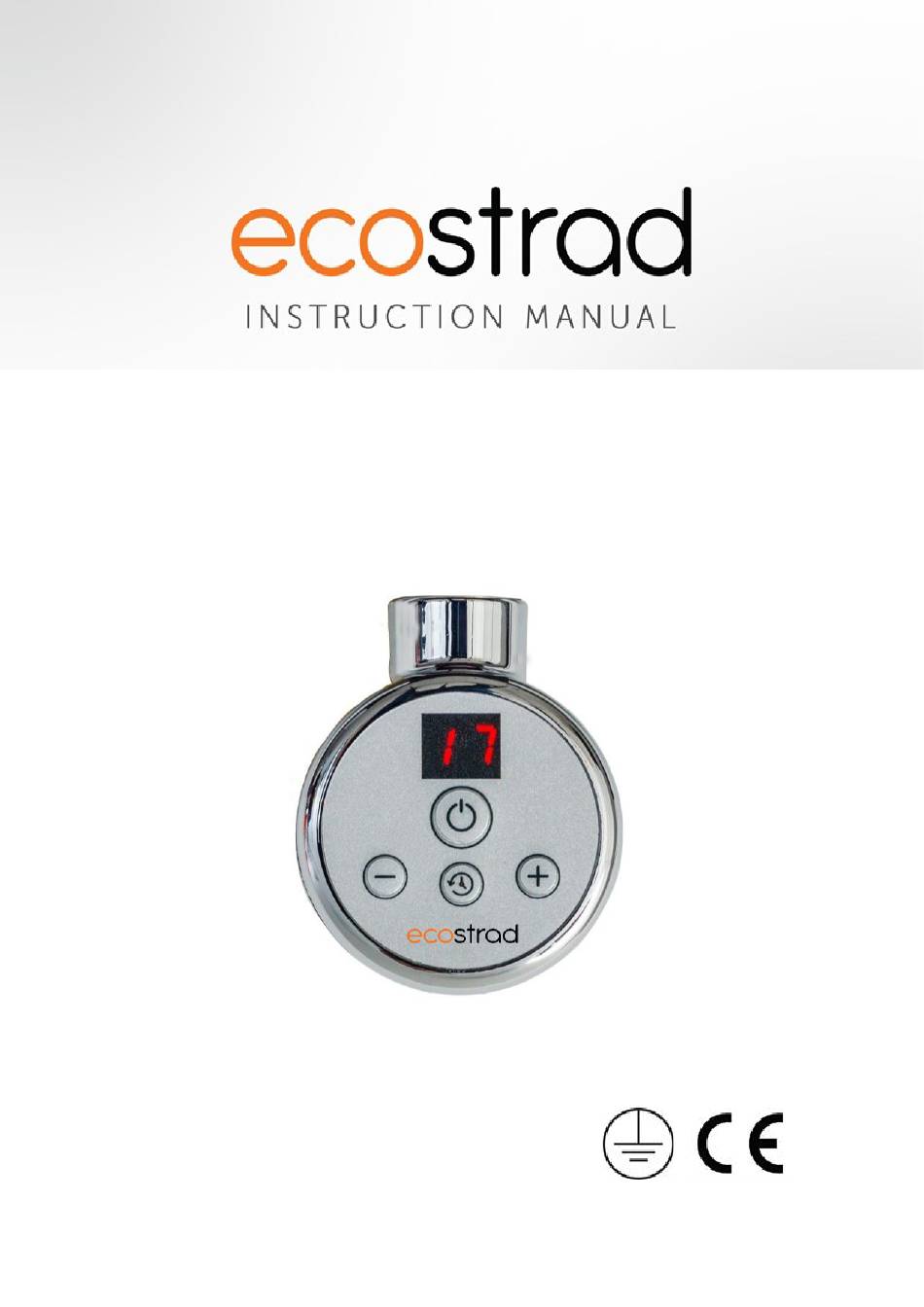

- Page 1 Ecostrad Digital Heating Element PLEASE READ AND SAVE THESE INSTRUCTIONS...
- Page 2 Symbols Warning This symbol indicates a hazard with an average risk level which, if not avoided, could result in serious injury or death. Warning of electrical voltage This symbol indicates danger to the life and health of persons due to electrical voltage.
-
Page 3: Table Of Contents
Contents About the Manual - - - - - - - - - - - - - - - - - - - - 4 2 | Warnings & Precautions- - - - - - - - - - - - - - - - - 4 3 | Technical Information - - - - - - - - - - - - - - - - - - 7 4 | Installation - - - - - - - - - - - - - - - - - - - - - - - - - 7 Fitting instructions - - - - - - - - - - - - - - - - 8... -
Page 4: About The Manual
1 | About the Manual This manual describes the Ecostrad Digital Heating Element and details how to install and use the product. It is important to thoroughly review this manual before using the product. Ecostrad declines all responsibility for any operations effected on the appliance without respecting the instructions reported in this manual. - Page 5 Warning Some parts of this product can become very hot and cause burns. Do not touch the surface when in operation. Do not install close to curtains or other combustible materials. Particular attention should be given where children and vulnerable adults are present. Warning Do not use the device in enclosed spaces if persons are present who cannot leave the room independently and are not under constant supervision.
- Page 6 • The element can be installed in bathrooms in Zone 1, as defined by applicable law, subject to any additional regulations concerning electrical installations in wet areas, as shown in Figure 1. Figure 1 | Bathroom installation zones • The element must be placed where the switches and controllers cannot be touched by a person in a bathtub or shower.
-
Page 7: Technical Information
3 | Technical Information Table 1 | Specifications Voltage 230V AC / 50Hz Wattage 200-1000W Room temperature setting 10–35 °C IP Rating IP44 Appliance class Class I Power cable length 1.5m Thread size G ½ " Certification These products are in compliance with 2014/30/EU Electromagnetic Compatibility Directive and 014/35/EU Low... -
Page 8: Fitting Instructions
Control Head Power Cord Figure 2 | Ecostrad Digital components If you have purchased a pre-filled towel rail with the element already installed, skip to step 7 below. 1. Read all safety instructions and warnings stated in the preceding section of this manual. - Page 9 3. Tilt the towel rail until the fitting location is at the highest point, as shown in Figure 4. This prevents any fluid escaping if your towel rail is pre-filled. Figure 4 | Inlet tilted to its highest point before opening.. 4.
- Page 10 Figure 6 | Removing towel rail cap and using funnel to fill Figure 7 | Air cushion requirement 7. Rotate the towel rail to its correct orientation and hang on the wall, according to the instructions provided with the unit. 8.
-
Page 11: Control Dial
Temperature or Timer Figure 8 | Control dial display When the Digital is first turned on after being disconnected from the mains, the screen will show a countdown from 3 before entering standby mode. 5-2 | Standby mode In standby mode the element does not heat. You can use the button to switch between standby and on. -
Page 12: Timer Mode
The time it takes for the room to reach the set temperature depends on many factors, including the size of the room and the power of the heating element. 5-4 | Timer mode When the timer is set, the element will heat to the set room temperature for the time period selected. -
Page 13: Troubleshooting
Ecostrad. The element is not a DIY product; an invoice may be required to confirm installation was carried out by a qualified professional. Ecostrad cannot accept responsibility for damage, loss or injury caused by incorrect installation, maintenance, cleaning or covering the device. -
Page 14: Disposal
The warranty covers only the model shown on the purchase invoice. The warranty covers the repair or replacement of the defective product only and Ecostrad shall have no liability for installation costs or consequential losses however incurred. Claims must be made with the establishment where the device was purchased.
