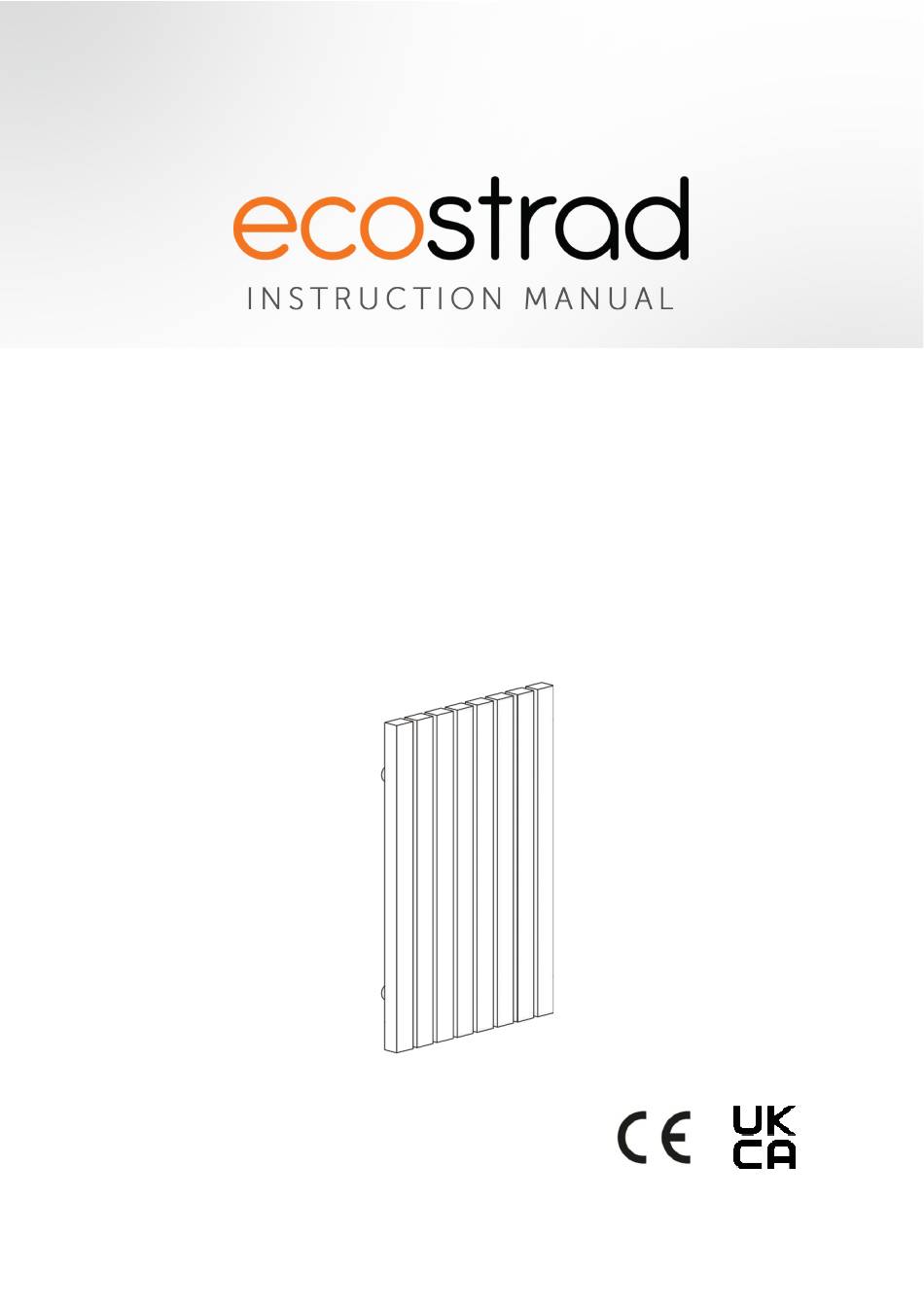

- Page 1 Ecostrad Designer Electric Radiators ADESSO Horizontal...
- Page 2 1 | Warnings & Precautions Please read these instructions thoroughly before commencing installation. Check that all ancillary components are present and that the product has not suffered any damage during transit. This radiator is supplied with an electric heating element and is for use with an electric supply only.
- Page 3 2 | Installation 1 – Components Before beginning installation, check that all fixings are supplied. The radiator should only be mounted with the manufacturer’s fixings. Part Description Radiator Brackets M6 Screws (M6x12) Wall Plugs Wall Brackets Washers Wall Screws (ST6x65mm) M5 Screws (M5x12) Element *...
- Page 4 3 – Wall Mounting 1. Check that the wall is strong enough to hold the weight of the pre-filled radiator. The fixings supplied are suitable for use in solid masonry. For any other wall type you will need to source appropriate fixings. If fitting to a plasterboard wall, either fit directly to the wooden struts or otherwise strengthen the wall;...
- Page 5 b. Using a 10mm drill bit, drill four holes in the marked locations and push the Wall Plugs inside. c. Position the Wall Brackets over the holes and fix in places using the Washers and Wall Screws (F). 4. Lift the radiator, slide the Radiator Brackets inside the Wall Brackets and fix in place with the M5 Screws (G).
- Page 6 4 | Warranty The Ecostrad Adesso carries a 10-year guarantee on the steel body, a 3-year guarantee on paintwork and a 2-year guarantee on electrical components. Within the stated period, starting from the date the customer receives their unit, Ecostrad guarantee to repair or replace the unit where a fault is due to defects in materials or manufacturing.
