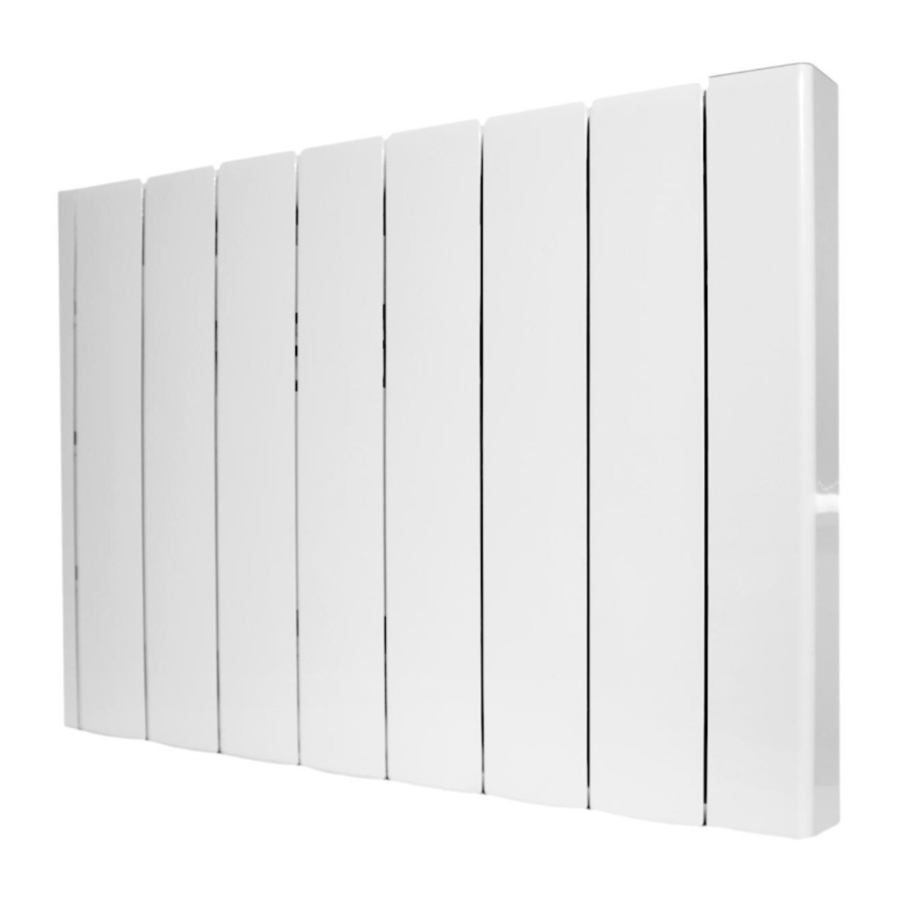

Ecostrad iQ Ceramic Manual

Control Panel

All features and settings are accessible from both the control panel and the Ecosystem WiFi App.

Standby Mode

In standby mode, the radiator will not heat.

  • Tap to turn off the radiator

Child Lock

Lock all keys on the display to prevent accidental changes.

  • Hold and for 5 seconds to enable or disable the child lock When enabled, will appear.

Select Heating Mode

  • Tap to turn on the radiator
  • Tap to switch between program and manual

Program Mode

In program mode, the radiator will heat the room according to the user-set program.

  • Press and hold to change the set time and weekly program

Manual Mode

In manual mode, the radiator will heat the room to the set temperature indefinitely.

  • Short press or to increase or decrease the set temperature in steps of 0.5°C
  • Press and hold to change the preset temperatures for comfort, eco, and frost

Display

Control Panel - Display

Tap button in all modes ( )

  • Standby On/Off
  • Down Navigate/Decrease
  • Up Navigate/Increase
  • Confirm Select

Hold button in all modes ()

  • Down
  • with Up Child Lock

Hold button in manual mode ()

  • Rocket Boost
  • Confirm Change preset temperatures

Hold button in program mode ()

  • Rocket Boost
  • Confirm Change time / Change program

Hold button in standby mode ()

  • Standby Restore defaults
  • Down Settings menu
  • Confirm WiFi pairing mode

Boost Mode

Use boost mode to raise or lower the temperature for a set period of time.

  1. Hold to enter the boost menu or cancel the existing boost
  2. Select the boost temperature using and
  3. Select the boost duration using and

Change Time & Program

The iQ Ceramic's displayed time and weekly program may be changed manually using the display.

The radiator must be in program mode to adjust the program or time.
Change Time & Program

  1. Enter program mode
  2. Press and hold
  3. Select the current day, hour and minute using and
  4. After the time has been set, tap to select a preset to apply to the first hour ( comfort, eco or frost).
    • In the programming menu, the hour you are setting (e.g 21:00) and the applied preset temperature (e.g ) will flash.
  5. Scroll forwards and backwards through the hours of the day using and
    • The selected preset temperature will be applied to the hourly periods as you move through them
    • Choose a new preset temperature anytime by tapping
  6. When complete, tap or take no action for 30 seconds to return to program mode.

Preset Temperatures

The preset temperatures for comfort, eco, and frost are used in manual mode when the sensor is enabled, and in program mode.

The radiator must be in manual mode to adjust the preset temperatures.

  1. Enter manual mode
  2. Press and hold
  3. Select the preset temperatures for comfort, eco and frost using and .

Ecosystem App

Initial Setup (Ecosystem App)

Scan the QR code to download the Ecosystem app on iOS or Android

  1. Create your account
  2. Navigate to Manage Hub
  3. Press by My Heaters
  4. Select the iQ Ceramic from the list of available radiators
  5. Follow the instructions in the app to complete the connection

Controls (Ecosystem App)


  1. Return to Hub
  2. Add Heater
  3. Change App Settings
  4. Control Heater
  5. Change Program
  6. Change Target Temperature
  7. Power On/Off
  8. Change Mode
  9. Change Heater Settings

Set the Program (Ecosystem App)

Set the Program (Ecosystem App)

  1. Tap Program
  2. Tap the day you wish to program
  3. Drag and drop eco and comfort on the desired time frames. Any periods left white will be set to frost.
  4. Select Set & Save
  5. To duplicate your program, select Copy then tap the days that you wish to copy the program to.

SAFETY WARNINGS


READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.
Read the provided full manual carefully before using or installing the radiator. Always store the full manual in the immediate vicinity of the radiator or its site of use. Failure to follow the warnings and instructions may result in electric shock, fire, serious injury, or all of the above. Save all warnings and instructions for future reference.

Always respect the minimum safe distances from surrounding walls, ceilings or fixed objects as stated below:

  • 20 cm from the sides
  • 10 cm from the bottom
  • 20 cm from the top
  • 60 cm from the front

Symbols

Symbol Meaning Symbol Meaning
Comfort Manual mode
Eco Program mode
Frost Connected to WiFi
Device is heating Open window detection active
Sensor mode active Child lock active
