Summary of Contents for Ecostrad Thermostrip

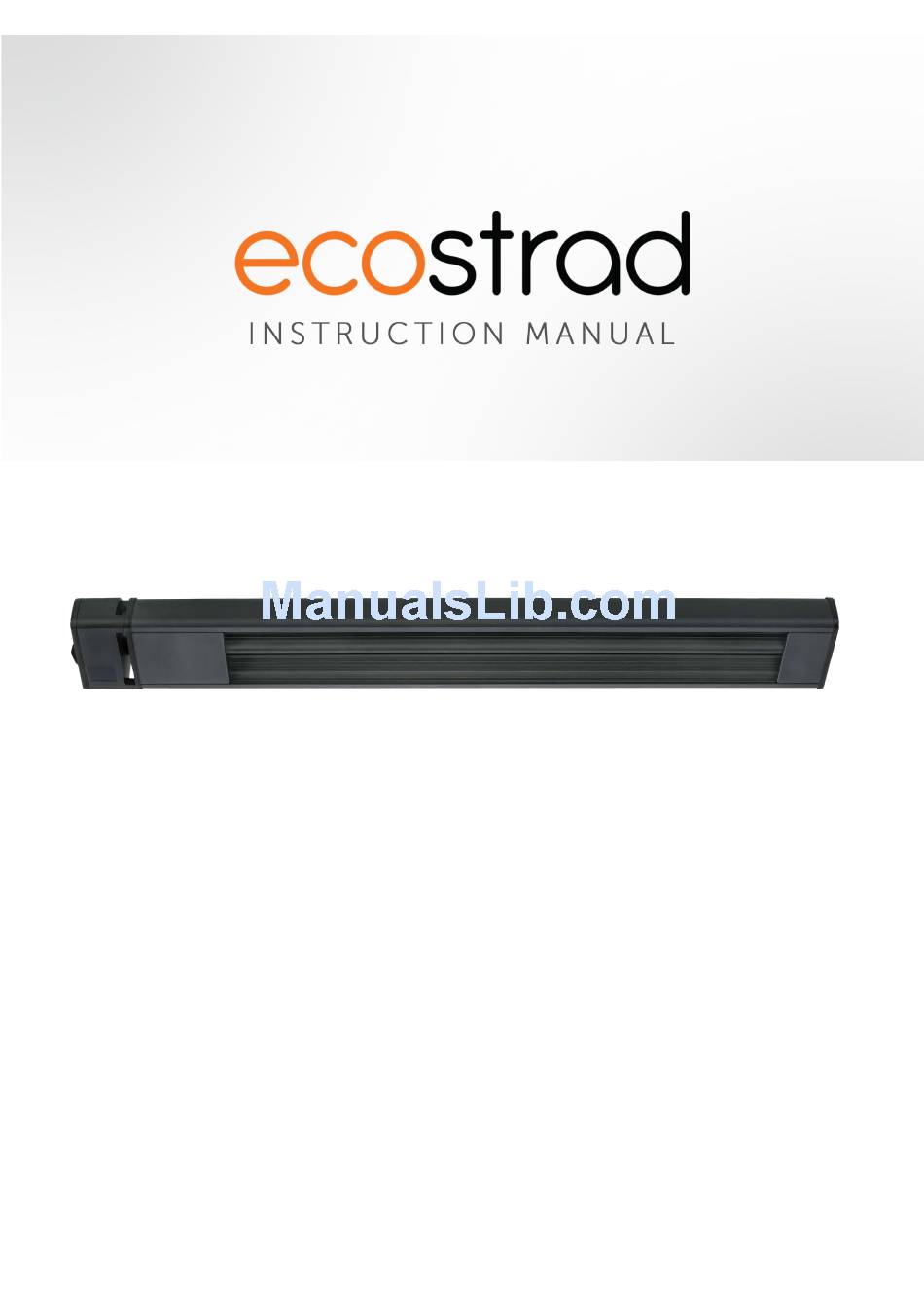

- Page 1 Model: Ecostrad Thermostrip Model no.: AH24CP 2400 W Ratings: 220 V – 240 V; 50 Hz; Class I; IP65...
-
Page 2: Safety Notes

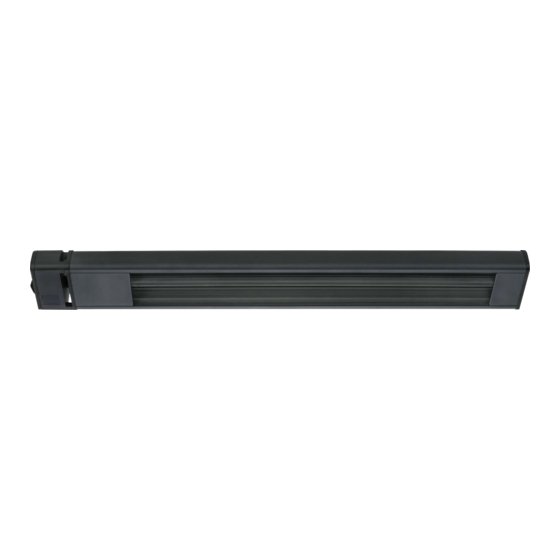

Introduction The Ecostrad Thermostrip is a versatile infrared heater that provides radiant infrared heat without any visible light. The Thermostrip’s wire element delivers heat that is gentle enough to be 100% comfortable, even after prolonged use, but strong enough to have an impact in spacious locations. Suitable for wall and ceiling mounting in a variety of hard-to-heat locations. -
Page 3: Assembly Instructions
Installation: The Thermostrip is suitable for wall or ceiling mounting. The instructions below apply to both types of installation. IMPORTANT: The heater must be installed at least 2.1m from the ground, at least 500mm from adjacent walls and (if wall mounted) orientated so it is horizontally level with the control panel on the left. - Page 4 700mm 700mm 1138mm Expansion Bolt M6*70 Washer Upper L Bracket Spring Washer Screw Nut Screw M6*16 Lower L Screw Bracket M6*8 (x2)
- Page 5 Upper L Bracket Lower L Bracket 0° R O T A T I O N...
-
Page 6: Using The Heater
Using the Heater 1. Plug the unit into a socket. Make sure the power supply is the same as rated: 220 – 240 V. 2. Switch the heater on and off via the large switch on the left side. Cleaning: Unplug the unit before cleaning.
