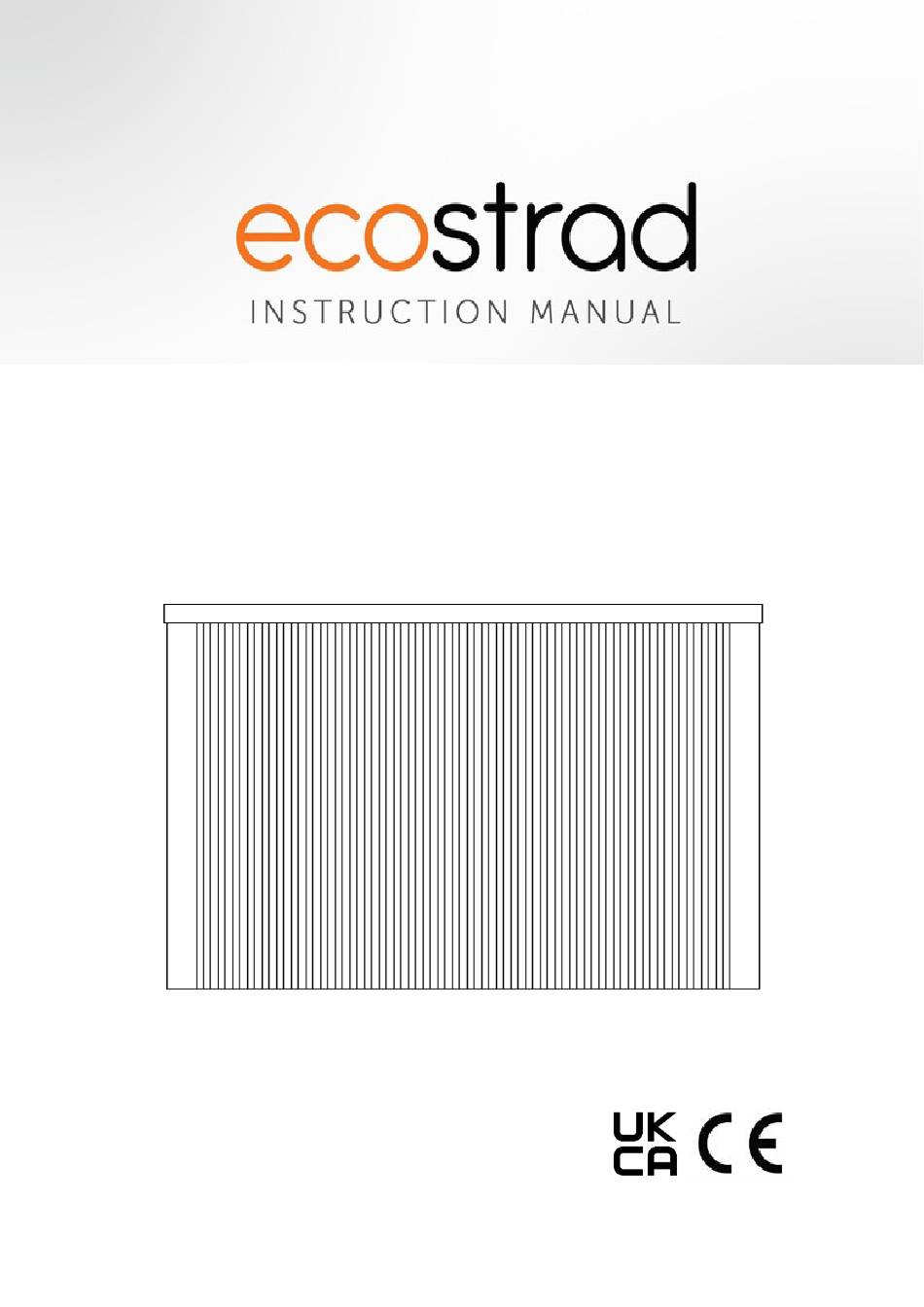

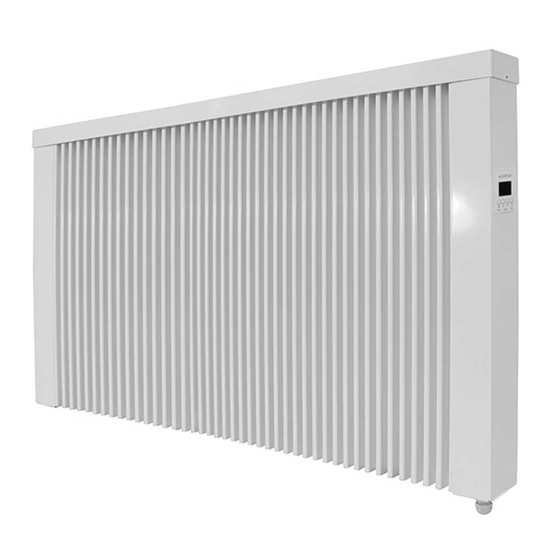

- Page 1 Ecostrad Klasse iQ Electric German Radiator PLEASE READ AND SAVE THESE INSTRUCTIONS...
- Page 2 Symbols Warning This symbol indicates a hazard with an average risk level which, if not avoided, could result in serious injury or death. Warning of electrical voltage This symbol indicates danger to the life and health of persons due to electrical voltage. Do not cover This symbol located on the device indicates that it is prohibited to place objects (such as towels, clothes etc.) above or directly in front of the device.
-
Page 3: Table Of Contents
Contents About the Product - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Warnings & Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5 Technical Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7 Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8 Fixings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8... -
Page 4: About The Product
The deep fluted front and back panels of the Ecostrad Klasse iQ increase the surface area and funnel air past the hot ceramic core, ensuring maximum heat diffusion. -
Page 5: Warnings & Precautions
2 | Warnings & Precautions READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Read this manual carefully before using or installing the radiator. Always store the manual in the immediate vicinity of the radiator or its site of use. Failure to follow the warnings and instructions may result in electric shock, fire, serious injury, or all of the above. - Page 6 Warnings & Precautions READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. • In the event of a fixed connection, an all-pole separator with a minimum 3mm contact opening width must be built in. • Keep the power cable away from all hot parts of the appliance. •...
-
Page 7: Technical Information
3 | Technical Information Table 1 | Specifications Heating Element Magmatic® Heat Retention Tablets. Voltage 230V 50 Hz Wattage Horizontal 500W, 1000W, 1500W, 1800W, 2000W Vertical 1200W, 1800W 800W, 1600W Set Temperature Range 7-30 °C Set Temperature Resolution 0.5 °C IP Rating IP20 Appliance Class... -
Page 8: Installation
4 | Installation 4-1 | Fixings BEFORE BEGINNING INSTALLATION, CHECK THAT ALL FIXINGS IN ARE SUPPLIED. Table 3 The radiator should only be wall mounted with the manufacturer’s fixings. Table 3 | Fixings supplied with radiator WARNING The fixings supplied are designed for installation onto solid walls and... - Page 9 Installation Choose the mounting position, respecting the minimum distances from surrounding walls, ceilings or fixed objects as stated below: 5 cm from the sides to masonry 10 cm from the sides to flammable materials 8 cm from the bottom to the floor ...
- Page 10 Installation 3. Use the A and B measurements to locate the positions of the U-rails on the wall. There should be A mm between the U-rails. The base of the U-rail should be positioned B mm off the ground. Figure 1 | Finding the U-rail locations 4.
- Page 11 Installation Fit the two bottom hooks into the slots on the U-rails with the hook facing up, as shown in Figure 5 below. Figure 5 | Inserting bottom hooks 8. Insert the two top hooks into the U-rails with the hook facing down. Pull the top hooks up as far as the slot will...
- Page 12 Installation WARNING – DUE TO THE WEIGHT OF THE HEATER, IT IS RECOMMENDED THAT THE FOLLOWING INSTALLATION STEPS ARE NOT ATTEMPTED ALONE 9. Slot the bottom of the heater onto the bottom hooks so that the bottom hook fits between the ribs on the front of the heater (Figure 7). 10.
-
Page 13: Connecting To Power
2. Connect the kettle lead socket to the radiator. The connection point is on the bottom of the end panel. 3. Insert the plug into a standard 230V socket. The Ecostrad Klasse iQ may be hard-wired, providing it is wired by a qualified electrician according to all national wiring regulations. Ecostrad_Klasse_iQ_V1-05_10072024... -
Page 14: Controlling The Radiator
Figure 10 | Control dial display 5-2 | First power on When the Ecostrad Klasse iQ first powers on, the screen will stay blank for approximately 5 seconds. After this, the Ecostrad loading screen will appear and the radiator will turn on in manual mode. -
Page 15: Heating Modes
Controlling the Radiator 5-4 | Heating modes The Ecostrad Klasse iQ has 2 main heating modes: manual mode and program mode. There Short press is also a boost mode which can be activated in both manual and program mode. to toggle... -
Page 16: Settings
Controlling the Radiator 5-4-4 | Boost The Ecostrad Klasse iQ is equipped with an easy boost feature which allows you to Short press temporarily change the set temperature for up to 24 hours without altering your current to toggle settings. - Page 17 Long press pre-set temperatures, and turn on or off adaptive start. to enter the The program of the Ecostrad Klasse iQ consists of 24 hour-long slots which can each be set Settings menu. to a pre-set temperature: comfort , eco or anti-frost .
- Page 18 Select Program and Adaptive The Klasse iQ assesses the need for adaptive start 1 hour before a scheduled temperature increase is due to kick in, allowing 15 start with minutes for every degree the current room temperature is below the scheduled set temperature.
- Page 19 Controlling the Radiator 5-5-4 | Keypad lock The keypad lock allows you to disable the keys, preventing Long press accidental adjustments of the heating parameters. The keypad lock can be activated in any mode, including standby. together for 5 To lock or unlock the keypad: seconds.
- Page 20 Select Interface and Sound 2. Short press to confirm. with Language The Ecostrad Klasse iQ is set up for English and German. Long press To change the language: to enter the Settings menu. to choose between English and German. Select Interface 2.
- Page 21 Controlling the Radiator Factory reset To restore the device to default settings: Long press to choose Yes. to enter the Settings menu. 2. Short press to confirm. All parameters, including programming, will return to the defaults Select Interface as detailed in Table 5. and Factory reset with...
-
Page 22: Wi-Fi Connection
Smart Life is a smart home application created by a third party developer. Smart Life is a great way to integrate your Ecostrad heater with your existing smart home, as it is compatible with a variety of smart devices that you may already use. -
Page 23: Ecosystem App
7 | Ecosystem App 7-1 | Downloading the app The Ecosystem app is designed to work for the Ecostrad Klasse iQ Electric Scan the QR German Radiator. code to Please install the app and follow the instructions to create an account. - Page 24 Ecosystem App 7-3-2 | Control interface Tap My Heaters at the bottom of the screen to view all your heaters. To select your desired heater, swipe to the left or right on top of the current heater selection. Select Control to enter the control interface for the currently selected heater. Here you can turn the radiator off and on, adjust set temperatures, choose mode, change the weekly program and access the device settings.
-
Page 25: Device Settings
Ecosystem App 7-3-7 | Setting the Program Tap the Program tab on the control interface to configure Your current set a program. program will A program consists of 24 hourly intervals for each day, only run while which you can set to comfort, eco, or anti-frost the radiator is in temperatures. -
Page 26: Smart Life App
8 | Smart Life App 8-1 | Downloading the app The Ecostrad Klasse iQ Electric German Radiator is designed to work with the Scan the QR Smart Life app. code to NOTE — The Smart Life app is a constantly evolving third party system. This... -
Page 27: Using The Smart Life App
Smart Life App 4. The app will demonstrate that it has found the radiator (see Figure 12). Press “Add”, then tap the icon. Figure 12 | Finding device on Smart Life app 5. The app may ask you to choose your WiFi network and enter the password. - Page 28 Smart Life App 8-3-2 | Control interface Tap the heater listing to go to the control interface. Here you can turn the radiator off and on, adjust set temperatures, choose mode and access weekly programmer and device settings. Product name General Settings Set temperature Set Boost...
- Page 29 Smart Life App 8-3-5 | Program mode In program mode, the set temperature can be adjusted using the - and + keys. This will set a temporary override temperature which will last until the next hour begins. 8-3-6 | Boost mode Tap the rocket icon to access the boost setting menu.
-
Page 30: Device Settings
Make sure you give the heater a name that’s easy for you to say and for your voice interface to understand. You can change the radiator’s name in the Smart Life app. Table 6 | Voice commands for the Ecostrad Klasse iQ Command Action Turn on <device name>... - Page 31 Smart Life App Table 6 | Voice commands for the Ecostrad Klasse iQ (Continued) Command Action Set <device name> to <temperature> In manual mode, this changes • degrees the manual set temperature. In program mode, this °C changes the temporary override temperature.
-
Page 32: Warranty
9 | Warranty The Ecostrad Klasse iQ Electric German Radiator carries a 15-year guarantee on the body, a 3-year guarantee on paintwork and a 2-year guarantee on electrical components. What does the warranty cover? Within the stated period, starting from the date the customer receives their unit, Ecostrad guarantee to repair or replace the unit where a fault is due to defects in materials or manufacturing. -
Page 33: Disposal
For queries, contact: The UK manufacturer The ROI Importer Ecostrad Ltd. Ignition Heatco Ireland Limited Unit 21 Ash Way Unit 282 Avenue C Block G...
