Summary of Contents for Ecostrad iQ Ceramic

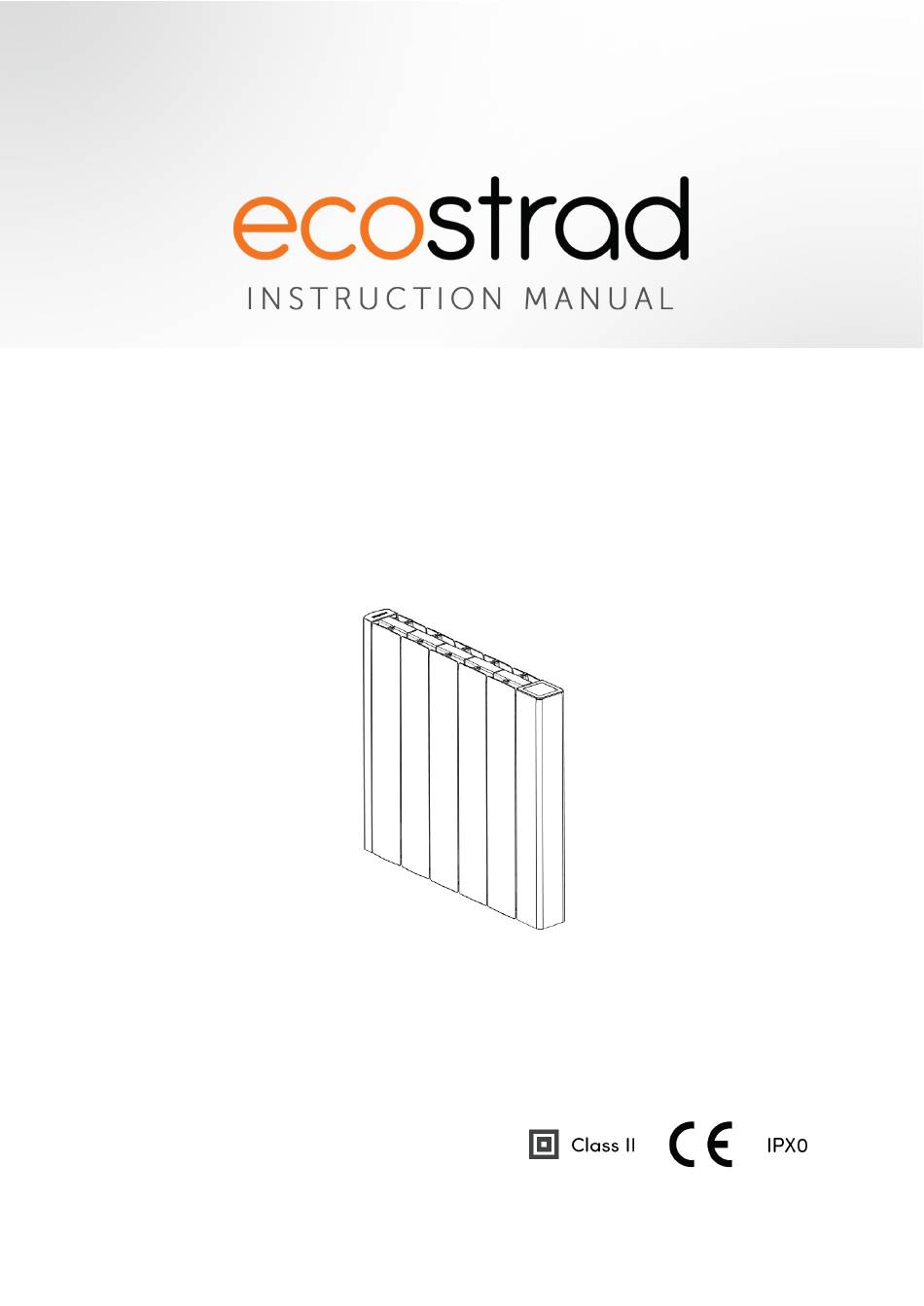

- Page 1 Ecostrad iQ Ceramic Electric Radiator PLEASE READ AND SAVE THESE INSTRUCTIONS...
- Page 2 Symbols Warning This symbol indicates a hazard with an average risk level which, if not avoided, could result in serious injury or death. Warning of electrical voltage This symbol indicates danger to the life and health of persons due to electrical voltage.
-
Page 3: Table Of Contents
Contents Warnings & Precautions Technical Information Installation Fixings 3-2 Wall mounting instructions Control Panel Power switch 4-2 Display 4-3 Modes 4-4 Settings 4-5 Child lock 4-6 Reset to defaults 4-7 Standby mode WiFi Control Downloading the app 5-2 Connecting to the app Using the App Home overview 6-2 Control interface... -
Page 4: Warnings & Precautions
1 | Warnings & Precautions Read this manual carefully before using or installing the radiator. Always store the manual in the immediate vicinity of the radiator or its site of use. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, serious injury, or all of the above. - Page 5 Warning Some parts of this product can become very hot and cause burns. Do not touch the surface when in operation. Do not install close to curtains or other combustible materials. Particular attention should be given where children and vulnerable adults are present. •...
-
Page 6: Technical Information
• Do not operate the device when wet. If the device gets wet during cleaning, allow it to dry out before using. • Do not expose the device to water jets. • Do not transport the device during operation. • Do not sit on the device. •... -
Page 7: Installation
3 | Installation 3 – 1 Fixings Before beginning installation, check that all fixings are supplied. The radiator should only be wall mounted with the manufacturer’s fixings. 3 – 2 | Wall Mounting Instructions Warning – Before switching on the appliance make sure that the radiator is correctly fixed and is secure to the wall. - Page 8 2. Using the template, mark the locations of the 5 drill holes required for your product size. Fit the wall plugs into the holes and use the wall mounting screws to fix the brackets in place as per the diagram below. Drill hole distances by product size: Model Distance 500W...
-
Page 9: Control Panel
4 | Control Panel 4 – 1 | Power Switch Before first use, the radiator must be switched on at the mechanical switch at the back of the unit. This switch must be left in the ON position if you want the radiator to remember its set times and programs. -
Page 10: Display
4 – 2 | Display The touchscreen control panel includes a backlit LCD display. The backlight switches on when the panel is in use and times out after a minute not in use. Comfort Anti-freeze Timer Sensor mode Pilot wire mode Device is heating Connected to WiFi Open window detected... - Page 11 4 – 3 – 2 | Eco When the icon (and only the icon) displays on the screen, you are in eco mode. Just like comfort, on this mode the radiator heats to a constant set temperature. However, eco mode is designed to be set to a lower temperature, providing a low-heat, energy-saving alternative for when you are sleeping or out.
- Page 12 Setting the Program The timer allows you to set a different program for every day of the week. P1 is the schedule for Monday, P2 is the schedule for Tuesday, and so on. Each program consists of 24 hourly slots where you can set either comfort or eco mode.
-
Page 13: Settings
based on whether the room is occupied. The icon flashes whenever the sensor detects a presence. When a presence is detected, the radiator heats at comfort temperature . When a presence is no longer detected, the radiator will wait for a set interval of time before stepping down the temperature. - Page 14 The accuracy of the radiator’s temperature reading can be affected if the unit is mounted such that the sensor is positioned in a hot or cold spot – such as hot water pipes or a draughty doorway. The sensor is at the bottom right of the unit. •...
-
Page 15: Child Lock
4 – 4 – 4 | WiFi Function (F4) This setting allows you to enable or disable the radiator’s connection to WiFi. Disabling the connection is temporary: if you have already added the radiator to your app account, disabling the connection will not remove it. You will be able to control via the app as soon as you re-enable the connection. -
Page 16: Downloading The App
5 | Connecting to WiFi 5 – 1 | Downloading the App The Ecostrad iQ Ceramic is designed to work with the Smart Life app. Scan the code below to go to the app. Press install and follow the app’s instructions to create an account. - Page 17 7. The radiator will begin connecting. When it is successfully added, it will appear as below on the app. Press to change the name of the radiator or Done to return to the home screen. Troubleshooting If the radiator does not connect on the first attempt: •...
-
Page 18: Using The App
6 | Using the App NOTE – The Smart Life app is a constantly evolving third party system. The guide below was correct at time of printing but may differ slightly from future versions. 6 – 1 | Home Overview You can use the Smart Life app to control multiple devices. -
Page 19: Choose Mode
6 – 3 | Choose Mode Tap the mode icon on the control interface to choose mode. The five options correspond to the five modes on the control panel. 6 – 4 | Setting the Program Tap the program data icon on the control interface to configure a program. - Page 20 • Turn off <device name>. Switches the radiator • Switch off <device name>. Off. • Set <device name> to Switches to Comfort heat. mode. • Set <device name> to eco. Switches to Eco mode. • Set <device name> to cool. Switches to Frost mode. •...
-
Page 21: Troubleshooting
7 | Troubleshooting Problem Possible Cause Action Radiator is not If Err1 is displaying, the The radiator will not heat heating. thermostat sensor has while either sensor is become disconnected. disconnected. Contact the Err1 or Err2 code seller to arrange repair or displaying. -
Page 22: Disposal
Information requirements for electrical local space heaters Item Unit Type of heat input, for electric storage local space heaters only (select one) manual heat charge control, with integrated thermostat manual heat charge control with room and/or outdoor temperature feedback electronic heat charge control with room and/or outdoor temperature feedback fan assisted heat output Type of heat output/room temperature control (select one)
