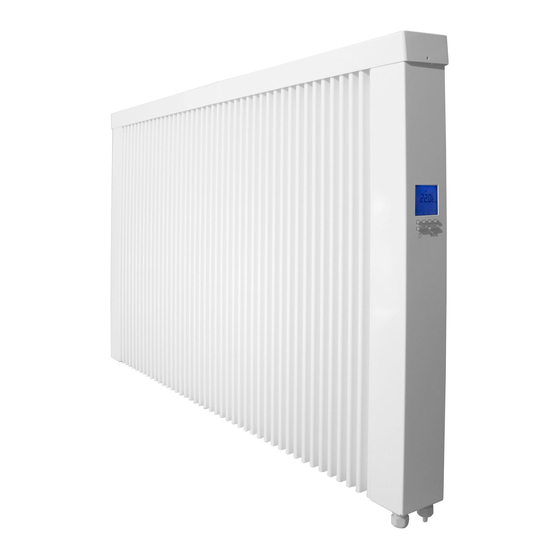

Ecostrad Ecowärme – Wall Mounted Electric Radiator
Installation and Operating Instructions
Types
• CHM 500 TDI
• CHM 1000 TDI
• CHM 1500 TDI
• CHM 2000 TDI
• CHM 1000 H TDI
Next Generation Heating
ecowärme
Please read attentively and keep in a safe place
Subject to alterations
Version: May 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ecowarme and is the answer not in the manual?

Questions and answers

Mrs V A Capaldi
April 8, 2025

The element has failed, the electrician has asked if we have a manual, which didn't come with the heater. It's the 1200cm, 2000w wall mounted Ecostrad Ecowärme heater. The element took 7 weeks to come. Is there a diagram?

2 comments:
Mr. Anderson
April 9, 2025

Yes, the Ecostrad Ecowärme 2000W wall-mounted heater has a manual available. It includes installation instructions, technical information, and control panel details.

This answer is automatically generated

Veronica Capaldi
April 10, 2025

@Mr. Anderson

Summary of Contents for Ecostrad Ecowarme

  • Page 1 Ecostrad Ecowärme – Wall Mounted Electric Radiator Installation and Operating Instructions Types • CHM 500 TDI • CHM 1000 TDI • CHM 1500 TDI • CHM 2000 TDI • CHM 1000 H TDI Please read attentively and keep in a safe place...
  • Page 2 Ecostrad Ecowärme – Wall Mounted Electric Radiator Installation and Operating Instructions About The Ecostrad Ecowärme is a modern electric radiator with a traditional design. The Ecowärme provides an efficient heating solution for many indoor living areas. Ecowärme radiators are designed to be used continuously, whether as your main heat source or as a supplementary system.
  • Page 3 Ecostrad Ecowärme – Wall Mounted Electric Radiator Installation and Operating Instructions • Children between the age of 3 and 8 shall not plug in, regulate or clean the radiator or perform user maintenance. • Never cover the radiator. Do not put any flammable objects onto the radiator or near it.
  • Page 4: Technical Data

    Ecostrad Ecowärme – Wall Mounted Electric Radiator Installation and Operating Instructions Technical data Ecowärme electric radiators have protection class I and are designed for a mains voltage of 230V, 50Hz. The radiators are IP20 rated and should not be used in bathrooms. All radiators in the series come equipped with a digital thermostat and 24/7 programmer.
  • Page 5 Ecostrad Ecowärme – Wall Mounted Electric Radiator Installation and Operating Instructions Location of drill holes Width Hight Deep Power Model [Watt] [mm] [mm] [mm] [mm] [mm] [mm] CHM 500 CHM 1000 1000 CHM 1500 1500 CHM 2000 2000 CHM 1000 H...
  • Page 6 Ecostrad Ecowärme – Wall Mounted Electric Radiator Installation and Operating Instructions Using the radiator As soon the radiator has been mounted and plugged into a socket, it is ready for use! Please see the instructions below for help configuring and programming the thermostat.
  • Page 7 Ecostrad Ecowärme – Wall Mounted Electric Radiator Installation and Operating Instructions Configuration When in Off mode, press and hold down the On/Off button Menu 5: Open Window for 10 seconds to access the first detection configuration menu. detection open window...
  • Page 8 Ecostrad Ecowärme – Wall Mounted Electric Radiator Installation and Operating Instructions T i me Setting In Off mode, press the MODE button. Hours The days flash. Press + or - to set the day, then press OK to confirm and go on to set the hour and then...
  • Page 9 • Storage temperature: -10°C to +70°C • Operating temperature: 0°C to +40°C Reporting a problem The Ecostrad Ecowärme was carefully manufactured and checked repeatedly before dispatch. Nevertheless, in the unlikely event you encounter a problem, or have questions concerning handling, please feel free to contact us.
  • Page 10 Ecostrad Ecowärme – Wall Mounted Electric Radiator Installation and Operating Instructions Eco-Design Requirements From Jan 1st 2018, the EU-conformity of these devices is additionally bound to fulfillment of the Eco-Design Requirements 2015 /1188. Installation and starting up of the equipment is only permitted in...
  • Page 11 Ecostrad Ecowärme – Wall Mounted Electric Radiator Installation and Operating Instructions Output Guidelines Type: CHM Sym- Designation Unit Rate Designation Unit Type of heat supply, only for electrical storage heaters in 1500 2000 rooms (select one type) 1000 Nominal thermal...
