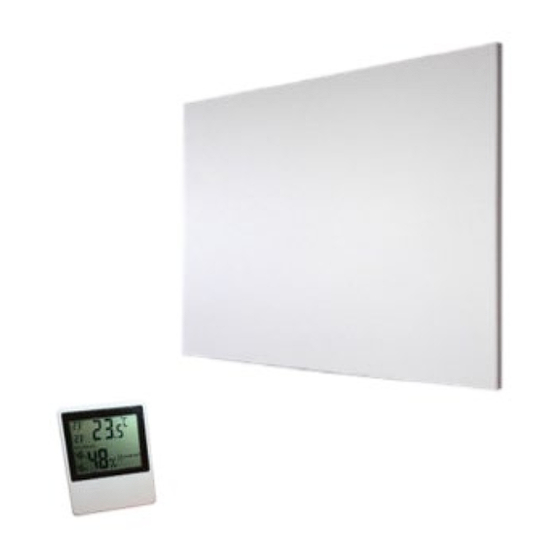

- Page 1 Ecostrad iQ Infrared Panels WiFi Control User Manual...
-
Page 2: Table Of Contents
Contents Technical Data Components Connecting the Sensor Display & Components 3-2 Pairing Connecting to WiFi Downloading the App 4-2 Connecting Heater to the App Using the App Home Overview 5-2 Control Interface 5-3 Weekly Programmer 5-4 Timer 5-5 Device Settings 5-6 Voice Integration Troubleshooting... -
Page 3: Technical Data
1 | Technical Data Wireless Temperature Sensor Power supply DC 3V (2 x 1.5V AAA batteries, not included) Power consumption 3V, 0.1mA Temperature display range 0-50 °C (32-113 °F) Humidity display range 10-99% Dimensions (mm) W60 x H75 x D16 Weight Radio frequency 433.92MHz... -
Page 4: Components
2 | Components The iQ WiFi control system comprises three parts: 1. SmartLife app The app is the interface through which you control the panels. You can set weekly programs and count down timers, adjust temperatures, add heaters to groups and automate with other devices. -
Page 5: Display & Components
3 | Temperature Sensor Set Up 3 – 1 | Display & Components 1. Wall mounting hole 2. Pairing and °C/°F toggle button 3. Cooling holes 4. Magnet 5. Battery compartment 6. Highest / lowest room temperature in past 24 hours 7. -
Page 6: Pairing
4 | Connecting to WiFi 4 – 1 | Downloading the App Ecostrad iQ infrared heating panels are designed to work with the SmartLife app. Scan the code below to go to the app. Press install and follow the... -
Page 7: Connecting Heater To The App
4 – 2 | Connecting Heater to the App NOTE – The Smart Life app is a constantly evolving third party system. The guide below was correct at time of printing but may differ slightly from future versions. 1. Before pairing, ensure your mobile device is connected to your WiFi network. This must be a 2.4GHz network. - Page 8 The heater offers two connection modes, EZ and AP mode. This makes it easier for the heater to connect to different devices. Check the frequency with which the red indicator flashes and skip to step a. or b. a. The indicator blinks rapidly – two times per second. This is EZ or Smart mode.
- Page 9 6. Once you have reached the connecting screen, it should take 20-30 seconds for the heater to be successfully added to the app. “Device added successfully” will display on the app. The red indicator on the heater will switch to a steady light to confirm the panel is online. 7.
-
Page 10: Using The App
• You can temporarily break the connection between the heater app by switching the thermostat switch to ON. The LED indicator and beep will still respond to changes in the app, but these will not be passed onto the heater, which will simply heat when power is ON and stop when power is OFF. -
Page 11: Control Interface
5 – 2 | Control Interface Tap the heater listing to go to the control interface. Once you reach the heater’s control interface you can turn the panel off and on, adjust set temperatures and access weekly programmer, timer and device settings. NOTE: •... -
Page 12: Weekly Programmer
5 – 3 | Weekly Programmer To set and engage the weekly programmer, tap the icon on the control interface. You will only be able to do this when the heater is online and switched on. • Tap the individual days to set their program. Set time, power ON or OFF and temperature (ON only) and save. -
Page 13: Device Settings
5 – 5 | Device Settings to view and edit the heater’s settings. • Heater Profile o Icon – image displayed. Option to replace the default with a photo from your device o Name – can be changed. o Location – option to add the heater to a location, e.g. -
Page 14: Troubleshooting
Make sure you name the heater something that’s easy for you to say and for your voice interface to understand! You can find quick guides for both Google Home and Alexa in the SmartLife app's FAQ section. 7 | Troubleshooting Problem Possible Cause Action... - Page 15 App status It can take a minute for the This is normal. The speed of the does not heater to respond to the app connection depends on network match and vice versa. factors. heater Thermostat switch on Switch the thermostat switch to OFF. status.
