R9-230H Indoor PTZ Camera
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R9-230H and is the answer not in the manual?

Questions and answers

Related Manuals for Bolin Technology R9-230H

Summary of Contents for Bolin Technology R9-230H

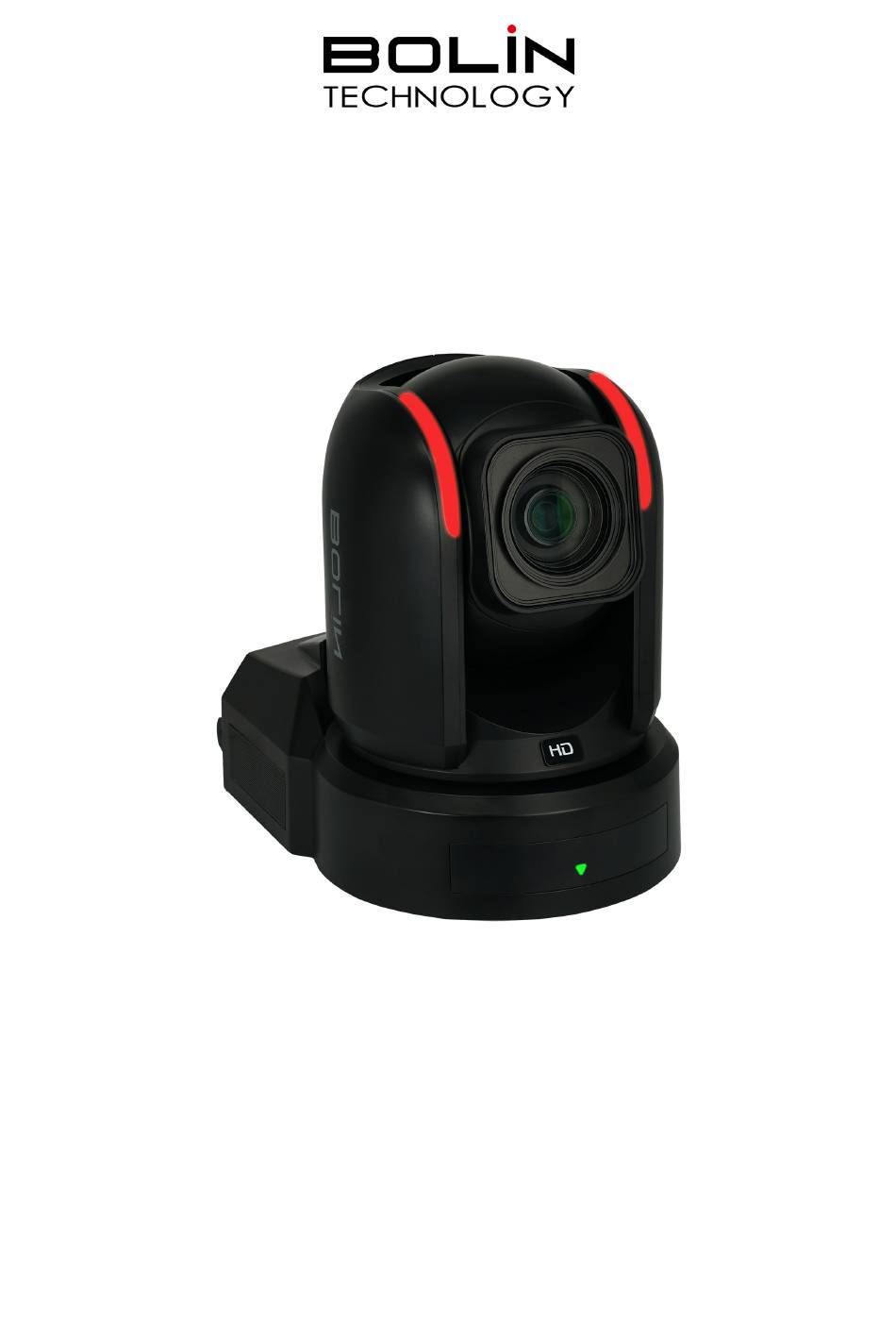

  • Page 1 R9-230H Indoor PTZ Camera User Guide...

  • Page 2: Table Of Contents

    Contents Important Information What's In The Box Optional Accessories Recommended Peripherals Overview Features Quick Start Guide Camera Diagrams & Dimensions Connecting the Camera Power Network Video Output Control Input Audio Input Genlock Tally Light Web Interface Configuration Updating the Firmware System Menus...

  • Page 3: Important Information

    Before operating the unit, please read this manual thoroughly and retain it for future reference. Copyright Copyright 2015-2024 Bolin Technology, all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company.

  • Page 4: Safety Information

    appearance of the user’s device. This manual is a guide for multiple product models and so it is not intended for any specific product. In this manual, the illustrations of the displayed interface, parameters displayed, drawings, and value ranges may vary with models. The user should refer to the actual product for details. Due to uncertainties such as the physical environment, discrepancies may exist between the actual values and reference values provided in this manual.

  • Page 5: This Device Must Accept Any Interference Received, Including Interference That May Cause Undesired Operation

    This device must accept any interference received, including interference that may cause undesired operation. LVD/EMC Directive This product complies with the European Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC. WEEE Directive–2002/96/EC The product this manual refers to is covered by the Waste Electrical & Electronic Equipment (WEEE) Directive and must be disposed of in a responsible manner.

  • Page 6: What's In The Box

    What's In the Box R9 Indoor PTZ Camera (R9-230H) 12V, 4A Locking Power Supply with International Plugs (P12-4) IR Remote Controller (VCC-RC-2) RS422/232 RJ45 Adapter (VCC-CC45RS) Lens Cap Protective Dust Cover Safety Cable HDMI Cable Support with Screws...

  • Page 7: Optional Accessories

    Optional Accessories Large PTZ Camera Wall Mount Bracket - Available in Black or White (C-WM3B or C-WM3W) Cover Set for Large PTZ Camera Wall Mount Bracket - Black or White (C-WM3B-CV or C-WM3W-CV) PTZ Camera Pendant Mount System for Drop Ceiling - Black or White (C-PMSB or C-PMSW) 10-Pin LEMO to Balanced XLR Connector (AUD-10BC) Recommended Peripherals...

  • Page 8: Overview

    Overview This user guide will provide users of the R9-230H indoor PTZ cameras with in-depth knowledge of the various features and functions of the camera and how it can be utilized. Functions limited to a specific camera model will be noted as such in the various sections.
  • Page 9 Camera Diagrams and Dimensions NOTE: All dimensions listed below are in millimeters. NOTE: All dimensions listed below are in millimeters.

  • Page 11: Quick Start Guide

    Quick Start Guide The R9 Series Indoor PTZ Camera has multiple connection options for video output, power input, control input, audio input and output, and synchronization. You can choose the appropriate connection points based on your requirements. Power The camera can be powered two ways: 12VDC 4A Power Adapter (P12-4), which is included in the box, plugged into the DC 12V Power Input PoE++(IEEE802.3bt, Type 4 Class8) through a Category 6 (CAT6) cable with RJ45 connector plugged into the 10/100/1000 LAN port.

  • Page 12: Network

    The R9 has multiple video outputs, which can be used simultaneously, and the resolutions can be configured independently. The outputs vary based on the camera model and are as follows: HDMI Out (HDMI 1.4 in R9-230H) The user should follow these steps to connect the camera: Connect one end of an HDMI cable that supports the required resolution to the HDMI Output of the camera.
  • Page 13 48.0 Gigabit/Second 8K, 120 Hz Dual SDI Out (3G-SDI in R9-230H) Connect one end of an appropriately rated SDI cable to one of the two SDI outputs on the camera. Ensure to secure the BNC connector in place to prevent the cable from becoming loose during use. Connect the other end of the SDI cable to the desired destination (Switcher, Video Router, Converter, Display, etc.).
  • Page 14 Open an HTML5-enabled web browser on a computer and enter the IP address of the camera. By default, the camera is set to 192.168.0.13. The IP address can also be located under the “Status” menu of the camera’s On-Screen Display (OSD) or by using Bolin Technology’s IPC Search Tool in the Download Center.

  • Page 15: Control Input

    the IP streams as needed. For more details, refer to the “Web Interface Configuration” section of this user guide. Control Input The R9 PTZ cameras have multiple ways of being controlled that can be used simultaneously to provide the user with the flexibility they need for their setup. The control methods are as follows : Infrared (IR) Remote Controller The IR remote included with the device is capable of controlling up to 3 unique IR channels.
  • Page 16 Menu - On-Screen Display (OSD) Toggle IR ID Selector - Select which IR Channel (Camera) to be controlled AI Function Buttons - Disabled Buttons 1-9 - Used to set & recall corresponding presets. (See #6 to set a preset and #16 to erase a preset) + &...
  • Page 17 Direction Arrows - Pan and Tilt the camera in the corresponding direction. Navigate the OSD Menu when open. Focus Adjustments - Use the "Auto" button to enable autofocus. To make manual focus adjustments, press the "Manual" button first, followed by the "Far" or "Near" buttons to adjust. Image Adjustments - Select the property you would like to adjust, followed by the + and - buttons (5) to make the appropriate adjustment, unless otherwise noted below.
  • Page 18 that of the controller. The VISCA ID should be set to a number between 1 and 7. A standard terminated CAT5 or CAT6 cable can be used to directly connect the camera to the controller. Alternatively, the included RJ45 to RS422 Control Cable Adapter can be used to connect unterminated CAT5/CAT6 cables between the camera and controller.
  • Page 19 SONY Keyboard RS422 Connection Guide for Establishing RS422 Connection and Daisy Chain Configuration for Multiple Cameras with a SONY Controller. VISCA (Non-Sony) Keyboard RS422 Connection Guide for Establishing RS422 Connection and Daisy Chain Configuration for Multiple Cameras with a Non- Sony Controller:...
  • Page 20 The included extension cables, along with the RJ45 to RS422 Phoenix connector adapter, should be utilized to establish an RS422 connection for the control device. Guide to creating an RS422 Daisy Chain Connection for Multiple Cameras with an RS422 Standard Serial Port Controller.
  • Page 21 PELCO P/D Keyboard RS485 Connection Important: Utilize RS422 ports when establishing an RS485 connection. Only employ TX+ and TX- for RS485 connections. • Set the RS422 control method using the OSD menu or Web interface. • Set the camera ID on the OSD menu using the remote controller. •...
  • Page 22 The extension cables that are provided, along with the RJ45 to RS422 Phoenix connector adapter, should be utilized to establish an RS422 connection for the control device. Alternatively, you can establish an RS485 connection by directly connecting the camera and the controller using a CAT5/6 T-568B Standard Ethernet cable.
  • Page 23 VISCA over IP Using VISCA over IP allows users to control the camera from anywhere that is on the same LAN as the camera. It involves connecting the PTZ camera to a network switch. The steps are as follows: Connect the camera to the network by inserting one end of a CAT6 cable into the 10/100/1000 LAN port of the camera and the other end into a network switch.

  • Page 24: Audio Input

    NOTE: Factory-Default Camera Settings for control of VISCA over IP NOTE: Factory-Default Camera Settings for control of VISCA over IP Static IP Address: 192.168.0.13 Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1 VISCA over IP Control Port: 52381 To change these settings, refer to the Web Interface Configuration section of this guide. NOTE: The VISCA over IP port of the controller MUST be set to 52381 to communicate with and NOTE:...

  • Page 25: Tally Light

    The camera features an industry-standard 10-pin LEMO connector to embed balanced audio. Users can choose to use a third-party breakout cable or purchase Bolin's 10-Pin LEMO to XLR breakout cable (BLA-10). Once connected and activated from the Web Interface or OSD Menu, the audio will be embedded into the camera's HDMI, SDI, and IP streams.
  • Page 26 light positioned behind the camera block improves rear visibility. To activate the camera's Tally Light function, you need a video switch and a keyboard (not included). GPI connection with RS422 VISCA control connection Cable Configuration: 1. Set up a standardized RS-422 daisy chain control connection to seamlessly control multiple cameras from the keyboard controller.
  • Page 27 2. GPI I/O Output Mode for Tally Signal Sent by Keyboard Controller: a. Connect the camera to the keyboard using a standard RS-422 control cable. b. Navigate to KEYBOARD SETTING > GPI I/O > Setting, and switch it to Output mode. Exit directly to the home menu.

  • Page 29: Web Interface Configuration

    Web Interface Configuration Once connected to the network, the camera can be configured and controlled through the web interface on any web browser that supports HTML5. This next section will explain the various sections of the web interface and what they can do. Web Interface Login To log in to the web interface, first, make sure that the camera is connected to the network and the computer is on the same subnet as the camera.
  • Page 30 NOTE: The first time you log in to the web interface, you will be prompted to set a new NOTE: The first time you log in to the web interface, you will be prompted to set a new password. For best security practices, enter a password that is at least 8 digits long, and password.
  • Page 31 Adjusting and Controlling PTZ Functions On the “Live View” page, the user will observe a “Menu” icon situated at the bottom right of the live view image. Additionally, on the right side of the page, there are “Pan/Tilt Controls”. This section comprises a set of arrows and sliders, specifically designed to control the camera.
  • Page 32 position(s) they wish to save as a preset. After positioning the camera, click on the ‘Create’ button. Subsequently, select the preset number under which they want to save this setting. Label the preset in the ‘Name’ field and click ‘Save’. To recall a preset, select the preset number on the Web Interface and click the “Go”...
  • Page 33 Output On the "Output" tab, users can define what resolution/frame rates, color space, bit depth, and color format they would like the camera's physical ports to output. Users can click the parameter they would like to modify and select from the drop-down menu. Once the desired settings have been chosen, click on the 'Save' button. At the bottom of this tab, there is a section for "Output Status"...
  • Page 34 each other. Optical Fiber output resolution is determined by the SDI resolution. each other. Optical Fiber output resolution is determined by the SDI resolution. Overlay The Overlay function is a feature that displays characters on your screen, enabling users to incorporate crucial information (either text or image) into their IP video feed.
  • Page 35 Exposure Mode: Full Auto mode, the Slow Shutter, S. Shutter Limit, Gain Limit, High Sensitivity, Backlight, Spotlight, AE Speed, and EX-Comp are all set automatically. Manual mode, to adjust Iris, Shutter Speed, Gain, and High Sensitivity settings manually. Shutter pri, the user has the ability to set the shutter speed. The iris and gain adjust automatically based on the subject’s brightness.
  • Page 36 The white Balance menu is utilized for choosing the mode of white balance. WB Modes include: Auto, Indoor, Outdoor, OPW, ATW, User, Outdoor Auto, SVL Auto, SVL, SVLOutdoor Auto. Picture The Picture page is to configure the various image parameters of the camera. Sharpness: This setting enhances the clarity of the detail in an image.
  • Page 37 2D NR (2D Noise Reduction): This technique reduces noise in an image by comparing it frame by frame and eliminating variations that do not consistently appear in each frame. 3D NR (3D Noise Reduction): This technique diminishes noise by analyzing differences within a single frame and between consecutive frames.
  • Page 38 Gamma The user is provided with the option to select the basic curve type for gamma correction. Gamma: Setting Gamma in standard mode is equivalent to setting it in movie mode. Straight: This option permits the user to select a straight GAMMA curve.
  • Page 39 Pattern: This option allows the user to select a gamma curve from 512 patterns stored in the camera. The pattern can be specified using the PATTERN and PATTERN FINE settings. The PATTERN setting defines the first two digits of the pattern number, while PATTERN FINE defines the last digit. Offset: The user can select the offset of the output level of gamma curves.
  • Page 40 Digital Zoom: Offers digital magnification of the image. MF Speed: Controls the speed of manual focus adjustments. Stabilizer: Designed to minimize camera shake and ensure smooth, clear images. This feature can be activated by selecting either the Super or Super+ options. The stabilizer is set to Super it provides an elevated level of steadiness, ensuring superior video quality even in challenging conditions.

  • Page 41: Genlock

    Motionless Preset: When the motionless preset is ON, the video image will not be shown during the transition to the designated preset location. Reload Preset 1: Enable this option to automatically switch to the default preset when powering on the camera.
  • Page 42 Pelco ID: When utilizing RS485 (PELCO P/D) control, assign the Camera ID to the specific address you wish to control. The value for this setting can range from 1 to 255. VISCA ID: When utilizing RS422 (VISCA) control, assign the Camera ID to the specific address you wish to control.
  • Page 43 In the Audio tab, users can configure the audio settings on the camera to meet their requirements. The various settings and their functions are described below. Audio Input: Option to Mute audio. Audio Input Type: Supports Line in voltage only. Audio Compression: Supports AAC, G.711a and G.711u.
  • Page 44 Pattern: Static and DHCP DHCP - The IP Address of the device will be determined and dynamically assigned from the network gateway (router). This is recommended when the device is being installed on a network where the available IPs are unknown and a quick setup is required. Static IP- The user will define and enter the IP address of the device.
  • Page 45 communicate with destinations outside its immediate network. NOTE: By default, the gateway is set to 192.168.0.1. NOTE: By default, the gateway is set to 192.168.0.1. Preferred DNS Server: DNS (Domain Name System) servers are the addresses specified on a device for translating domain names into IP addresses.
  • Page 46 NOTE: This port is predetermined as port 36666 and cannot be modified. NOTE: This port is predetermined as port 36666 and cannot be modified. UDP Port: UDP (User Datagram Protocol) is a connectionless protocol that provides low-latency transmission but without guaranteed delivery or order of data, which may lead to occasional data loss in exchange for faster performance.
  • Page 47 RTSP On this page, you will find the RTSP Address URL information for Main Stream and Sub Stream. Main Stream RTSP address: rtsp://192.168.3.230:554/media/video1 (based off IP above) Sub Stream RTSP address: rtsp://192.168.3.230:554/media/video2 (based off IP above) Connection String: rtsp://<IP address>:<RTSP port>/media/video<1/2> By default, IP address is 192.168.0.13, RTSP port is 554 RTMP This camera supports RTMP protocol, can push RTMP streaming to others video streaming platform, e.g.
  • Page 48 RTMP Connection String: RTMPstreamURL/Key RTMP Port is 1935 Note: To stream video, the user must first log in to their video streaming platform. After logging in, they need to obtain the RTMP stream URL and key. Once they have these details, they can enter them into the RTMP settings page on the camera’s IP web interface.
  • Page 49 Enable the FTP server. Enter the IP address of the FTP server into the ‘Server IP’ field. Enter the FTP server’s port number into the ‘Server Port’ field. This should match the port configured on the FTP server, typically port 21. Enter the FTP server’s username and password into the ‘Server Username’...
  • Page 50 Follow the specified Multicast address range to configure a multicast IP address for the Main Stream. Follow the specified Multicast Port range to configure a multicast port for the Main Stream. Click the ‘Apply’ button and restart the camera to ensure the settings take effect. After the camera completes its power cycle, click the ‘Copy’...
  • Page 51 System - System Settings Device This refers to a consolidated page where the user can view various pieces of information about their device. This includes the Device Name, Model Number, Product Serial Number, IP Encoder Version, FPGA Version, and AF Version.
  • Page 52 Time On this page, users can configure the date and time settings of the camera. Date Format: Users have the option to set the date format as either Y-M-D or D-M-Y.
  • Page 53 Firmware Update: To update the firmware, follow these steps: Visit Bolin Technology’s official website at www.BolinTechnology.com. Navigate to the “Support Center” and select the “Download Center” option. Input the model number of the device and select the corresponding device from the list.
  • Page 54 window, and avoid clicking elsewhere on the page to prevent the update from failing. Upon successful installation of the update, a prompt will appear instructing to restart the device. Follow this prompt to complete the update process. NOTE It is crucial to maintain the current page active during the update process to ensure a NOTE It is crucial to maintain the current page active during the update process to ensure a successful update.

  • Page 55: System Menus

    System Menus R9-230H OSD Menu Structure Exposure Mode: Full Auto High Sensitivity Off, On Slow Shutter Off, On S. Shutter Limit 1/1, 1/2, 1/4, 1/8,1/15, 1/30 Gain Limit If High Sensitivity is Off: 10.7dB, 14.3dB, 17.9dB, 21.4dB, 25.0dB, 28.6dB, 32.1dB, 35.7dB, 39.3dB, 42.9dB, 46.4dB, 50.0dB...
  • Page 56 Select Standard, Fl. Light, High Saturation Level 0 - 14 Phase -7 - +7 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 Mode: Indoor Matrix Off, On...
  • Page 57 Select Standard, Fl. Light, High Saturation Level 00 - 14 Phase -7 - +7 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 Mode: User R Gain 000 - 255...
  • Page 58 Level 00 - 14 Phase -7 - +7 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 -99 - 0 - +99 Mode: SVL Outdoor A Matrix Off, On Select...
  • Page 59 Scenes Standard, Bright, Clarity, Soft Previous Page Gamma Standard Offset -64 - +64 VE / WDR Off, On Brightness Level 0 - 6 (Default Level 2) Brightness Comp. 0 - 3 Comp. Level Low, Middle, High Straight Offset -64 - +64 Level -7 - +7 Black Gamma...
  • Page 60 Baud Rate 2400,4800,9600,38400 Display Info Off, On Video Parameters OSD Off, On Tally Mode Off, On Audio Off, On Input Type Line Volume Level -60dB - +18dB (Increments of 2 dB) Phantom Power Off, On Color Space YUV422 HDMI RGB, YUV422 System Format 2160P30 HDMI: 2160P30、1080P30...
  • Page 61 P/T Speed Preset Speed IP Address MAC Address Previous Page...

  • Page 62: Technical Specifications

    Technical Specifications R9-230H User Guide www.bolintechnology.com Bolin Technology...
