Bolin Technology R9-230NX NDI User Manual

Indoor ptz camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Home
››NDI Series
››NDI Indoor PTZ Cameras
››R9 NDI Line Indoor PTZ
››R9-230NX User Guide
R9-230NX NDI Indoor PTZ Camera
User Guide




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R9-230NX NDI and is the answer not in the manual?

Questions and answers

Related Manuals for Bolin Technology R9-230NX NDI

Summary of Contents for Bolin Technology R9-230NX NDI

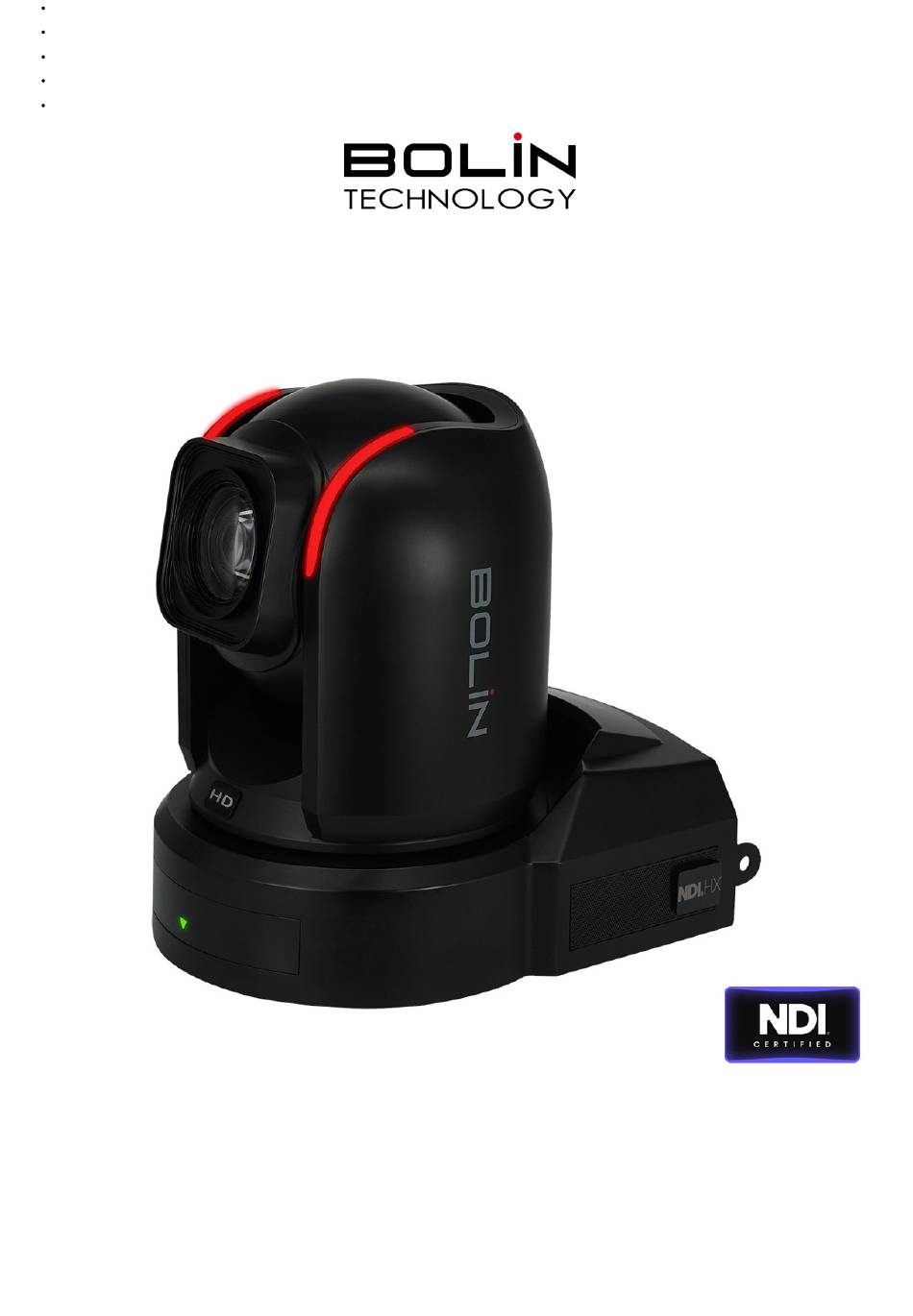

  • Page 1 Home ››NDI Series ››NDI Indoor PTZ Cameras ››R9 NDI Line Indoor PTZ ››R9-230NX User Guide R9-230NX NDI Indoor PTZ Camera   User Guide    ...

  • Page 2: Table Of Contents

    Contents   Important Information What's In The Box Optional Accessories Recommended Peripherals Overview Features Quick Start Guide Camera Diagrams & Dimensions Connecting the Camera Power Network Video Output Control Input Audio Input Genlock Tally Light Web Interface Con guration Updating the Firmware System Menus  ...

  • Page 3: Important Information

    Before operating the unit, please read this manual thoroughly and retain it for future reference.   Copyright Copyright 2015-2024 Bolin Technology, all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company.  ...
  • Page 4   Maintenance Precautions: • If there is dust on the front glass surface, remove the dust gently using an oil-free brush or a rubber dust blowing ball. • If there is grease or a dust stain on the front glass surface, clean the glass surface gently from the center outward using anti-static gloves or an oil-free cloth. If the grease or the stain still cannot be removed, use anti-static gloves or an oil-free cloth dipped with detergent and clean the glass surface gently until it is removed.

  • Page 5: What's In The Box

      What's In the Box   R9 Indoor PTZ Camera (R9-230NX) 12V, 4A Locking Power Supply with International Plugs (P12-4) IR Remote Controller (VCC-RC-2) RS422/232 RJ45 Adapter (VCC-CC45RS) Lens Cap Protective Dust Cover Safety Cable HDMI Cable Support with Screws Optional Accessories...

  • Page 6: Recommended Peripherals

    Large PTZ Camera Wall Mount Bracket - Available in Black or White (C-WM3B or C-WM3W) Cover Set for Large PTZ Camera Wall Mount Bracket - Black or White (C-WM3B-CV or C-WM3W-CV) PTZ Camera Pendant Mount System for Drop Ceiling - Black or White (C-PMSB or C-PMSW) 10-Pin LEMO to Balanced XLR Connector (BLA-10)  ...

  • Page 7: Overview

      Overview   This user guide will provide users of the NDI R9-230NX indoor PTZ cameras with in-depth knowledge of the various features and functions of the camera and how it can be utilized. Functions limited to a speci c camera model will be noted as such in the various sections.   ...
  • Page 8   Camera Diagrams and Dimensions                                                                  NOTE: NOTE:  All dimensions listed below are in millimeters.  All dimensions listed below are in millimeters.
  • Page 9                                                                              ...

  • Page 10: Quick Start Guide

        Quick Start Guide   The R9 Series Indoor PTZ Camera has multiple connection options for video output, power input, control input, audio input and output, and synchronization. You can choose the appropriate connection points based on your requirements.   ...

  • Page 11: Video Output

    Subnet Mask: 255.255.255.0 Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1 Gateway: 192.168.0.1     To change these settings, refer to the Web Interface Con guration section of this guide.  To change these settings, refer to the Web Interface Con guration section of this guide.   ...

  • Page 12: Control Input

    2. Open an HTML5-enabled web browser on a computer and enter the IP address of the camera. By default, the camera is set to 192.168.0.13. The IP address can also be located under the “Status” menu of the camera’s On-Screen Display (OSD) or by using Bolin Technology’s IPC Search Tool in the Download Center.
  • Page 13   1. Menu - On-Screen Display (OSD) Toggle 2. IR ID Selector - Select which IR Channel (Camera) to be controlled  3. AI Function Buttons - Disabled 4. Buttons 1-9 - Used to set & recall corresponding presets. (See #6 to set a preset and #16 to erase a preset)  5.
  • Page 14 CAUTION: When one connects the camera via serial to a Sony PTZ controller, it differs from the process with a non-Sony PTZ controller. It is crucial to CAUTION: When one connects the camera via serial to a Sony PTZ controller, it differs from the process with a non-Sony PTZ controller. It is crucial to verify the pin settings for the speci c controller in use.
  • Page 15     VISCA (Non-Sony) Keyboard RS422 Connection Guide for Establishing RS422 Connection and Daisy Chain Con guration for Multiple Cameras with a Non-Sony Controller:     The included extension cables, along with the RJ45 to RS422 Phoenix connector adapter, should be utilized to establish an RS422 connection for the control device.  ...
  • Page 16       PELCO P/D Keyboard RS485 Connection  Important: Utilize RS422 ports when establishing an RS485 connection. Only employ TX+ and TX- for RS485 connections.   • Set the RS422 control method using the OSD menu or Web interface. • Set the camera ID on the OSD menu using the remote controller. •...
  • Page 17     Alternatively, you can establish an RS485 connection by directly connecting the camera and the controller using a CAT5/6 T-568B Standard Ethernet cable.           VISCA over IP...

  • Page 18: Audio Input

      Using VISCA over IP allows users to control the camera from anywhere that is on the same LAN as the camera. It involves connecting the PTZ camera to a network switch. The steps are as follows:  1. Connect the camera to the network by inserting one end of a CAT6 cable into the 10/100/1000 LAN port of the camera and the other end into a network switch.  2.

  • Page 19: Tally Light

        Synchronization (Genlock)   Genlock (Generator Locking) is an external synchronization signal input, which supports BBS (Black Burst Sync) and tri-level synchronization. External synchronization (genlock) can be applied to achieve precise frequency-locked video signals where every device (audio and video) knows when a frame starts and ends.
  • Page 20   2. GPI I/O Output Mode for Tally Signal Sent by Keyboard Controller: a. Connect the camera to the keyboard using a standard RS-422 control cable. b. Navigate to KEYBOARD SETTING > GPI I/O > Setting, and switch it to Output mode. Exit directly to the home menu. c.
  • Page 21   Factory-Default Camera Network Settings: Static IP Address: 192.168.0.13 Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1   NOTE:   To obtain the IP address of the camera, open the OSD Menu and scroll down to the Status section. Alternatively, download Bolin's IPC search tool NOTE:  ...

  • Page 22: Fast Settings

      Adjusting and Controlling PTZ Functions On the “Live View” page, the user will observe a “Menu” icon situated at the bottom right of the live view image. Additionally, on the right side of the page, there are “Pan/Tilt Controls”. This section comprises a set of arrows and sliders, speci cally designed to control the camera. The arrows are utilized to pan (move side to side) and tilt (move up and down) the camera.

  • Page 23: Camera Setting

      CAMERA SETTING - CAMERA  The Camera Setting page consists of 3 tabs: Codec, Output, and Overlay.   Codec From the Codec tab, users can con gure the video streams to meet their requirements. The various settings and their functions are described below.   ...
  • Page 24   NOTE:   The "System Format" will set the highest resolution and frame rate for the camera. While the frame rates are the same, output resolutions are NOTE:   The "System Format" will set the highest resolution and frame rate for the camera. While the frame rates are the same, output resolutions are simultaneous and independent of each other.

  • Page 25: Image Settings

    2. The box closest to the text bar is initially set in white. To alter the text color, click on this box. The user can select from white, black, yellow, red, and blue. 3. To reposition the text within the live feed image, make use of the ‘position adjustment’ section situated on the left of the page. 4.
  • Page 26   The white Balance menu is utilized for choosing the mode of white balance. WB Modes include: Auto, Indoor, Outdoor, OPW, ATW, User, Outdoor Auto, SVL Auto, SVL, SVLOutdoor Auto.    Picture The Picture page is to con gure the various image parameters of the camera. Sharpness: This setting enhances the clarity of the detail in an image.
  • Page 27 mode is set to NIGHT, the image will appear in black and white. Auto ICR (Infrared Cut-Filter Removal): This feature in cameras enhances image quality in varying lighting conditions. Color Gain: This setting allows the user to adjust the ampli cation of the individual color components - Red, Green, and Blue. By adjusting the gain of these individual components, the user can achieve better contrast between close shades of the same color.
  • Page 28 Gamma: Setting Gamma in standard mode is equivalent to setting it in movie mode. Straight: This option permits the user to select a straight GAMMA curve. Pattern: This option allows the user to select a gamma curve from 512 patterns stored in the camera. The pattern can be speci ed using the PATTERN and PATTERN FINE settings.
  • Page 29 AF Mode: Allows selection of the autofocus mode based on shooting conditions. Spot Focus: Enables selection of a speci c area in the frame for autofocus priority. Near Limit: Sets the minimum distance for the camera’s focus. AF Sensitivity: Adjusts the speed of autofocus response to scene changes. Zoom Ratio OSD: Displays the zoom ratio on the screen.
  • Page 30   Adaptive PT: When enabled, the Pan Tilt speed will adapt according to the zoom range. Activating this feature allows the Pan and Tilt speed to adjust automatically to different zoom ratios. For instance, as the zoom ratio increases, the Pan/Tilt speed decreases correspondingly. Pan Direction: This setting adjusts the camera’s horizontal orientation, with options for either normal or inverted left and right directions.
  • Page 31   H Phase ne: is used for nely adjusting the horizontal phase during Genlock.   CAUTION:  A sync generator must be connected before the use of Genlock. CAUTION:  A sync generator must be connected before the use of Genlock.   System The System page is to con gure the various communications parameters of the camera.

  • Page 32: Audio Setting

    IR-Receive: When this setting is turned OFF, the camera will not receive signals from the infrared remote controller. Ensure this setting is turned ON for the camera to communicate with the infrared remote controller. Comm Type: Describes communication type.  Baud Rate: The rate of data transfer, measured in bits per second.  Display Info: When this setting is enabled, a message displaying the camera’s con guration will appear on the screen for approximately 10 seconds each time the camera is powered on or restarted.
  • Page 33 Pattern: Static and DHCP DHCP - The IP Address of the device will be determined and dynamically assigned from the network gateway (router). This is recommended when the device is being installed on a network where the available IPs are unknown and a quick setup is required. Static IP- The user will de ne and enter the IP address of the device.
  • Page 34 TCP Port: TCP (Transmission Control Protocol) is a reliable, connection-oriented protocol used to ensure the secure and ordered delivery of data. TCP guarantees that transmitted video frames are received without loss and in the correct order, making it suitable for applications where data integrity is crucial, even though it may introduce slightly higher latency.
  • Page 35 Main Stream RTSP address: rtsp://192.168.3.230:554/media/video1 (based off IP above) Sub Stream RTSP address: rtsp://192.168.3.230:554/media/video2 (based off IP above) Connection String: rtsp://<IP address>:<RTSP port>/media/video<1/2> By default, IP address is 192.168.0.13, RTSP port is 554   RTMP This camera supports RTMP protocol, can push RTMP streaming to others video streaming platform, e.g. YouTube etc.  ...
  • Page 36 1. Enable the FTP server. 2. Enter the IP address of the FTP server into the ‘Server IP’ eld. 3. Enter the FTP server’s port number into the ‘Server Port’ eld. This should match the port con gured on the FTP server, typically port 21. 4.

  • Page 37: Ndi

    4. After the camera completes its power cycle, click the ‘Copy’ button to copy the multicast URL address. This URL can be used for accessing the Main Stream. Secure Reliable Transport      Tracking Data Output Enable: This toggle switch allows you to enable or disable the tracking data output. Destination IP Address: Enter the IP address of the destination where you want to send the tracking data.

  • Page 38: System Settings

    NDI Encoder Enable: Enable or disable the NDI encoder. When enabled, the camera will stream video using the NDI protocol. NDI Name: Enter a name for your NDI HX3 Indoor Camera. This name will be used to identify the camera on the network. Channel Name: Enter a name for the channel.
  • Page 39   Time On this page, users can con gure the date and time settings of the camera.  Date Format: Users have the option to set the date format as either Y-M-D or D-M-Y. Time Format: Users have the option to set the time as either a 12- or 24-hour clock and whether it is displayed with or without milliseconds. (4 Options - 24H: H- M-S;...
  • Page 40 Firmware Update:  To update the rmware, follow these steps: 1. Visit Bolin Technology’s o cial website at www.BolinTechnology.com. 2. Navigate to the “Support Center” and select the “Download Center” option. 3. Input the model number of the device and select the corresponding device from the list.

  • Page 41: Operation

    User Management: 1. Click on the ‘Add users’ button. 2. Enter a username for the new user. 3. Choose a role for the user. You can select either ‘Operator’, who will not have access to system settings, or ‘Administrator’, who will have access to all settings. 4.
  • Page 42        ...

  • Page 43: System Menus

        System Menus   R9-230NX OSD Menu Structure Exposure Mode: Full Auto High Sensitivity Off, On     Slow Shutter Off, On     S. Shutter Limit 1/1, 1/2, 1/4, 1/8,1/15, 1/30     Gain Limit If High Sensitivity is Off: 10.7dB, 14.3dB, 17.9dB, 21.4dB, 25.0dB, 28.6dB, 32.1dB, 35.7dB, 39.3dB, 42.9dB, 46.4dB, 50.0dB ...
  • Page 44     Matrix Off, On     Select Standard, Fl. Light, High Saturation     Level 0 - 14     Phase -7 - +7      -99 - 0 - +99     -99 - 0 - +99    ...
  • Page 45     -99 - 0 - +99     -99 - 0 - +99     -99 - 0 - +99     -99 - 0 - +99     -99 - 0 - +99     -99 - 0 - +99  ...
  • Page 46     -99 - 0 - +99   Mode: SVL Outdoor A Matrix Off, On     Select Standard, Fl. Light, High Saturation     Level 00 - 14     Phase -7 - +7     -99 - 0 - +99  ...
  • Page 47     Black Level -48 - +48     Visibility Enhancer Off, On     VE Effect -3 - +3   Pattern Pattern 00 - 51     Pattern Fine 00 - 09     Offset -64 - +64    ...
  • Page 48     2160P24 HDMI: 2160P24、1080P24 SDI: 2160P24、1080P24     2160P23.98 HDMI: 2160P23.98、1080P23.98 SDI: 2160P23.98、1080P23.98     1080P60 HDMI: 1080P60、1080P30、1080i60、720P60 SDI: 1080P60、1080P30、1080i60、720P60     1080P59.94 HDMI:  1080P59.94、1080P29.97、1080i59.94、720P59.94 SDI:  1080P59.94、1080P29.97、1080i59.94、720P59.94     1080P50 HDMI:   1080P50、1080P25、1080i50、720P50 SDI:   1080P50、1080P25、1080i50、720P50   Factory Reset   Yes, No Status Pelco ID       VISCA ID    ...

  • Page 49: Technical Speci Cations

      Technical Speci cations   R9-230NX User Guide www.bolintechnology.com Bolin Technology  ...
