iScooter i8 Manual

Package Contents

Scooter

Handlebar Bolt (including 2 spare bolts)

3-in-1 Hex Wrench

User Manual & Safety Instructions

Charger

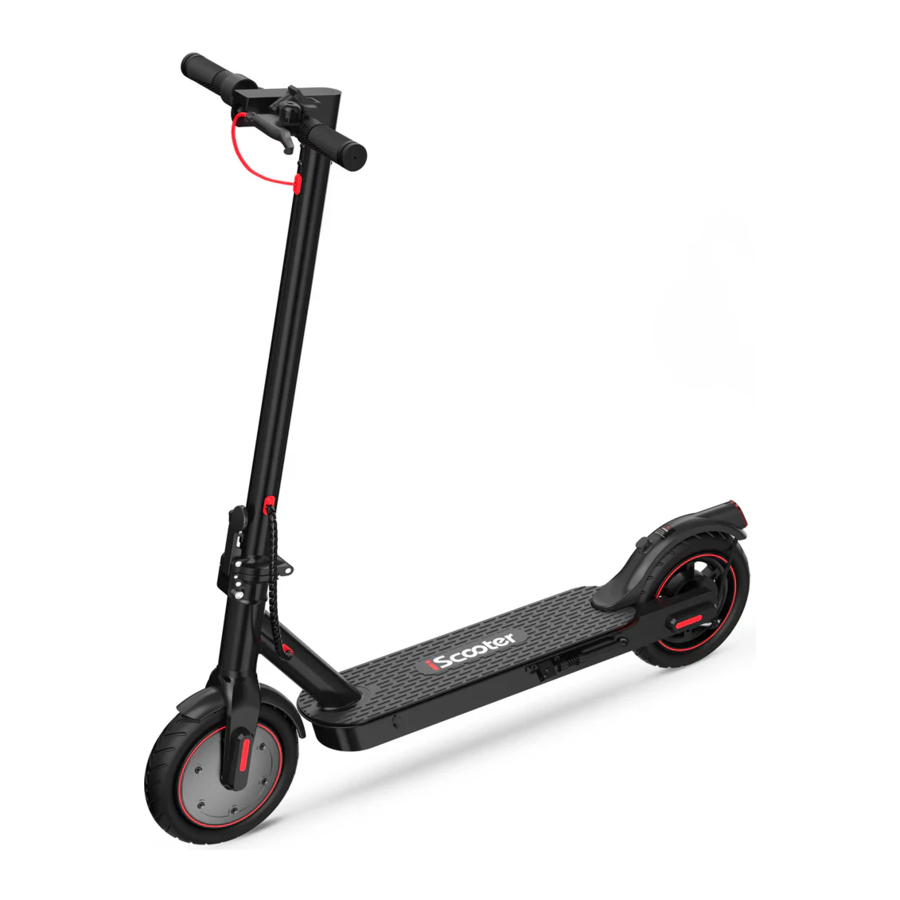

Product Overview

1. Fender Clip
2. Bell
3. Brake Lever
4. Headlight
5. Display
6. Throttle
7. Folding Mechanism
8. Charging Port
9. Kickstand
10. Fender Hook
11. Brake Light

Quick Setup

Assembly

Lift the stem to the riding position, then close the folding latch until you hear a click.

Connect the handlebar to the stem, pre-tighten all the four bolts, then tighten them to the same torque.

Folding

Turn off the scooter, open the folding latch, then fold down the stem.

Adjust the stem so that the fender clip catches the fender hook. And the stem can be used as a carrying handle for transportation.

Unfolding

Press the fender clip to disengage it from the hook, then lift the stem to the riding position.

Close the folding latch until you hear a click. And the scooter is ready for your ride.

Display & Power Button

1. Real-Time Speed
2. Speed Unit
3. Headlight
4. Error Occured
5. Motor Overheating
6. Riding Mode
7. Cruise Control
8. Battery Level
9. Power Button

EU

Riding Mode	Max Speed
	6 km/h
	15 km/h
	25 km/h

NA

Riding Mode	Max Speed
	6 mph (9 km/h)
	12 mph (19 km/h)
	18 mph (29 km/h)

Basic Operations

Power ON/OFF
Press and hold the Power button for 2 s.

Headlight ON/OFF
Press the Power button to turn on/off the headlight and taillight.

Switch Riding Mode
Press the Power button twice.

Switch Speed Unit
Press the Power button 3 times to switch between km/h and mph.

Switch Start Mode
Press the Power button 4 times to switch between zero-start and non-zero start.

Cruise Control ON/OFF
Press the Power button 5 times.

Error code

If you see any error code listed below on the display, please contact the iScooter support team to remove it.

About Charging

• The scooter is fully charged when the charger indicator changes from red to green.
• With charging protection, the scooter will cut off charging automatically after a full charge. We still don't recommend overcharging it.
• Keep the charging port cover closed when not charging.
• During charging, the scooter can not be turned on.

Specifications

* About the range: Measured under the condition of an 100% battery level, a load of 70 kg (154 lbs), and a speed of 15 km/h (9 mph). The range will differ depending on different factors, such as load, humidity, wind speed, and operation habits.
* The structure of this scooter is designed to support a maximum 100 kg (220 lbs) load. For the best riding experience, 70% of the maximum load is recommended.
