Summary of Contents for iScooter iX6
- Page 1 www.iscooterglobal.com www.facebook.com/iScooterGlobal support@iscooterglobal.com...
-
Page 2: Table Of Contents
Contents 1. Package Contents 2. Product Overview 3. Control Panel 4. Assembly 5. Riding Notice 6. Charging 7. First Ride 8. Riding Basics 9. Safety Instructions 10. Dangerous Actions (No Attempting!) 11. Disc Brake Adjustment 12. Daily Care and Maintenance 13. -
Page 3: Package Contents
Package Contents When unboxing your iX6 electric scooter, please verify that the below items are included in the package. If anything is missing or damaged, please contact iscooter customer service for support: support@iscooterglobal.com Keep the package box to ship back the scooter when necessary. -
Page 4: Product Overview
Product Overview Brake Adjustable Lock Turn Signal Rear Fender Charging Port Headlight Motor Front Rear Suspensions Suspensions Ambient Lights Tire Deck... -
Page 5: Control Panel
Control Panel Fault Cruise Locking Gear value Turn right Turn left Headlights Dual drive Single drive Controller current indicator bar Third gear Real time speed Second gear First gear Km/h Maximum speed Average speed Error Error Total mileage Battery power Battery voltage Single mileage Displayed Content... - Page 6 NFC key Mode settings: After turning on the scooter, press and hold 'M' and 'Light' buttons for about 10 seconds. Release the 'Light' button first, then release 'M' button to enter setting mode. P01: Kilometer/mile selection setting P02: Voltage level setting: 36V/48V/60V/72V; the default is 48V, and the undervoltage value is automatically adjusted when the voltage is selected (this item is not recommend- ed to be adjusted) P03: Wheel diameter: unit, inch;...
-
Page 7: Assembly
3. Cut the tapes on the handlebar.Lift the to the height you needed, then close the lock. handlebars on both sides up and slide in to secure.(Tips: Don't tighten only one side one time, visit www.iscooter.com for additional help with assembly, including a step-by-step video.) -
Page 8: Riding Notice
Riding Notice The iscooter iX6 electric scooter is a leisure device. But once they're in a public area, they'll be seen as vehicles, subjecting to any risks faced by vehicles. For your safety, please follow instructions in the manual and traffic laws and regulations set forth by government and regulatory agencies. -
Page 9: First Ride
First Ride Power Switch 1. Press the power switch for 1-3 seconds and then release, LCD display is on — it means the electric scooter is successful turned on. 2. Press the headlight button after power on to turn on the headlight and the ambient light on the deck. -
Page 10: Riding Basics
Riding Basics Wear a helmet, elbow pads, and knee pads in 1.Turn the power on, and check the battery case of falls and injuries either you are a level indicator. beginner learning to ride or you are a seasoned rider. 2.Stand with one foot on the deck and one 3.When the scooter starts to move forward, foot on the ground. -
Page 11: Safety Instructions
Safety Instructions Do not ride in the rain. Please keep a medium or low speed (5mph) when you ride across speed bumps, elevator door sills, bumpy roads or other uneven surfaces. Slightly bend your knee to better adjust mentioned surfaces. Look out for doors, elevators and other Do not accelerate when you go downhill. -
Page 12: Dangerous Actions (No Attempting!)
Do not hang bags or other heavy stuff on the Keep both feet on the deck all time. handlebar. Dangerous Actions (No Attempting!) Do not ride in traffic lanes or residential areas Do not turn the handlebar violently during where vehicles and pedestrians are both high-speed riding. - Page 13 Keep your feet off the rear mudguard. Always keep your hands on the handlebar. Do not touch the disc brake. Do not try riding up or down stairs, and jumping over obstacles. ...
-
Page 14: Disc Brake Adjustment
Disc Brake Adjustment To adjust the disc brake sensitivity: You need a hex wrench to remove the screws on the rocker. • When the disc brake is too sensitive, rotate the disc brake rocker down a bit. Then, reinstall the screws back to the brake cable core to tighten. -
Page 15: Daily Care And Maintenance
Daily Care and Maintenance Cleaning and Storage If you see stains on the scooter's body, wipe them off with a damp cloth. If you cannot scrub off the stain, put on some toothpaste, and brush them with a toothbrush, then wipe them off with a damp cloth. -
Page 16: Specifications
Specifications ltem Electric Scooter Unfolded (Length. x Width x Height) 122*63*125 cm Dimensions Folded (Length. x Width x Height) 122*22*57 cm Weight Net Weight 53LB / 24.3KG Load 150 kg User Recommended Age Recommended Height 120~200cm Speed 25-45 km/h Long Range 40-45 km Scooter Max. -
Page 17: Limited Warranty Statement
5. All accessories originally included with your purchase must be included with your return. 6. If you return a product to iscooter, (a) without an RMA from iscooter(b) without all parts included in the original package, iscooter retains the right to refuse delivery of such return. - Page 18 REMEDIES • If a hardware defect is found and a valid claim is received by iscooter within the Warranty Period, iscooter will, at its option and to the extent permitted by law, either (1) repair the product at no charge, using new or refurbished replacement parts or, (2) replace the product with a new or refurbished product.
-
Page 19: Question & Answer
Please see Disc Brake Adjustment page. If you still have problem, please contact us for help. 5. Why does the screen display an error code? A: If you see any error code below, Please contact iscooter Support Team to remove the error code. Error code... -
Page 20: Contact Us
Possible reasons: Any one of the green-yellow signal wires connecting the dashboard and the controller is in open state. Contact Us Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your iscooter iX6 electric scooter. E-mail Service: support@iscooterglobal.com www.iscooterglobal.com...
Need help?
Do you have a question about the iX6 and is the answer not in the manual?
Questions and answers

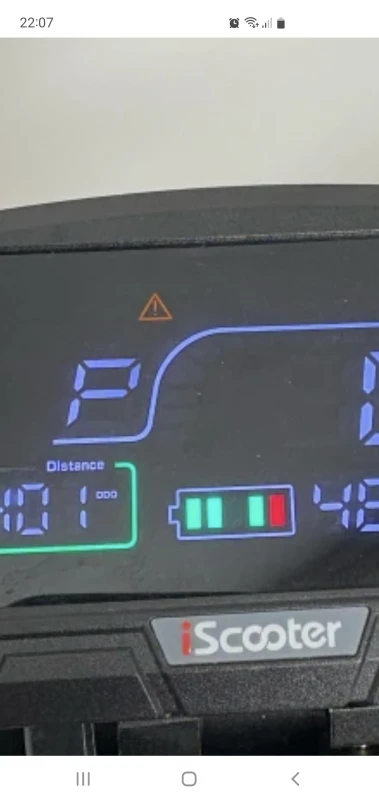

On the monitor there is a red triangle with a exclamation mark in it what does this mean??
Red triangle on the monitor what does this mean
A red triangle with an exclamation mark on the monitor of the iScooter iX6 indicates an error code. It means there is a system issue such as poor contact in wire terminals, low battery voltage, a faulty motor Hall signal, or handlebar signal problems. You should check the connectors or contact iScooter Support Team to resolve the error.
This answer is automatically generated

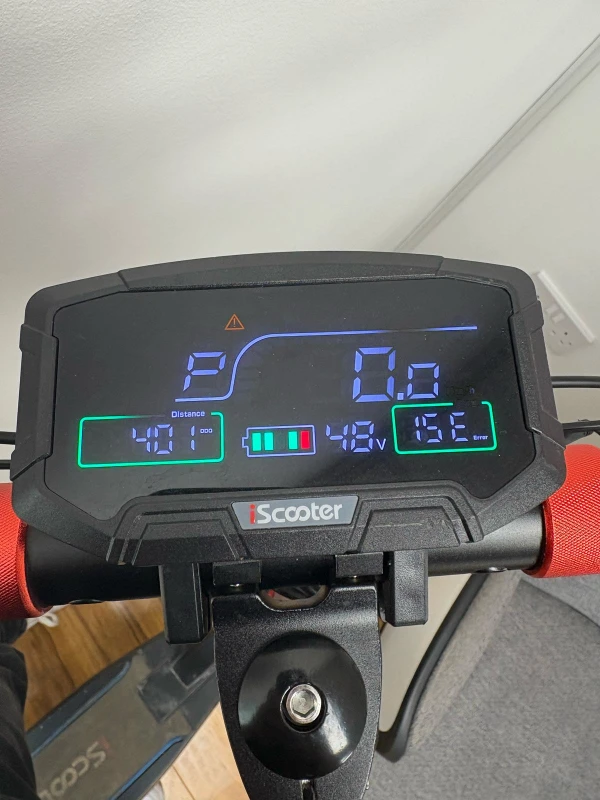

I have an error 15E on the screen as well as an orange triangle hazard sign. I have tried turning off and on again, I also do not know how to reset the scooter if there is an option to do so.
Error 15E on the iScooter iX6 indicates that the controller cannot receive the dashboard signal. Possible causes include:
1. A faulty 5-core wire connecting the dashboard and the controller.
2. If the dashboard does not turn on (screen is black), check the main power line between the controller and the battery, or the red, black, and blue wires between the dashboard and controller.
3. If the dashboard turns on but stops working after 3 seconds, check if any of the green-yellow signal wires between the dashboard and controller are disconnected.
To fix the issue:
- Ensure all wire connections between the dashboard and controller are secure.
- Inspect the power line from the battery to the controller.
- If the issue persists, contact iScooter support for further assistance.
This answer is automatically generated
@Billy Hewson

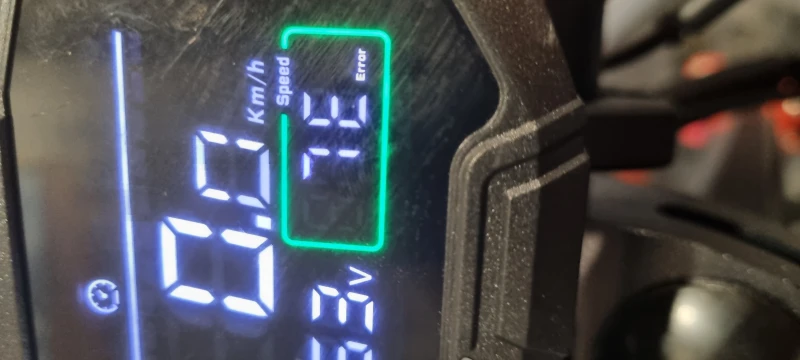

Error 7E and cant find reset button anywhere
Error 7E on the iScooter iX6 occurs when the handlebar is out of control, the handlebar signal is less than 0.75V, or the handlebar is twisted before the system starts. To reset the scooter and clear this fault, reset the system by turning the scooter off and on again.
This answer is automatically generated

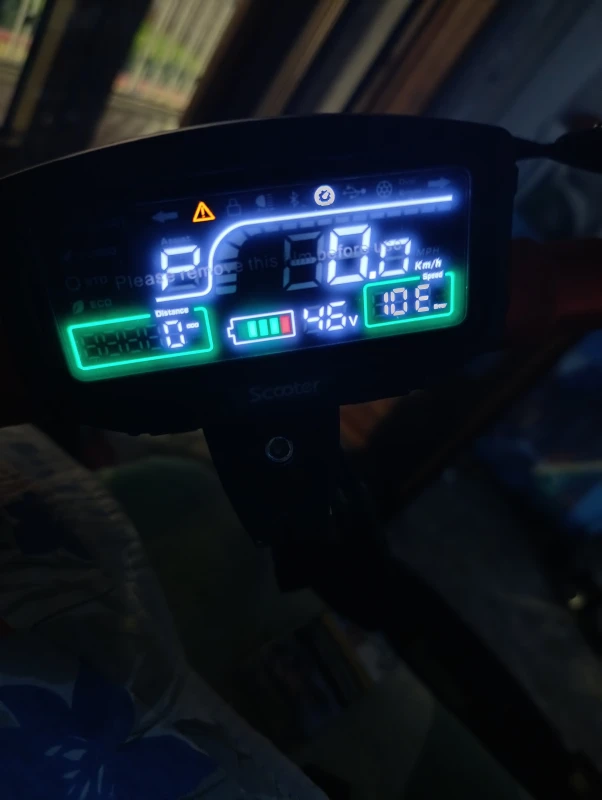

Errore 10E
Hogyan lehet kikapcsolni a tempomatot
