- Page 1 Here's how you can contact us： www.iscooterglobal.co.uk www.iscooterglobal.eu www.facebook.com/iScooterGlobal support@iscooterglobal.com...
-
Page 2: Table Of Contents
Contents Product Safety Notice What's included Product Overview Specification Display Content Screen E-SCOOTER APP Assemble Attention Riding Basics Riding Notice Dangerous Actions Charging Disc Brake Adjustment Daily Care and Maintenance Limited Warranty Statement Error Code Contact Us... -
Page 3: Product Safety Notice
Abuse --- We do not cover physical damage due to negligent care and extreme riding. Safety Ride --- Whenever you ride the iScooter electric scooter, you risk severe injury or even death from loss of control, collisions, and falls. -
Page 4: What's Included
What's included Carefully check what's included in the package box, if anything is missing or damaged, please contact iScooter customer service for support: support@iscooterglobal.com Keep the package box to ship back the scooter if necessary. 1 x Scooter 1 x Allen Wrench... -

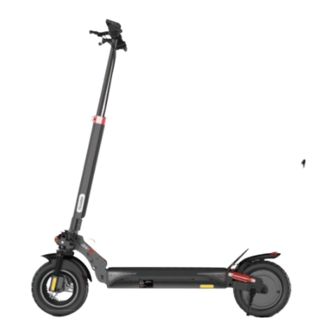

Page 5: Product Overview
Product Overview Display Control Panel Brake Lever Folding key Deck Brake LED Headlight Motor wheel Kickstand Battery compartment Disc brake Indicators/Led lights... -
Page 6: Specification
Specification Project Content Parameters Unfolded Dimensions 47*25.5*50 IN / 120*65*128cm Folded Dimensions 47*8.6*19.6 IN / 120*22*50cm Net Weight 55LB / 25.05KG Top Speed 15.5 - 27.9 MPH /25-45KM/H Max. Range 24.8-27.9 Miles / 40-45 KM Vehicle Parameters Hill Climbing 20% - 25% Grade Terrain All-Terrain Wheels Operating Temperature... -
Page 7: Display Content
Display Content Display Content AUTO Sytem self-check Current speed Km/h TURBO Battery level Sport mode Single Drive mode Motor Mode READY Ready to start ECO mode SPEED Cruise control Top speed ERROR Km/h Headlight Trip distance TRIP MILE8 TEMP Temperature... - Page 8 Display Content 1. Open the electric lock 2. Press the power button 3. 3 speed levels: to turn on the scooter 10 km/h, 15 km/h, 25 km/h 5. Press Horn button and the 4. Press and hold Power 6. Press Horn button and the display reads "P10"...
- Page 9 Display Content Light switch ON/OFF Horn Power switch ON/OFF Speed Mode setting： Switch from KM/H to MPH Power ON/OFF button : Press and hold for 3S to power on / off. Light switch : Press the switch to turn on / off light. Horn : Press and hold to sound the horn.
-
Page 10: Screen
Screen Battery Level Display: 6-bar battery level. 6 Bars: 90%~100% of battery level 5 Bars: 70%~90% of battery level Charging prompt when the battery runs out and the scooter slides to a natural stop due to inertia. So you have to charge it very soon. It is recommended not to drain the battery by 100%. -
Page 11: E-Scooter App
E-SCOOTER APP Download the "MiniRobot" app from the App Store(iPhone) or Google Play (Android phone) for more information and functions. 1.Turn on Bluetooth on 2.Function Settings 3.Bluetooth connected 4.Detailed information your phone. Open the app interface and tap search. 5.Click to switch 6.Click to lock the 7.Click to switch the 8.Click on the switch... -
Page 12: Assemble
Assemble 1. Close the folding plug, buckle the lock, 2. Cut the tapes on the handlebar.Lift the handlebars on both sides up and slide and twist the lock. in to secure. Attention 1. First, press down and hold ① in the direction 2. -
Page 13: Riding Basics
Riding Basics Wear a helmet, elbow pads, and knee pads in case of Turn the power on, and check the battery falls and injuries either you are a beginner learning to level indicator. ride or you are a seasoned rider. Stand with one foot on the deck and one When the scooter starts to move forward, foot on the ground. - Page 14 Riding Notice Do not ride in the heavy rain. Please keep a medium or low speed (5mph) when you ride through speed bumps, elevator door sills, bumpy roads or other uneven surfaces Slightly bend your knee to better adjust mentioned surfaces. Look out for doors, elevators and other Do not accelerate when you go downhill.
-
Page 15: Riding Notice
Riding Notice Keep both feet on the deck all time. Do not hang heavy stuff on the handlebar. Dangerous Actions Do not ride in traffic lanes or residential areas Do not turn the handlebar violently where vehicles and pedestrians are both during high-speed riding. -
Page 16: Dangerous Actions
Dangerous Actions Keep your feet off the rear mudguard. Always keep your hands on the handlebar. Do not try riding up or down stairs, Do not touch the disc brake rotor. or jumping over obstacles. Charging Your scooter will be fully charged when the LED indicator on the charger changes to green from red. -
Page 17: Disc Brake Adjustment
Disc Brake Adjustment To adjust the disc brake sensitivity: You need a hex wrench to remove the screws on the rocker. • When the disc brake is too sensitive, rotate the disc brake rocker down a bit. Then, reinstall the screws back to the brake cable core to tighten. -
Page 18: Daily Care And Maintenance
Daily Care and Maintenance Cleaning and Storage If you see stains on the scooter's body, wipe them off with a damp cloth. If you cannot scrub off the stain, put on some toothpaste, and brush them with a toothbrush, then wipe them off with a damp cloth. -
Page 19: Limited Warranty Statement
REMEDIES If a hardware defect is found and a valid claim is received by iScooter within the Warranty Period, iScooter will, at its option and to the extent permitted by law, either (1) repair the product at no charge, using new or refurbished replacement parts or, (2) replace the product with a new or refurbished product. -
Page 20: Error Code
Error Code Error code Reason Maintenance and treatment Check if there is a wrong wire connection or if there Short-circuit fault is a short circuit in the installation, remove the short circuit or replace the controller Check whether the connection line between the Motor communication fault controller and the main controller is well connected. -
Page 21: Faq
What if the E-Scooter comes arrived with missing accessories or broken parts? A: Please take a photo and send to iScooter Support Team by sending email: And iScooter Support Team will reply to you soon and send correct accessory or part replacement.
