Summary of Contents for iScooter i14

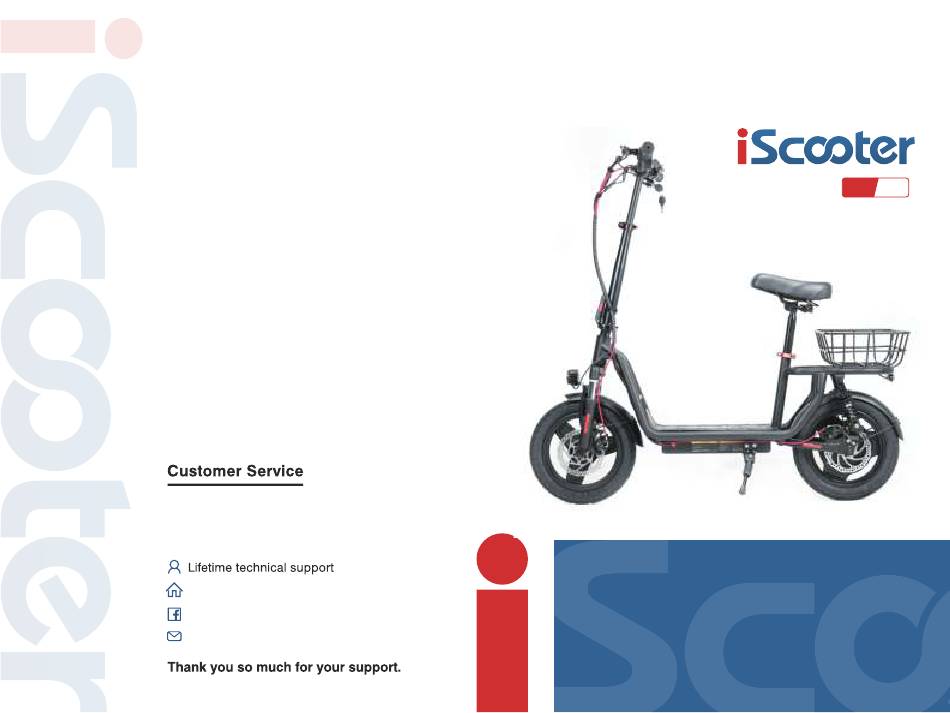

- Page 1 Our professional and enthusiastic customer service team strives to provide you with satisfactory after-sales service. Here’s our contact information: www.iscooterglobal.com www.facebook.com/iScooterGlobal support@iscooterglobal.com...
-
Page 2: Table Of Contents
Table of Contents PACKAGE CONTENTS PRODUCT OVERVIEW DISPLAY SCREEN BUTTONS & FUNCTIONS ASSEMBLE YOUR SCOOTER FOLD / UNFOLD YOUR SCOOTER SPECIFICATIONS CHARGE YOUR SCOOTER MAINTENANCE & CARE CONTACT US... -
Page 3: Congratulations On Your Purchase
CONGRATULATIONS ON YOUR PURCHASE! This user manual will help you assemble and operate your new electric scooter. Be sure to read ALL OF THE INFORMATION in this manual before riding. Note to all riders under 14 years old: This electric scooter is for 14+ years old. If you are under 14 years old, you must get parental permission before riding your electric scooter. - Page 4 • No abuse — We do not cover physical damage due to negligent care and extreme riding. • Whenever you ride the iScooter scooter, you risk severe injury or even death from loss of control, collisions, and falls. Use caution and ride at your own risk.
-
Page 5: Package Contents
PACKAGE CONTENTS Inspect each item for any accidental damage that may have occurred during shipping. You should find each of these items in your box: 1x Electric Scooter 1x Battery Charger 1 x T Allen Wrench 1x Inner Tube (NOT Fully Assembled) PRODUCT OVERVIEW Front Brake Lever Display... -
Page 6: Display Screen
DISPLAY SCREEN Brake Applied Battery Level Speedometer Battery Voltage 21 mph Top Speed Trip Meter 15 mph Top Speed Odometer 9 mph Top Speed Error Codes Short Circuit Failure Communication Failure Motor Phase A Current Sensor Failure Motor Phase B Current Sensor Failure Motor Phase C Current Sensor Failure Accelerator Failure Brake Lever Failure... -
Page 7: Buttons & Functions
BUTTONS & FUNCTIONS Multifuntion Button • Press once to switch between odometer, trip odometer, and battey voltage. • Press twice to switch between the riding modes: ECO, TOUR, and SPORT. • Press three times to switch between the metric and imperial systems. Power on Insert the key and turn it clockwise to the end to turn on the scooter. -
Page 8: Assemble Your Scooter
ASSEMBLE YOUR SCOOTER 1. Install the handlebar a. Stand the stem tube upright. b. Close the folding latch until you hear a click. a. Find the stem post and the tool required. b. Insert the stem post into the stem tube (no need to close the lever of the quick-release clamp). - Page 9 a. Remove the bolts of the handlebar clamp. b. Place the handlebar into the clamp, adjust the handlebar to your desired angle, and hand-tighten the bolts. c. Retighten the bolts with the tool. Maximum handlebar height Minimum handlebar height Adjust the handlebar to your desired height and then fully close the lever of the quick-release clamp.
- Page 10 2. Install the front fender & headlight 1. Find the front fender and the tool 2. Remove the bolt pre-installed on the required. front fork arch. 3. Pass the bolt through the front fender bracket, headlight bracket, and front fork arch.
- Page 11 3. Install the front wheel a. Find the front wheel. b. Sit the front fork dropouts onto the quick-release skewer of the front wheel. c. Adjust the safety washers so that they hook the front fork legs. Then spin the lever of the quick-release skewer until you feel resistance at the halfway-closed point.
- Page 12 a. Slide the seatpost into the clamp on the seat. b. Tighten the nuts of the seat clamp properly. a. Insert the seatpost into the seat tube. b. Adjust the seat to your desired height and then fully close the lever of the quick-release clamp.
- Page 13 3. Align the bolt holes of the basket with thoese on the rear rack and then retighten the bolts. 6. Install the rear fender One of the rear fender stays is not pre-installed. You need to install it by yourself. 2.
-
Page 14: Fold / Unfold Your Scooter
3. Pass the bolt through the hole 4. Retighten the bolts. of the rear fender stay as shown. IMPORTANT: • When installing the stem post and seat, the quick-release clamps must be properly tightened to avoid injury or damage during riding. •... -
Page 15: Specifications
SPECIFICATIONS Motor Power 800 W Top Speed 21 mph 30-34 miles Range* per Charge Load Capacity 264 lbs max Battery Capacity 48-54.6 V, 10 Ah Charger Input AC 100-240 V, 50/60 Hz Charger Output DC 54.6 V, 1.5 A Charge Time 6-7 h Rider Age 14+ years old... - Page 16 Charging Warnings and Battery Safety Warnings • Use caution when using outlets to prevent electric shock. • Do not leave the charger plugged in for extended period of times (> 24 hours). • Only charge your scooter in a safe, clean, and dry environment. Keep the charger and scooter away from inflammable materials as they may get hot.
-
Page 17: Maintenance & Care
Battery Disposal • Do not dispose of your battery by way of land filling, incineration, or household trash. We recommend disposing your battery through a local recycling program suitable for lithium-ionbatteries. Contact your local waste management service for more information. •... -
Page 18: Contact Us
Notice: The disc brake may squeak when in use until it is broken in. This is normal and does not affect the brake's function or performance. CONTACT US Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your iScooter i14 electric scooter. support@iscooterglobal.com www.iscooterglobal.com...
