iScooter iX4 Manual

Package Contents

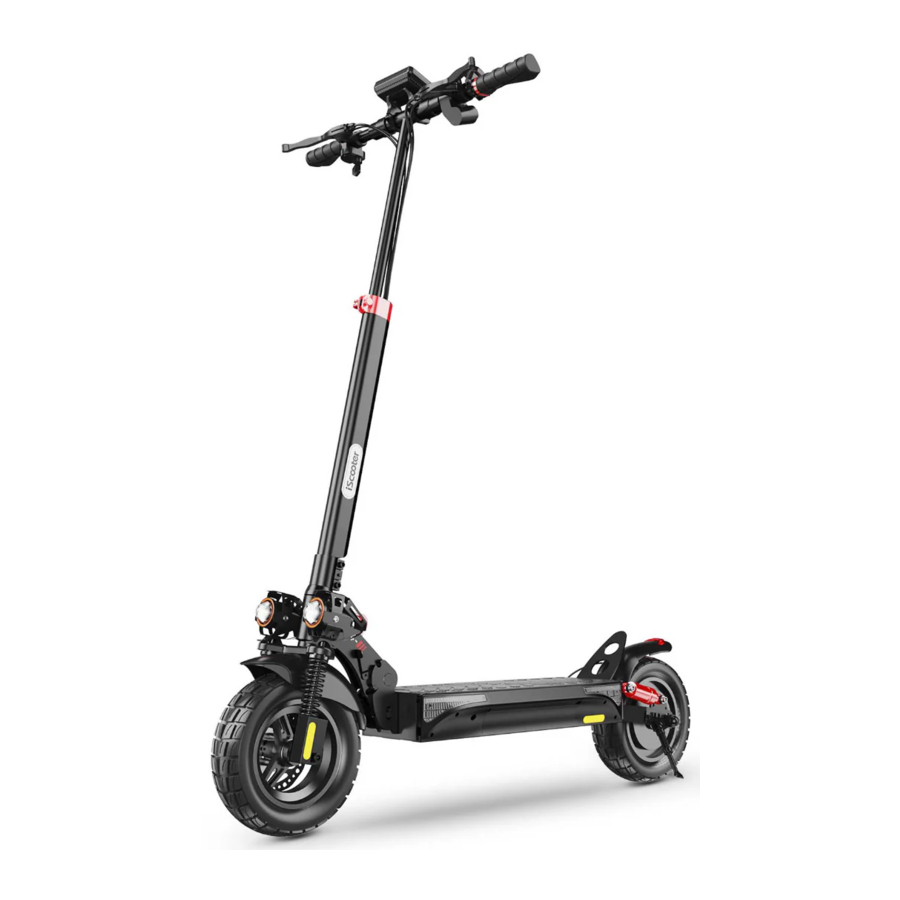

Product Overview

Product Overview

  1. Display
  2. Throttle
  3. Control Panel
  4. Brake Lever
  5. Handlebar Height Adjustment Clamp
  6. Stem
  7. Headlight
  8. Safety Lever
  9. Deck
  10. Disc Brake
  11. Folding Mechanism
  12. Turn Signal
  13. Underbody Light
  14. Kickstand
  15. Motor
  16. Taillight & Brake Light

Quick Setup

  • Unfolding
    Press the folding lever to release the folding mechanism.
    Unfolding - Step 1
    Lift the stem to the riding position until you hear a click. Pull the locking pin ring while pressing the safety lever, then pull up the lever to engage.
    Unfolding - Step 2
    Lift both grips on each side of the handlebar until the locking sleeves snap into the center.
    Unfolding - Step 3
  • Adjusting the Handlebar Height
    Open the handlebar height adjustment clamp to adjust the handlebar into your desired height, then close the clamp.
    Unfolding - Step 4
  • Folding
    Lower the handlebar to its lowest position. Slide the locking sleeves out of the center, allowing you to fold down both grips.
    Unfolding - Step 5
    Pull the locking pin ring while lifting the safety lever to disengage it. Then, press the folding lever to lower the stem until the folding mechanism engages.
    Unfolding - Step 6

About Charging

About Charging

  • The scooter is fully charged when the charger indicator changes from red to green.
  • With charging protection, the scooter will cut off charging automatically after a full charge. However, we still do not recommend leaving it overcharging.
  • Keep the charging port cover closed when not charging.

Controls & Display

Controls & Display

Turn On/Off
Insert the key into the ignition, and turn it to the on position.
Press and hold the button to turn the scooter on/off.

Lights
Press the button to turn on/off the headlight, taillight.

Riding Modes
Press the button to cycle through the riding modes.

Speed Unit
Press the button to switch between km/h and mph.

Sound the Horn
Press the button to sound the horn.

Turn signals

Toggle to activate the left or right turn signal.

Note
The underbody and brake lights will activate when the brake lever is applied.

Display Overview

Riding Mode Max Speed
European North American
6 km/h 9 mph (14 km/h)
10 km/h 15 mph (24 km/h)
15 km/h 21 mph (33 km/h)
25 km/h 28 mph (45 km/h)
  1. App Connected
  2. Battery Level
  3. Trip Distance
  4. Total Distance
  5. Current Speed
  6. Speed & Error Code
  7. Eco Riding Mode
  8. Standard Riding Mode
  9. Turbo Riding Mode
  10. Walk Mode
  11. Motor Overheating
  12. Headlight
  13. Cruise Control
  • Settings
    After turning on the scooter, press and hold the Power and Horn buttons for 5 seconds to enter settings mode. Then, press the Horn button to navigate through the settings, and use the "M" and "S" buttons to make a selection.
Function Selection (Action)
Zero Start P10: Disable
P11: Enable
Cruise Control P20: Disable
P21: Enable
Odometer Reset After selecting "P4," press and hold the "M" button for 4 seconds.

After adjusting the settings to your preference, press and hold the Power and Horn buttons, or wait 5 seconds, to exit the settings mode.

  • Error code
    If you see any error code listed on the display, please contact our support team to remove it.
Code Definition
E10 Communication Fault
E14 Throttle Fault
E15 Brake Lever Fault
E16 Motor Hall Sensor Fault
E50 Over-voltage

Specifications

Unfolded Size 115 x 65 x 128 cm (45.3 x 25.6 x 50.4 in)
Folded Size 115 x 22 x 50 cm (45.3 x 8.7 x 19.7 in)
Weigh 23.3 kg (51.4 lbs)
Battery Capacity 15 Ah
Motor Power 800 W
Wheel 25.4 cm (10 in)
Range 40–45 km (25–28 miles) *
Max Load Capacity 150 kg (330 lbs) *
Recommended Age 16+
Operating Temperature -2°C–35°C (28.4°F–95°F)
Charger Input AC 100–240 V, 50/60 Hz
Charger Output DC 54.6 V, 2 A
Charging Time 6–8 h

* About the range: Measured under the condition of 100% battery level, a load of 70 kg (154 lbs), and a speed of 15 km/h (9 mph). The range will differ depending on different factors, such as load, humidity, wind speed, and operation habits.
* The structure of this scooter is designed to support a maximum load of 120 kg (264 lbs) load. For the best riding experience, 70% of the maximum load is recommended.

Install the "MiniRobot" App
Download the app: Scan the QR code. Or search "MiniRobot" on the App Store (iOS) or Google Play Store (Android).

Customer Service:
Contact us if you experience issues relating to riding, maintenance and safety, or errors / faults with your electric scooter.
