H-Burner
Model
N= Natural / P= Propane
LOF-2412HMT-N/P
LOF-3012HMT-N/P
LOF-3614HMT-N/P
LOF-4214HMT-N/P
LOF-4814HMT-N/P
LOF-6016HMT-N/P
LOF-7216HMT-N/P
LOF-8416HMT-N/P
LOF-9616HMT-N/P
Linear Fire Pits - Match Throw (MT)
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
These fire pits are manufactured from the factory as Natural or Propane Gas.
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
Description

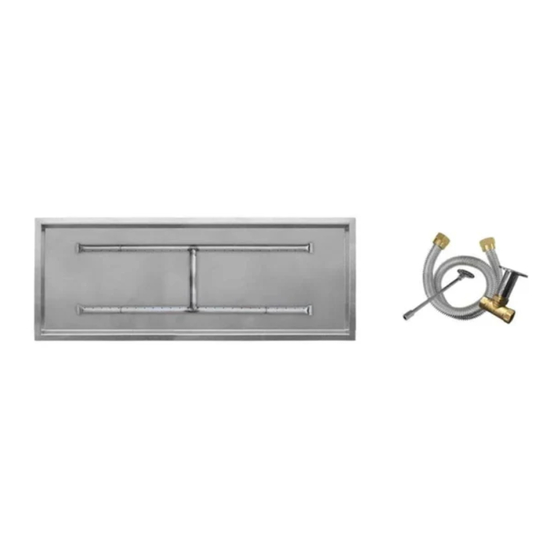

24" x 12" Fire Pit with H-Burner
30" x 12" Fire Pit with H-Burner
36" x 14" Fire Pit with H-Burner
42" x 14" Fire Pit with H-Burner
48" x 14" Fire Pit with H-Burner
60" x 16" Fire Pit with H-Burner
72" x 16" Fire Pit with H-Burner
84" x 16" Fire Pit with H-Burner
96" x 16" Fire Pit with H-Burner
Ensure you order the proper gas type before installing.
INSTALLATION PRECAUTION:
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
MODELS
Model
N= Natural / P= Propane
LOF-2406TMT-N/P
LOF-3006TMT-N/P
LOF-3606TMT-N/P
LOF-4806TMT-N/P
LOF-6006TMT-N/P
LOF-7206TMT-N/P
LOF-8406TMT-N/P
LOF-9606TMT-N/P
PN#90134
T-Burner
Description
24" x 6" Fire Pit with T-Burner
30" x 6" Fire Pit with T-Burner
36" x 6" Fire Pit with T-Burner
48" x 6" Fire Pit with T-Burner
60" x 6" Fire Pit with T-Burner
72" x 6" Fire Pit with T-Burner
84" x 6" Fire Pit with T-Burner
96" x 6" Fire Pit with T-Burner
Advertisement
Table of Contents
Related Manuals for Firegear LOF-4214HMT-N
Summary of Contents for Firegear LOF-4214HMT-N
- Page 1 30” x 6” Fire Pit with T-Burner LOF-3614HMT-N/P 36” x 14” Fire Pit with H-Burner LOF-3606TMT-N/P 36” x 6” Fire Pit with T-Burner LOF-4214HMT-N/P 42” x 14” Fire Pit with H-Burner LOF-4806TMT-N/P 48” x 6” Fire Pit with T-Burner LOF-4814HMT-N/P 48”...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or us gasoline or other...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Specifications
(914mm) (3048mm) (457mm) (914 x 355mm) (977 x 419mm) (813 x 254mm) ½” 8” 36” 120” 18” LOF-4214HMT-N 42” x 14” 44½” x 16 33” x 10” 43” x 15” (203mm) (914mm) (3048mm) (457mm) (1067 x 355mm) (1130 x 419mm) - Page 5 SPECIFICATIONS MODELS INSIDE PAN OUTSIDE PAN BURNER CUTOUT GROUND SIDE COMBUSTILE COMBUSTIBLE DIMENSIONS DIMENSIONS LENGTH DIMENSIONS LEVEL WALL CEILING FLOOR N=NG; P=LP LOF-2406TMT-N 24” x 6” ½” ½” 21” 25” x 7” 8” 36” 96” 18” LOF-2406TMT-P (609 x 152mm) (533mm) (635 x 178mm) (203mm)
-
Page 6: Preparation For Non-Combustible Structure
Use the specifications listed on pages 4 and 5 for proper clearance to combustibles. Firegear Outdoors fire pits are constructed and tested to follow the rigid ANSI standards for gas appliances and manufactured safely providing dependable and certified products. If these fire pits are not installed according to the installation manual (i.e. -
Page 7: Cross Ventilation Requirements
7. These products are designed for outdoor use only. Not approved for any indoor use. 8. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube, so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”... -
Page 8: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 9: Preparing Burner Pan
PREPARING BURNER PAN FOR INSTALLATION Burner Pan Lock Nut INSTALLING BURNER ORIFICE (OAS) Locate the burner nipple underneath the burner pan. Ensure the nipple from on the spur burner has gas rated Teflon tape wrapped around the threads. Thread the OAS OAS# (orifice air shutter) on to the nipple of the burner clockwise manner. -
Page 10: Typical Installation Drawings
PREPARING BURNER PAN FOR INSTALLATION Non-Combustible Fire Pit Enclousure Fire Pit Pan Key Valve Gas Supply Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional support to hold the manual key valve in place. -
Page 11: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. - Page 12 MT REPLACEMENT PARTS Drawings not to scale. Drop in Pan - Match Throw Fire Pits REV. D Page 12...
-
Page 13: Replacement Parts
REPLACEMENT PARTS Qty. Part Number Item Description 24”x 12” LH-Burner Pan Only (used with 21” x 10” burner) 78047 30” x 12” LH-Burner Pan Only (used with 27” x 10” burner) 78041 36”x 14” LH-Burner Pan Only (used with 33” x 10” burner) 78042 42”... -
Page 14: Fire Pit Maintenance/Trouble Shooting
2. Ensure fire pit enclosure has proper drainage for water and proper ventilation to dry out. OPTIONAL ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. -
Page 15: Liquid Propane (Lp) Conversions
CONVERTING TO LP GAS Converstion Kit Common Parts Btu Ratings LP Orifice Models OAS-LPK47 S499-8; 113-SS4-D5; 50,000 OAS-LP47 LOF-2406TMT-N U3-8D-S (14.65kW) LOF-3006TMT-N OAS-LPK41 S499-8; 113-SS4-D5; 75,000 OAS-LP41 LOF-3606TMT-N U3-8D-S (21.98kW) LOF-2412HMT-N OAS-LPK35 S499-8; 113-SS4-D5; 100,000 OAS-LP35 LOF-4806TMT-N U3-8D-S (29.30kW) LOF-3012HMT-N OAS-LPK31 S499-8;... - Page 16 FIREGEAR LIMITED WARRANTY - 2022 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 17 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 18 Product to be returned should; be packed so as not to incur damages during transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued. The RMA must be clearly marked on the outside of the package.
- Page 19 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard St.
- Page 20 Having problems getting the gas appliance to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
