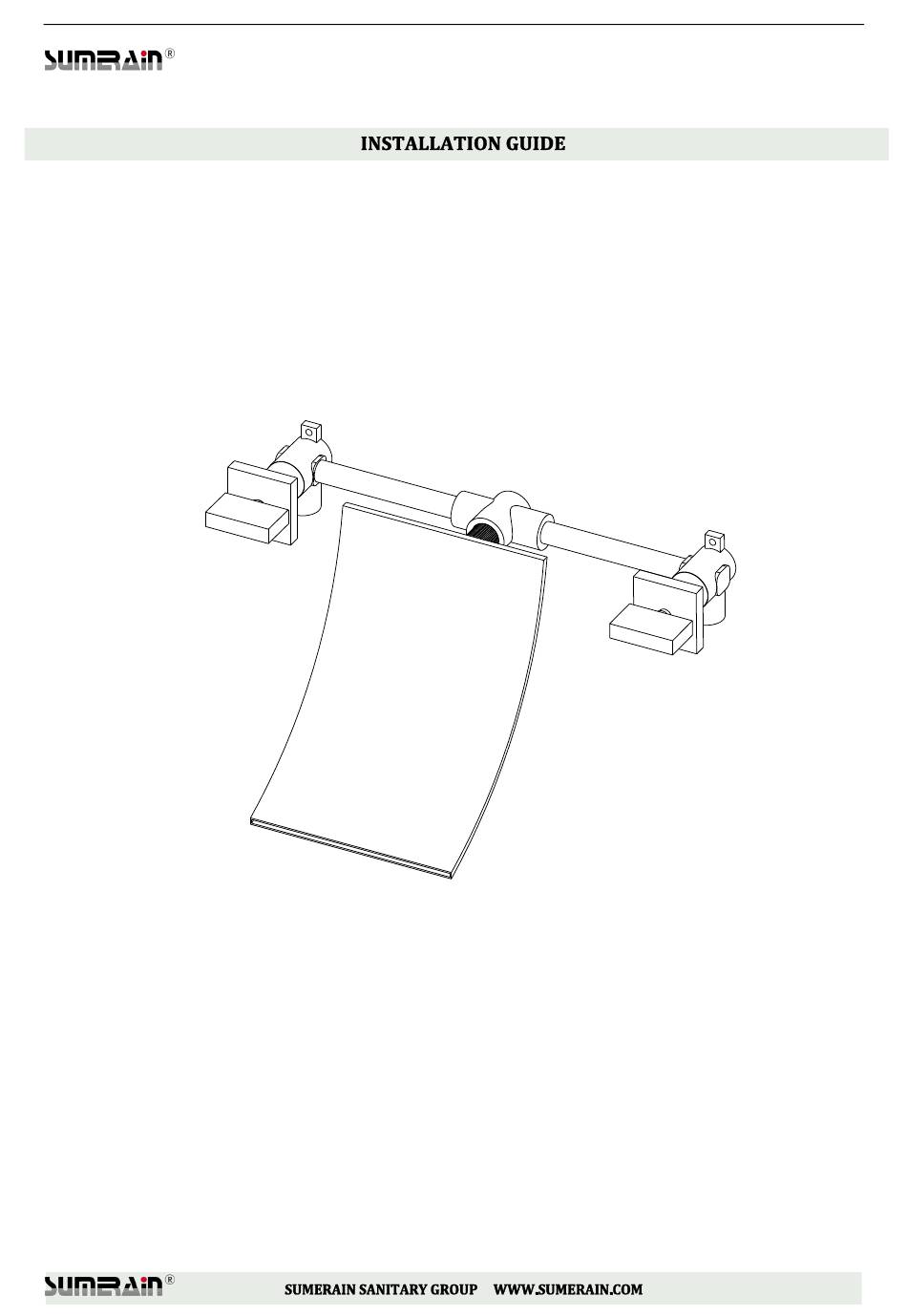

- Page 1 MODEL: S1248NWA Version: 3.0 MUTI-FUNCTIONAL IN-WALL WATERFALL FAUCET (Application: Basin sinks faucet and bathtub faucet)
- Page 2 Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions.
- Page 3 This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance.
- Page 4 Function Bathroom Sink Faucets, Bathtub faucet Feature Waterfall, Wall mount Modern ,Contemporary Theme Configuration Vessel Brushed Nickel Finish Installation Holes Three Number of Handles Handle style Knob Adjustable Faucet Total Height Spout Reach 175mm [6-7/8 Inch] Spout Height Adjustable Installation type Wall mount Valve Type Ceramic disc...
- Page 5 FRONT VIEW OF FAUCET...
- Page 6 RIGHT VIEW OF FAUCET TOP VIEW OF FAUCET...
-
Page 7: Explode View
EXPLODE VIEW CODE ITEM NAME CODE ITEM NAME Spout 1PCS Rough-in valve body 1PCS 1248001 1248002 Cold disc cartridge 1PCS Sleeve 2PCS 1248003 1248004 Escutcheon 2PCS Knob 2PCS 1248005 1248006 Set screw 3PCS Spout shank 1PCS 1248007 1248008 washer 1PCS Spout Nipple 1PCS 1248009... -
Page 8: Before Proceeding
1248007 1248008 washer 1PCS Spout Nipple 1PCS 1248009 1248010 Hot disc cartridge 1PCS Allen wrench 1PCS 1248011 1248012 Escutcheon Adapter 2PCS 1248013 If any of these items are missing, please contact SUMERAIN consumer service at +86-750-2731579 or email to: supports@sumerain.com... - Page 9 4. VALVE TRIM INSTALLATION 4.1 Make a mounting rack (normally use woods as materials) for preparing install the rough-in valve trim. The mounting board’s face should be 54mm (2-1/8”) at least behind the finish wall surface.
- Page 10 Apply Teflon tape on the escutcheon adapter and connect to rough-in valve. Secure the rough-in valve to the mounting board with screws by Philips screwdriver. Horizontal...
- Page 11 4.4 Turn on your shut-off valve for cleaning the hot and cold water supply tube before connect to the valve trim, allow the water flush 3~5 minutes to flush out dirt and debris. Shut off the water supply again after finish. 4.5 Apply Teflon tape on the thread of tube inlet and then connect to rough-in valve.
- Page 12 4.6 Install finish wall 4.7 Attach nipple to shank of rough-in valve by Allen wrench.
- Page 13 4.8 Secure spout to nipple with set screw with Allen wrench. 4.9 Install the Escutcheons.
- Page 14 4.10 Secure the knobs to cartridge stem with screw by Allen wrench. ASSEMBLE FINISHED 5. INSPECTION 5.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere. INSTALL FINISH...
- Page 15 Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. Cleaning Materials for faucets and showers Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when cleaning faucets and showers:...
- Page 16 Factory Address: 25 building Tangkou Industrial Park,Shuikou town, Kaiping City, Guangdong Province, China (Mainland) Tel: +86-750-2731579 Toll Free: 400-0999-075 (China mainland) Fax: +86-750-2715258 Web: http://www.sumerain.com E-mail: hk@sumerain.com SUMERAIN INTERNATIONAL GROUP – AMERICA SALES Branch Address: 13455 Harper Dr. Saratoga, CA 95070 Tel: +1-408-867-8884 FAX: +1-408-867-4272 E-mail: us@sumerain.com...
