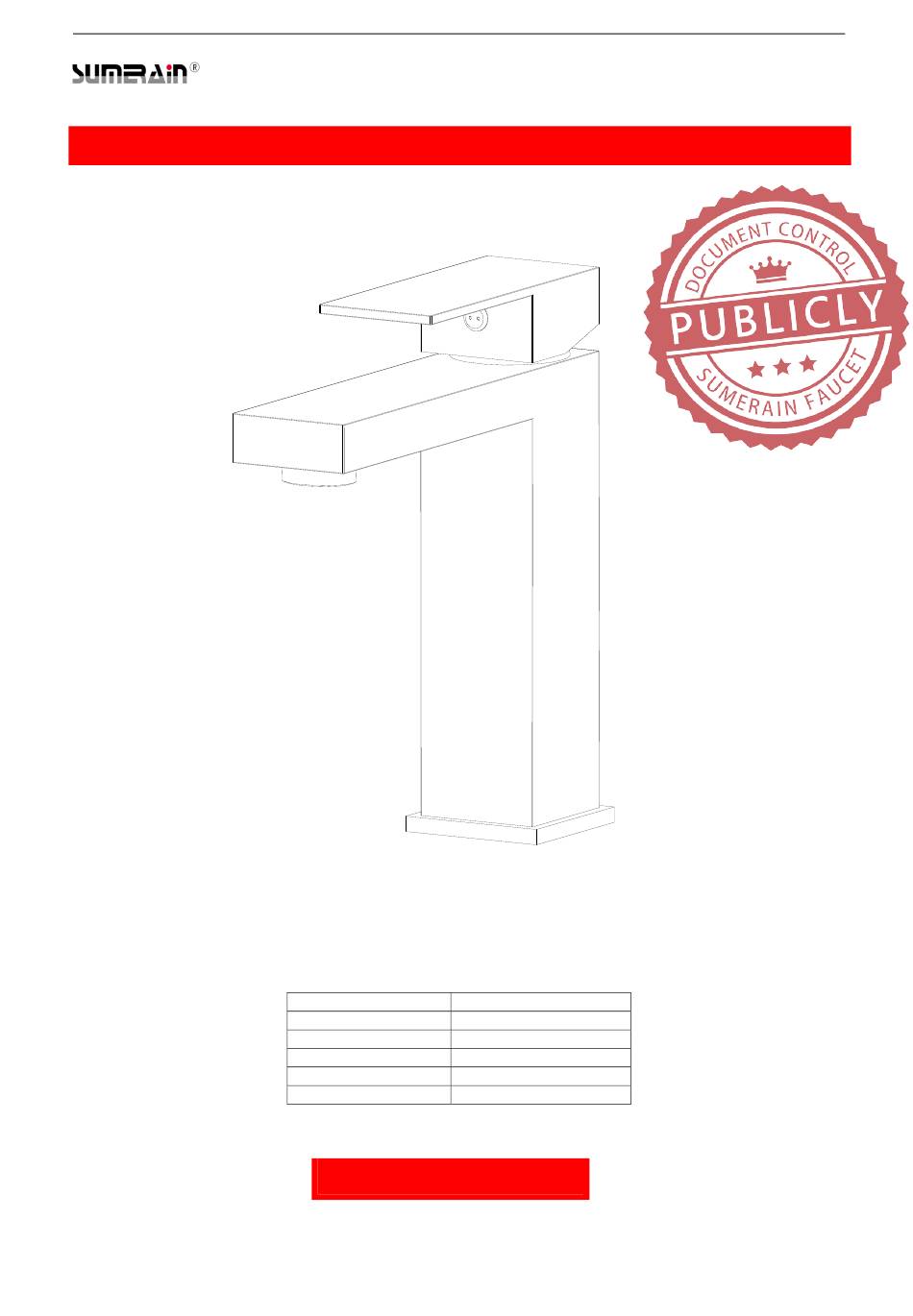

- Page 1 MODEL: S1412-XX Version: 1.3 INSTALLATION GUIDE BASIN FAUCET MODEL FINISH S1412-CH CHROME S1412-BN BRUSHED NICKEL S1412-MB MATTE BLACK S1412-BG BRUSHED GOLD S1412-MG BLACK BRUSHED GOLD HOT LINE: +1-866-203-0866...
-
Page 2: Before Proceeding
THANK YOU Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. -
Page 3: Limited Lifetime Consumer Warranty
If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate adjustment. - Page 4 FUNCTIONS AND SPECIFICATION Function Bathroom sink faucet Style Contemporary Finish Chrome/Brushed Nickel/Matte Black/Brushed Gold/Black Gold Installation Holes Single Holes Number of Handles Faucet Total Height 181mm [7-1/8 Inch] Spout Reach 120mm [4-3/4 Inch] Spout Width 42mm [1-21/32 Inch] Spout Height 130.5mm [5-1/8 Inch] Max deck thickness 40mm [1-9/16 Inch]...
- Page 5 DEMENSION FRONT VIEW LEFT VIEW...
-
Page 6: Installation Steps
Faucet Body SUS304 PVB14120SB Shank Nut SUS304 PNT00012PB Paking PRW23165XX Set screw SUS304 PSC00001XX Aerator PAE00010XX Supply hose ASSEMBLF PFH00006XX Aerator Cover SUS304 PAE00003SB If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com... - Page 7 4. INSTALLATION HOLES INSPECTION Verify that the hole sizes is correct, the diameter of mounting hole recommend 32mm(1-1/4”) and the max deck mount thickness is 1-9/16”(40mm) 5. INSTALLATION 5.1 Turn on your shut-off valve for cleaning the hot and cold water supply pipe before connect to the faucet, allow the water flush 3~5 minutes to flush out dirt and debris.
- Page 8 5.2 Remove the mounting hardware from the mounting shank 5.3 Connect both hot and cold steel braided water supply lines provided, to their respective threaded connectors at the bottom of the faucet, Hot: left, Cold: Right. Tighten both supply lines by hand, and then with a wrench or grips, but be careful not to over tighten or you may strip or crack the threaded connectors.
- Page 9 5.4 Put the rubber o-ring into the bottom gap of faucets then insert faucet into faucet hole and slide rubber washer and mounting bracket onto the thread shank from below the sink.
- Page 10 Secure the rough-in valve to the mounting board with screws by Philips screwdriver. 5.6 Screw the hot and cold water hose from the faucet to each of the hot and cold supply valve, tighten the mounting nut by wrench. 6. INSPECTION 6.1 Turn on hot and cold water supply and check all connection for ensuring no leaking anywhere.
- Page 11 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG Factory Address: Floor 3th,No.2 ZhongXing Road,ShuiNuan City Industrial Zone,Shuikou town, Kaiping City,...
