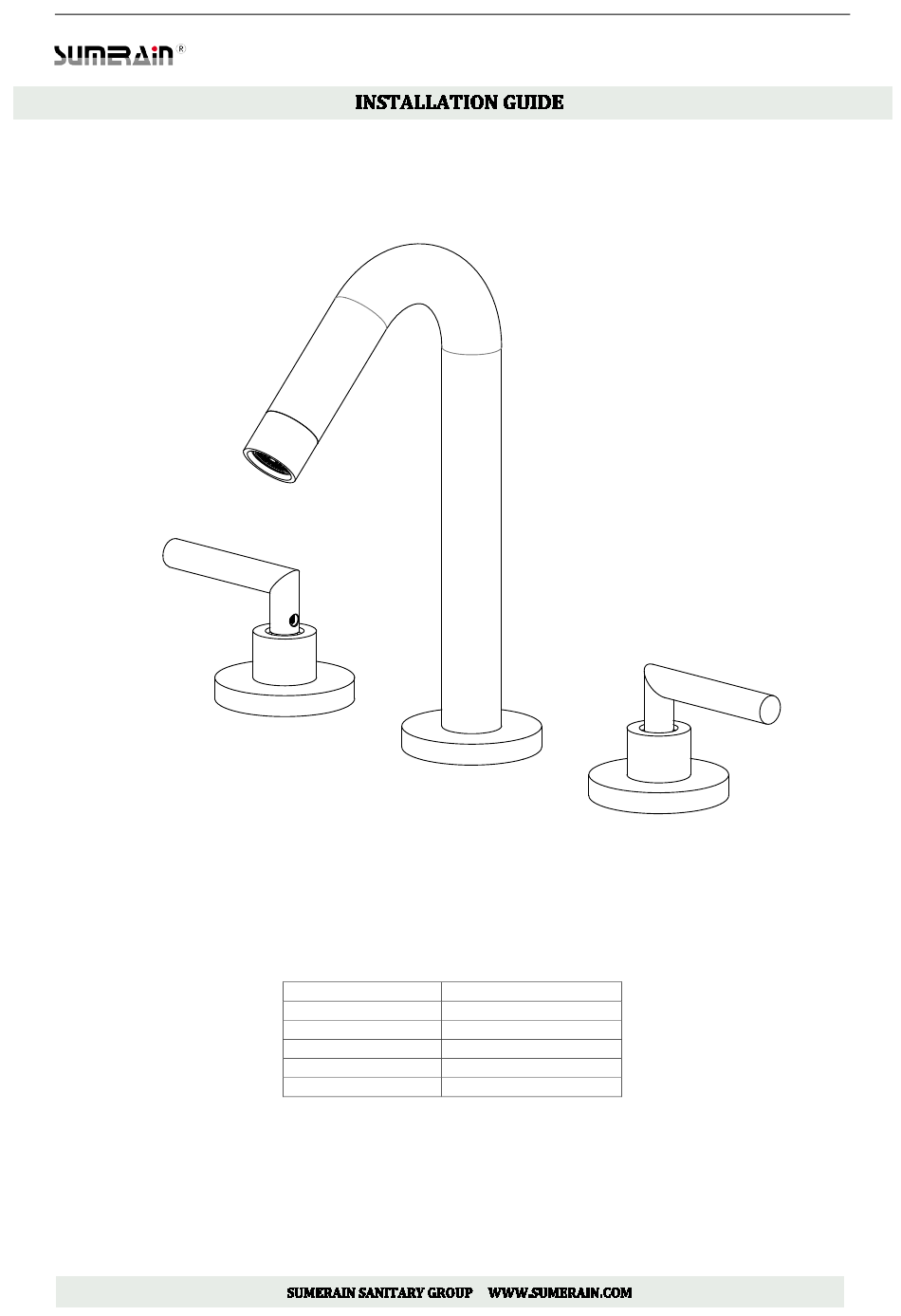

- Page 1 Version: 1.0 WIDESPREAD BATHROOM SINK FAUCET MODEL FINISH S1406CS Chrome S1406NS Brushed Nickel S1406OS Oil Rubbed Bronze S1406DS Matte Black S1406GS Gold...
- Page 2 Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions.
- Page 3 If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate adjustment.
- Page 4 Function Bathroom Sink Faucets Feature Widespread Style Contemporary Finish Chrome/Brushed Nickel/Oil Rubbed Bronze/Matte Black/Gold Installation Holes Three Holes Number of Handles Two knobs Faucet Total Height 8-1/16” [205mm] Spout Reach 4-1/2” [115mm] Spout Height 4-29/32” [125mm] Max deck thickness 1-3/4” [45mm] Valve Type Disc cartridge Faucet Body Material...
- Page 5 FRONT VIEW OF FAUCET SIDE VIEW OF FAUCET...
-
Page 6: Before Proceeding
Set screw 2PCS Allen wrench 1PCS 1406013 1406014 Screen washer 1PCS 1PCS 1406015 1406016 Hot Valve body 1PCS G1/2’’ hose(20mm) 2PCS 1406017 1406018 If any of these items are missing, please contact SUMERAIN consumer service at +86-750-2731579 or email to: supports@sumerain.com... - Page 7 4. INSTALLATION HOLES INSPECTION Verify that the hole sizes and positions in the wall are correct, the diameter of mounting hole recommend 1-1/4” (32mm) and maximum 1-3/8” (35mm), the max thickness of deck should be 1-3/4” (45mm).
-
Page 8: Installation
5. INSTALLATION 5.1 Turn on your shut-off valve for cleaning the hot and cold water supply pipe before connect to the faucet, allow the water flush 3~5 minutes to flush out dirt and debris. Shut off the water supply again after done. 5.2 Position spout onto the hole of mounting surface, attach rubber washer on spout shank and fasten with spout shank locknut by wrench from underneath. - Page 9 5.3 Disassemble hot and cold water valve assembly to prepare for next step’s installation. Take out the screws cover from knob and loose the inside set screw by Allen wrench anticlockwise, disassemble the knob from the valve assembly . Valve assembly 5.4 Place the Hot water control valve body onto mounting surface, attach the rubber washer and locknut from underneath of mounting surface, attached the Foam gasket with the escutcheon, Then reposition escutcheons as necessary to a desired height.
- Page 10 5.5 Attach the washer into the tee for water leak proof. 5.6 Screw on tee onto the spout shank.
- Page 11 5.7 Connecting the cold water valve body and hot water valve body to tee with flexible hoses. 5.8 Connect hot valve body’s inlet connector and cold water valve inlet connector to stop valve separately with flexible hose. The water inlet connecting of hot and cold Valve body is G1/2” [1/2 BSPP], US, CA customers may require NPT cover to BSPP adapter for connecting.
- Page 12 6. INSPECTION 6.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere. INSTALL FINISH...
- Page 13 Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. Cleaning Materials for faucets and showers Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when cleaning faucets and showers:...
- Page 14 Factory Address: 25 building Tangkou Industrial Park,Shuikou town, Kaiping City, Guangdong Province, China (Mainland) Tel: +86-750-2731579 Toll Free: 400-0999-075 (China mainland) Fax: +86-750-2715258 Web: http://www.sumerain.com E-mail: hk@sumerain.com SUMERAIN INTERNATIONAL GROUP – AMERICA SALES Branch Address: 13455 Harper Dr. Saratoga, CA 95070 Tel: +1-408-867-8884 FAX: +1-408-867-4272 E-mail: us@sumerain.com...
