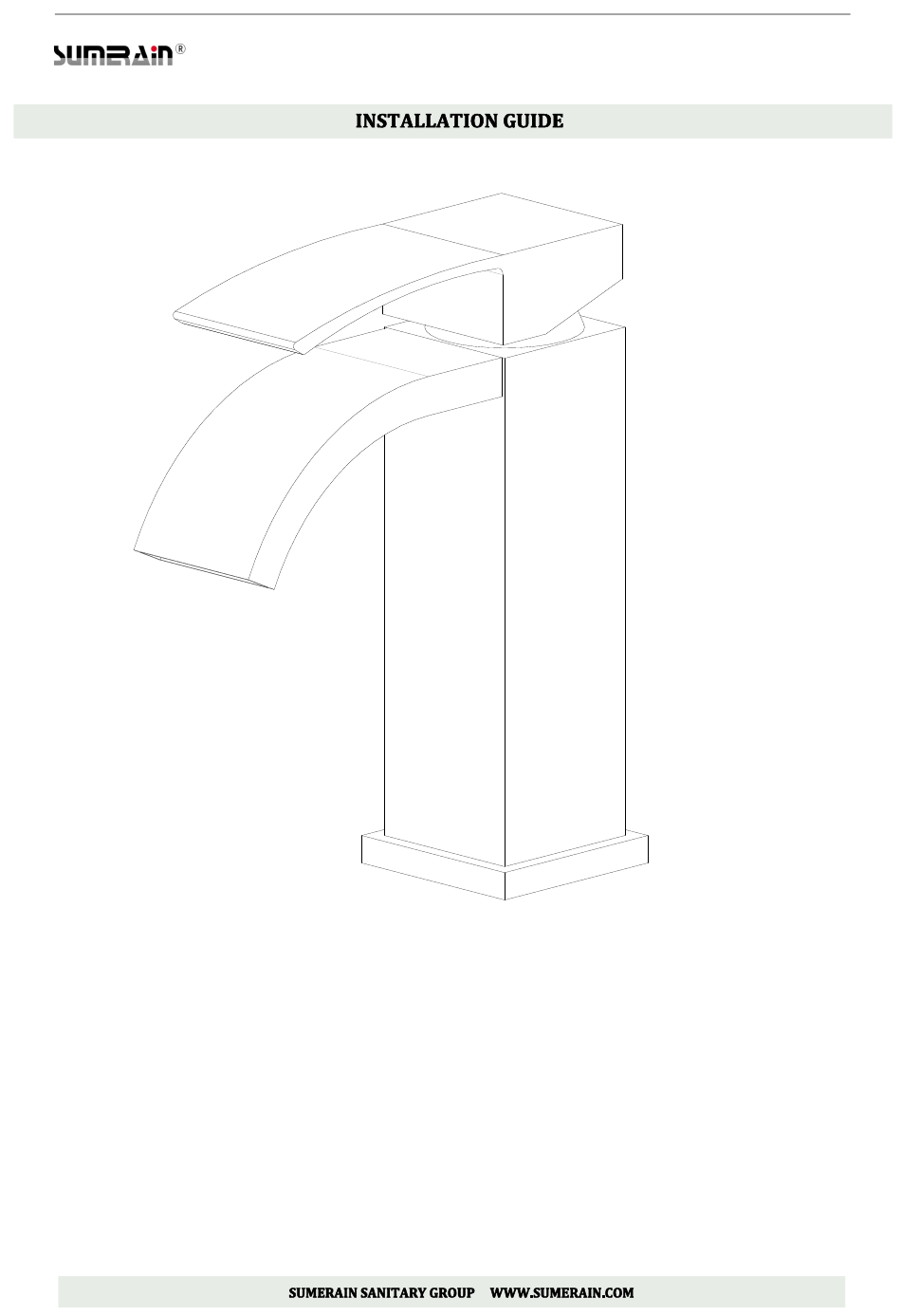

- Page 1 MODEL: S1303XW Version: 1.0 ROMAN WATERFALL BATHTUB FAUCET...
- Page 2 Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions.
- Page 3 If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate adjustment.
- Page 4 Function Bathtub Faucets Feature Waterfall Style Contemporary Finish Brushed Nickel Installation Holes Five Holes Number of Handles Three knobs Spout total Height 6-11/16’’ Spout Reach 3-15/16’’ Spout Width 1-9/16’’ Spout Height 3-3/4’’ Max deck thickness 1-1/2’’ Valve Type Ceramic Disc Valve Valve Body Material Brass Spout Material...
- Page 5 SIDE VIEW OF SPOUT...
-
Page 6: Before Proceeding
Faucet body 1PCS 1303003 1303004 O-Ring 1PCS Rubber washer 1PCS 1303005 1303006 Valve shank(M32x1.5) 1PCS 1PCS 1303007 1303008 flexible hose 2PCS 1303009 If any of these items are missing, please contact SUMERAIN consumer service at +86-750-2731579 or email to: supports@sumerain.com... -
Page 7: Installation
4. INSTALLATION HOLES INSPECTION Verify that the hole sizes and positions in the wall are correct,the diameter of mounting hole recommend 32mm(1-1/4”) 5. INSTALLATION 5.1 Turn on your shut-off valve for cleaning the hot and cold water supply pipe before connect to the faucet, allow the water flush 3~5 minutes to flush out dirt and debris. - Page 8 Attach the shank to the bottom of your faucet. Through the hot and cold flexible hose and purified hose over the hole of mounting surface from under, screw in the faucet bottom’s cold and hot water inlet ,purified water inlet separately by hand(rotate widdershins).
- Page 9 5.4 Position the faucet with flexible hoses on the mounting surface...
- Page 10 5.7 Attach the hot and cold water hose from the faucet to each of the hot and cold supply valve, tighten the mounting nut by hand or wrench. 6. INSPECTION 6.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere. INSTALL FINISH...
- Page 11 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG...
