Summary of Contents for XAG P150 RealTerra 3

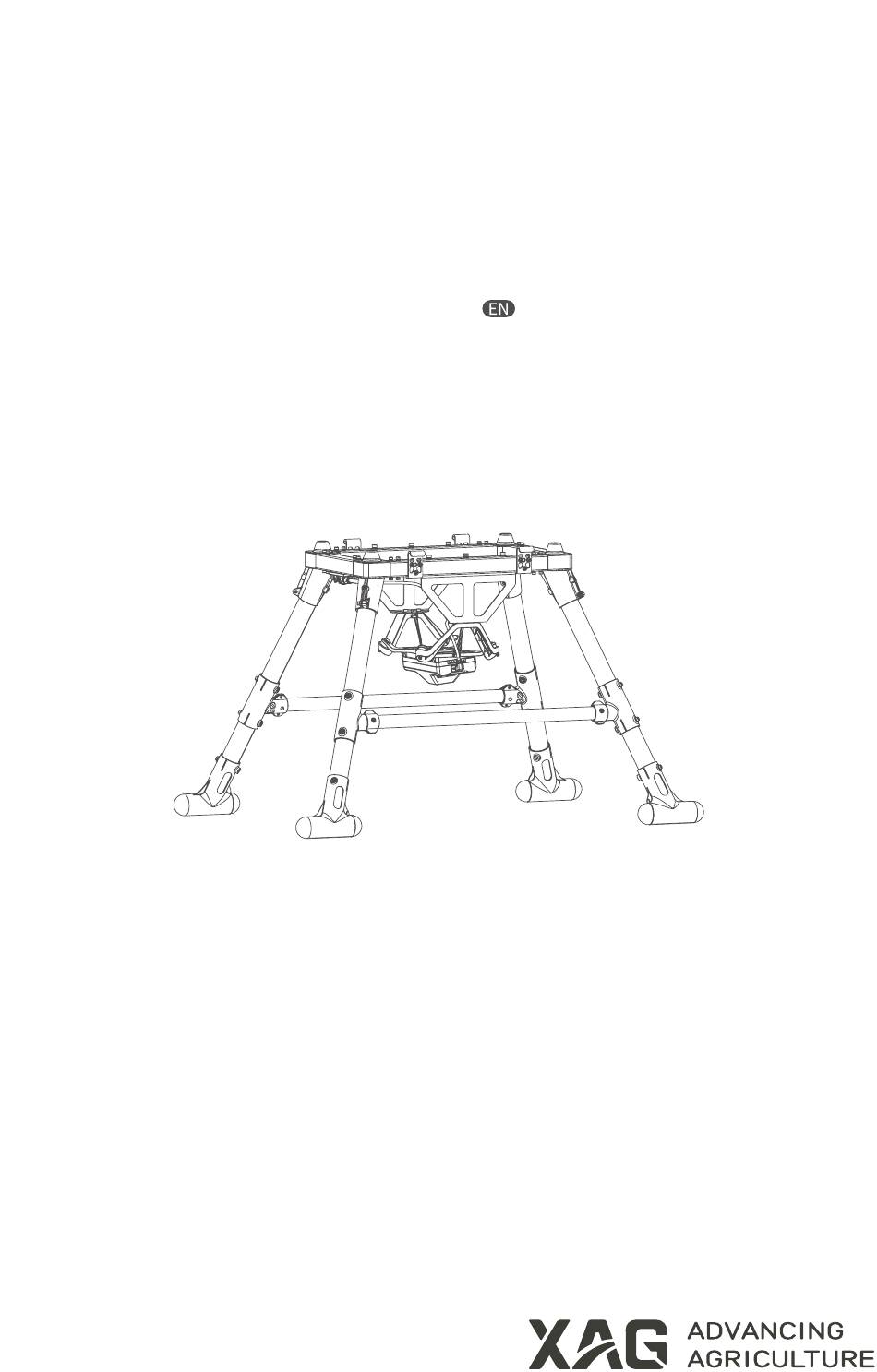

- Page 1 XAG P150 RealTerra 3 User Manual Version 1.0...
- Page 2 To User Dear user, thank you for choosing XAG's products. For safety purposes and better user experience, it is highly recommended that you read this manual carefully and strictly follow the instructions hereof. Contact Us Manufacturer: Guangzhou Xaircraft Technology Co., Ltd.
-
Page 3: Safety Guidelines
• Do not use non-XAG components for the maintenance and operation of XAG products, as this may seriously compromise the safety and lifespan of the products. Any damage to the products arising therefrom will not be covered by the product warranty. -
Page 4: List Of Items

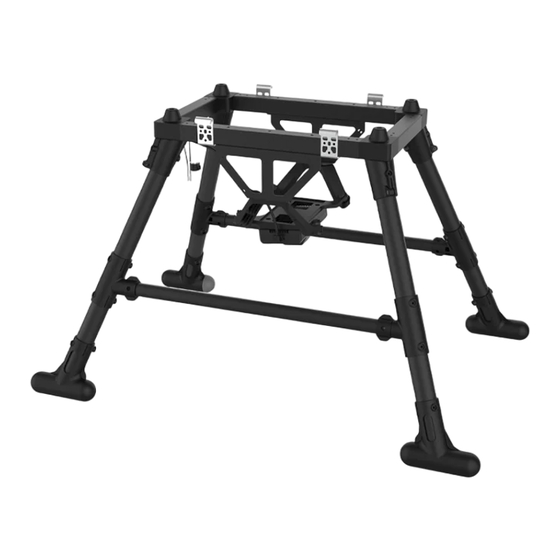

Introduction The XAG P150 RealTerra 3 (RealTerra) is designed for the XAG P150 2024 Agricultural Drone. It enhances operational efficiency across all scenarios through HD maps, and features safe and quick-release landing gear. It captures and stitches HD maps automatically during fully autonomous flight, with real- time 3D modeling enabling rapid map generation upon landing. -
Page 5: Main Components
Main Components ② ⑥ ③ ⑦ ⑤ ④ ⑧ ⑨ ① ① Landing Gear ④ Nylon Cord ⑦ Shock Absorbing Bracket ② Boss ⑤ Hook ⑧ RealTerra Feeder Line ③ Shock Absorber ⑥ Feeder Line Holder ⑨ Lens Installation Landing Gears ①... - Page 6 ② Attach and fix the crossbar to the T-joints on both landing gears. Then attach the two T-clamps to both ends of the crossbar, and pre-fix them with two M4*16 screws. After making proper adjustments, tighten all the screws (torque: 5-8kgf.cm) to complete the installation of the landing gears on the left side.
- Page 7 Install RealTerra Module ① Install the two shock absorbing brackets on the mount, and secure them using four M3*16 screws. ② Fit the four locating pins of RealTerra module into the holes of shock absorbing brackets and secure them; fix the feeder line plug on the holder. ③...
- Page 8 Remove RevoSpray ① Remove the airframe application system cable and the RevoSpray application system cable from the cable holder and disconnect them. ② Disconnect the two liquid tubes connected to RevoSpray from the fuselage. ③ Open the fuselage hasps (two on each side) and remove the RevoSpray. ①...
- Page 9 The orientation of the nose is defined as the forward direction. The RealTerra module should be installed with a forward tilt, and the feeder line holder is positioned at the tail of the drone. Open "XAG One" and connect to the drone. When appears on the status bar on operation screen, the RealTerra module is successfully installed.
- Page 10 Use of RealTerra RealTerra Aerial Survey 1. Open "XAG One", and tap on "Operation" on the home screen (main screen). 2. Select the HD map for survey, tap on "Start Aerial Survey" (or directly tap on "Start Aerial Survey" to jump to the "Confirm Survey Boundaries"...
-
Page 11: Maintenance
Wi-Fi for networking. Users can follow the steps below to start Wi-Fi networking (here, SRC4 networking is taken as an example). 1. In "XAG One", follow the Wi-Fi networking guide pop-up windows and tap on "Set Network Now" to enter the networking screen. -
Page 12: Specifications
Lens FOV 112° 2.7 mm/16.8 mm (35 mm equivalent focal length) Mechanical Shutter 1/30-1/2000 s Image Format JPEG Rated Power 10 W Recommended Operating 10 ℃ ~ 45 ℃ Temperature IP Rating IPX6K Compatibility XAG P150 2024 Agricultural Drone www.xa.com/en... - Page 13 7. To the maximum extent permitted by law, XAG shall not be liable for any loss caused by your use of this product outside the instructions in this User Manual. Furthermore, XAG shall not be liable...
- Page 14 For any reason that partial terms stated herein are deemed void, other terms shall remain in effect. 13. To the extent permitted by law, XAG reserves the right for final explanation and revision of the terms and conditions stated hereinabove. XAG also has the right to update, modify or terminate these terms and conditions via its official website, User Manual, online App, etc., without prior notice.
-
Page 15: Compliance Information
Suppliers phone number and / or internet contact information: +1 (503) 866-1228 EU Compliance Statement “Hereby, [Guangzhou Xaircraft Technology CO.,LTD.], declares that this [XAG P150 RealTerra 3] is in compliance with the essential requirements and other relevant provisions of 2014/53/EU. - Page 16 @XAGofficial @xag_official @XAG Official This document is subject to update without prior notice. © Guangzhou Xaircraft Technology CO., LTD. All Rights Reserved. All information in this User Manual (including but not limited to any text description, illustrations, photos, methods, processes, etc.) belongs to Guangzhou Xaircraft Technology CO., LTD.
