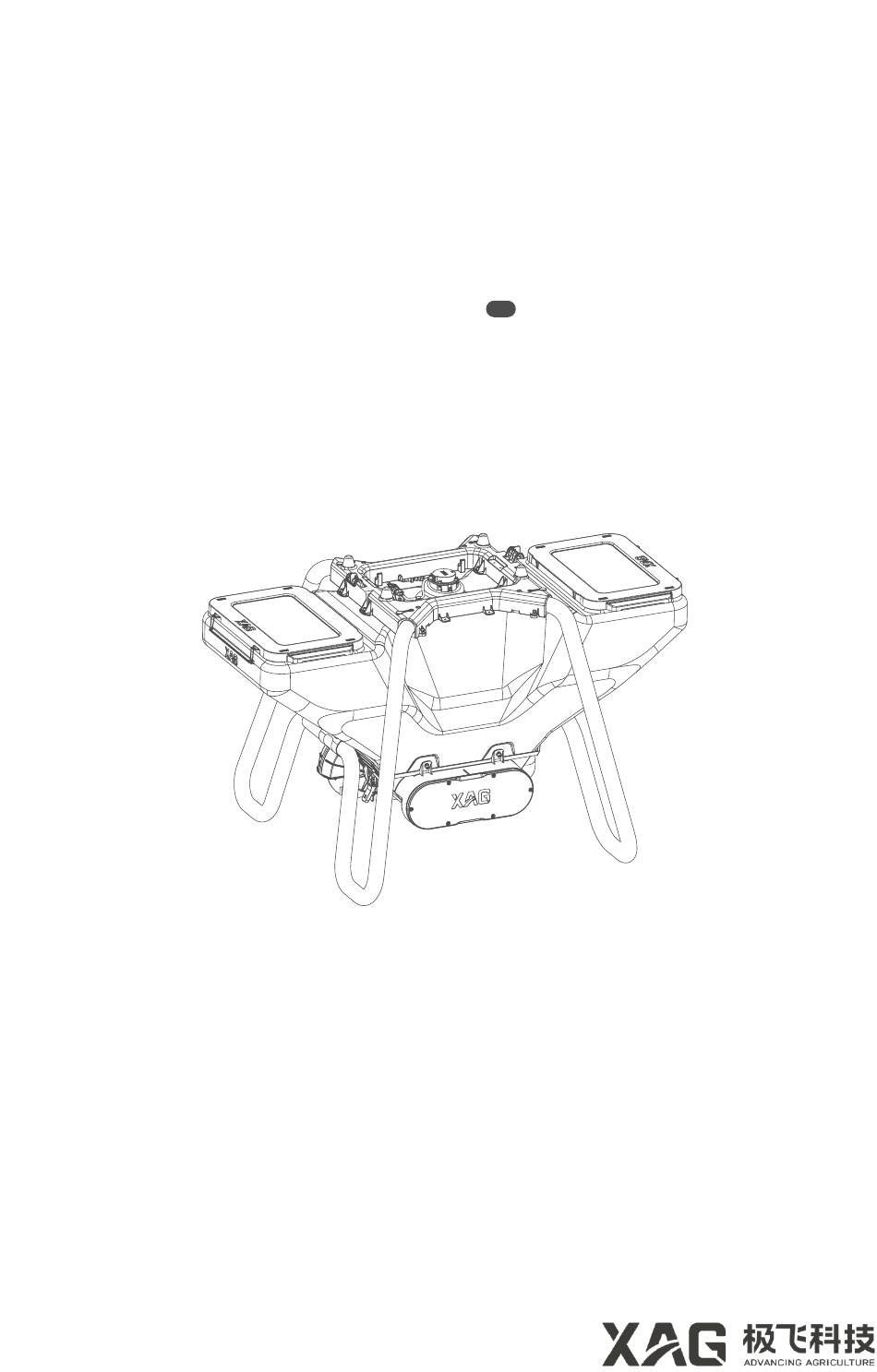

- Page 1 XAG RevoCast P3 User Manual Version 1.0...
- Page 2 To User Dear user, thank you for choosing XAG's products. For safety purposes and better user experience, it is highly recommended that you read this manual carefully and strictly follow the instructions hereof. Contact Us Manufacturer: Guangzhou Xaircraft Technology CO., LTD.
-
Page 3: Table Of Contents
Contents Safety Guidelines Introduction List of Items Main Components Installation Drain the Liquid Remove RevoSpray Install RevoCast How to Use Firmware Update Spreading Calibration Spreading Settings Maintenance Rinse RevoCast Replace Screw Feeder Granule Examples for Different Sized Screw Feeders Specifications Disclaimer... -
Page 4: Safety Guidelines
Calibrate with the granules to be spread. • It is NOT allowed to use a non-XAG granule container, covert the container on your own or increase its capacity in that it may result in malfunctions, inefficient operations, or damage to the product, which are not covered by the warranty. -
Page 5: Introduction

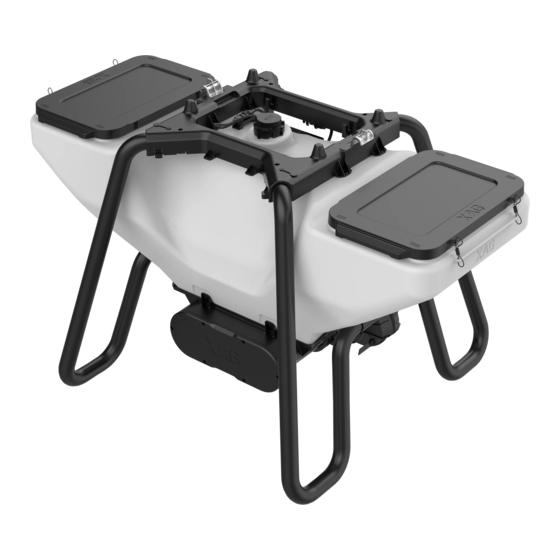

Introduction XAG RevoCast P3 ("RevoCast" for short), working with XAG P100 2023 Agricultural Drone and XAG P100 Pro 2023 Agricultural Drone, can be applied in various scenarios, from spreading seeds and fertilizers to providing feed for fish and shrimp in aquaculture, thus offering intelligent, precision, efficient, and flexible production solutions. -
Page 6: Installation
Installation As the installation and the use of RevoCast are the same for XAG P100 2023 Agricultural Drone and XAG P100 Pro 2023 Agricultural Drone, the instructions of this user manual are based on the XAG P100 Pro 2023 Agricultural Drone. - Page 7 ② Open the cable cover of the spraying bar by removing the screws, detach the nozzle signal cable and replace the cover; ② ② ② ③ Fully turn the quick-release knob counterclockwise to remove the bar; ④ Install the cable organizer, with the connector facing down, to the base of the spraying bar. Tighten the quick-release knob and attach the nozzle signal cable to the organizer.
- Page 8 Remove RevoSpray ① Take the payload system cables of the airframe and RevoSpray off the cable holder and detach them; ② Remove the two liquid tubes connecting to the pump of RevoSpray; ③ Open the left and right hasps (one on each side) and remove RevoSpray. ①...
-
Page 9: Install Revocast
1. Open "XAG One" App and tap on "New firmware available" to enter the firmware update page. 2. Tap on "Download and update". After the firmware is updated, tap on "Complete" to go back to the firmware update page, and check if the firmware is updated to the latest version. -
Page 10: Spreading Calibration
① ② Spreading Disc Mark 1. Open "XAG One" App and tap on "Me" and then "Device" to select the aircraft and enter Device Details page. 2. Tap on " " to enter Spreading System page. Tap on "Granule" and then "... -
Page 11: Spreading Settings
Before spreading, you can set spreading parameters in "Spreading Settings". 1. Open "XAG One" App and tap on "Operation" in the menu bar to enter operation page. 2. Tap on "Select Fields" to select the fields for operation on the map. After that tap on "Spreading Settings". - Page 12 Note If the granules inside are corrosive, please wash RevoCast with soapy water or laundry powder/water mixture first, then rinse it with clean water. Residual granules places: 1. In screw feeder speed reduction motor covers. 2. Between the front of spreading disc motors and motor assembling units.
-
Page 13: Replace Screw Feeder
Replace Screw Feeder If the wear depth on one side exceeds 2 mm (the original diameter is 79 mm), please replace the screw feeders to ensure that RevoCast works well. ① Disconnect motor cables of both spreading discs. ② Open the hasps of both quick-release units and remove them. ③... -
Page 14: Granule Examples For Different Sized Screw Feeders
14 kg Capacity of Granule Container 80 L XAG P100 2023 Agricultural Drone: 40 kg Rated Load of Granule Container XAG P100 Pro 2023 Agricultural Drone: 50 kg Protection Rating IP65 Ambient Temperature for 0° C to 40° C Operating Ambient Temperature for Storage 0°... -
Page 15: Fcc Supplier's Declaration Of Conformity
Warning: Operation of this equipment in a residential environment could cause radio interference. “Hereby, [Guangzhou Xaircraft Technology CO.,LTD.], declares that this [XAG RevoCast 3 P100] is in compliance with the essential requirements and other relevant provisions of 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: “www.xa.com/en”... -
Page 16: Disclaimer
7. To the maximum extent permitted by law, XAG shall not be liable for any loss caused by your use of this product outside the instructions in this User Manual. Furthermore, XAG shall not be liable... - Page 17 For any reason that partial terms stated herein are deemed void, other terms shall remain in effect. 13. To the extent permitted by law, XAG reserves the right for final explanation and revision of the terms and conditions stated hereinabove. XAG also has the right to update, modify or terminate these terms and conditions via its official website, User Manual, online App, etc., without prior notice.
- Page 18 @XAGofficial @XAG_official @XAG Official This document is subject to update without prior notice. © Guangzhou Xaircraft Technology CO., LTD. All Rights Reserved. All information in this User Manual (including but not limited to any text description, illustrations, photos, methods, processes, etc.) belongs to Guangzhou Xaircraft Technology CO., LTD.
