Summary of Contents for XAG P100 Pro 2023
- Page 2 To User Dear user, thank you for choosing XAG's products. For safety purposes and better user experience, it is highly recommended that you read this manual carefully and strictly follow the instructions hereof. Contact Us Manufacturer: Guangzhou Xaircraft Technology CO., LTD.
-
Page 3: Table Of Contents
Unfold Spraying Bars Unfold Propellers Prepare Batteries Tank Filling Prepare Remote Controller ARC3 Pro Stop Motors Use of Aircraft Download "XAG One" App Add a Device App UI Update Firmware Create a Field Manage Fields Field Alignment Start Operations Operation Report... - Page 4 Cleaning After Operation Regular Maintenance Transportation Appendix Indicator Description Wiring Quick Guide Specifications...
-
Page 5: Disclaimer
7. To the maximum extent permitted by law, XAG shall not be liable for all losses incurred by user's improper use. Also, XAG shall not be liable for any indirect, consequential, punitive, accidental, special or exemplary damage, including any loss resulting from your purchase, use, or inability to use the product, even if you have been advised of the possibility of such loss. - Page 6 However, this does not imply that the terms contained in this Disclaimer are necessarily invalid. 13. To the extent permitted by law, XAG reserves the rights for final explanation and revision of the terms and conditions hereinabove. XAG also has the right to update, modify or terminate these terms and conditions via channels including its official website, the User Manual and online App, without prior notice.
-
Page 7: Safety Guidelines
RTK and 4G networks are essential for the aircraft to function properly. • It is required to keep the firmware and the "XAG One" App up to date before each flight. • You should strictly observe local laws and regulations on flying agricultural drones, including but not limited to the rules on flight height, flight area and visual line of sight. - Page 8 ACS2 ControlStick. When a user buys and activates the whole set of devices, XAG will give 2GB of data to each account. If more data is needed, user can buy it through "XAG One" App - Device Details - Mobile Data. If the SIM card is not used for two years, it will be cancelled automatically.
- Page 9 Risk of Pinching Hands Do Not Press Hot Surface Properly Install the Blade High Voltage www.xa.com...
-
Page 10: Introduction

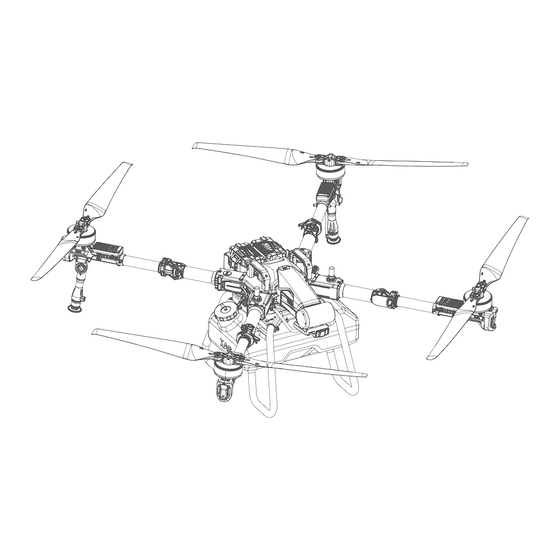

Introduction XAG P100 Pro 2023 Agricultural Drone ("aircraft" for short) has a brand-new foldable structure and a simplified modular design. It is robust, easily detachable and able to work in multiple modes. The higher-performance RevoSpray, RevoCast, RealTerra and radar systems deliver more efficient, more precision and safer farming operations like precision spraying, even spreading and smart mapping, making P100 Pro a new flagship in smart agriculture with large payload capacity and high efficiency. - Page 11 Remote Controller - ARC3 Pro Two-Handed Remote Controller ARC3 Pro Two-Handed Remote Controller RTK Module Strap Charging Adapter ×1 ×1 ×1 ×1 Phone Holder USB-A To Type-C Cable ×1 ×1 www.xa.com...
-
Page 12: Main Components
Main Components ⑩ ① ⑪ ⑨ ④ ⑤ ② ⑫ ⑬ ⑥ ③ ⑭ ⑦ ⑧ ⑳ ⑱ ⑲ ⑮ ⑯ ⑰ Front Bottom View Rear View ① Propeller ⑧ Landing Gear ⑮ Terrain Radar ② Motor ⑨ Battery Compartment ⑯... -
Page 13: Prepare Aircraft
Prepare Aircraft Install RevoSpray System ① Attach the airframe to the RevoSpray system by lining up the holes on the bottom of the airframe with the bosses on the top of the RevoSpray system; ② Open the left and right hasps (one on each side) and fasten the airframe to the RevoSpray system; ③... -
Page 14: Unfold Arms
Unfold Arms ① Loosen the tie (take the left arm as an example); ② Unlock the fasteners of Arm No.2 and No.3; ③ Spread out Arm No.3 and No.2; ④ Lock fasteners of Arm No.2 and No.3. ① ① ③ ②... -
Page 15: Unfold Spraying Bars
Unfold Spraying Bars ① Rotate the knob counterclockwise to release it; ② Spread out the spraying bar and turn the knob clockwise until tight. ② ① Unfold Propellers Spread out 4 propellers and see whether their models, which could be found between the clamp and the blade, match those on the arms respectively. -
Page 16: Prepare Batteries
Prepare Batteries Only B13960S and B13970 Smart SuperCharge Battery ("battery" for short) can be used in XAG P100 Pro 2023 Agricultural Drone. The instructions in this User Manual take B13970 as an example. Power ON / OFF To power ON the battery: Upon connection with the charger or the device, long-press the power button until all the battery level indicators flash simultaneously, followed by another long-press until the battery beeps and all the status indicators are on. - Page 17 Note If you need to remove the battery during the charging process, please turn off the battery or the Auto SuperCharge Station first, or the Auto SuperCharge Station may be down due to over-voltage protection. For heat dissipation, the battery should be immersed in clean and noncorrosive water within the maximum and minimum level marks for no more than 60min.
-
Page 18: Tank Filling
Tank Filling Unscrew the cap counterclockwise, fill the tank up and then tighten the cap clockwise. Protective Measures for Pesticide Preparation Safety is paramount in preparing pesticides, so please strictly follow the guidelines below. ① Wear long sleeves, trousers, a mask, goggles, and rubber gloves and stay at upwind, airy and shady place while preparing pesticides. -
Page 19: Prepare Remote Controller
As the remote controller is specially designed for XAG's product, it is very likely that it is not compatible with non-XAG products. User who uses it on other products shall be held accountable for the damage and legal responsibilities arising therefrom. - Page 20 Note When ARC3 Pro is on, slow charging only ensures it works at a certain battery percentage. To achieve a full charge, please power off the remote controller. The eSIM card (embedded SIM card) may be already installed in the SIM2 card slot according to the restrictions by the carriers.
-
Page 21: Stop Motors
Start Motors Before a flight, push both the joystick and the throttle as below to start the motors. If you fail to push the throttle within 3 seconds after releasing them, the motors will stop automatically. Warning Do NOT push the joystick and throttle to start motors when the aircraft is flying because it will cause the aircraft to crash due to the stopped motors. - Page 22 Joystick Mode The Joystick Mode is divided into Japanese Hand, American Hand and Chinese Hand. The default mode is American Hand (Mode 2). Japanese Hand (Mode 1) Forward Ascend Left Joystick Right Joystick Backward Descend Right Left Turn Left Turn Right American Hand (Mode 2) Ascend...
- Page 31 operation information will be displayed in the menu bar. You can complete spraying settings and route settings as needed. 3. Tap on "Start Operation", make sure there is no one within 10 meters around the aircraft, and slide right to confirm takeoff. After the self-testing is completed, the aircraft will automatically take off and start spraying.
-
Page 33: Safe Parking
1. Open "XAG One" App and tap on "Me" and then "Device" to enter device list. 2. Select the aircraft to be shared, enter "Device Details" page and tap on "Share a Device". -
Page 34: Maintenance
Maintenance After each use, clean the spray parts and surface of the aircraft in a timely manner. Regular aircraft maintenance should be conducted. Cleaning After Operation Pesticides are caustic and could corrode the device, shortening its lifespan. Clean the device timely after each use. - Page 35 ④ Never transport any potentially unsafe battery that is swelling, leaking, or having visible exterior damage. ⑤ Check by sight the exterior of the battery. Should there be any damage, send it to any XAG after-sales center. ⑥ Do NOT charge the battery in a damp environment.
- Page 36 Items Maintenance Tips Check Oil Level Check the oil level before each use; the oil level should fall between the MIN and MAX marks on the oil dipstick Change Oil Change oil after 20 hours of using for the first time along with subsequent changes every 50 hours Check Check the filter element of the air cleaner and the oil level in the oil...
-
Page 37: Transportation
Transportation Propeller blades of the aircraft should be folded and fastened by clamps for transportation. Meanwhile, fasten the aircraft with a safety belt and make sure the aircraft is secure during transportation. Note For long-distance transportation, remove the spray bars of the aircraft before transportation. Before transporting the aircraft, clean and empty its spraying system and drain all liquid tubes, to avoid damage to other devices during transportation. -
Page 38: Appendix
Appendix Indicator Description Get to know the aircraft's current status by checking the indicators on the SuperX 4 Pro Intelligent Control System and arm lights (ESC indicators on the arms). Details are as follows. Flight Controller RTK Indicator Description Solid Red Not searching for satellites, not positioning, no output from board Flashing Red (Slow) - Page 39 Flashing Yellow (Fast) First low voltage; battery level: 20% Double Flashing Red Flight in safe mode; App or remote controller disconnected from aircraft Double Flashing Green Manual GPS mode; good GPS signal Flashing Red & Green Weak GPS signal Triple Flashing Red Second low voltage;...
-
Page 40: Wiring Quick Guide
Wiring Quick Guide www.xa.com... - Page 41 www.xa.com...
-
Page 42: Specifications
893 x 1095 x 747 mm (blades & arms folded) Arm Material Glass & carbon fiber composite 54 kg (XAG RevoSpray P3 & batteries included) Empty Weight 60 kg (XAG RevoCast P3 & batteries included) 104 kg (rated spraying takeoff weight) - Page 43 Duration with RTK Data Latency 16.5 min (no-load with XAG RevoSpray P3 @20000mAh x2 & takeoff weight 54 kg) Hovering Duration 6 min (full-load with XAG RevoSpray P3 @20000mAh x2 & takeoff weight 104kg) Max. Flight Speed 13.8 m/s Max. Flight Height 30 m Max.
- Page 44 56.6 Vdc 35 A (Max)/1300 W (100~120 Vac 50/60 Hz) Output Current 80 A (Max)/3400 W (220~240 Vac 50/60 Hz) Ambient Temperature for -20~40℃ Operating XAG GC4000+ Supercharge Station Model GC4000+ Net Weight 31.5 kg Fuel Tank Capacity 15 L...
- Page 45 Obstacle Sensing & Avoidance System 4D Imaging Radar Model RD24912 Operating Voltage 24~60V Power 12 W Operating Frequency 24 GHz Sensing Mode Millimetre-wave imaging, MIMO Sensing Parameters Obstacle's position, distance, direction and relative speed Sensing Range 1.5 ~ 80 m Field of View (FOV) Horizontal: ±40°...
- Page 47 “Hereby, [Guangzhou Xaircraft Technology CO.,LTD.], declares that this [P100 Pro Agricultural Drone] is in compliance with the essential requirements and other relevant provisions of 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.address.com/doc.pdf”...
