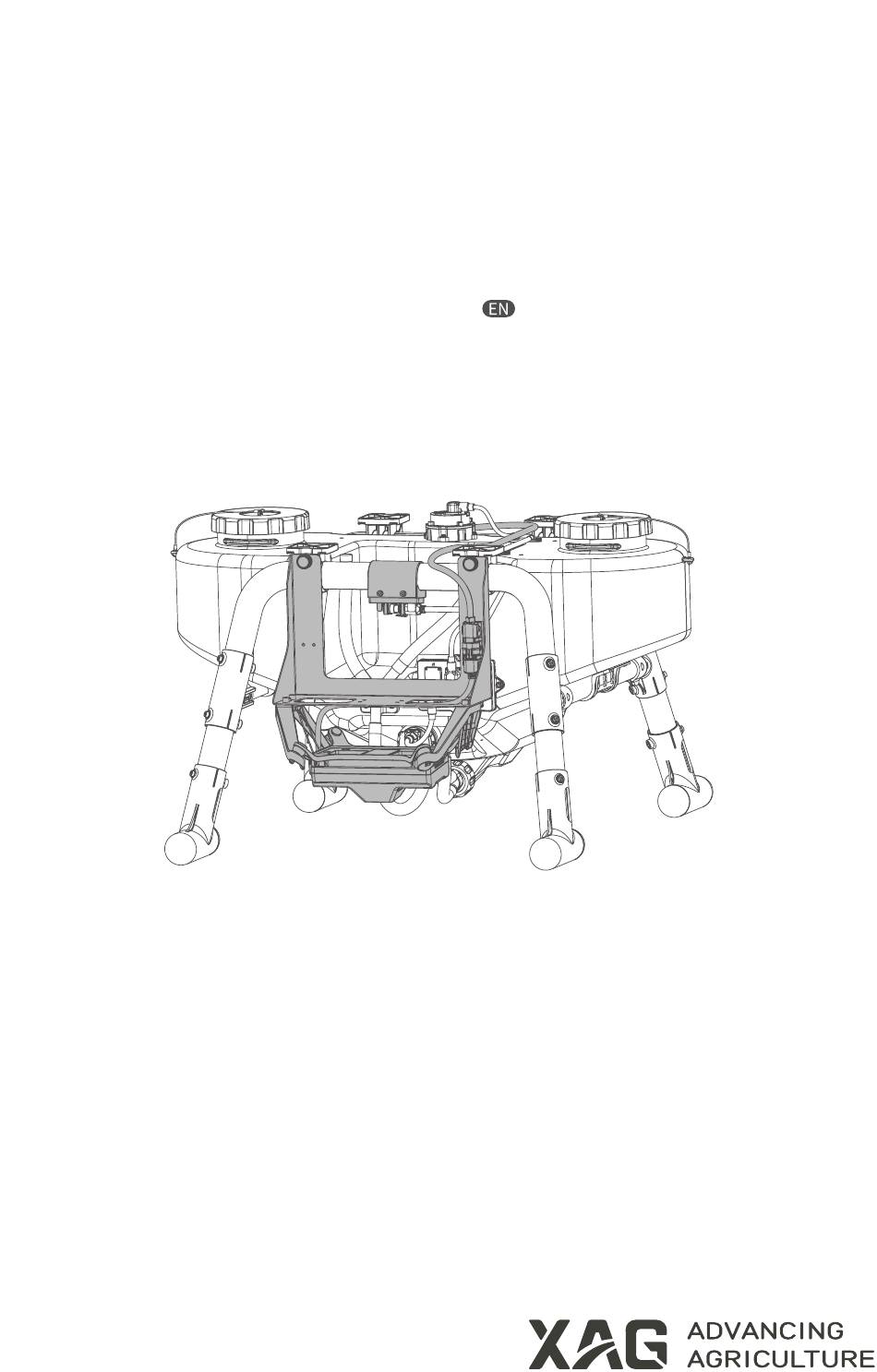

- Page 1 XAG P60 RealTerra 3 User Manual Version 1.0...
- Page 2 To User Dear user, thank you for choosing XAG's products. For safety purposes and better user experience, it is highly recommended that you read this manual carefully and strictly follow the instructions hereof. Contact Us Manufacturer: Guangzhou Xaircraft Technology Co., Ltd.
-
Page 3: Safety Guidelines
• Do not use non-XAG components for the maintenance and operation of XAG products, as this may seriously compromise the safety and lifespan of the products. Any damage to the products arising therefrom will not be covered by the product warranty. -
Page 4: List Of Items
Introduction The XAG P60 RealTerra 3 (RealTerra) is designed for the XAG P60 2024 Agricultural Drone. It enhances operational efficiency across all scenarios through HD maps, and features safe and quick-release landing gears. It captures and stitches HD maps automatically during fully autonomous flight, with real-time 3D modeling enabling rapid map generation upon landing. -
Page 5: Main Components
Main Components Overview ③ ⑤ ② ④ ⑥ ① ⑦ ① Landing Gear ⑤ Airframe Application ② Mount System Cable ③ Clamp ⑥ RealTerra Feeder Line ④ RevoSpray Application ⑦ RealTerra Module System Cable RealTerra Module ③ ① ④ ② ①... -
Page 6: Installation
Installation Change Airframe Application System Cable ① Disconnect the two tubes connecting the Revospray from the airframe. ② Disconnect the airframe application system cable (301) from the spraying hub. ③ Loosen the screws securing the T-pieces at both ends of the crossbar to the landing gears under the liquid tank (two on each side). - Page 7 ⑤ ⑤ ⑤ It is advisable to use straps to securely fasten the blades before turning the drone over to avoid scraping and damaging them during removal and installation. To protect the blades, please place a soft cushioning material, such as foam with a thickness of more than 7 cm, under the handles of the drone.
- Page 8 Install RealTerra ① Install the feeder line holder on the right side of the mount and secure it with two M4*12 screws. ② Install the two shock absorbing brackets on the mount, and secure them using four M3*16 screws. ③ Fit the four locating pins of RealTerra module into the holes of shock absorbing brackets and secure them;...
- Page 9 ⑩ With the drone's nose facing forward, the RealTerra module is positioned at the tail of the drone. Open "XAG One" and connect to the drone. When appears on the status bar on operation screen, the RealTerra module is successfully installed.
- Page 10 Use of RealTerra RealTerra Aerial Survey 1. Open "XAG One", and tap on "Operation" on the home screen (main screen). 2. Select the HD map for survey, tap on "Start Aerial Survey" (or directly tap on "Start Aerial Survey" to jump to the "Confirm Survey Boundaries"...
-
Page 11: Maintenance
Wi-Fi for networking. Users can follow the steps below to start Wi-Fi networking (here, SRC4 networking is taken as an example). 1. In "XAG One", follow the Wi-Fi networking guide pop-up windows and tap on "Set Network Now" to enter the networking screen. -
Page 12: Specifications
FOV 112° 2.7 mm/16.8 mm (35 mm equivalent focal length) Mechanical Shutter 1/30-1/2000 s Image Format JPEG Rated Power 10 W Recommended Operating Temperature 10 ℃ ~ 45 ℃ IP Rating IPX6K Compatible Application System XAG P60 RevoSpray 4 Compatible Drone XAG P60 2024 Agricultural Drone www.xa.com/en... - Page 13 7. To the maximum extent permitted by law, XAG shall not be liable for any loss caused by your use of this product outside the instructions in this User Manual. Furthermore, XAG shall not be liable...
- Page 14 13. To the extent permitted by law, XAG reserves the right for final explanation and revision of the terms and conditions stated hereinabove. XAG also has the right to update, modify or terminate these terms and conditions via its official website, User Manual, online App, etc., without prior notice.
-
Page 15: Compliance Information
Suppliers phone number and / or internet contact information: +1 (503) 866-1228 EU Compliance Statement “Hereby, [Guangzhou Xaircraft Technology CO.,LTD.], declares that this [XAG P60 RealTerra 3] is in compliance with the essential requirements and other relevant provisions of 2014/53/EU. - Page 16 @XAGofficial @xag_official @XAG Official This document is subject to update without prior notice. © Guangzhou Xaircraft Technology CO., LTD. All Rights Reserved. All information in this User Manual (including but not limited to any text description, illustrations, photos, methods, processes, etc.) belongs to Guangzhou Xaircraft Technology CO., LTD.
