B 429

including

SM2.0 mechanics

Manual

CCPM SCALE RC HELICOPTER

Table of Contents

Need help?

Do you have a question about the B 429 and is the answer not in the manual?

Questions and answers

Summary of Contents for Roban B 429

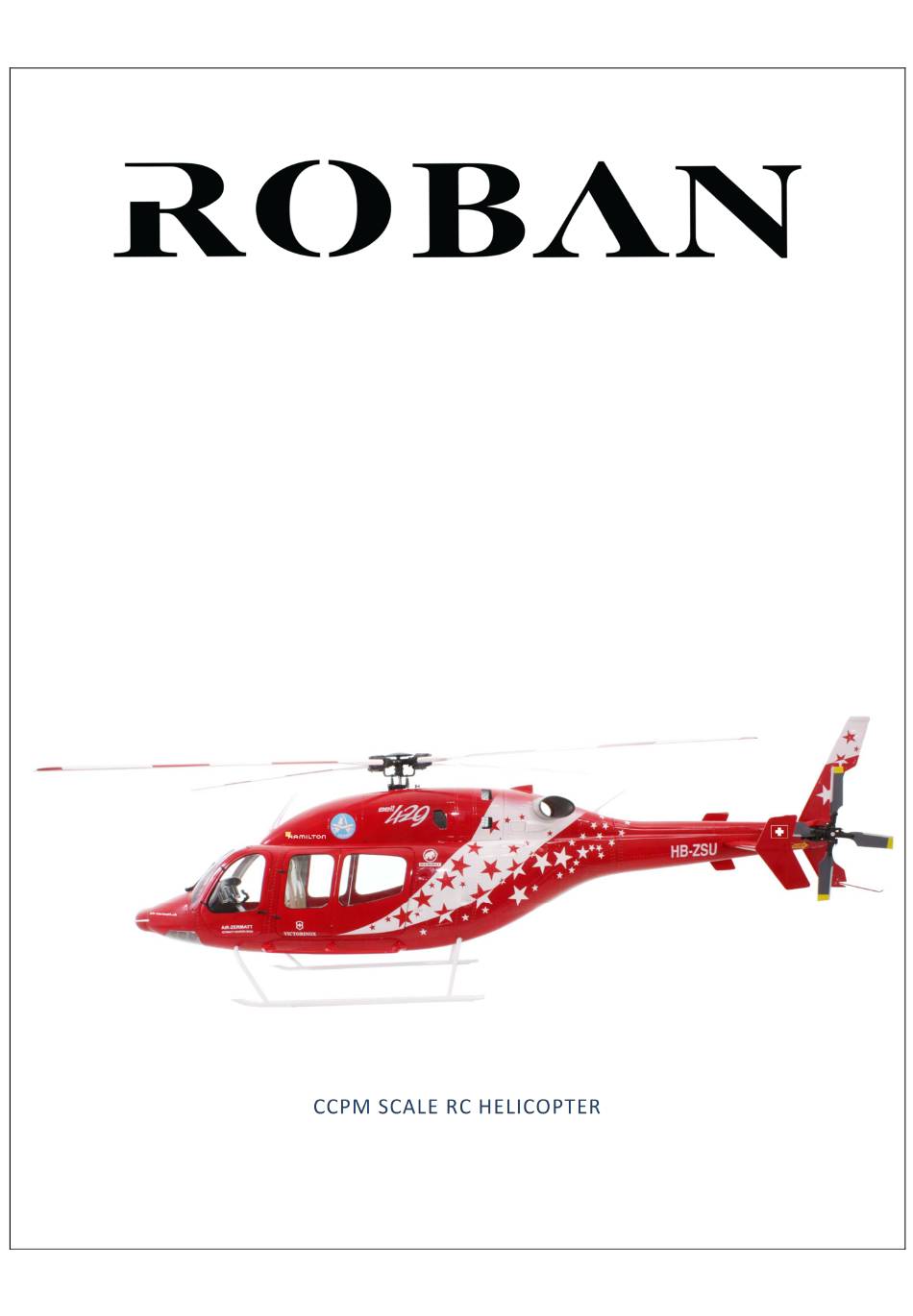

Page 1 B 429 including SM2.0 mechanics Manual CCPM SCALE RC HELICOPTER...
Page 2 Compactor 700 Manual – B 429 Release 2.0 - April 2021 Roban Model Limited No 28, 2nd Industrial Zone, Liuchongwei Wanjiang City District of Dongguan, 523046 Dongguan County (GD) - PRC Copyright 2021 - Roban Limited – All rights reserved...
Page 3: Specifications
Please read this user manual carefully, it contains instructions for the correct assembly of the model. Please refer to the web site www.robanmodel.com for updates and other important information. Thank you for your purchase, and have a great time with your Compactor! Roban Limited...
Page 4: Important Notes
*Lack of care with assembly or maintenance can result in an unreliable and dangerous model. *Neither Roban Limited nor its agents have any control over the assembly, maintenance and use of this product. Therefore, no responsibility can be traced back to the manufacturer. You hereby agree to release Roban Limited from any responsibility or liability arising from the use of this product.
Page 5 29 – Tail fins 2pcs 30 – Front window 31 – Antennas 2pcs 32 – Windshield wipers 2pcs 33 – Antenna 2pcs 34 – Antenna 2pcs 35 – Antenna 2pcs 36 – Tail support Copyright 2021 - Roban Limited – All rights reserved...
Page 6 53 – Green LED light 1pcs 54 – Green LED light 1pc 55 – Prolonging wire 3pcs 56 – 8mm LED cap 1pc 57 – LED controller 1pcs 58 – Decal set 1pcs Copyright 2021 - Roban Limited – All rights reserved...
Page 7: Additional Components Required
ADDITIONAL COMPONENTS REQUIRED TOOLS, LUBRICANTS, ADHESIVES *Electric Motor: *Generic pliers 10S-12S – 400-600Kv, *Hexagonal driver, size 1.5, 2, 2.5, 3, 4mm pinion shaft diameter 6mm *4mm T-Wrench *Speed controller: *5.5mm Socket wrench (for M3 nuts) minimum 120A to be safe *8mm Hex fork wrench (for M5 nuts) *Batteries: 10-12S 4000-5000mAh *Medium threadlocker (eg.
Page 8 Install the rudder pedals using epoxy glue. Install the front seats as shown using epoxy glue. Install the stowaway as shown using epoxy glue. Install the cockpits levers using epoxy glue. Copyright 2021 - Roban Limited – All rights reserved...
Page 10: Step 2 - Tail Boom
Assembly Mechanics The mechanics are almost entirely preassembled and split up into four sections: rotorhead, main frame, tail frame and tail tube. Prior to the installation into the scale fuselage, the mechanics have to be entirely assembled, electronic components installed, adjusted and tested.
Page 11: Step 3 - Tail Servo Installation
1=96mm 2=96mm 3=96mm servos. The multi blade rotor head can feedback forces that may lead to failure of plastic components. Copyright 2021 - Roban Limited – All rights reserved...
Page 12 Step 5 – Adjust swashplate linkages The linkages from the L-Levers to the swash plate have to be set at correct length. Distances are uniball center to uniball center: 1=35mm Step 6 – Motor and Belt installation In order to install the motor, you must first disassemble one of Mount the motor as shown using washers and screws onto the the side frames in order to have access to the mounting screws motor mount (70-00066).
Page 14 Step 7 – Electrical Wiring and Setup The mechanics have to be fully electrically setup and adjusted ATTENTION ! prior to installation into the fuselage. As the use of a 12S (44.4V) setup is necessary, we strongly recommend to run the When using the a pitch gauge to adjust correct CP travels, control equipment on a separate 2S Lipo battery and BEC for make sure that the gauge lines up with the flat surface of the...
Page 15 Step 8 – Installation of mechanics Mount the four L-brackets (60UH1-003) onto both sides of the Unmount the entire tail rotor frame from the tail box again. main frame as shown. Make sure they are properly aligned Dismantle the main rotor assy if you installed them during the before you fasten the screws.
Page 16 Install the tail strut into the tail fin as shown. Install the aft cover as shown. Install the tail assy on the tail boom as shown. Install the tail fin on the tail fuselage as shown. Install the vertical and horizontal tails with screws (39) as Use screws (40) and washers (41) to install the tail tube.
Page 17 Install the LED (53) on the left side wing. Install the wings using epoxy glue Fix the mechanics with screws (43) and brackets (38) inside the fuselage. Install the top hatch. Install the rotor head. Copyright 2021 - Roban Limited – All rights reserved...
Page 18 Install antennas (31) as shown. Install antenna as shown Install windshield wipers as shown Install antenna as shown. Install antennas as shown. Connect the LED controller to the LED lights.
Page 19: Step 10 - Battery Installation
Please be realistic when assessing your piloting skills, because a scale helicopter is heavy and hence much less agile in response than any 3D helicopter. Keep this comparison in mind: if you can’t swim and you dive into deep water, the chances are that you will drown. Copyright 2021 - Roban Limited – All rights reserved...
Page 35: Appendix C - Sparepart List
1-JJ-70-00031 Washer 2x8x1 Beilagscheibe 2x8x1 1-JJ-70-00032 Screw M2x6 Schraube M2x6 RCH-70-022 1-JJ-70-00003 Rotorhead top Rotorkopf oben 1-JJ-70-00004 Rotorhead bottom Rotorkopf unten 1-JJ-70-00001 Rotorhead Cap Rotorkopfkappe RCH-70-023 RCH-70-024 1-JJ-70-00017 Grip Spindle Blattlagerwelle Copyright 2021 - Roban Limited – All rights reserved...
Page 36 Zahnrad 1M30T 1-JJ-70-00103 Tail pushrod 702mm Gestänge 702mm RCH-70-044 1-JJ-70-00104 Tail support holder Strebenaufnahme RCH-70-045 1-JJ-70-00105 Bolt 1.5x7.8 Bolzen 1.5x7.8 1-JJ-70-00106 Tail support rod Heckstrebe 11-600UH1-007 Tail support clamp Heckstrebenklammer RCH-70-046 Copyright 2021 - Roban Limited – All rights reserved...
Page 37 1-JJ-70-00056 Bearing 10x19x5 Kugellager 10x19x5 1-JJ-70-00081 Nylon Nut M2.5 Nylon Mutter M2.5 RCH-70-075 1-JJ-70-00084 Screw M2.5x8 Schraube M2.5x8 RCH-70-076 RCH-70-077 1-JJ-70-00085 Screw M2.5x20 Schraube M2.5x20 1-JJ-70-00086 Screw M3x8 Schraube M3x8 RCH-70-078 Copyright 2021 - Roban Limited – All rights reserved...
Page 38 Nylon Nut M2 Nylon Mutter M2 RCH-70-107 RCH-70-108 1-JJ-70-00141 Tail spindle Heckrotor Welle 1-JX-47-00115 Rotor hub 3 blade Rotorkopf 3 Blatt RCH-70-109 1-JX-47-00103 Rotor hub 4 blade Rotorkopf 4 Blatt RCH-70-110 Copyright 2021 - Roban Limited – All rights reserved...
