Bell AH-1W™

Compactor

CCPM SCALE RC HELICOPTER

Manual

Table of Contents

Need help?

Do you have a question about the Bell AH-1W Compactor and is the answer not in the manual?

Questions and answers

Summary of Contents for Roban Bell AH-1W Compactor

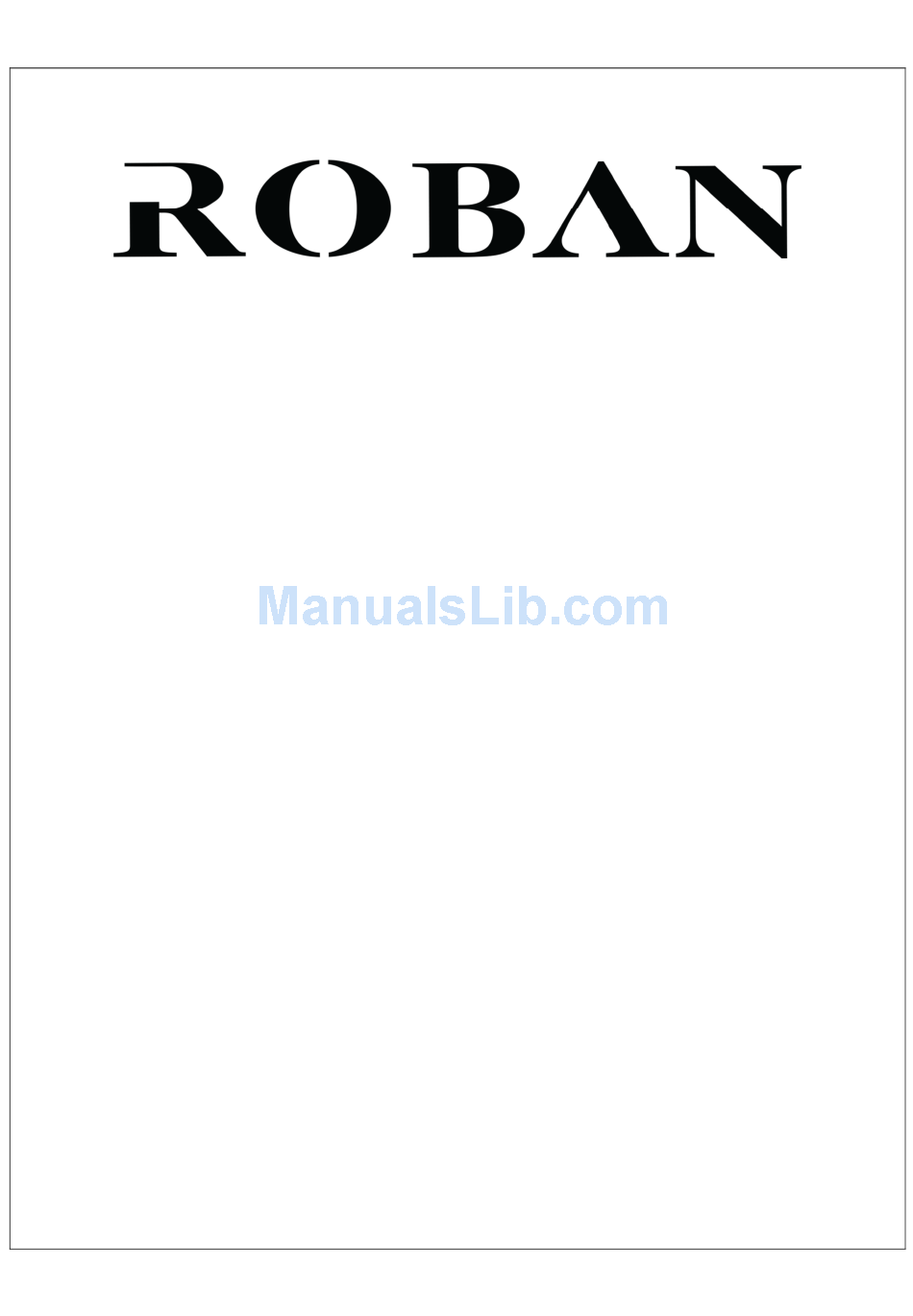

Page 1 Bell AH-1W™ Compactor Compactor Compactor Compactor Manual CCPM SCALE RC HELICOPTER...
Page 2 Compactor 700 Manual – Bell AH-1W™ Release 1.0 - April 2013 Bell, emblems, logos, and body designs are trademarks of Textron Innovations Inc. and are used under license by Roban Ltd. Roban Limited Dryriver Industrial Zone, Venture Cross Rd. Jiaolian, Wanjiang City District of Dongguan, 523046 Dongguan County (GD) - PRC Copyright@2013 - Roban Limited –...
Page 3: Specifications
Please read this user manual carefully, it contains instructions for the correct assembly of the model. Please refer to the web site www.robanmodel.com for updates and other important information. Thank you for your purchase, and have a great time with your Compactor! Roban Limited Copyright@2013 - Roban Limited – All rights reserved...
Page 4: Important Notes
*Lack of care with assembly or maintenance can result in an unreliable and dangerous model. *Neither Roban Limited nor its agents have any control over the assembly, maintenance and use of this product. Therefore, no responsibility can be traced back to the manufacturer. You hereby agree to release Roban Limited from any responsibility or liability arising from the use of this product.
Page 5 30 – Tail wings 31 – Gatling gun 2pcs 32 – Cockpit mainframe 1pc 33 – Instrument panel 1pc 34 – Pitch stick 1pc 35 – Control stick 1pc 36 – Target monitor 1pc Copyright@2013 - Roban Limited – All rights reserved...
Page 7: Additional Components Required
ADDITIONAL COMPONENTS REQUIRED TOOLS, LUBRICANTS, ADHESIVES *Electric Motor: *Generic pliers 10S-12S – 400-600Kv, *Hexagonal driver, size 1.5, 2, 2.5, 3, 4mm pinion shaft diameter 6mm *4mm T-Wrench *Speed controller: *5.5mm Socket wrench (for M3 nuts) minimum 120A to be safe *8mm Hex fork wrench (for M5 nuts) *Batteries: 10-12S 4000-5000mAh *Medium threadlocker (eg.
Page 8 Install light (68) in wing end with glue. Install light (69) in wing end with glue. Install the wingtip to the wing using epoxy glue. Install the holder (26) with screws (42) onto the wing (24). Copyright@2013 - Roban Limited – All rights reserved...
Page 9 Glue the rocket pod on with epoxy glue. Glue the rocket launcher on with epoxy glue. Install the winglets onto the main fuselage. Glue the Anti-IR unit on with epoxy glue Glue the tail distancer in with epoxy glue Copyright@2013 - Roban Limited – All rights reserved...
Page 10: Step 2 - Tail Boom
Assembly Mechanics The mechanics are almost entirely preassembled and split up into four sections: rotorhead, main frame, tail frame and tail tube. Prior to the installation into the scale fuselage, the mechanics have to be entirely assembled, electronic components installed, adjusted and tested.
Page 11: Step 3 - Tail Servo Installation
1=81mm 2=112mm 3=81mm geared servos. The multi blade rotor head can feedback forces that may lead to failure of plastic components. Copyright@2013 - Roban Limited – All rights reserved...
Page 12 Step 5 – Adjust swashplate linkages The linkages from the L-Levers to the swash plate have to be set at correct length. Distances are uniball center to uniball center: 1=35mm Step 6 – Motor and Belt installation In order to install the motor, you must first disassemble one Mount the motor as shown using washers and screws onto of the side frames in order to have access to the mounting the motor mount (70-00066).
Page 13 Step 7 – Electrical Wiring and Setup The mechanics have to be fully electrically setup and adjusted ATTENTION ! prior to installation into the fuselage. As the use of a 12S (44.4V) setup is necessary, we strongly recommend to run the When using the a pitch gauge to adjust correct CP travels, control equipment on a separate 2S Lipo battery and BEC for make sure that the gauge lines up with the flat surface of...
Page 14 Step 8 – Installation of mechanics Mount the four L-brackets (60UH1-003) onto both sides of Unmount the entire tail rotor frame from the tail box again. the main frame as shown. Make sure they are properly aligned before you fasten the screws. Install the mechanics by sliding them into the fuselage as shown.
Page 15 Use the holes in the fuselage to tighten the tail frame screws. Install the washer (66) as shown. Install EVA distancers (67) as shown using glue. Use screws (43) and washers (45) to secure the mechanic. Copyright@2013 - Roban Limited – All rights reserved...
Page 16 Close the tail hatch with the screws. Install the carbon rod (65) as shown. Slide the tail wings onto the rods and tighten screws. Install the gun (31) with Nyloc Nut M4 (53) as shown. Glue lever 35 in as shown. Glue lever 39 in as shown.
Page 17 Glue lever (35) in as shown. Glue instrument panel (36) in as shown. Glue instrument panel (33) in as shown. Glue seats (40) in as shown. Glue lever 39 in as shown. Then install the cockpit into the canopy, use glue Glue pedals (38) in as shown.
Page 18 Please install the scale parts as depicted using epoxy glue! Finally connect the LED controller to the LEDs you installed.
Page 19: Step 10 - Battery Installation
Please be realistic when assessing your piloting skills, because a scale helicopter is heavy and hence much less agile in response than any 3D helicopter. Keep this comparison in mind: if you can’t swim and you dive into deep water, the chances are that you will drown. Copyright@2013 - Roban Limited – All rights reserved...
Page 34: Appendix C - Sparepart List
Kugelkopf 1-JJ-70-00031 Washer 2x8x1 Beilagscheibe 2x8x1 1-JJ-70-00032 Screw M2x6 Schraube M2x6 1-JJ-70-00003 Rotorhead top Rotorkopf oben RCH-70-022 1-JJ-70-00004 Rotorhead bottom Rotorkopf unten RCH-70-023 1-JJ-70-00001 Rotorhead Cap Rotorkopfkappe 1-JJ-70-00017 Grip Spindle Blattlagerwelle RCH-70-024 Copyright@2013 - Roban Limited – All rights reserved...
Page 35 Zahnrad 1M30T RCH-70-043 RCH-70-044 1-JJ-70-00103 Tail pushrod 702mm Gestänge 702mm RCH-70-045 1-JJ-70-00104 Tail support holder Strebenaufnahme 1-JJ-70-00105 Bolt 1.5x7.8 Bolzen 1.5x7.8 1-JJ-70-00106 Tail support rod Heckstrebe 11-600UH1-007 Tail support clamp Heckstrebenklammer RCH-70-046 Copyright@2013 - Roban Limited – All rights reserved...
Page 36 1-JJ-70-00056 Bearing 10x19x5 Kugellager 10x19x5 RCH-70-074 RCH-70-075 1-JJ-70-00081 Nylon Nut M2.5 Nylon Mutter M2.5 1-JJ-70-00084 Screw M2.5x8 Schraube M2.5x8 RCH-70-076 1-JJ-70-00085 Screw M2.5x20 Schraube M2.5x20 RCH-70-077 RCH-70-078 1-JJ-70-00086 Screw M3x8 Schraube M3x8 Copyright@2013 - Roban Limited – All rights reserved...
Page 37 RCH-70-107 1-JJ-70-00129 Nylon Nut M2 Nylon Mutter M2 1-JJ-70-00141 Tail spindle Heckrotor Welle RCH-70-108 RCH-70-109 1-JX-47-00115 Rotor hub 3 blade Rotorkopf 3 Blatt 1-JX-47-00103 Rotor hub 4 blade Rotorkopf 4 Blatt RCH-70-110 Copyright@2013 - Roban Limited – All rights reserved...
