Summary of Contents for Roban AS350 B3 Compactor

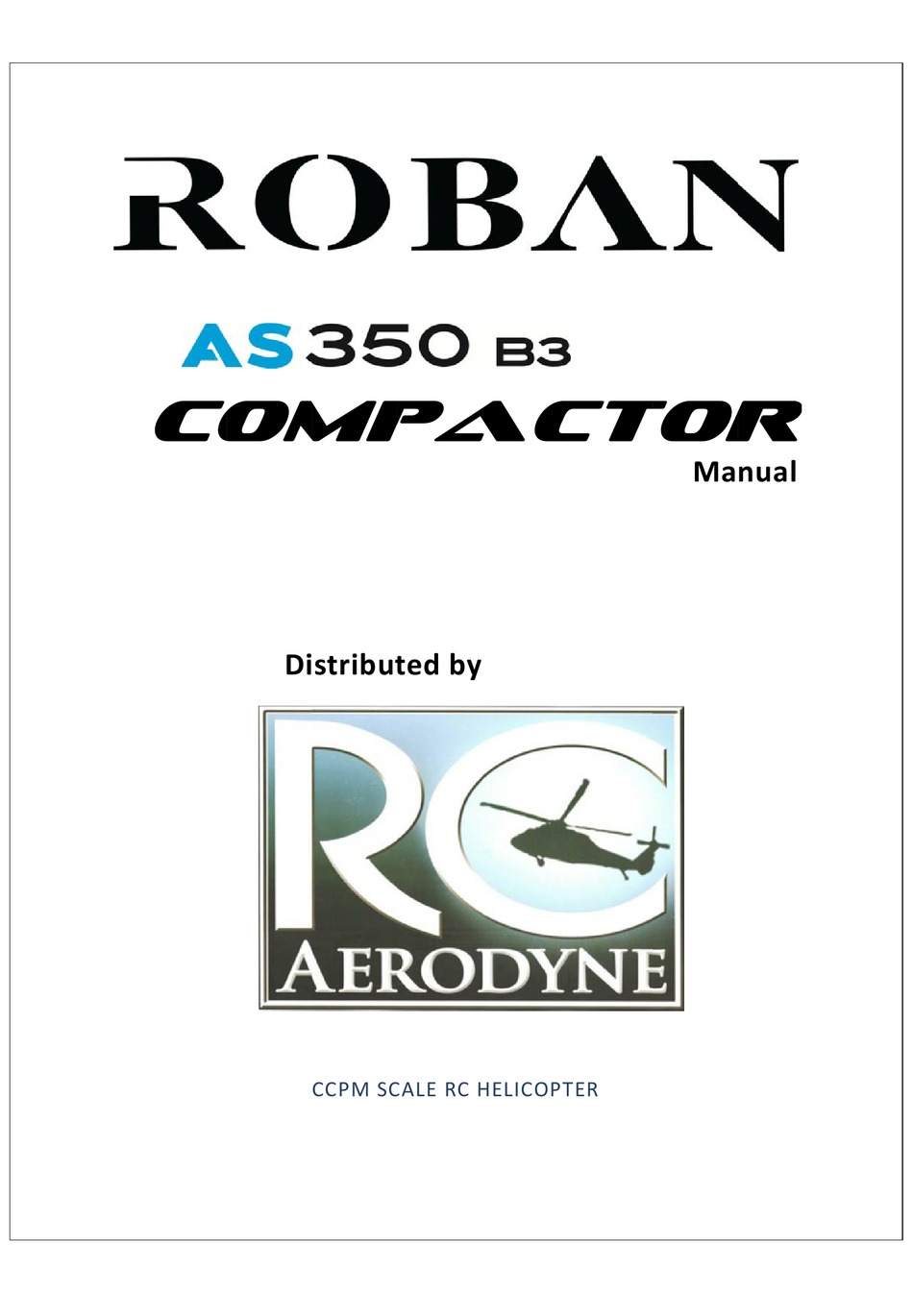

Page 1 nual stribut ted by CCPM SC CALE RC H HELICOPT TER ...
Page 2 Compactor 700 Manual – AS350 Release 1.0 ‐ January 2013 Roban Limited Dryriver Industrial Zone, Venture Cross Rd. Jiaolian, Wanjiang City District of Dongguan, 523046 Dongguan County (GD) ‐ PRC Copyright@2013 - Roban Limited – All rights reserved...
Page 3: Specifications
Speed controller:* 1x 120A brushless, 12S capable Servo:* 3x metal gear cyclic, 1x 9g metal gear tail servo Battery:* 44.4V 5000mAh 35C+ Flight time: 5 minutes Takeoff weight: 7200g Flight Stabilization:* 3 axis flybarless gyro Radio Control:* min. 6 channel with pitch and throttle curves *) Optionally available equipment The Compactor is a high performance radio controlled scale helicopter. Our goal was to create a simple, high performance helicopter, with a minimum of mechanical components and simple maintenance. Please read this user manual carefully, it contains instructions for the correct assembly of the model. Please refer to the web site www.robanmodel.com for updates and other important information. Thank you for your purchase, and have a great time with your Compactor! Roban Limited ...
Page 4: Important Notes
*Inexperienced pilots must be monitored by expert pilots. *All operators must wear safety glasses and take appropriate safety precautions. *A radio controlled helicopter must only be used in open spaces without obstacles, and far enough from people to minimize the possibility of accidents or of injury to property or persons. *A radio controlled helicopter can behave in an unexpected manner, causing loss of control of the model, making it very dangerous. *Lack of care with assembly or maintenance can result in an unreliable and dangerous model. *Neither Roban Limited nor its agents have any control over the assembly, maintenance and use of this product. Therefore, no responsibility can be traced back to the manufacturer. You hereby agree to release Roban Limited from any responsibility or liability arising from the use of this product. SAFETY GUIDELINES *Fly only in areas dedicated to the use of model helicopters. *Follow all control procedures for the radio frequency system. *It is necessary that you know your radio system well. Check all functions of the transmitter before every flight. *The blades of the model rotate at a very high speed; be aware of the danger they pose and the damage they may cause. *Never fly in the vicinity of other people. NOTES FOR ASSEMBLY Please refer to this manual for assembly instructions for this model. Follow the order of assembly indicated. The instructions are divided into chapters, which are structured in a way that each step is based on the work done in the previous step. Changing the order of assembly may result in additional or unnecessary steps. Use thread lockers and retaining compounds as indicated. In general, each bolt or screw that engages with a metal part requires thread lock. Factory pre‐assembled components have been assembled with all the required thread lock and lubricants, and have passed quality control. It is not necessary to disassemble and re‐assemble them. Copyright@2013 - Roban Limited – All rights reserved...
Page 5 DDITIONA AL COMPO ONENTS R REQUIRE D TOOLS, L LUBRICAN NTS, ADH HESIVES *Elec ctric Motor: *Generic plie ers 10S S‐12S – 400‐6 600Kv, *Hexagonal d driver, size 1.5 5,2,2.5,3,4mm m pin nion shaft diam meter 6mm *4mm T‐Wre ench *Spe eed controller r: *5.5mm Sock ket wrench (fo or M3 nuts) mi nimum 120A to be safe *8mm Hex fo ork wrench (fo or M5 nuts) *Bat tteries: 10‐12S S 4000‐5000m mAh ...
Page 6 sembly The mechanics are e almost entir rely preassem mbled and split t up into four sections: roto orhead, main frame, tail fra ame and tail t ube. Prior r to the insta allation into t the scale fuse elage, the me echanics have e to be entire ely assembled d, electronic components installed, adju sted and teste ed. After insta allation into th he fuselage m...
Page 7 1=81mm 2=112mm m 3=81 1mm gear red servos. T The multi bla ade rotor he ead can feed back force es that may le ead to failure o of plastic com mponents. yright@2013 3 - Roban Lim mited – All rig ghts reserved...
Page 8 ep 5 – Adj just swas shplate lin nkages The linkages from m the L‐Levers s to the swash h plate have t to be set a at correct len ngth. Distance es are uniball center to un niball cent er: 1=35mm ep 6 – Mo otor and B Belt insta allation ...
Page 9 Step 7 – Electrical Wiring and Setup The mechanics have to be fully electrically setup and adjusted ATTENTION ! prior to installation into the fuselage. As the use of a 12S (44.4V) setup is necessary, we strongly recommend to run the When using the a pitch gauge to adjust correct CP travels, control equipment on a separate 2S Lipo battery and BEC for make sure that the gauge lines up with the flat surface of security reasons. ...
Page 10 ep 8 – Inst tallation of mecha anics unt the four L L‐brackets (60 0UH1‐003) on nto both side es of Take the en ntire tail roto or frame off f the tail tub be again. the main frame as shown. M Make sure t hey ...
Page 11 Insta all the spacers s that keep th e engine hous sing at a safe Slip the EVA t tail dampener r unit onto the e tail boom be efore dista ance from the swashplate a as shown. installing the tail fuselage. w insert the tai il frame with t the screws se t in into the ta ail Install the tai l frame on the e torque tube e through the access roto r housing. holes as show wn. ...
Page 12 ep 9 – Sca ale Cockp pit and fitt tings With h the cockpit t doors open ned, you can install the p parts If you intend to have use pilot figures, leave the con ntrol stick easil y. Install the instrument p panel first. W We recommen nd to out for now and ...
Page 13 yright@2013 3 - Roban Lim mited – All rig ghts reserved...
Page 14 A – Explos sion Draw wings yright@2013 3 - Roban Lim mited – All rig ghts reserved...
Page 24 – Sparep parts yright@2013 3 - Roban Lim mited – All rig ghts reserved d...
Page 28 yright@2013 3 - Roban Lim m ited – All rig g hts reserved d...
Page 29 Taumelscheibe Oberteil 1‐JJ‐70‐00028 Bearing 30x42x7 Kugellager 30x42x7 1‐JJ‐70‐00029 Swash lower ring Taumelscheibe Unterteil 1‐JJ‐70‐00030 Ball head Kugelkopf 1‐JJ‐70‐00031 Washer 2x8x1 Beilagscheibe 2x8x1 1‐JJ‐70‐00032 Screw M2x6 Schraube M2x6 RCH‐70‐022 1‐JJ‐70‐00003 Rotorhead top Rotorkopf oben 1‐JJ‐70‐00004 Rotorhead bottom Rotorkopf unten RCH‐70‐023 1‐JJ‐70‐00001 Rotorhead Cap Rotorkopfkappe RCH‐70‐024 1‐JJ‐70‐00017 Grip Spindle Blattlagerwelle Copyright@2013 - Roban Limited – All rights reserved...
Page 30 X Junction X‐Verbinder 002 RCH‐70‐042 1‐JJ‐70‐00097 Tail servo frame Heckservorahmen 1‐JJ‐70‐00098 Tail servo clamp Heckservoklammer RCH‐70‐043 1‐JJ‐70‐00102 Gear 1M 30T Zahnrad 1M30T RCH‐70‐044 1‐JJ‐70‐00103 Tail pushrod 702mm Gestänge 702mm RCH‐70‐045 1‐JJ‐70‐00104 Tail support holder Strebenaufnahme 1‐JJ‐70‐00105 Bolt 1.5x7.8 Bolzen 1.5x7.8 1‐JJ‐70‐00106 Tail support rod Heckstrebe RCH‐70‐046 11‐600UH1‐007 Tail support clamp Heckstrebenklammer Copyright@2013 - Roban Limited – All rights reserved...
Page 31 RCH‐70‐071 1‐JJ‐70‐00045 Bearing 5x10x4 Kugellager 5x10x4 RCH‐70‐072 1‐JJ‐70‐00054 Screw M2.5x8 Schraube M2.5x8 RCH‐70‐073 1‐JJ‐70‐00055 Bearing 12x24x6 Kugellager 12x24x6 RCH‐70‐074 1‐JJ‐70‐00056 Bearing 10x19x5 Kugellager 10x19x5 RCH‐70‐075 1‐JJ‐70‐00081 Nylon Nut M2.5 Nylon Mutter M2.5 RCH‐70‐076 1‐JJ‐70‐00084 Screw M2.5x8 Schraube M2.5x8 RCH‐70‐077 1‐JJ‐70‐00085 Screw M2.5x20 Schraube M2.5x20 RCH‐70‐078 1‐JJ‐70‐00086 Screw M3x8 Schraube M3x8 Copyright@2013 - Roban Limited – All rights reserved...
Page 32 1‐60‐WJ‐00004 Shaft bevel gear Kegelrad 20T RCH‐70‐106 1‐JJ‐70‐00089 Washer 10x13x0.1 Beilagscheibe 10x13x0.1 RCH‐70‐107 1‐JJ‐70‐00129 Nylon Nut M2 Nylon Mutter M2 RCH‐70‐108 1‐JJ‐70‐00141 Tail spindle Heckrotor Welle RCH‐70‐109 1‐JX‐47‐00115 Rotor hub 3 blade Rotorkopf 3 Blatt RCH‐70‐110 1‐JX‐47‐00103 Rotor hub 4 blade Rotorkopf 4 Blatt Copyright@2013 - Roban Limited – All rights reserved...
