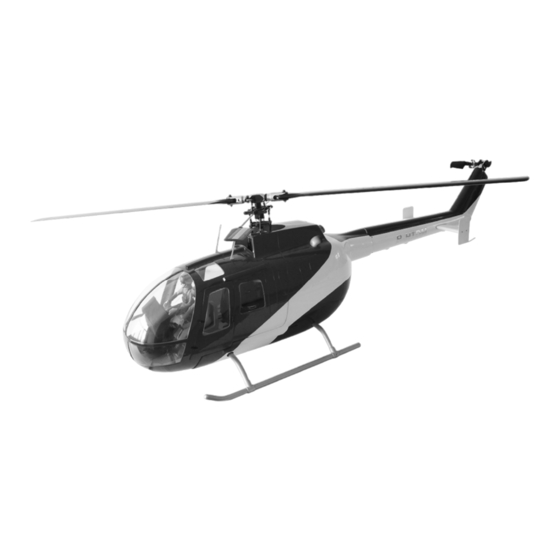

Scale fuselage 600 size
Hide thumbs Also See for BO 105:

Advertisement

Quick Links

Instruction manual
Scale Fuselage BO 105
600 size
1. INTRODUCTION
Thank you for buying Roban Model products. The 600 size MD500D/E scale fuselage is designed as an
easy to use product. Please read the manual carefully before assembling the model, and follow all
precautions and recommendations located within the manual. Be sure to retain the manual for future
reference, routine maintenance and tuning. The scale fuselage is designed for T-REX 600 Helicopter
series use. You can easily put it on your T-REX 600 for new clothing.
Important Note
Roban Model R/C Helicopters are advanced, high-performance devices, built incorporating the latest
technologies. They are not intended as toys, and improper use can potentially lead to serious injury, or
even fatal accidents. We implore you to read this manual thoroughly before operating these models.
Safety should be your utmost priority - not just your own, but also that of others and your surroundings
when piloting Roban Model products.
Liability Disclaimer:
The manufacturer and the seller cannot accept liability for the operation or misuse of this product.
Roban Model R/C helicopters are intended to be used exclusively by experienced adults in legally
sanctioned flying fields. Once sold, we cannot monitor or control the product's operation or usage.
Operation Guidelines:
Upon assembly of the scale fuselage, the weight and complexity of the structure will increase. To
mitigate risk of accidents and damages, we advise against attempting 3D flights.
Skill Requirements:

Advertisement

loading
Need help?

Need help?

Do you have a question about the BO 105 and is the answer not in the manual?

Questions and answers

Summary of Contents for Roban BO 105

  • Page 1 600 size 1. INTRODUCTION Thank you for buying Roban Model products. The 600 size MD500D/E scale fuselage is designed as an easy to use product. Please read the manual carefully before assembling the model, and follow all precautions and recommendations located within the manual. Be sure to retain the manual for future reference, routine maintenance and tuning.
  • Page 2 The operation of R/C products necessitates a certain level of skill and familiarity. Any damages or dissatisfaction resulting from accidents, modifications, or operational mishaps are not covered under any warranty. Consequently, such products cannot be returned for repair or if you experience problems during operation or maintenance.
  • Page 3 3. CONTENTS OF KIT Please check the contents of the kit prior to installat. CONTENTS Item No. Description Quantity Rear redirection Tail shaft Linkages 2x196 Tail tube Landing gear skids Screw A3x16 Ball joint connectors T-connectors End caps Screw A2x6 Screw M3x22 Landing gear struts Step...
  • Page 4 Holder 100x18x12 Wooden holders Vertical tail unit Horizontal tail unit Skylight windows Side windows Rear windows Tail skid REQUIRED TOOLS / CONSUMABLES Tool No. Tool/Consumable Hobby knife Allen wrench Phillips screwdriver File Side cutters Silicone adhesive Super glue 2K Epoxy glue Fine sandpaper Scissors...
  • Page 5: Installation

    4. INSTALLATION 4.1 Assemble the landing gear as shown, glue in the end caps. 4.2 Secure the landing gear with 4 pieces of Screw M3x22 as shown. 4.3 Glue all windows as shown.
  • Page 6 4.4 Mount the holders to the mechanism as shown. 4.5 Dismantle the tail frame. Mount the short tail tube and the linkage.
  • Page 7 Mount the redirection as shown on the tail tube. Mount the tail frame to the mechanism as shown. Adjust the mechanics, install all electronics. Test fly if possible.
  • Page 8 4.10 Dismantle the tail as shown. 4.11 Mount the mechanism in the fuselage. 4.12 Slide it all the way to the back.
  • Page 9 4.13 Slide the tail onto the tail tube as shown. 4.14 When the tail is rotated as shown, you can mount the screws. 4.15 Mount the tail as shown.
  • Page 10 4.16 Mount the short tail tube from above. 4.17 Mount the linkage from above. 4.18 Mount the linkage redirection lever as shown.
  • Page 11 4.19 Mount the tail cover. 4.20 Adjust the position of the mechanism. 4.21 Screw the mechanism in the fuselage as shown.
  • Page 12 4.22 Secure the tailgate and the tail tube as shown. 4.23 Screw the tail unit as shown. 4.24 Glue the tail units as shown.
  • Page 13 4.25 Secure the tail skid as shown. 4.26 Glue the antenna in as shown.
  • Page 14: Spare Part List

    6. SPAREPART LIST 600BO105 前 600 BO-105 HSB-BO600RB BO600PJ001 头含门 canopy 600 BO-105 600BO105 前 BO600PJ002 front 窗 window 600BO105 全 600 BO-105 BO600PJ003 套窗 all windows 600BO105 平 600 BO-105 BO600PJ004 垂尾 tail wings 600BO105 升 600 BO-105 BO600PJ005 级铁齿组...
  • Page 15 600 BO-105 600 轴传通用 600WBX01 bevel gear 尾波箱扇齿 600 BO-105 600 轴传通用 600WBX tail 尾波箱 gearbox...
  • Page 16 6. FULLY ASSEMBLED FUSELAGE Specifications: Lenght: 1335mm Height: 435mm Width: 380mm Weight: 1490g Suitable for Align TREX600ESP/EFL/PRO and derivatives We wish you a lot of fun with the fuselage! Copyright 2024 – www.robanmodel.com...
