Assembly of window partitions

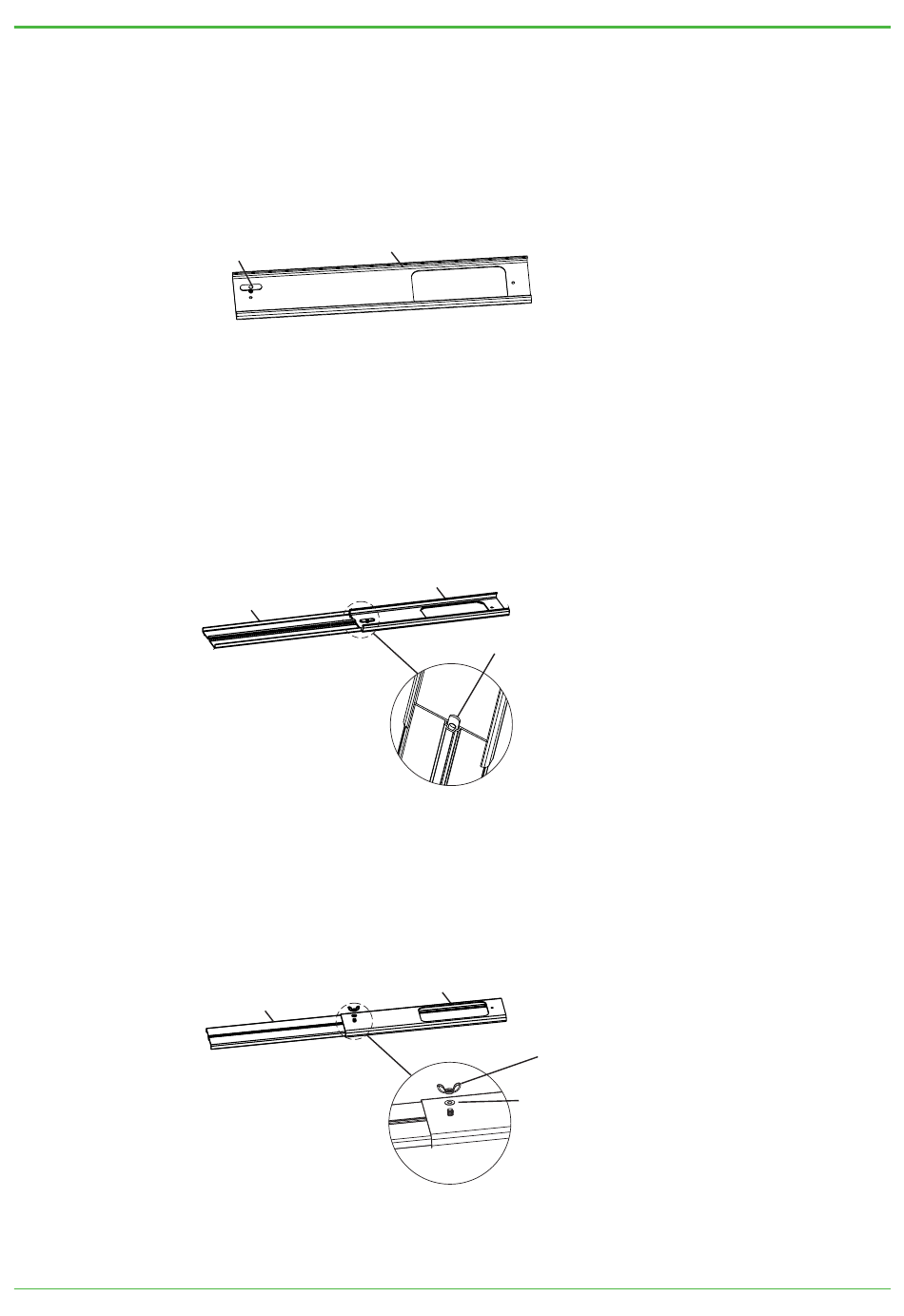

1. As shown in Figure 1, insert the wing screw into the hole of the window partition A.
Wing screw
Figure 1
2. As shown in Figure 2, insert the window partition B into the window partition A from the
side (the wing screw head needs to be stuck into the slot of the window partition B),
and adjust the assembly length as required.
Window partition B
Figure 2
3. Turn over the window partition, put the gasket and wing screw in turn and tighten them.
Window partition B
Figure 3
Window partition A
Window partition A
Wing screw
Window partition A
9
Wing nut
Gasket
