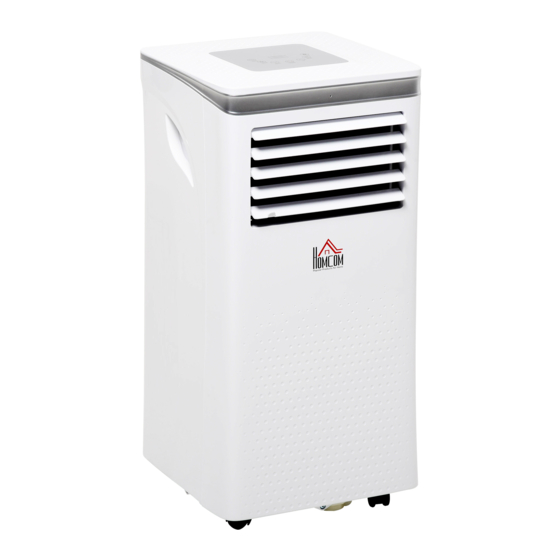

- Page 1 INcjg006_US Portable Air Conditioner Owner’s Manual Original instructions 823-007V80/823-007V81 READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Before You Begin
1. BEFORE YOU BEGIN 1.1 PRODUCT DESCRIPTION Our powerful portable air conditioners are great cooling solutions for single rooms, creating a comfortable atmosphere in your space. It also has ventilation and dehumidifying function for circulating air and removal of moisture. They're self-contained systems that do not require any permanent installation allowing you to move to the space in which it is most needed. -
Page 3: For Your Safety
2. FOR YOUR SAFETY Your safety is the most important thing we concerned! Please read this manual carefully and fully understand before operating your appliance. WARNING OPERATIONAL PRECAUTIONS WARNING- to reduce the risk of fire, electric shock or injury to persons or property: ... - Page 4 Do not unplug by pulling on the power cord. Do not use an extension cord or an adapter plug. Do not put objects on the unit. Do not climb or sit on the unit. Do not insert fingers or other objects into the air outlet. ...
- Page 5 size corresponds to the room area as specified for operation. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle WARNING refrigerants safely in accordance with an industry, recognized assessment specification.
-
Page 6: Product Overview
3. PRODUCT OVERVIEW 3.1 PRODUCT DIAGRAM Control panel Power cord Air Exhaust Air outlet with Recessed Drain opening adjustable handle with sealing plug louver Air inlet with air filter Note: The appearance is only for reference. Please see the real product for detailed information. - Page 7 FEATURES High Capacity in a compact size with cooling, heating, dehumidifying and ventilating function. Temperature setting and display LED Digital display Electronic control with built-in timer, sleep mode Self-evaporating system for better efficient Auto shut off when tank full ...
-
Page 8: Installation
4. INSTALLATION UNPACKING Unpack the carton and take the appliance and accessories out. Check the device after unpacking for any damage or scratches on Accessories: 1. Exhaust hose 2. Hose connector 3. Window kit adapter ... - Page 9 Choose your location If tipped more than 45°, allow the unit to set upright for at least 24 hours before start up. Place the unit on a firm, level surface in an area with at least 70cm of free space around it to allow for proper air circulation.
- Page 10 ATTACH THE EXHAUST HOSE The air conditioner requires being vented outside so that the exhaust air can escape the room which coming from the appliance contains waste heat and moisture. Do not replace or extend exhaust hose which will result in decreased efficiency, even worse shut down the unit due to low backpressure.
- Page 11 It is windows kit firmly in place, secure the window kit with duct tape if required. recommended that t he gap between the adapter and the sides of the window should be sealed off for maximum efficiency. Step 5: Attach the hose connector to the exhaust air outlet of unit.
- Page 12 Step 6: Adjusting the length of the flexible exhaust hose, and avoid bends in the hose. Then place AC near an electrical outlet. Step 7: Adjust the louver at the air outlet, and then switch on the unit.
-
Page 13: Control Panel And Display
OPERATION CONTROL PANEL AND DISPLAY... -
Page 14: Remote Control
REMOTE CONTROL... - Page 15 FUNCTION KEYS AND INDICATORS POWER Press to switch the machine on or off. Increasing the desired temperature or timer setting. the desired temperature(16℃～32℃) Decreasing MINUS or timer setting. Mode button Press to switch the operation mode MODE between cool, heat, fan, and dry. SPEED Adjust the wind speed in high or low.
-
Page 16: Startup And Shutdown
SETTINGS 5.4.1. Start-up and Shutdown Press POWER to turn the unit on. The unit runs in in FAN as default. Press MODE button to select the desired operation mode. Press POWER again to turn off the power. 5.4.2. Operation mode The unit has five operation modes: Cool, heat, fan, dry,sleep. - Page 17 D. Drying your room Press MODE button on the control panel or remote control, the LED of DRY operation lights up. The fan speed is unable to select. User should connect the hose to the drain outlet at the bottom of the unit. Note: In this mode, the fan speed switches over to low speed and cannot be selected.
-
Page 18: Timer Setting
5.4.3. TIMER SETTING （1hour-24hours）: The timer has two ways of operation: Press Timer key to Press ADD/MINUS To turn off turn on the timer repeatedly to set the (When power on) function. delay OFF time. Press ADD/MINUS To turn on Press Timer key to repeatedly to set the turn on the timer... - Page 19 DRAINAGE Self- evaporating system The self-evaporating system uses the collected water to cool the condenser coils for better efficient performance. It is no need to empty the drainage tank in cooling operation except in heating operation, drying operation and high humidity conditions. The condensate water evaporates at the condenser and evacuated through the exhaust hose.
-
Page 20: Cleaning And Care
6. CLEANING AND CARE 6.1. CLEANING THE AIR FILTER (every two weeks) Dust collects on the filter and restricts the airflow. The restricted airflow reduces the efficiency of the system and if it becomes blocked it can cause damage to the unit. The air filter requires regular cleaning. - Page 21 6.2. CLEANING UP OF REFRIGERANT General Measures: 1. Gas/vapor heavier than air. May accumulate in confined spaces, particularly at or below ground level. 2. Eliminate every possible source of ignition. 3. Use appropriate personal protection equipment (PPE). 4. Evacuate unnecessary personnel, isolate, and ventilate area. 5.
-
Page 22: Troubleshooting
7. TROUBLESHOOTING Symptom Inspection Solution Check the power Insert the power cord connection in securely. securely into the wall Outlet. The unit is Check if the water level Empty the drain pan by indicator lights up? remove the rubber plug. - Page 23 8. DECOMMISSIONING 8.1. STORAGE Long-Term Storage - If you will not be using the unit for an extended period of time (more than a few weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps: Unplug the unit and emove exhaust hose and window kit store with the...
