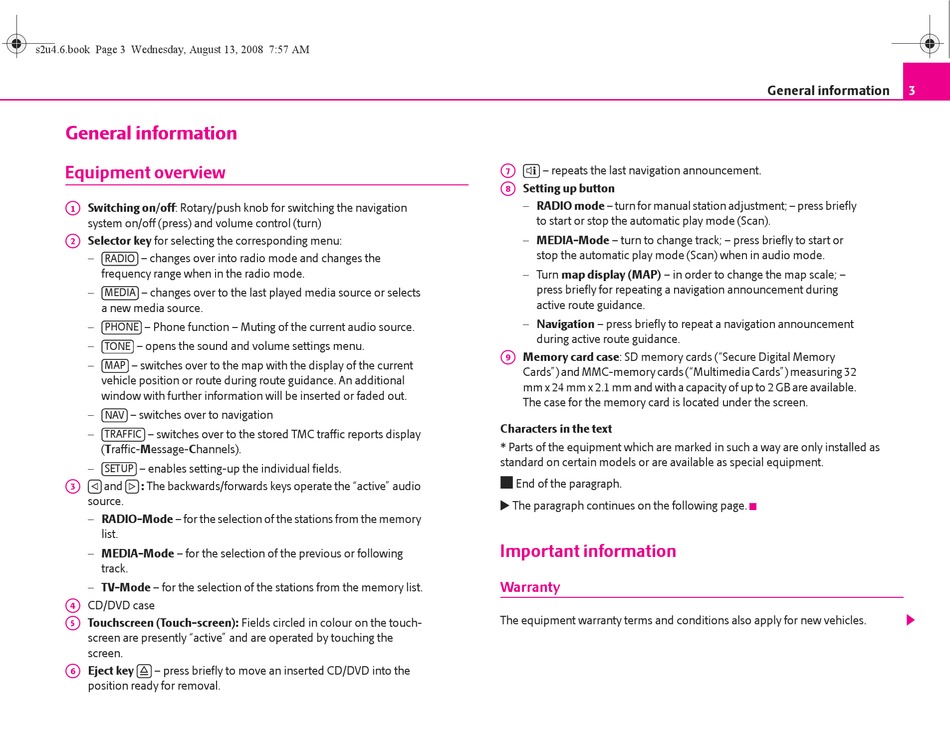

General information
Equipment overview
A
Switching on/off: Rotary/push knob for switching the navigation
1
system on/off (press) and volume control (turn)
A
Selector key for selecting the corresponding menu:
2
−
– changes over into radio mode and changes the
RADIO
frequency range when in the radio mode.
−
– changes over to the last played media source or selects
MEDIA
a new media source.
−
– Phone function – Muting of the current audio source.
PHONE
−
– opens the sound and volume settings menu.
TONE
−
– switches over to the map with the display of the current
MAP
vehicle position or route during route guidance. An additional
window with further information will be inserted or faded out.
−
– switches over to navigation
NAV
−
– switches over to the stored TMC traffic reports display
TRAFFIC
(Traffic-Message-Channels).
−
– enables setting-up the individual fields.
SETUP
A
and
: The backwards/forwards keys operate the "active" audio
3
source.
− RADIO-Mode – for the selection of the stations from the memory
list.
− MEDIA-Mode – for the selection of the previous or following
track.
− TV-Mode – for the selection of the stations from the memory list.
A
CD/DVD case
4
A
Touchscreen (Touch-screen): Fields circled in colour on the touch-
5
screen are presently "active" and are operated by touching the
screen.
A
Eject key
– press briefly to move an inserted CD/DVD into the
6
position ready for removal.
A
– repeats the last navigation announcement.
7
A
Setting up button
8
− RADIO mode – turn for manual station adjustment; – press briefly
to start or stop the automatic play mode (Scan).
− MEDIA-Mode – turn to change track; – press briefly to start or
stop the automatic play mode (Scan) when in audio mode.
− Turn map display (MAP) – in order to change the map scale; –
press briefly for repeating a navigation announcement during
active route guidance.
− Navigation – press briefly to repeat a navigation announcement
during active route guidance.
A
Memory card case: SD memory cards ("Secure Digital Memory
9
Cards") and MMC-memory cards ("Multimedia Cards") measuring 32
mm x 24 mm x 2.1 mm and with a capacity of up to 2 GB are available.
The case for the memory card is located under the screen.
Characters in the text
* Parts of the equipment which are marked in such a way are only installed as
standard on certain models or are available as special equipment.
End of the paragraph.
The paragraph continues on the following page.
Important information
Warranty
The equipment warranty terms and conditions also apply for new vehicles.
General information
3
