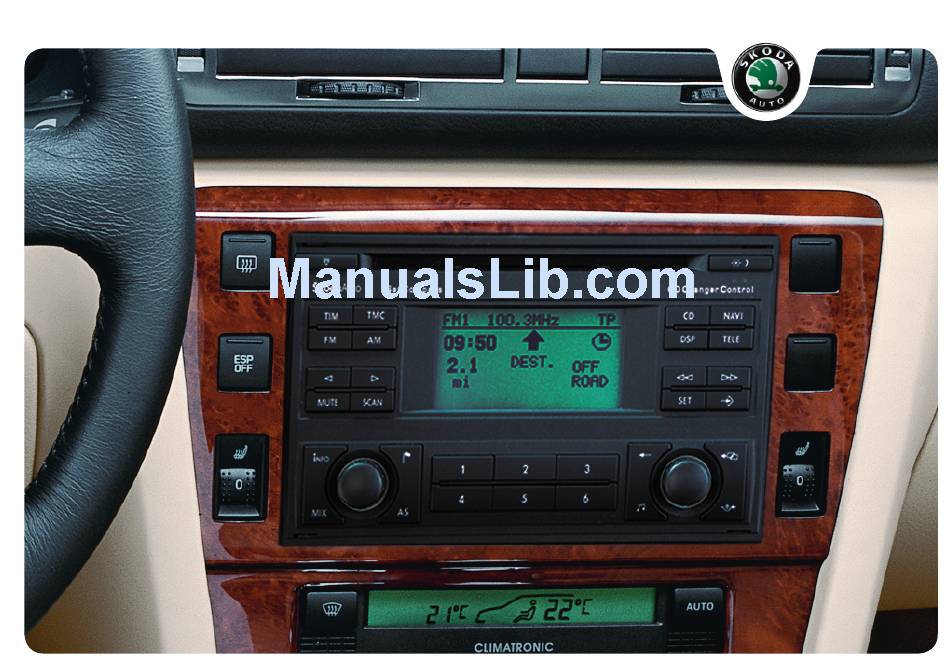

  • Page 1 SIMPLY CLE VER ŠkodaAuto RADIO NAVIGATION SYSTEM SatCompass...
  • Page 2 Introduction You have opted for a Škoda vehicle, which is fitted with a radio navigation system SatCompass, (designated in the following as navigation system ) - we thank you for your confidence in us. We recommend that you read this Owner's Manual attentively to enable you to become familiar with your naviga- tion system and all that it offers as quickly as possible.

  • Page 3: Table Of Contents

    Contents Contents Layout of this Owner's Manual Navigation ....... (explanations) .

  • Page 4: Layout Of This Owner's Manual (Explanations)

    Layout of this Owner's Manual (explanations) Layout of this Owner's Manual (explanations) The Owner's Manual has been systematically designed, in order to make it easy for Caution you to find and absorb the information you require. A Caution! note draws your attention to the possibility of damage to your vehicle Chapters, table of contents and subject index or points out general risks of an accident.

  • Page 5: General Comments

    General comments General comments General view Fig. 1 General view Button for manual station tuning FM, AM, TIM and TMC and to select the track Button (Traffic Message Channel) to activate the TMC radio mode in the CD mode Button AM to activate the AM radio mode Button to activate the FM radio mode CD-case...

  • Page 6: Radio Navigation System Satcompass

    General comments Radio navigation system SatCompass Button to activate the CD and CD changer mode* Button for manual switch over between day and night display Button calls up the navigation basic menu NAVI Special equipment Button displays the traffic reports received via TMC TELE Radio mode The navigation system SatCompass offers you an easy handling of the convenience...

  • Page 7: Important Information

    General comments Important information The volume settings must be selected in such a way that acoustic signals from the outside, such as e.g. a Martins horn from utility vehicles (police cars, ambulances and fire brigade), can be heard at any time. Warranty WARNING The same warranty terms apply for the equipment as for new vehicles.

  • Page 8: Changing The Navigation Cd

    General comments Calibration after tyre change – Carefully insert the new navigation CD with the inscription upwards as far as possible into the CD case until it can be drawn in automatically After a tyre change it may be necessary to calibrate the navigation by the unit.
  • Page 9 General comments • If the information “SAFE” appears in the display after switching on the unit, it – Press the button can only be operated again by entering the correct code ⇒ page 15. – The contrast can be set by pressing the menu knob –...

  • Page 10: Display

    General comments Display Button SCAN All receivable stations in each band can be played for 5 seconds with the Display function radio scan. – Select with the buttons the band in which you wish to carry out the scan finding. –...
  • Page 11 General comments Display contents Alarm If your navigation system receives a disaster announcement, “ALARM” is displayed in the standard field - foreground - of the display. The display appears in the standard field - background during active route guidance. The play function of the active audio source is interrupted and the navigation system switches over to the corresponding radio station that is receiving the disaster announcement.

  • Page 12: Basic Settings Of The Navigation System

    General comments Basic settings of the navigation system If the selection has been confirmed, the next sub-menu will be displayed. The selection marking remains on the first menu point. The menu title is shown in the standard field - background - of the display. Mark and confirm the menu point to SETUP MENU be changed by using the menu knob .
  • Page 13 General comments “SETTINGS” The settings for the audio mode can be carried out in the menu “SETUP AUDIO” ⇒ fig. Here you will reach a sub-menu for determining the system settings: • “TIME INFO” - here you can select if the “ARRIVAL TIME” at destination or the “RDS NAME”...
  • Page 14 General comments “TA” Note Here you can set if your navigation system should replay incoming traffic informa- If at a particular time of a traffic information or voice response the system volume tion. is higher than “TA MIN” or “NAV-MIN”, this is also performed in the system •...
  • Page 15 General comments • “SHOW LOCATION” - the route guidance is performed under the information Note of all directions, where the destination is located and if necessary the name of the • driven road. The system time can only be changed, if no GPS Time can be received. Note Language When calling up the menu the selection marking is on the menu point “ROUTE...

  • Page 16: Anti-Theft Protection

    General comments – Switch on the navigation system - after the start screen with the Note display “SAFE” the request for entry of the code number is displayed If the navigation CD is inserted there is the possibility beforehand to delete the after 2 seconds “1000”...

  • Page 17: Audio

    Audio Audio Radio mode emits temporarily different programs and due to such a change in frequency also the programme from one of the “related” stations can be heard ⇒ page 12. Radio mode with RDS Switch on radio mode The function RDS is always active for the navigation system. Press the button in order to switch on the More and more USW broadcasting companies transmit RDS information in addi-...

  • Page 18: Retrieving The Stored Stations

    Audio Store station You can also call up the stored stations by pressing the button – Select the desired range and the level using the button Note • If a stored FM station is no longer receivable and the TA function is activated in –...

  • Page 19: Cd Mode

    Audio Deleting traffic information Starting CD mode – Trafffic information is automatically deleted six seconds after end of – If a CD has already been inserted, press the button . The play readiness. function begins at the point where it was last interrupted. If the CD is ready to play, the play function starts from the beginning.
  • Page 20 Audio – Press the button once again to interrupt this function. Note Taking out the CD Dirt or damage of a CD can lead to difficulties when “reading” the information. The difficulty in reading the error depends on the dirt or on the severity of the mechan- –...

  • Page 21: Navigation

    Navigation Navigation • Overview of navigation basic menu “SHOW LOCATION” - display location determination, North and if necessary the name of the driven road • “DEST. MEMORY” - store, edit or delete destinations in the destination Call up navigation basic menu memory •...

  • Page 22: Enter

    Navigation Enter Enter destination - Town Overview Select a town as destination Call up the destination entry menu directly in the navigation basic You can first of all enter the desired town and then determine the menu. destination with the menu point “TOWN” Fig.
  • Page 23 Navigation Editor Entering a town name Carry out with the editor all entries of names and numbers, which are required for the navigation. Fig. 14 Entering a town name Fig. 13 Editing menu Enter the initial letters of the name of the desired village in the editing field .

  • Page 24: Enter Destination - Street - Intersection

    Navigation Enter destination - Street - Intersection Call up list The desired town is selected as destination with the aid of a list. Select a street as destination You have two possibilities to call up the list via the editing menu. –...

  • Page 25: Enter Destination - Town Centre

    Navigation Note Note • Scroll the list: by turning the menu knob first move the selection marking If the menu point “HOUSE NUMBER” cannot be marked, data for this house onto the arrow and then beyond the first or last entry. number does not exist on the navigation CD.

  • Page 26: Destination Entry - Special Destination

    Navigation Selecting town centre Select menu field “SPECIAL DESTINATION” – Enter the name of the desired town centre in the editing field or – Mark and confirm the menu point “SPECIAL DESTINATION” in the confirm an existing entry. destination entry menu. –...

  • Page 27: Enter Destination - From Destination Memory

    Navigation Enter destination - From destination memory Sort destinations in memory Store destination in the destination memory Select menu point “STORE DESTINATION” – Confirm the menu point “STORE DESTINATION”. Then the editing menu is called up for the entry of a short name. Enter short name –...

  • Page 28: Enter Destination - Flagged Destination

    Navigation Select destination from the memory – The desired memory name is shown in the standard field - back- ground - of the display. – Confirm your selection; then call up the navigation basic menu. – Change to “ROUTE GUIDANCE” ⇒ page 31. Enter destination - Flagged destination Set flagged destination During the route guidance you can set your current position as flagged...
  • Page 29 Navigation Store flagged destination Take over standard name ⇒ fig. 23 – Confirm the entry “FLAGGED DESTINATION (hh:mm)” pressing the menu knob for more than two seconds. Enter your own position names – Enter a position name with the aid of the register. The standard name is deleted when entering the first characters.

  • Page 30: Route Options

    Navigation Route options Determine route options Plan route After entry of a destination you can plan the route in the navigation basic menu. Fig. 25 Route options – Confirm the desired menu point with the menu knob – Select another setting by pressing the menu knob Fig.
  • Page 31 Navigation •  Calculate route list fast route, •  short route. To exit the route options Fig. 27 Route list – Select and confirm the menu point “ROUTE LIST” in the navigation Fig. 26 To exit the route basic menu. options The calculation process can last several seconds depending on the length of the –...

  • Page 32: Route Guidance

    Navigation Route guidance display. If your vehicle ist not fitted with an informatio display in the instrument cluster, the navigation system uses on the voice response. Begin guidance Indicate extensive destination information After pressing the button the current destination is show and the last INFO audible driving recommendation is repeated.

  • Page 33: Destination Memory

    Navigation This function is intended for large motoway drives, whereby as a rule less informa- If the destination is not within the digital area (only possible in case of flagged desti- tion is required from the navigation system. nation) and close to a digital street, the route guidance for this street is performed and it indicates the message: “You have reached your destination”.
  • Page 34 Navigation The destination memory menu calls up directly from the navigation basic menu via – Confirm the entry by pressing the menu knob the menu point “DESTINATION MEMORY”. The destinations can be stored, edited, classified and deleted in the destination Sorting destinations again memory.

  • Page 35: Bypass A Jam

    Navigation Delete destinations With this menu you can exclude a stretch of the momentary route ahead. Select via the menu points the stretch affected by the jam. On this basis the navigation system calculates an alternative route to the destination, in order to bypass as far as possible the blocked stretch of the road.

  • Page 36: Tourlist

    Navigation TOURLIST “BLOCK ROUTE” – The route list is displayed. You can block individual roads. Description – Mark and confirm with the menu knob the start and end point of the stretch of the road to be bypassed. The blocked stretch of the road With the tourlist you have the possibility to combine several destinations to one is marked by a black bar in front of the route list.
  • Page 37 Navigation Columns are e.g.: • Sight, • Business, • Sport centre. Note • If only one travel guide is available on your navigation CD, then the name of the travel guide is shown directly in the navigation basic menu. If several travel guides are available, first of all a selection menu of the travel guide is shown.

  • Page 38: Glossary

    Glossary Glossary Description Frequency modulation, ultra short waveband, USW ⇒ page 4, ⇒ page 8, ⇒ page 9, ⇒ page 11, ⇒ page 16, ⇒ page 17, ⇒ page 17, ⇒ page 19, ⇒ page 19 Antilock Brake System ⇒ page 5 GALA Speed dependent volume adaptation - ⇒...
  • Page 39 Glossary Setup - Setting ⇒ page 4 Ultre short wave, designated as FM ⇒ page 16 SETUP Set-up ⇒ page 4, ⇒ page 11, ⇒ page 11, ⇒ page 14 Traffic Annoucement - Traffic information, priority switch-over for traffic informa- tion ⇒...

  • Page 40: Index

    Index Index sort ........26 Street .
  • Page 41 Index Select destination ......27 Select track ........18 Special destination .
  • Page 42 Škoda Auto is constantly working on the further development of all types and models. Please understand that, for this reason, chan- ges to the scope of supply in terms of shape, equipment and engineering may be introduced at any time. It is therefore not possible to derive any claims from the information, illustrations and descriptions contained in this Owner ´...
  • Page 43 Radionavigační systém SatCompass Škoda Auto anglicky 05.06 S00.5610.45.20 3U0 012 151 CM...
