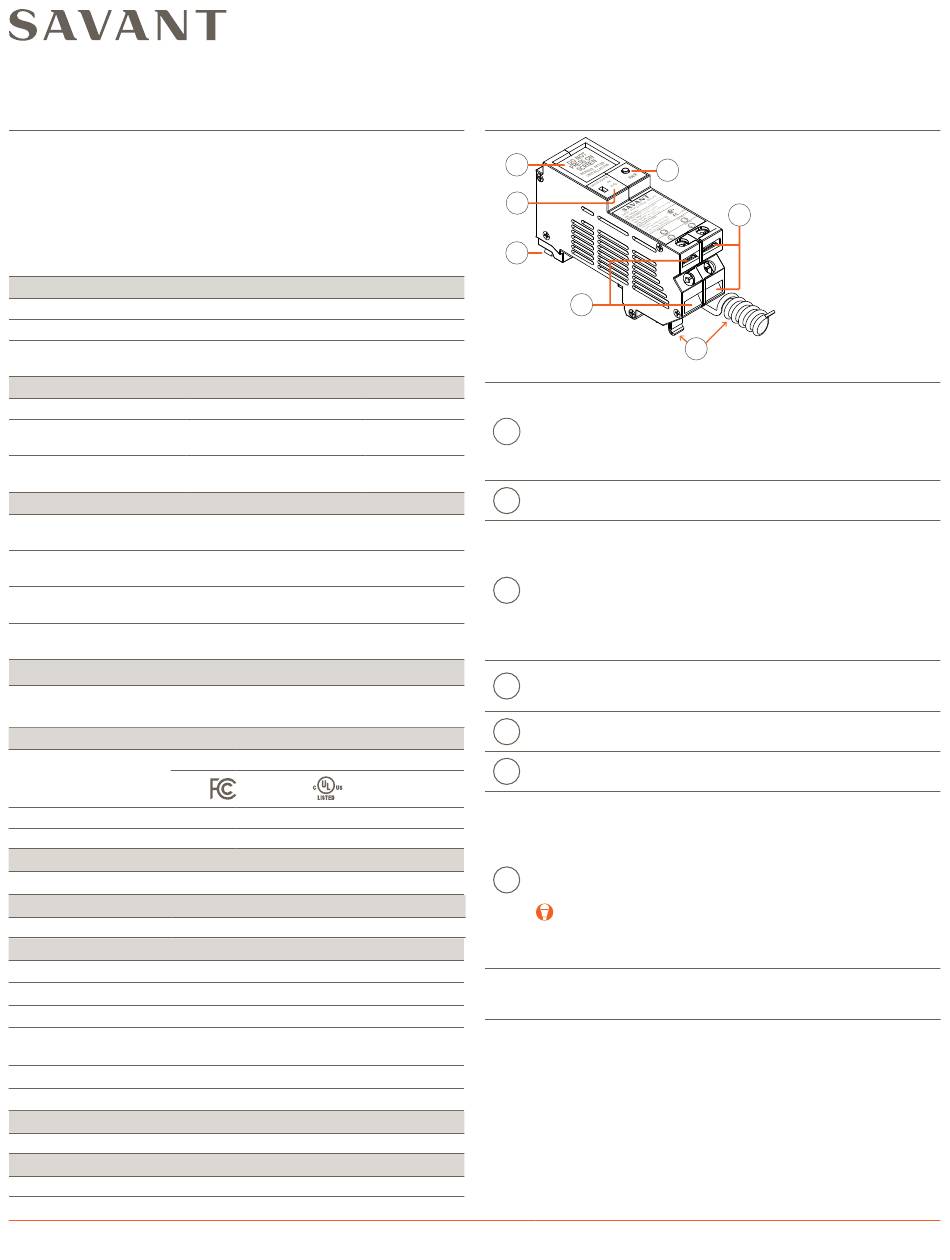

Savant GPM-CP1R30240-21 Quick Reference And Installation Manual

Single 30 amp power module

Advertisement

Quick Links

Single 30 Amp Power Module (2-Pole, 240V AC)
Quick Reference and Installation Guide
Box Contents
(1)
Single 30A
Power Module
GPM-CP1R30240-21 w/Plug-on Neutral
GPM-C1R30240-21 w/Pigtail Neutral
(1)
Product Information and Regulatory Insert (009-1950)
(1)
Quick Reference and Installation Guide (this document)
Specifications
Environmental
Temperature
-22° to +122° F (-30° to +50° C)
Humidity
Up to 90% Relative Humidity (non-condensing)
Indoor use unless installed in a NEMA 3R rated
Location
enclosure
Dimensions and Weights (net)
Length
4.96 inch
Module
(12.6 cm)
7.48 inch
Shipping
(19.0 cm)
Power
Input Power
120V AC (+/- 10%) @ 60 Hz, 0.1A (max)
(powers the module)
Input Power
240V AC @ max load power
(from feeder breaker)
7200VA max
Load Power
(240V AC 30A resistive load / 2HP max)
Features of Automatic
Type 1.B action
Action
Standards
Bluetooth Low Energy (BLE)
Wireless
Regulatory
FCC Part 15
Safety and Emissions
Contains FCC ID: PUU-QP1R30240
RoHS
Compliant
Recommended Load Center Types
Refer to the Features section to the right for compatibility info.
Supported Load Types
Standard Configuration
Relay On/Off type loads
Electrical and Safety Characteristics
Screw Tighten Torque
3.0 Nm
Wire Type
Copper (Cu) only
Pollution Degree
2
Operating Control, Smart Relay Control
Purpose of Control
Module or the equivalent
Software
Class A
Impulse Voltage
2500V
Construction of Control
Open Type
Independently mounted for flush mounting
Minimum Supported Release
Savant OS
da Vinci 10.1.1
Single 30 Amp Power Module - QRG | 009-2128-03
Copyright ©2024 Savant Systems, Inc | 070224
(240VAC, 2-Pole)
(Eaton CH)
Width
Height
Weight
1.46 inch
3.39 inch
.57 lbs
(3.7 cm)
(8.61 cm)
(.26 kg)
4.17 inch
1.69 inch
1.0 lbs.
(10.60 cm)
(4.29 cm)
(.45 kg)
2.4 GHz radio frequency
UL
Contains IC: 10798A-QP1R30240
(home automation)
(Supports Eaton CH Load Centers)
Descriptions
A
B
F
Multi-Page LCD screen that can display the following:
Power draw at the output.
A
Firmware, Mac Address, and Regulatory Info.
UID of the Host that the module is communicating with.
Real-time Bluetooth status connectivity icon.
Manual Load Switch - Toggle to the ON position to switch the
B
load on. Toggle to AUTO for normal operation.
PAIR Button - The PAIR button is a multi-use button. The
duration that the button is pressed and held determines the
function that gets initiated:
Press and Release - Cycles through the screens available on
C
the LCD (POWER > ENERGY > INFO 1 > INFO 2).
Press and hold - Press and hold for 2 seconds to put the
module into pairing mode. Press and hold for 5 seconds to
reset.
Input Power Connections - Connect the outputs from the two
D
feeder breakers to inputs L1 and L2 on the module. See the
Wiring
Output Power Connections - Connect a 240V AC load across
E
outputs L1 and L2. See the
ICES 003
120V AC Connection - Plugs onto the 120V AC bus bar in the
F
electrical panel. This connection powers the module.
Neutral - The Power Module's model number indicates the
type of neutral connection:
Plug-On Neutral - Positioned on the bottom of the module
is a neutral clip that plugs directly onto the neutral bar.
Pigtail Neutral - A neutral wire protrudes from the rear of
G
the module and is wired to the neutral bar.
TIP! Modules with an external neutral wire (pigtail) are
supported in Plug-On Neutral type electrical panels. In
these cases, the pigtail neutral wire must be connected
directly to the neutral bus bar.
Features
Control capability for loads up to 7200 VA (volt-ampere).
The GPM-CP1R30240-21 and GPM-C1R30240-21 power modules are
compatible with Eaton CH
Dynamic management of loads.
Built-in energy monitoring; +/- .5% revenue grade accuracy / 1 sec
sample time.
Communicates over the air using Bluetooth Low Energy (BLE).
The manual load switch on the front panel can toggle power to the
output On and Off.
Color LCD display for easy identification and load status.
1
of
4
C
E
D
G
section below.
Wiring
section below.
3/4
inch load centers.
45 Perseverance Way, Hyannis MA 02601
savant.com
| 508.683.2500
