Savant SKL-3040-00 Quick Reference Manual

Savant® 40 Keypad Power and Control Module [SKL-3040-00]
Quick Reference Guide
Box Contents
(1x) 40 Keypad Power and Control Module
(5x) 4-pin Screw Down Plug-in Connectors
(1x) Quick Reference Guide (this document)
Additional Required Items
• (1x) 3-Unit Power Module Enclosure (SHA-PEN3C/PWM-ENC3)
per every 3 SKL-3040-00 modules.
• Up to 40x Savant® Echo™ Low-Voltage Keypads per module.
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Dimensions and Weights
Height 12.35 (31.37 cm)
Width 3.43 in (8.71 cm)
Depth 2.25 in (5.72 cm) - including connectors
Net: 2.30 lbs (1.04 kg)
Weight
Shipping: 3.30 lbs (1.50 kg)
Power
Input 120-240V AC 50/60Hz (7.2 A)
Output Power 24V DC 2A per keypad bus
Maximum Wiring Distance (per keypad bus)
#14 AWG Max = 1000 ft (304.8 m)
Regulatory
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 9.0
Power Module to Keypad Wiring
-
+
+
A+ B-
—
+
A
-
B
For Further Product Information:
Scan QR code, or visit the URL below:
http://dealers.savantav.com/portal/redirector.php?id=1165
SKL-3040-00 Quick Reference Guide | 009-1796-00
190228 | Copyright 2019 Savant Systems, LLC
To keypad pin 1 (power)
To keypad pin 2 (ground)
To keypad pin 3
To keypad pin 4

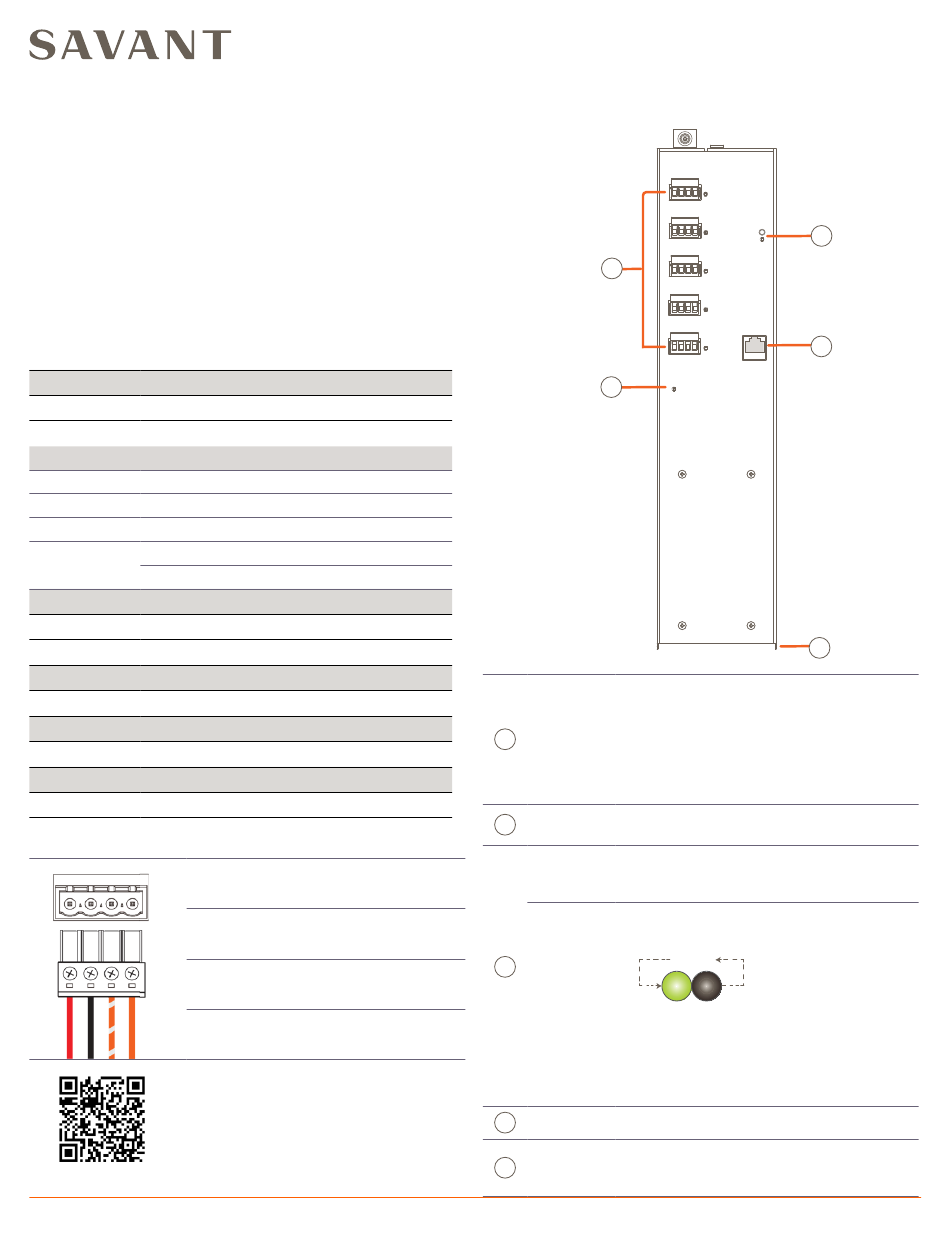

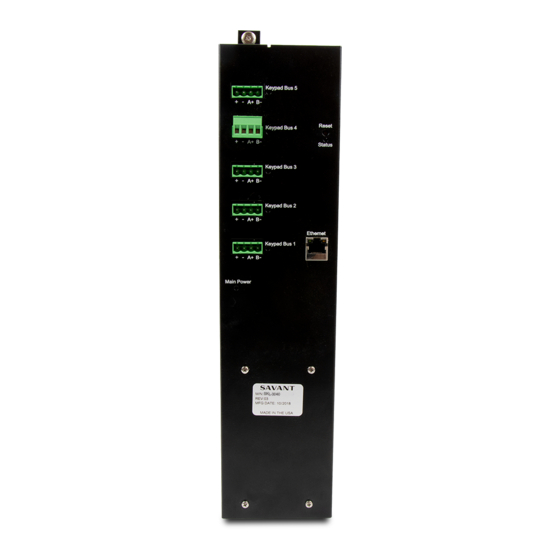

Front View
A
B
Keypad Bus (1-5) - The 40 Keypad Power and Control
Module supports up to 10 low-voltage keypads per bus,
wired in series/daisy-chained with a total of up to 40
keypads per module. (See
A
for more information).
Keypad Bus Status LED - Green: normal, Amber: Keypad
Address Discovery mode
Main Power LED - Green light indicates power is
B
connected, off indicates power has been removed.
Reset - Using a paperclip or similar, press to reset unit
and discover keypads, press and hold (5 seconds) to
default network settings.
Status LED • No Network Connection - .5 second
C
• No Host Connection - 2 rapid blinks.
• Host Connected - On (solid green).
• Firmware Upgrade in Progress - long
D
Ethernet - Connect to network via CAT5/5E/6.
When installing 40 Keypad Power and Control Module
E
into enclosure, use tabs to align. Refer to
Installation section for further details.
1 of 2
Keypad Bus 5
Reset
Keypad Bus 4
C
Status
Keypad Bus 3
Keypad Bus 2
Ethernet
D
Keypad Bus 1
Main Power
E
Keypad Wiring Notes
blink, 1.5 second off:
Repeat
0.5s 1.5s
blink with short off.
Keypad Module
45 Perseverance Way, Hyannis, MA 02601
Savant.com
section
| 508.683.2500
