Installation
and
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S8 and is the answer not in the manual?

Questions and answers

Related Manuals for Ultimaker S8

Summary of Contents for Ultimaker S8

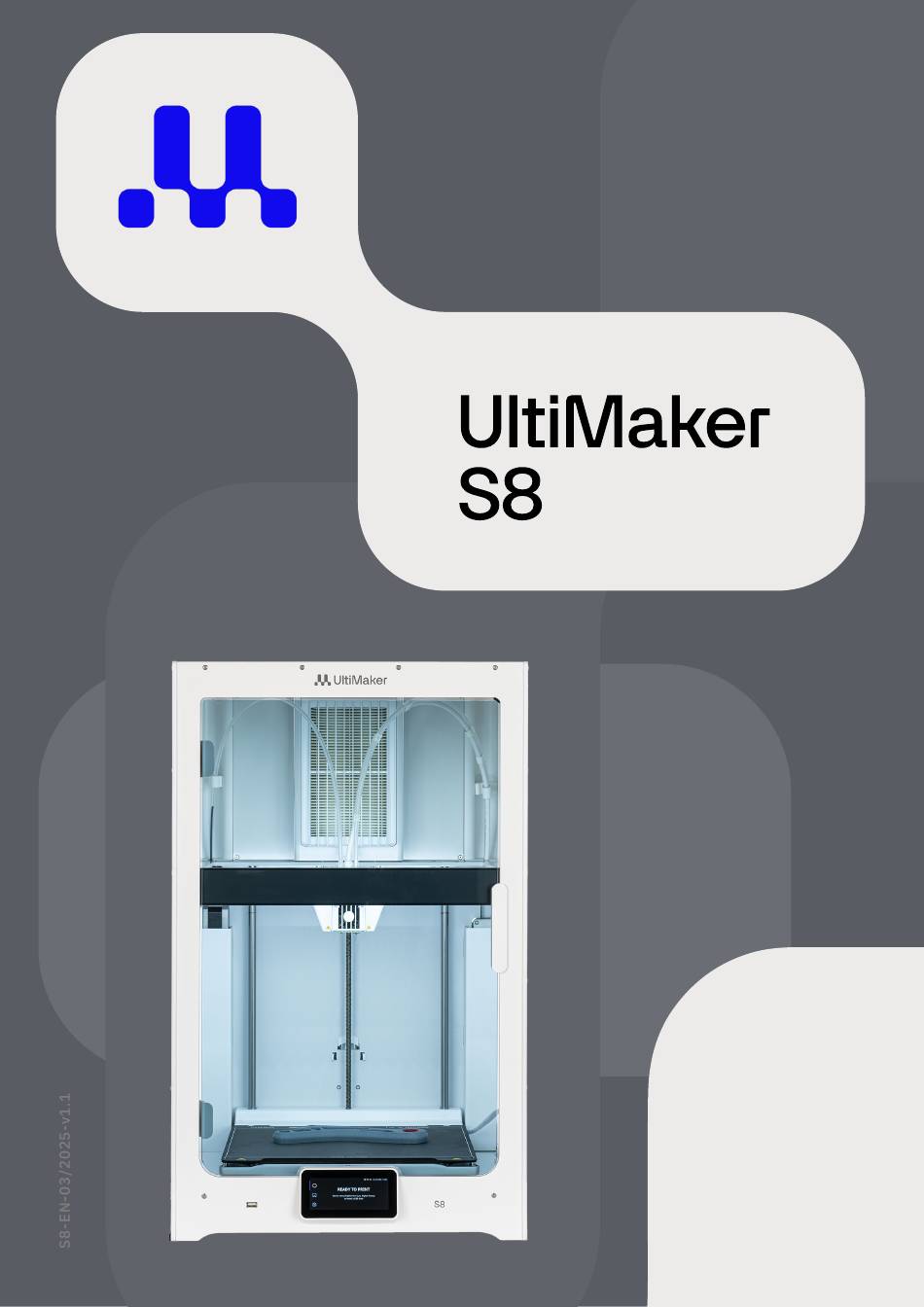

  • Page 1 Installation user manual...

  • Page 2: Intended Use

    Original instructions. Disclaimer This manual sets out the instructions on how to install and operate the UltiMaker S8. Please read and understand the contents of this installation and user manual carefully. Failure to read the manual may lead to personal injury, inferior print results, or damage to the UltiMaker printer or its accessories.

  • Page 3: Table Of Contents

    5.4 Flexible build plate maintenance 1.5 Regulatory information 5.5 Print core maintenance 2. Introduction 6. Troubleshooting 2.1 Product explanation 6.1 UltiMaker support 2.2 Main components 6.2 Error messages 2.3 Specifications 6.3 General recommendations 2.4 Software and accounts 6.4 Print core troubleshooting 6.5 Print quality issues...

  • Page 4: Safety And Compliance

    1. Safety and compliance Read the important notices in this chapter to ensure the safety of the UltiMaker S8 and its operators. Additionally, this chapter contains compliance and regulatory information. 1.1 Safety messages This document contains tips and notes: Tip: Additional information that is helpful to do a task or learn more.

  • Page 5: General Safety Notices

    • Do not change or adjust any parts of the product unless the change or adjustment is authorized by UltiMaker. • Do not store items inside UltiMaker products, except compatible material spools in the Material Station.

  • Page 6: Mechanical Safety

    (maintenance) processes. Risk of burns Hot surface hazard. There is a potential risk of burns: the print cores of UltiMaker 3D printers can reach temperatures above 200 °C, while the heated bed can reach temperatures above 100 °C. Do not touch hot parts with your bare hands.

  • Page 7: Personal Protective Equipment

    Tip: See the compliance label at the back of the printer for regional certification labeling or visit ultimaker.com/s-series-safety-compliance for additional compliance information. EU and UK EC Declaration of Conformity The UltiMaker S8 is compliant towards the essential requirements and other relevant provisions of: • Machinery Directive 2006/42/EC, • EMC Directive 2014/30/EU, •...
  • Page 8 This device operates in the ISM frequency band at 13.56 MHz and complies with the Radio Equipment Directive (RED) 2014/53/EU under ETSI EN 300 330. * Note: The UltiMaker S8 is not intended for outdoor use. FCC Supplier’s Declaration of Conformity This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 9 This product has RF Device modular certification for the following countries: • Japan • Korea • Taiwan This product has in-country homologation certification for the following countries: • Israel • Qatar • Saudi Arabia • • Mexico • Korea UltiMaker S8 Installation and user manual...

  • Page 10: Introduction

    S8 offers versatile capabilities for complex applications. The S8 delivers up to four times the productivity of its predecessor while enhancing print quality. This performance boost is achieved through a revolutionary new motion planner, high-flow cores, and an optimized feeder system.

  • Page 11: Specifications

    Feeder type Dual gripper feeder with tension adjustment, release functionality and filament feed-rate control Motion planner UltiMaker Cheetah, the world’s first and only jerk limited 3D printer motion planner, with third order continuous, smooth motion, and corner blending algorithm Filament diameter 2.85 mm...

  • Page 12: Software And Accounts

    UltiMaker website to learn more about the different subscription plans. Tip: Each UltiMaker S8 includes a 60-day trial license for Digital Factory Studio. See the leaflet in the accessory box for information and activation instructions. UltiMaker Cura UltiMaker Cura is free, easy-to-use 3D printing software trusted by millions of users.

  • Page 13: Set Up For First Use

    3.1 Location Before unboxing, choose a suitable location to install the UltiMaker S8. Take the following into consideration: • Install the product on a flat, level, and stable surface that is capable of carrying the printer’s weight (~ 35 kg / 77 lbs).

  • Page 14: Included Components

    Setup without Material Station Take the following steps to install the UltiMaker S8 without the Material Station. You will need the anti-slip feet, Air Manager filter, spool holder, and power cable. If necessary, move the printer to its final installation surface. Always lift and move the UltiMaker S8 with at least two people.

  • Page 15: Welcome Setup

    3.5 Welcome setup Turn on the printer using the power switch at the back. When you power on the UltiMaker S8 for the first time, you will first be asked to select your preferred language. After this, the welcome setup will appear on the display.

  • Page 16: Operation

    All UltiMaker materials have been extensively tested and have optimized profiles in UltiMaker Cura to ensure the best print results. Therefore, it is advised to use one of the default profiles in UltiMaker Cura for the highest reliability. Using UltiMaker materials will also allow you to benefit from the NFC detection system. UltiMaker spools will be automatically recognized by the material bays.

  • Page 17: Print Cores

    Material Station. 4.3 Print cores The UltiMaker S8 uses two print cores in the print head, which can easily be changed. There are different types of print cores. See which types are supported on the UltiMaker S8 in the overview below: Supported •...

  • Page 18: Preparing A Print

    After installing the software, complete the first-run experience. If you sign in to your UltiMaker Account, you can add any printers already connected to your Digital Factory workspace. If your UltiMaker S8 is not connected yet, set it up via the Digital Factory option on the printer.

  • Page 19: Printing Process

    Pre-print When a print job is selected, either remotely or via USB, the UltiMaker S8 will automatically prepare for printing. This can take several minutes and includes the following processes: Configuration check. The printer will check if the printer has the right configuration for the selected print •...

  • Page 20: Remove The Print

    4.6 Remove the print Once your 3D print is finished, it must be removed from the build plate. The UltiMaker S8 has a convenient flexible build plate, which makes removing prints quick and simple. 1. Wait for the build plate to cool down before opening the door. The display will indicate when it is safe to remove the build plate.

  • Page 21: Change Configuration

    4.8 Change configuration The UltiMaker S8 is compatible with several print core types and a wide variety of materials. Changing the configuration to print different applications is quick and simple, and no tools are necessary. Select the “Change”...
  • Page 22 Note: If the current print core and material configuration is not allowed (e.g. print core AA+ with PVA material), the printer will prompt you to also change the material. This only applies if the UltiMaker S8 is used without a Material Station.
  • Page 23 Note: You can only change or remove material spools that are not currently active. Active spools are indicated with a blue light on the Material Station. Changing materials in the UltiMaker Factor 4 is easy and intuitive. This is possible for pre-loaded materials during printing as well as in an idle state.

  • Page 24: Calibrations

    4.9 Calibrations The UltiMaker S8 is a high-speed dual-extrusion printer with a unique nozzle lifting system. For accurate dual- extrusion prints, the XY offset and the position of the switch bay must be calibrated. Additionally, this printer features an accurate active leveling system for optimal Z calibration. This section contains information about all calibration processes.
  • Page 25 The UltiMaker S8 does not require manual build plate calibration, as the build plate is fixed in place. To maintain an accurate distance between the nozzle and the flexible build plate across its entire surface, the UltiMaker S8 uses an active leveling process, automatically performed at the start of each print.

  • Page 26: Maintenance

    Note: Do not power off the printer during the firmware installation. Update using a USB stick If the UltiMaker S8 is not connected to a network, you can update to the latest firmware via USB. The firmware files are found on the UltiMaker website: 1.

  • Page 27: Preventive Maintenance Schedule

    The Air Manager filter should be replaced after 1500 hours. Directly place the used filter in a (resealable) bag and close it. Tip: For detailed instructions on how to perform each maintenance action, visit support.ultimaker.com or go to UltiMaker Digital Factory. UltiMaker S8 Installation and user manual...

  • Page 28: Flexible Build Plate Maintenance

    You will need UltiMaker cleaning filament (alternatively, you can use PLA), pliers, and wire cutters. In the Options menu, navigate to Maintenance → Print head → Print core cleaning to get started. Follow the instructions on the display.

  • Page 29: Troubleshooting

    6.2 Error messages When the UltiMaker S8 detects that something is wrong, or when it reads values outside of the allowed range, an error will occur. The display will give a short description of the detected issue along with its unique error code.

  • Page 30: Print Core Troubleshooting

    S8 for specific applications: BB for PVA (water-soluble support material) and DD for Ultrafuse® Support Layer material. Although the regular AA and CC cores can be used on the UltiMaker S8, there are no profiles to support this configuration in UltiMaker Cura.

  • Page 31: Print Quality Issues

    Check if the rubber anti-slip feet are installed (if the printer is used without a Material Station). Do not place the UltiMaker S8 in direct sunlight as this may cause sagging in overhangs and other quality issues.

  • Page 32: Limited Warranty

    7. Limited Warranty UltiMaker offers a limited warranty on new units of UltiMaker S series 3D printers and peripherals. Find all the terms and conditions here. 7.1 General This limited warranty (“Limited Warranty”) applies to UltiMaker S series 3D printers and S series compatible add- ons, the Air Manager and Material Station (“Product”), in the country where the Product was purchased.

  • Page 33: Exclusions

    INCIDENTAL, COLLATERAL, EXEMPLARY, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES, INCLUDING LOSS OF USE OR LOSS OF PROFITS, EVEN IF ULTIMAKER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH CLAIMS OR DAMAGES. ULTIMAKER’S LIABILITY IS LIMITED TO THE PURCHASE VALUE OF THE PRODUCT.

  • Page 34: Contact And Links

    Visit our knowledgebase for information about all UltiMaker products. You can also contact our support team by submitting a case. Resellers ultimaker.com/resellers Find a reseller near you to buy an UltiMaker product or receive support in your language. Compliance and regulatory information ultimaker.com/compliance Find and download important compliance information about UltiMaker hardware, software, and materials.
