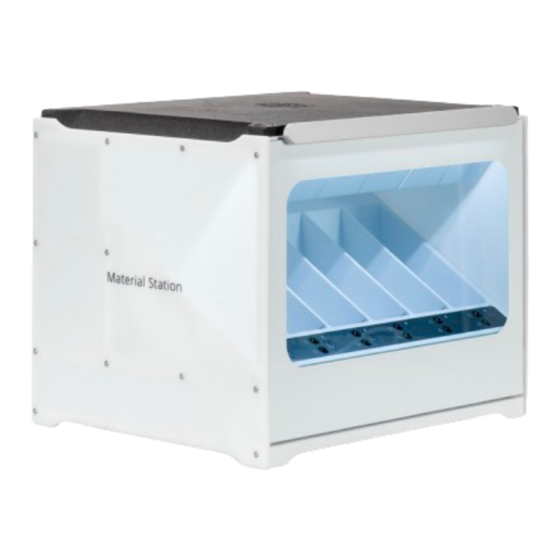

Ultimaker S5 Material Station
Repair manual: Rewinder
Required
Tools
• ESD prevention supplies
• Torque screwdriver (adjustable)
• 0.5 Nm
• 0.8 Nm
• 2.0 mm hex bit
• 2.0 mm hex screwdriver
Parts
• 1x 211493 - Rewinder assembly
Time
• 30 minutes
Notes
Caution:
Make sure the Ultimaker S5 Material Station is
turned off and the power cable is disconnected before you
start the replacement.
Safety note:
The Material Station has a built-in power supply.
Disconnect the power cable before starting this repair. Never
connect the power cable when the bottom cover is removed.
Caution:
This repair involves working with or exposing
sensitive electronic components. Take ESD precautions before
starting this procedure.
Tip:
All orientations are as seen from the front in the upright
orientation, unless specified otherwise.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ultimaker S5
Summary of Contents for Ultimaker S5
- Page 1 Ultimaker S5 Material Station Repair manual: Rewinder Required Notes Tools Caution: Make sure the Ultimaker S5 Material Station is • ESD prevention supplies turned off and the power cable is disconnected before you • Torque screwdriver (adjustable) start the replacement. • 0.5 Nm •...
- Page 2 5. Pull the pin out of the right side panel 6. Pull the tabs out of the back panel Rep eat steps 4. and 5. for the left panel Place the bottom cover aside Ultimaker S5 Material Station Repair manual: Rewinder...
- Page 3 Tip: Move the three cables through the ferrite core. Tip: Start on the right side and loosen the clips one by one. Gently pull the main PCB upwards above each prefeeder. Ultimaker S5 Material Station Repair manual: Rewinder...
- Page 4 This is necessary to reach the parts in the middle of the Material Tip: The photo shows a different scenario. The bolts should be Station. For easier access, the right panel could also be removed. reachable if the merger is still in place. Ultimaker S5 Material Station Repair manual: Rewinder...
- Page 5 The photo shows a different scenario. The bolts should be reachable if the merger is still in place. 21. Move the rewinder away from the bottom panel 22. Feed the connectors of the three cables through the holes in the bottom plate Ultimaker S5 Material Station Repair manual: Rewinder...
- Page 6 Tip: If this is difficult, the NFC fins for bays B - F can also be removed from the interior assembly, and placed back one by one. Ultimaker S5 Material Station Repair manual: Rewinder...
- Page 7 Gently pull the cable to check if it is properly secured. Caution: Ensure that the NFC antennas do not get stuck underneath the main PCB. Keep the antennas and loose wires out of the way. Ultimaker S5 Material Station Repair manual: Rewinder...
- Page 8 11. Secure the panel with M3x16 and back onto its top panel M3x10.5 bolts as indicated Tip: The image shows the current orientation of the Material Station. Tools: Torque screwdriver with hex 2.0 mm bit, 0.8 Nm Ultimaker S5 Material Station Repair manual: Rewinder...
- Page 9 17. Align the tabs at the back of the bottom cover 18. Push the side panels outwards to fit the cover’s with the slots in the back panel pins into the panels Tip: Push (or pull) the panel just behind the bottom cover. Ultimaker S5 Material Station Repair manual: Rewinder...
- Page 10 19. Push the front of the cover so the three 20. Secure the bottom cover with two tabs snap into place M3x16 flat head bolts Tools: Torque screwdriver with hex 2.0 mm bit, 0.5 Nm Finished! Place the Material Station upright again Ultimaker S5 Material Station Repair manual: Rewinder...
