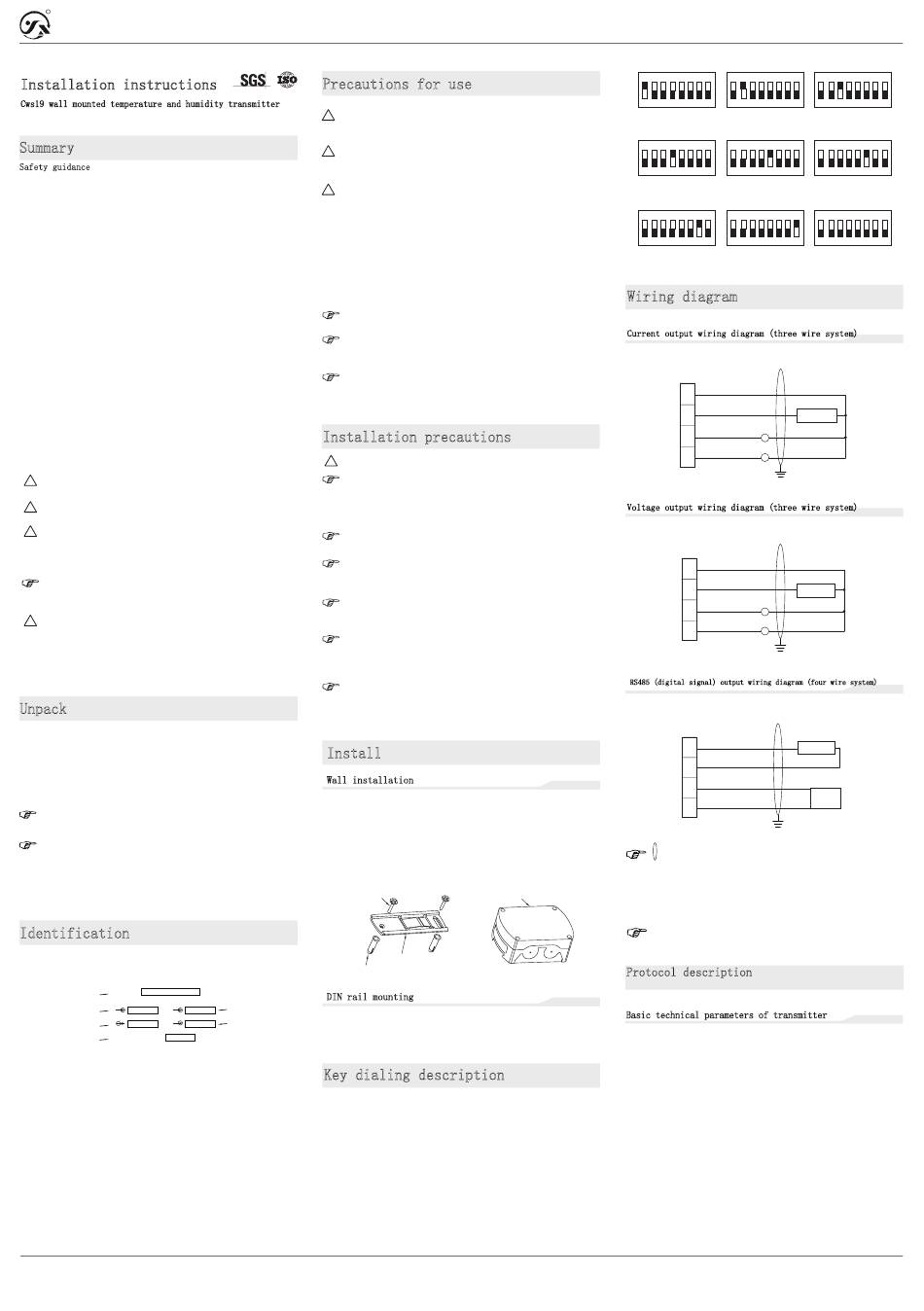

Installation instructions
Cws19 wall mounted temperature and humidity transmitter
Summary
Safety guidance
These installation instructions contain important information on how to
use the transmitter correctly. The transmitter installer shall
carefully read the installation instructions before operating the
transmitter. In case of further understanding or special problems,
which are not described in detail in this operation manual, please
contact our company to obtain necessary information.
Please pay attention to the warning signs on the instructions!
Operators must strictly follow the safety instructions in the
installation instructions. In addition, occupational safety rules,
accident prevention guidelines, national installation standards and
engineering specifications must be observed.
Please keep this instruction properly and store it in a convenient
place near the transmitter.
The copyright of these installation instructions is protected. The
installation instructions of this version are written according to the
functions that can be realized by the corresponding product during
printing, and describe the product functions and operation steps as
detailed and complete as possible. If you find mistakes, you are
welcome to criticize and correct them. The company is not responsible
for the possible wrong description and possible consequences.
– reserve the right to modify the technical parameters –
Icon description
！
Danger! – A dangerous situation that could result in death or
serious injury.
！ Warning! – A potentially hazardous situation that could result in
death or serious injury.
！ Be careful! – A potentially hazardous situation that may result
in minor injury.
！ Reminder! – A potentially hazardous situation that may cause
personal injury.
Tips! – Tips and information to ensure trouble free operation of
the equipment.
User
Warning! These installation instructions are for technicians.
！
Limitation of liability
If the transmitter is damaged due to non-compliance with the operation
and installation instructions, improper use, self modification and
destruction, the company will not be liable for compensation and will
not provide warranty service.
Unpack
a) After unpacking, check whether the documents and accessor ies are
complete according to the packing list.
Packing documents: one copy of operation manual.
One product certificate.
A warranty card.
Packing accessories include:
Two self tapping screws and two plastic expansion pipes respectively.
b) When receiving the product, please check whether the package
is intact, and check whether the transmitter model and specification
are consistent with the product you choose.
c) Observe whether the transmitter is damaged due to
transportation for proper treatment.
d) The user is expected to keep the "warranty card" properly and do
not lose it, otherwise it cannot be returned to the factory for
free maintenance!
Identification
model：
model
Temperature range
output
Protection level：
Degree of protection
本文档中列出的规格数据仅代表本文档出版时产品的工程状态，我们保留修改产品规格和材料的权利。
追求品质/贴心服务/终身维护
24小时服务热线：400-600-4496
Precautions for use
Warning!
！
The transmitter must be installed by professional technicians who read
and understand this operation manual.
！ Warning!
Do not measure media with incompatible materials in contact with the
transmitter.
DANGER!
！
This product is a non explosion-proof product. It is strictly
prohibited to use it in the explosion-proof area, otherwise it will
cause serious personal injury and material loss.
! No modifications or changes can be made on the equipment.
! Handle the transmitter with care and do not throw it at will. Do
not use brute force when installing the transmitter.
! This product belongs to weak current equipment, which must be laid
separately from strong current cables, and shall be wired in
accordance with relevant national wiring standards (GB / t50312-2016).
Ensure that the power supply voltage meets the power supply
requirements of the transmitter.
Prevent chemical reagent, oil and dust from directly invading the
sensor, and do not use it in the environment of condensation and
extreme temperature. Do not perform cold or heat shock.
The protective cover can be removed after 2 ~ 3 months of use,
and the filter screen can be cleaned to make the measurement
environment circulate normally.
Installation precautions
！ Warning!
The equipment must be installed without power supply.
If the transmitter is installed in a harsh site and will
encounter dangerous damage such as lightning stroke or overvoltage, we
recommend that the user carry out lightning stroke and overvoltage
protection between the distribution box or power supply and the
transmitter.
The installation height is the sitting height of the human body
or the environmental area mainly required to be measured.
The transmitter shall be placed vertically as far as possible.
During installation, ensure that the sensor is under the transmitter
(the font on the transmitter is positive).
It shall be installed in an area with stable environment, avoid
direct lighting, stay away from windows, air conditioning, heating and
other equipment, and avoid directly facing windows and doors.
The transmitter and conductor shall be far away from places with
high voltage and serious electromagnetic interference, and away from
high-power interference equipment as far as possible to avoid
inaccurate measurement, such as frequency converter, motor, etc.
Confirm whether the power supply voltage is correct, and the
positive and negative of the power supply correspond to the positive
and negative wiring of the product; Avoid installing in the position
easy to bump, so as not to damage the product.
Install
Wall installation
The back of the transmitter is equipped with a guide rail mounting
plate. Remove the mounting plate first. The accessories are equipped
with two wallboard self tapping screws and two plastic expansion
pipes. First punch two holes with diameter of 6mm and depth of ≥ 30mm
on the wall (please refer to the dimension drawing of guide rail
mounting plate for hole position). Insert the expansion pipe, fix the
guide rail mounting plate on the wall with self tapping screws, and
then slide in the transmitter.
Self tapping screw
Guide rail mounting plate
Plastic expansion pipe
DIN rail mounting
Humidity range
The back of the transmitter is equipped with a guide rail mounting
power supply
plate. Remove the mounting plate first. The transmitter can slide
directly into the DIN rail.
Key dialing description
The digital output temperature range is - 40 ~ 125 ℃, and the
corresponding output data is 0-1650. The temperature ranges of current
output and voltage output can be changed by dialing the key on the
dial switch on the internal circuit board. There are eight ranges to
choose from (as shown in the figure below). The factory default
temperature range is - 40 ~ 100 ℃.
Transmitter
第1/2页
NO DIP NO DIP
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
0～50℃ 0～100℃
NO DIP NO DIP
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
-40～60℃
-20～80℃
NO DIP NO DIP
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
-40～100℃ -40～125℃
Wiring diagram
Current output wiring diagram (three wire system)
Blue line (V -)
G
Red line (V +) +
V24
Power supply (VDC)
White line (temperature)
TO
A
Yellow line (humidity)
A
HO
Voltage output wiring diagram (three wire system)
Blue line (V -)
G
Red line (V +) +
V24
White line (temperature) Power supply (VDC)
TO
V
Yellow line (humidity)
HO V
RS485 (digital signal) output wiring diagram (four wire system)
Power supply (VDC)
Blue line (V -) -
G
Red line (V +)
V24
Yellow line (A)
A
White line (B)
B
Represents shielded wire, and all marked grounding points must
be effectively grounded. It is recommended to select shielded twisted
pair signal cable for the best effect. In order to avoid grounding loop,
the shielding layer adopts single end grounding, insulated floating
grounding at the transmitter end and grounding at the control cabinet end.
It is recommended to select cables with an outer diameter of
4 ~ 6mm to ensure the protection grade.
Protocol description
(limited to RS485 signal output,
the address is 01 by default, and the data is hexadecimal)
Basic technical parameters of transmitter
This protocol complies with Modbus communication protocol and adopts
the centralized RTU mode in Modbus protocol. RS485 half duplex working
mode
a) Output signal: RS485 (distance up to 1000m). 32 channels in total)
b) Standard: Modbus RTU protocol (03 function reads data, 06 function
writes setting data)
c) Data format: 9600, N, 8,1 (9600bps, no verification, 8 data bits,
1 position (parking position)
d) Output data: temperature 0-1650 (- 40 ~ 125 ℃)
humidity 0-1000 (0 ~ 100% RH)
e) Response frequency: ≤ 2Hz
执行标准SJ 20833-2002
www.star-sensor.com
星仪传感器
Star Meter
NO DIP
1 2 3 4 5 6 7 8
-20～60℃
NO DIP
1 2 3 4 5 6 7 8
-40～80℃
NO DIP
1 2 3 4 5 6 7 8
Customization
requirements
-
U
-
U
+
U
Acquisition equipment
PC
