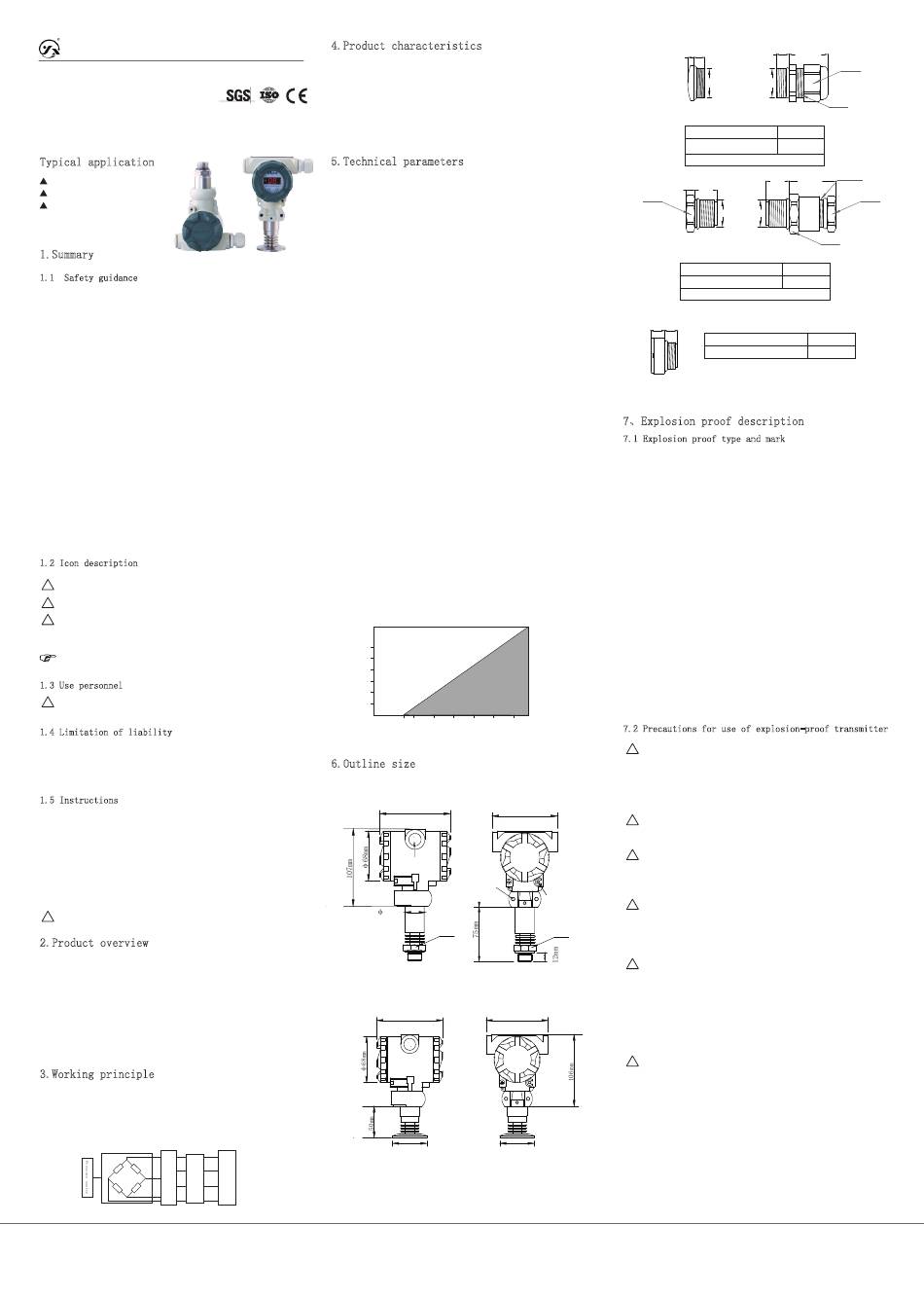

Star Meter CYYZ68 Instruction Manual

An instruction manual
CYYZ68 explosion proof
sanitary pressure transmitter
Typical application
medical technology
Pharmaceutical industry
Food and beverage industry
1.Summary
1.1 Safety guidance
This operation manual contains important information on how to use
the transmitter correctly. The transmitter installation personnel
shall carefully read this operation manual before operating the
transmitter. In case of deeper understanding or special problems, and
the parts not detailed in this operation manual, please contact our
company for necessary information.
Please pay attention to the warning signs on the manual! Do not
crystallize or solidify the measured medium, otherwise the sensor
will be damaged!
The operator must operate in strict accordance with the safety
instructions and instructions in the operation manual. In addition,
occupational safety rules, accident prevention rules, national
installation standards and engineering specifications shall be
observed.
Please take good care of this manual and store it near the
transmitter for easy access.
The copyright of this operation manual is protected. This version of
the operation manual is written according to the functions that can
be realized by the corresponding products when printing, and
describes the product functions and operation steps as detailed and
complete as possible. If you find any mistakes, please correct them.
The company shall not be liable for the possible wrong description
and possible consequences.
– retain the right to modify the technical parameters –
1.2 Icon description
！ Danger! - a hazardous situation that could result in death or
serious injury.
！ Warning! – a potentially hazardous situation that could result
in death or serious injury.
！
Caution! – potentially hazardous situation that could result in
minor injury.
！ Warning! – potentially hazardous situations that could result
in personal injury.
Tips! – tips and information to ensure trouble free operation
of the device.
1.3 Use personnel
！
Warning! This manual is applicable to technicians.
1.4 Limitation of liability
If the transmitter is damaged due to non-compliance with the
operation manual, improper use, self modification and destruction,
the company will not be liable for compensation and will not provide
warranty services.
1.5 Instructions
Cyyz68 series pressure transmitter is suitable for pressure
measurement of liquid or gas and process industry. It is the
responsibility of the operator to verify that the equipment is
suitable for the operating conditions of the application. If you have
any questions, please contact our sales department to ensure the
correct application of the transmitter. The company will not take any
responsibility for the impact caused by improper selection.
The order model is suitable for measuring the gas or liquid medium
described in the sample. The user shall ensure that the tested medium
is compatible with the contact material of the transmitter.
Warning!
！
Improper use can cause danger!
2.Product overview
Cyyz68 series pressure transmitter adopts OEM pressure sensor with
stainless steel isolation diaphragm as signal measuring element.
After automatic test by computer, zero point and sensitivity
temperature compensation of wide temperature range are carried out by
laser resistance adjusting technology. The amplification circuit
transforms the sensor signal into the standard output signal, giving
full play to the technical advantages of the sensor, so that cyyz68
series pressure transmitter has excellent performance. It is easy to
clean, anti-interference, small temperature drift, high stability,
with high measurement accuracy, and is an ideal pressure measuring
instrument in pharmaceutical, food and other industries.
3.Working principle
The pressure sensor diffuses a Wheatstone bridge on the
monocrystalline silicon chip, the measured medium pressure changes
the resistance value of the bridge wall (piezoresistance effect), and
generates a differential voltage signal, which is transformed into a
standard analog signal (as shown in Figure 3-1) or a digital signal
by a special amplifier.
Or
digital
signal
processing signal
circuit
sensor
Output
analog
quantity
Figure 3-1
STAR METER
24-hour service hotline：400-600-4496
星仪传感器 4.Product characteristics
STAR METER
a) diaphragm isolation technology
b) integrated chip, wide voltage power supply
c) easy to clean, easy to install, intrinsically safe and
explosion-proof
d) frequency interception design, strong anti-interference ability
and lightning protection
e) current limiting, voltage limiting, reverse connection
protection (current limiting output)
f) high precision, good stability and fast response
5.Technical parameters
Measuring medium: liquid or gas (compatible with contact material)
Overall material: 316L stainless steel diaphragm (contact)
Process connection 316L stainless steel (contact)
Shell die cast aluminum
Pressure range: 0 ～ 10KPA ～ 10MPa (see range selection table for
details)
Pressure mode: gauge pressure
Output signal: 4-20mA, RS485 (standard Modbus RTU protocol),
(0.5-2.5vdc, 0-10vdc, 0-5vdc, 1-5vdc customized)
Power supply voltage: 12-36vdc conventional
24VDC intrinsically safe / dust intrinsically safe
15-36vdc conventional (with display or output of 0-10vdc)
3-5vdc customization (output is 0.5-2.5vdc / RS485)
Accuracy class: 0.1% FS (customized range ≥ 100KPA)
0.25% FS (default range ≥ 100KPA)
0.5% FS (10KPA ≤ range < 100KPA default)
Meter display accuracy 0.5% FS, digital tube (LED) display
Working conditions: medium temperature - 40 ～ 130 ℃
Ambient humidity 0% - 95% RH (no condensation and condensation)
Ambient temperature - 40-85 ℃ (explosion-proof environment - 20-40
℃)
Temperature compensation: - 10 ～ 70 ℃
Explosion proof type: Flameproof ex D Ⅱ C T6 GB
Intrinsically safe ex IA Ⅱ C T6 GA (current output only)
Dust intrinsic safety ex IAD 20 T80 ℃ (current output only)
Note: intrinsic safety must be powered by safety barrier or intrinsic
safety power supply
Seismic performance: 10g (20... 2000Hz)
Overload capacity: 200% of full scale
Response frequency: analog signal output ≤ 500Hz, digital signal
output ≤ 5Hz
Stable performance: ± 0.1% FS / year
Temperature drift: ± 0.01% FS / ℃ (within the temperature
compensation range)
Overall weight: ≈ 880g
Protection grade: Standard IP65
Intrinsically safe IP65
Dust intrinsic safety IP66
Note: the above protection level refers to the level reached after
the electrical connection is complete.
Power range: current type ≤ 0.02us (W)
Digital type ≤ 0.015us (W)
Voltage type ≤ 0.008us (W)
Voltage type (output 0.5-2.5) ≤ 0.001us (W)
Note: US = supply voltage
Load characteristics: current type load ≤ {(us-7.5) ÷ 0.02 (US =
supply voltage)} Ω
Voltage type load ≥ 100k Ω
Loading resisitance
RL（Ω）
1200
1000
800
600
400
200
6.Outline size
No display 95mm
display 105mm
29mm
No display 95mm
display 105mm
Customer
collection
equipment
（4～20）mA DC
Working zone
Us（VDC）
7 . 5 Working volt
10 15 20 25 30 36
Figure5-1
90mm
Electrical interface
M20*1.5
M6*1
Grounding point*2
S=27
S=27
Fig. 6-1 screw connection dimension
90mm
50.5mm 50.5mm
Fig. 6-2 clamp connection dimension
1
8mm
9mm 21～26mm
4mm
M20*1.5 M20*1.5
Plug Lock connector
P-type outgoing
Texture of material
line protection converter
Applicable standard type
nylon
and intrinsic safety type
Note: lock wire diameter 5-9mm
17mm
6mm 17mm
S=24
M20*1.5 M20*1.5
Plug Lock connector
G-type outgoing line
Texture of material
protection converter
Applicable to explosion-proof type
and dust intrinsically safe type 304 stainless steel
Note: lock wire diameter 5-6mm
10mm 10mm
Breathable plug
Default range ≤ 2.5MPa (Note 1)
Note 1: when the measuring range is ≤ 2.5MPa,
Plug p-type and G-type plug are replaced by default.
(except for flameproof type)
7、Explosion proof description
7.1 Explosion proof type and mark
The transmitter is divided into explosion-proof type, intrinsically
safe type and dust explosion-proof intrinsically safe type.
(1) explosion proof type: in accordance with gb3836.1-2010 and
gb3836.2-2010
Explosion proof sign: ex D Ⅱ C T6 GB
Explosion proof Certificate No.: ce19.1390
(2) intrinsic safety type: in accordance with gb3836.1-2010 and
gb3836.4-2010
Explosion proof sign: ex IA Ⅱ C T6 GA
Intrinsic safety parameter: UI = 28vdc
Parameters of associated equipment: uo ≤ UI IO ≤ II Po ≤ PI co = CC
+ CI Lo = LC + Li
Uo, IO, Po, CO and lo are safety barrier parameters, and CC and LC are
distribution parameters of connecting cables.
Explosion proof Certificate No.: ce16.2281x
(3) dust intrinsic safety type: in accordance with the standards
gb3836.1-2010, gb3836.4-2010, gb12376.1-2013 and gb12476.4-2010
Explosion proof sign: ex IA Ⅱ C T6 GA, ex IAD 20 T80 ℃
Intrinsic safety parameter: UI = 28vdc II = 93madc pi = 0.65w CI =
0.03uf Li = 0mh
Parameters of associated equipment: uo ≤ UI IO ≤ II Po ≤ PI co = CC
+ CI Lo = LC + Li
Uo, IO, Po, CO and lo are safety barrier parameters, and CC and LC are
distribution parameters of connecting cables.
Explosion proof Certificate No.: CLEx22.3302
7.2 Precautions for use of explosion-proof transmitter
Warning!
！
A) the transmitter shall be installed in strict accordance with the
relevant provisions of gb3836.15-2017 electrical equipment for
explosive gas atmospheres Part 15: electrical installation in
hazardous areas (excluding coal mines).
！ DANGER!
B) the transmitter housing must be effectively grounded.
！
DANGER!
C) the shell of the product is made of aluminum alloy, so the ignition
hazard caused by impact or friction must be prevented!
！
Warning!
D) if the internal parts of explosion-proof transmitter are damaged
and need to be repaired or replaced, they shall be returned to the
factory for replacement or repair.
！
Warning!
E) when flameproof and dust intrinsically safe transmitters are used
in hazardous areas, the transmitter cover must be tightened. In order
to ensure the use safety, the safety regulations shall be strictly
followed. It is absolutely not allowed to open the transmitter cover
when power is on. When installing the transmitter, ensure that the
outlet of the cable is well sealed.
！
DANGER!
F) intrinsically safe transmitters must be equipped with safety
barriers in order to be used in hazardous areas with explosive
mixtures. The safety barrier shall comply with gb3836.4-2010
electrical equipment for explosive gas environment Part 4 intrinsic
safety type "I", and shall be subject to explosion-proof test by
relevant explosion-proof department and obtain explosion-proof
certificate. The installation shall be carried out according to the
requirements of the operation manual. The system wiring is shown in
Figure 7-1.
Executive standard JB∕T 10726-2007
www.star-sensor.com
S=24
M20*1.5
M20*1.5
30～33mm
S=24
S=27
Texture of material
6061 aluminum
