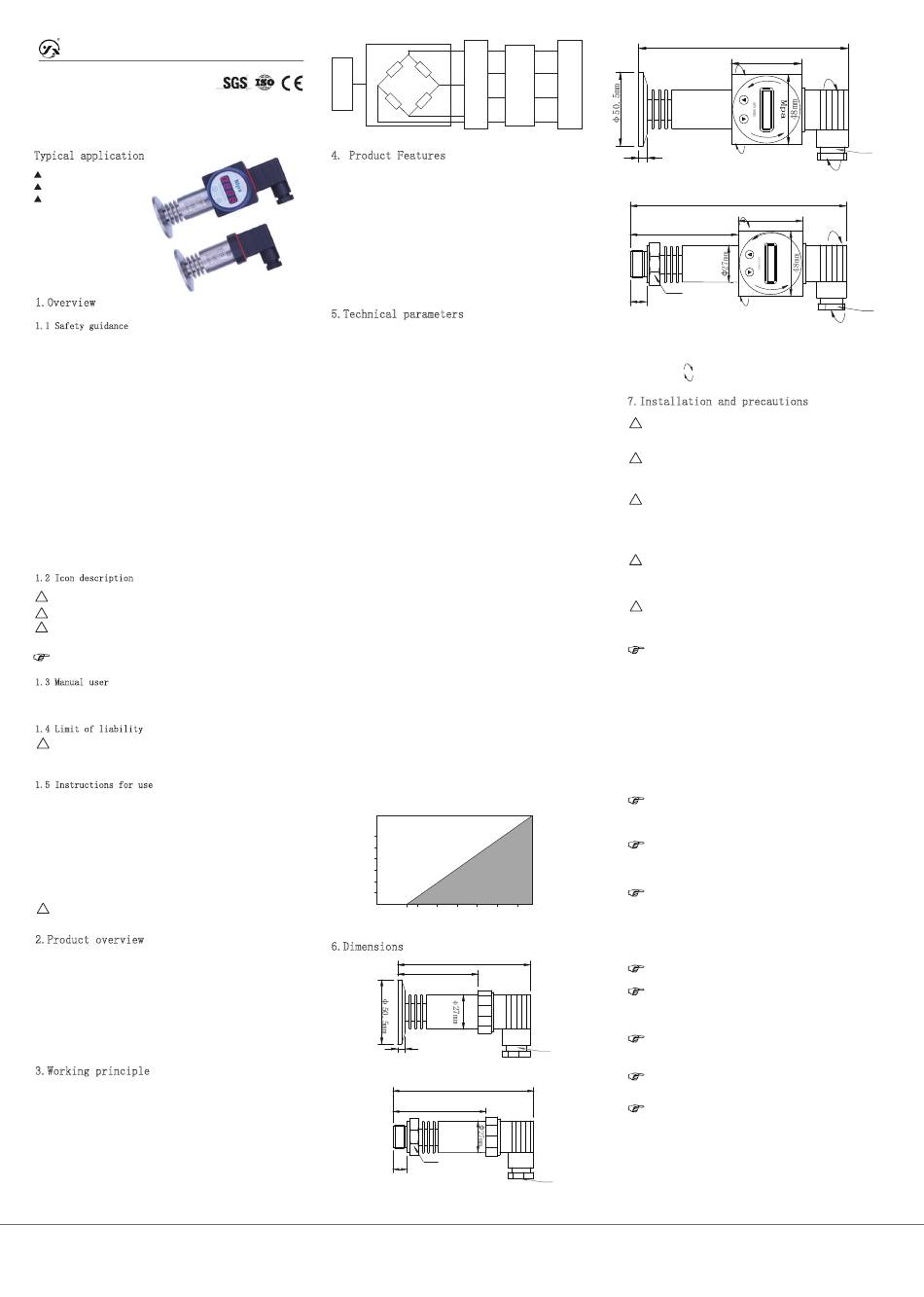

Star Meter CYYZ61 Instruction Manual

An instruction manual
CYYZ61 Hygienic pressure transmitter
Typical application
medical technology
Pharmaceutical industry
Food and beverage industry

1.Overview

1.1 Safety guidance
This operational manual contains important information on how to use the
transmitter correctly. The installation personnel of the transmitter should
read this manual carefully before operation. In case of further explanation
or special questions, which cannot be addressed in this manual, please
contact our company for assistance on necessary information.
Please pay attention to the warning signs on the manual! Do not use
crystallized or solidified measure medium, to avoid damaging of the sensor.
The operator must strictly follow the safety instructions and user's
manual during operation. Furthermore, the operator should comply with the
occupational safety rules, the accident prevention guidelines, the national
standards and engineering specifications as well.
Please keep this manual in a safe place near the transmitter for easy
access.
The copyright of this operational manual is protected. This version of
operational manual was edited according to the functions of corresponding
products, the product functions and operation procedures are described as
complete as possible. If there is any error, please don't hesitate to
contact us. The company is not responsible, in regard of any fault
description or its possible consequences.
–The right to modify the technical parameters is retained–
1.2 Icon description
！ Danger! - Hazard that may result in death or serious injury.
！
Warning!- Potential hazard that may result in death orserious injury.
！ Cautious!-Potential hazard that may cause minor injury.
Reminder!-Potential hazard that may result in personal injury.
！
Tips!-Tips and information for smooth operation of the equipment.
1.3 Manual user
Warning! This manual is suitable for technicians.
1.4 Limit of liability
！
The company will not be held responsible nor provide any warranty
service, in case of transmitter damages caused by failure to follow the
instruction manual, inappropriate use, self-modification or destruction.
1.5 Instructions for use
CThe pressure transmitter CYZ61 series is suitable for pressure
measurement in liquid or gas and process industries. Operators are
responsible for checking whether the equipment is suitable for operating
conditions. If you have any questions, please contact our sales department
to ensure the correct application of the transmitter. The Company shall not
bear any responsibility for the influence caused by improper selection.
The purchased model is suitable for certain gas or liquid medium as
described in the measurement samples. The user must ensure the
compatibility of contact media and transmitter.
！
Warning!
Inappropriate use may lead to danger!

2.Product overview

CYYZ61 series pressure transmitters adopt OEM pressure sensor with
stainless steel diaphragm as signal measuring element. After automatic
testing by computer, temperature compensation of zero point and sensitivity
in wide temperature range is carried out by laser resistance adjustment
technology. The amplification circuit is located in the stainless steel
case, which converts the sensor signal into standard output signal, giving
full play to the technical advantages of the sensor, so that the CYZ61
series pressure transmitter has excellent performance. It is easy to clean,
anti-interference, small temperature drift, high stability, and has high
measurement accuracy. It is an ideal pressure measuring instrument in
pharmaceutical, food and other industries.

3.Working principle

The pressure sensors diffuses a wheatstone electric bridge on
mono-crystalline silicon, and stressed by the measuring media (liquid or
gas)to cause change of the bridge wall resistance value(piezoresistive
effect). In result, a differential voltage signal will be generated, which
converts the signal corresponding to the range into standard analog
signal(as shown in Figure 3-1)or digital signal.
STAR METER
24-hour service hotline：400-600-4496
星仪传感器
STAR METER
Pressure
source
Sensor
4. Product Features
a) Using diaphragm isolation technology
b) Integrated chip, wide range of supplied voltage
c) Easy to clean up,Compact structure, easy installation
d) Frequency cutoff design, strong anti-interference ability,
lightning protection
e) Current limiting, voltage limiting, reverse connection
protection(limiting current output)
f) High accuracy, good stability, fast response
5.Technical parameters
Measuring media : Liquid or gas(compatible with contact media)
Overall material: Diaphragm 316L stainless(contacted)
Process connection 316L stainless(contacted)
Casing
Display case ABS engineering plastic(digital tube display)
Hessman connector ABS engineering plastic
Pressure range: 0～10kPa～4MPa (read the range selection form
for details)
P r e s s u r e m o d e : Gauge pressure
O u t p u t s i g n a l : 4～20mA、RS485 (Standard Modbus-RTU protocol),
（0～10VDC、0～5VDC、1～5VDC、0.5～2.5VDC customized）
Supply voltage: 12～36VDC Normal
15～36VDC Normal(with display or output 0～10VDC）
3～5VDC Customized (Output 0.5～2.5VDC/RS485）
A c c u ra c y c l a s s: 0.1%FS （range≥100kPa customized）
0.25%FS（range≥100kPa customized）
0.5%FS （10kPa≤range＜100kPa default）
Device display accuracy class of 0.5, shown by (LED) digital tube
Working conditions: contact media temperature -40～130℃
Ambient temperature-40～85℃
Ambient humidity 0%～95%RH （ no condensation,no condensing ）
: -10-70 ℃ (accuracy of 0.25% FS, 0.5% FS, 1% FS)
Temperature compensation
-40-80 ℃ (accuracy of 0.1% FS)
: 10g(20...2000Hz)
Seismic performance
Overload capacity: 200% full scale or 120MPa（minimum value）
Response frequency: analog signal output≤500Hz, digital signal output ≤5Hz
: ±0.1% FS/year
Stability
Temperature drift: ±0.01%FS/℃ （within the temperature compensate range）
Overall weight : no display ≈190g
Protection lever : IP65（no display）IP54（display）
Note: The above protection level refers to the level
achieved after the electrical connection is complete.
Power range : Current type≤0.02Us(W)
Digital type≤0.015Us(W)
Voltage type≤0.008Us（W）
Voltage type（output 0.5～2.5）≤0.001Us（W）
Note:Us=Supplied voltage
: Current type load ≤{（Us-7.5）÷0.02（Us=supply
Load characteristics
voltage）}Ω voltae type load ≥100kΩ
Loading resisitance
RL（Ω）
1200
1000
800
600
400
200
7 . 5 10
6.Dimensions
60mm
6mm
Figure 6-1 no display Clamp interface
S=27
12mm
Figure 6-2 no display Threaded interface
! Note: The total length of the digital signal output
is increased by 33mm.
Output
analog
Signal
Customer
quantity
processing
collecting
or
circuit
device
digital
signal
Figure 3-1
316L stainless
display ≈270g
（4～20）mA DC
Working zone
Us（VDC）
Working volt
15 20 25 30 36
Figure5-1
100mm
PG9
116mm
76mm
PG9
1
145mm
48mm
6mm
Figure 6-3 display clamp interface
161mm
48mm
76mm
S=27
12mm
Figure 6-4 display Threaded interface
Note1: The total length of the digital signal output
is increased by 33mm.
Note 2: The marked place can be rotated 360°

7.Installation and precautions

！
Warning!
a)
Installed without pressure nor power supply.
Warning!
！
b)
Transmitter should be installed by technician who read and
understood this operational manual.
！ Danger!
c)
The transmitter uses diffused silicon oil-filled core, which may
cause explosions if in-properly handled. Do not measure oxygen for sake
of he safety.
！ Danger!
d)
This product is not explosion-proof, using in explosive area may
cause serious injury and significant loss.
Warning!
！
e)
It is prohibited to measure media that is not compatible with
the transmitter.
f)
Please check if the package is in good order when receiving
the product, confirm the transmitter model and specifications.
! g)
To avoid the damage of diaphragm, please unpack the package
and protective cap before starting the equipment. Please keep the
protective cap of the product. When the equipment is dismantled,
please put on a protective cap for the pressure interface immediately.
Be extra careful when handling unprotected diaphragms, because
unprotected diaphragms are very sensitive and easily damaged.
! h)
Handle with care, do not throw, do not force during
installation of transmitter.
i)
Vertical installation is applicable when pressure is below
0.03MPa (except for gas),to avoid affecting themeasurement accuracy.
Others can be installed at any angle. In case the interface size does not
match, it is allowed to make connecting adaptor.
j)
During installation, attention should be paid to the upward
installation of the pressure interface of the equipment (for gas
emission).
k)
If the pressure interface is upward or lateral when the
transmitter is installed, it is necessary to ensure that there is no
liquid flowing in the equipment shell, otherwise moisture and dirt
will block the air outlet near the electrical connection, or even
cause equipment failure. It is necessary to ensure that there is no
dust and dirt residue on the edge of threaded connection of electrical
connection.
l)
It is recommended to install at minor temperature gradient variations zone.
m)
It is recommended to adopt lightning protection and over
voltage protection facility between power distribution box or power
supply and the transmitter, for the fact that there will be danger if
the transmitter is installed in a harsh area.
n)
While measuring high temperature media, please ensure the
media temperature is not higher than the maximum work temperature of
transmitter. If necessary, it is required to install a cooling device.
o)
Install a pressure cutoff valve between the transmitter and
media, to inspect and avoid interference with measurement accuracy
caused by pressure port clogging.
p)
During the installation, use a wrench to tighten the transmitter
from the hexagonal nut at the bottom, to avoid wire disconnection caused
by direct rotation of the upper part of the device.
! q)
This product is a light current device, it must be laid
separately from high current cables during wiring, and comply with
relevant national wiring standard (GB/T50312-2016）.
version number20.4.23
Executive standard JB∕T 10726-2007
