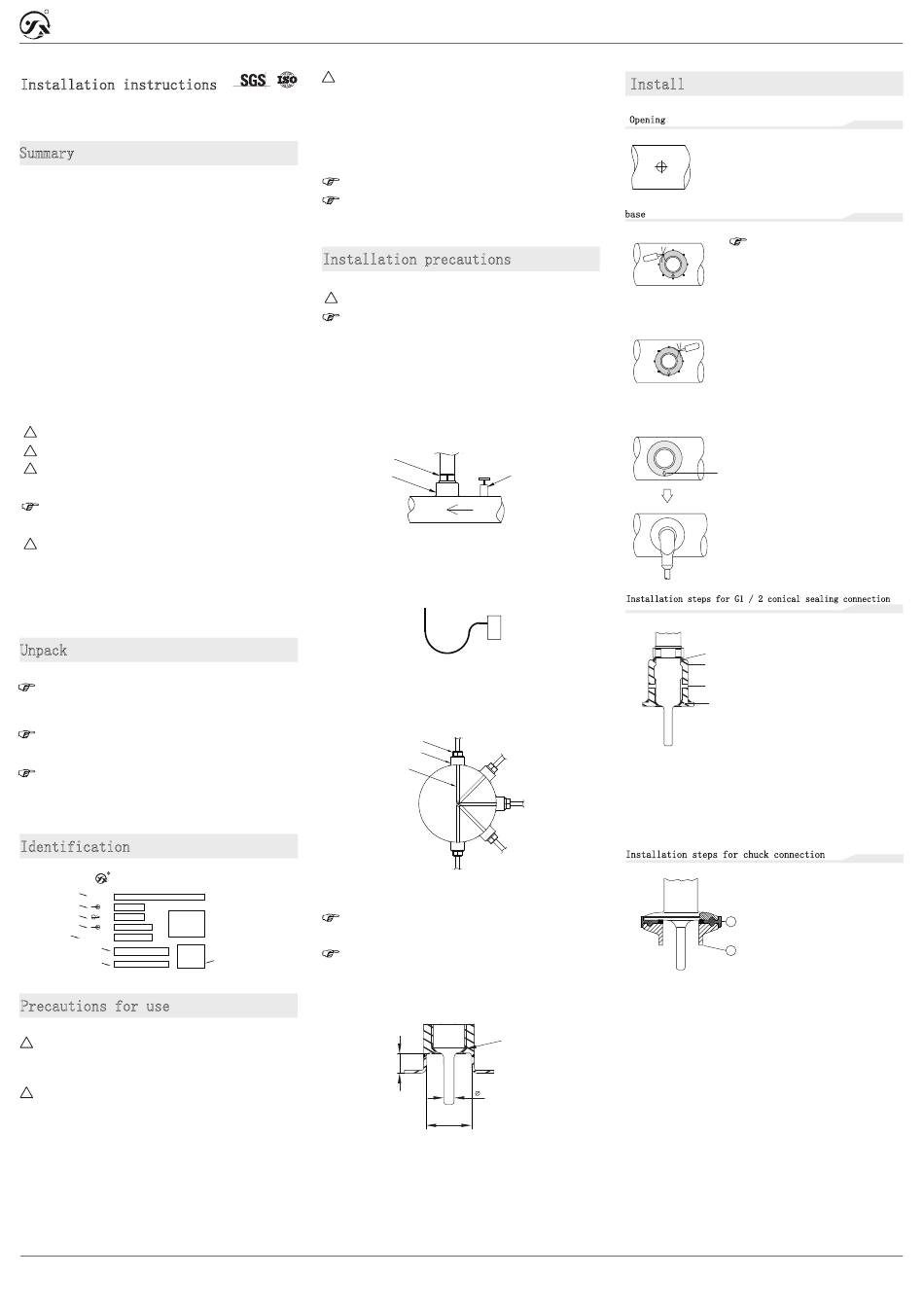

Installation instructions
Cwdz61 sanitary temperature transmitter
Summary
Safety guidance
These installation instructions contain important information on how
to use the transmitter correctly. The transmitter installer shall
carefully read the installation instructions before operating the
transmitter. In case of further understanding or special problems,
which are not described in detail in this operation manual, please
contact our company to obtain necessary information.
Please pay attention to the warning signs on the instructions!
Operators must strictly follow the safety instructions in the
installation instructions. In addition, occupational safety rules,
accident prevention guidelines, national installation standards and
engineering specifications must be observed.
Please keep this instruction properly and store it in a convenient
place near the transmitter.
The copyright of these installation instructions is protected. The
installation instructions of this version are written according to
the functions that can be realized by the corresponding product
during printing, and describe the product functions and operation
steps as detailed and complete as possible. If you find mistakes, you
are welcome to criticize and correct them. The company is not
responsible for the possible wrong description and possible
consequences.
– reserve the right to modify the technical parameters –
Icon description
Danger! – A dangerous situation that could result in death or
！
serious injury.
！ Warning! – A potentially hazardous situation that could result
in death or serious injury.
！ Be careful! – A potentially hazardous situation that may
result in minor injury.
！ Reminder! – A potentially hazardous situation that may cause
personal injury.
Tips! – Tips and information to ensure trouble free operation
of the equipment.
User
Warning! These installation instructions are for technicians.
！
Limitation of liability
If the transmitter is damaged due to non-compliance with the
operation and installation instructions, improper use, self
modification and destruction, the company will not be liable for
compensation and will not provide warranty service.
Unpack
a) After unpacking, check whether the documents and accessories
are complete according to the packing list.
Packing documents: one copy of installation instructions.
One product certificate.
A warranty card.
b) When receiving the product, please check whether the package
is intact and check the transmitter type
Whether the number and specification are consistent with the products
you choose.
c) Observe whether the transmitter is damaged due to transportation
for proper use good at handling.
d) The user is expected to keep the "warranty card" properly and
do not lose it, otherwise it cannot be returned to the factory free
maintenance!
Identification
Temperature sensor
星仪
model
model：
range
：
output
：
Wiring
power supply
：
diagram
protect
：
protect
authentication
Tel
Precautions for use
DANGER!
！
The transmitter adopts diffused silicon oil filled core,
and improper use will cause explosion accidents. To ensure
safety, it is strictly prohibited to measure oxygen.
DANGER!
！
This product is not explosion-proof, and its use in
explosion-proof area will cause serious personal injury
and material loss.
本文档中列出的规格数据仅代表本文档出版时产品的工程状态，我们保留修改产品规格和材料的权利。
追求品质/贴心服务/终身维护
24小时服务热线：400-600-4496
！ Warning!
It is forbidden to measure media with incompatible
materials in contact with the transmitter.
! No modifications or changes can be made on the
equipment.
! Handle with care and do not throw it at will. Please do
not use brute force when installing the transmitter.
! This product belongs to weak current equipment, which
must be laid separately from strong current cables, and
shall be wired in accordance with relevant national wiring
standards (GB / t50312-2016).
Ensure that the power supply voltage meets the power
supply requirements of the transmitter.
If the pressure or flow rate of the pipeline exceeds
the bearing range of the protective pipe, it needs to be
customized separately.
Installation precautions
！ Warning!
The equipment must be installed without power supply.
If the transmitter is installed in a harsh site and will
encounter dangerous damage such as lightning stroke or
overvoltage, we recommend that the user carry out lightning
stroke and overvoltage protection between the distribution
box or power supply and the transmitter
！ For pipeline installation, it is recommended to install
a stop valve in front of the measuring point to facilitate
the maintenance and disassembly of the transmitter. In
addition, it can reduce the pressure impact during the
initial installation and measurement. After the pressure
in the pipeline stabilizes, slowly open the stop valve to
start measurement.
Temperature transmitter
Welded base
！ In order to avoid liquid flowing along the cable, causing
liquid accumulation at the waterproof joint or entering the
junction box, a U-shaped ring shall be configured between the
threading box and the transmitter as shown in the figure, and
the bottom of the U-shaped shall be lower than the transmitter.
It is considered to reserve enough length of cable for
maintenance and replacement.
！ Do not install equipment at the lowest point (⑤) of the
pipeline or container to prevent medium overflow
the area of the measuring element. The insertion depth of
protective pipe shall be at least half of the pipe diameter.
Welded base
Protection tube
When selecting the installation point, it must be ensured
that any structure in the storage tank can be cleaned by
direct water jet and no dead corner.
In order to avoid the blind area inside the cavity that
Product number
cannot be effectively cleaned, the insertion point blind area
The following dimensions L ＜ (D-D) shall be noted in the
selection.
L = dimension from the lowest sealing point of the sensor probe
to the inner wall of the cavity.
valve
T
①
Probe rod
②
③
×
④
⑤
Sealing point
L
d
6mm
=
D
Ø
第1/2页
Install
Opening
Select the opening position according
to the site requirements.
base
It is forbidden to weld the
transmitter and the base together! The
deformation of the base caused by welding
shall be avoided. (accessories need to be
purchased separately)
Fix the adapter with sufficient adhesion
through multiple points; Fix points
relative to each other at the same
distance.
Welds welded between opposite fixed
points. Ensure that there is sufficient
space between the individual parts (avoid
heating / bending of the adapter due to
overheating during the cooling phase).
Note 1
If G1 / 2 conical sealing connection mode
is selected, when m12-w aviation elbow is
used for electrical connection, wdz07
①
welding base attached by our company can
be used (it needs to be purchased
separately in the attachment).
① The direction shown is the outgoing
direction of m12-w aviation elbow.
Installation steps for G1 / 2 conical sealing connection
① 1. Sealing ring (attached to wdz07)
2. Welded base (attachment wdz07)
②
3. Leakage hole
③
4. Peek seal ring (attached to wdz07)
④
Note: Accessories need to be
purchased separately
-Select appropriate sealing accessories according to the
measured medium and medium temperature.
-Put the seal into the installation position of the
corresponding connection.
-Use a wrench to tighten the transmitter from the hexagonal
nut at the bottom of the transmitter. The recommended torque
is 40 ~ 45nm.
Installation steps for chuck connection
1. Gasket (attached to wdz08)
1
2. Welded base (attachment wdz08)
Note: Accessories need to be
2
purchased separately
-Select appropriate sealing accessories according to the
measured medium and medium temperature
-Put the seal into the installation position of the
corresponding connection
-Place the chuck connection in the center with sealing device
-Then lock the hoop
