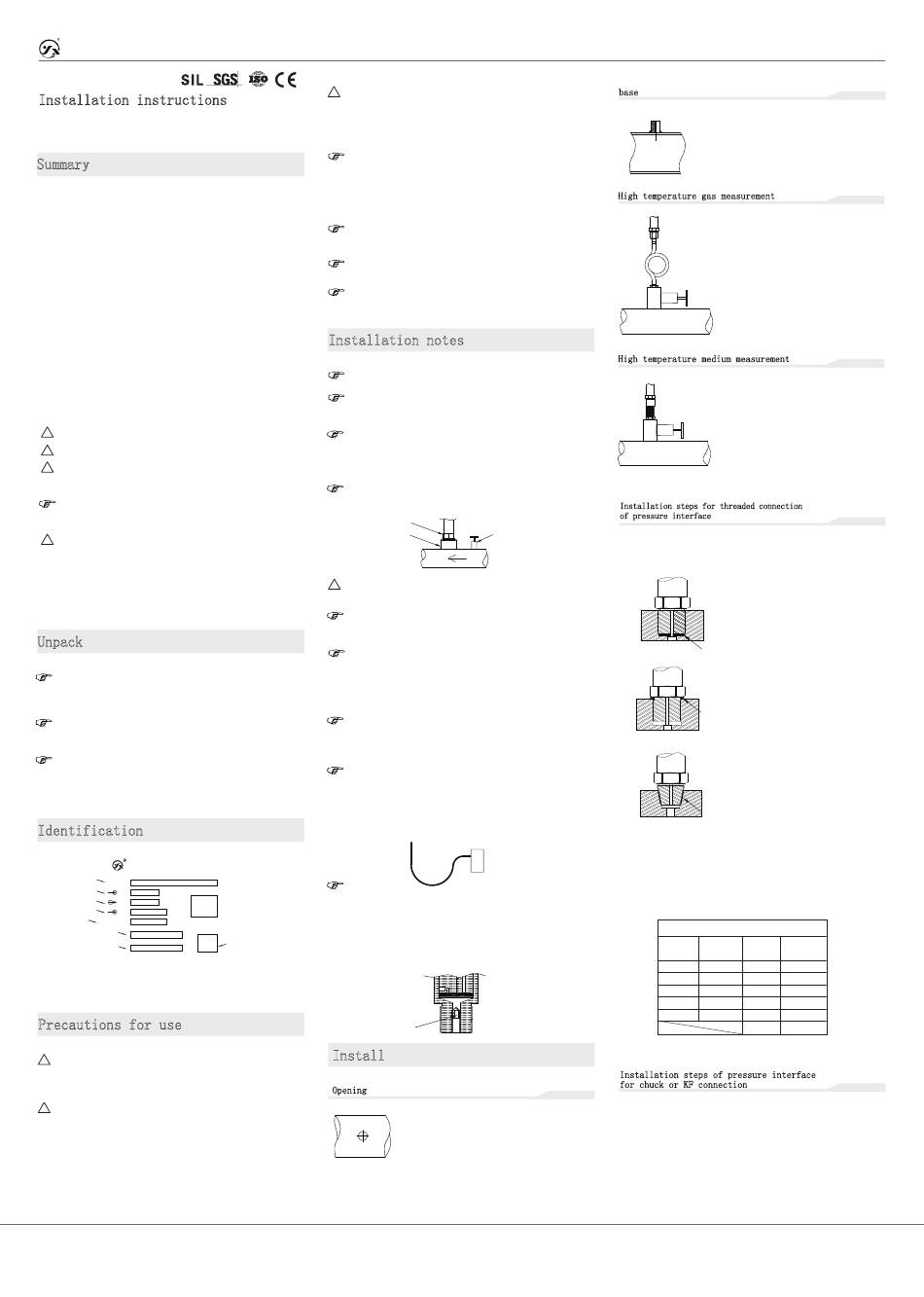

Star Meter Cyyz08 Installation Instructions

Installation instructions
Cyyz08 special pressure transmitter
Summary
Safety guidance
These installation instructions contain important information on how
to use the transmitter correctly. The transmitter installer shall
carefully read the installation instructions before operating the
transmitter. In case of further understanding or special problems,
which are not described in detail in this operation manual, please
contact our company to obtain necessary information.
Please pay attention to the warning signs on the instructions!
Operators must strictly follow the safety instructions in the
installation instructions. In addition, occupational safety rules,
accident prevention guidelines, national installation standards and
engineering specifications must be observed.
Please keep this instruction properly and store it in a convenient
place near the transmitter.
The copyright of these installation instructions is protected. The
installation instructions of this version are written according to
the functions that can be realized by the corresponding product
during printing, and describe the product functions and operation
steps as detailed and complete as possible. If you find mistakes, you
are welcome to criticize and correct them. The company is not
responsible for the possible wrong description and possible
consequences.
– reserve the right to modify the technical parameters –
Icon description
Danger! – A dangerous situation that could result in death or
！
serious injury.
Warning! – A potentially hazardous situation that could result
！
in death or serious injury.
！ Be careful! – A potentially hazardous situation that may
result in minor injury.
！ Reminder! – A potentially hazardous situation that may cause
personal injury.
Tips! – Tips and information to ensure trouble free operation
of the equipment.
User
！ Warning! These installation instructions are for technicians.
Limitation of liability
If the transmitter is damaged due to non-compliance with the
operation and installation instructions, improper use, self
modification and destruction, the company will not be liable for
compensation and will not provide warranty service.
Unpack
a) After unpacking, check whether the documents and accessories
are complete according to the packing list.
Packing documents: one copy of installation instructions.
One product certificate.
A warranty card.
b) When receiving the product, please check whether the package
is intact and check the transmitter type
Whether the number and specification are consistent with the products
you choose.
c) Observe whether the transmitter is damaged due to transportation
for proper use good at handling.
d) The user is expected to keep the "warranty card" properly and
do not lose it, otherwise it cannot be returned to the factory free
maintenance!
Identification
pressure sensor
星仪
model
model：
range
：
output
：
power supply Wiring diagram
：
protect
：
protect
authentication
Tel
Precautions for use
DANGER!
！
The transmitter adopts diffused silicon oil filled core,
and improper use will cause explosion accidents. To ensure
safety, it is strictly prohibited to measure oxygen.
！ DANGER!
This product is not explosion-proof, and its use in
explosion-proof area will cause serious personal injury
and material loss.
星仪传感器
24小时服务热线：400-600-4496
！ Warning!
It is forbidden to measure media with incompatible
materials in contact with the transmitter.
! No modifications or changes can be made on the
equipment.
! Handle with care and do not throw it at will. Please do
not use brute force when installing the transmitter.
When measuring steam or other high-temperature medium,
be careful not to let the medium temperature exceed the
working temperature of the transmitter. If necessary, a
cooling device shall be installed.
! This product belongs to weak current equipment, which
must be laid separately from strong current cables, and
shall be wired in accordance with relevant national wiring
standards (GB / t50312-2016).
Ensure that the power supply voltage meets the power
supply requirements of the transmitter. Ensure that the
high pressure of the pressure source is within the range
of the transmitter;
In the process of pressure measurement, pressurize and
relieve the pressure slowly to avoid instantaneous
increase to high pressure or decrease to low pressure;
Users should not disassemble or touch the diaphragm
when using it, so as not to damage the product.
Installation notes
Try to install it in the place with small temperature
gradient change.
The range range is less than 0.03mpa, and it is
installed vertically (except for special gas) to avoid
affecting the measurement accuracy. Others can be installed
on the measurement point at any angle.
It is recommended to install a pressure stop valve
before the pressure measuring point to facilitate the
maintenance and disassembly of the transmitter. In addition,
during the initial installation of pressure measurement,
it can reduce the pressure impact.
After the pressure in the pipeline stabilizes, slowly
open the stop valve to start measurement.
Transmitter
Welded base
！
Warning!
The equipment must be installed without pressurization and
power supply.
In the hydraulic system, pay attention to the upward
installation of the pressure interface of the equipment
(convenient for gas discharge).
If the pressure interface is upward or lateral when
the transmitter is installed, ensure that no liquid flows
outside the transmitter shell, otherwise moisture and dirt
will block the atmospheric port near the electrical
connection and even cause equipment failure. Ensure that
the threaded connection edge of electrical connection is
free of dust and dirt residue.
If the transmitter is installed in a harsh site and will
encounter dangerous damage such as lightning stroke or
overvoltage, we recommend that the user carry out lightning
stroke and overvoltage protection between the distribution
box or power supply and the transmitter.
In order to avoid liquid flowing along the cable, causing
liquid accumulation at the waterproof joint or entering the
junction box, a U-shaped ring shall be configured between the
threading box and the pressure transmitter as shown in the
figure, and the bottom of the U-shaped shall be lower than
the pressure transmitter. It is considered that sufficient
length of electric cable shall be reserved for maintenance
and replacement.
A pulse buffer is installed inside the sensor. If the
liquid contains particles, the pressure hole may be blocked.
Installing the sensor in a vertical position can effectively
avoid the blockage of the pressure hole. After the pressure
hole is blocked, the pulse buffer can be removed and cleaned
Product number
with a 2.5 hexagonal wrench, and then reassembled. (do not
poke the pressure sensing film inside the pressure hole with
a hard object during disassembly)
fuel damper
Install
Opening
base
High temperature gas measurement
High temperature medium measurement
Installation steps for threaded connection
of pressure interface
valve
-Select appropriate sealing accessories and sealing positions
according to the measured medium and input pressure
-Ensure that the sealing surface connected with the
equipment is smooth and flat
P
-Use a wrench to tighten the transmitter from the hexagonal
nut at the bottom of the transmitter to avoid directly
turning the upper part of the equipment and causing the
disconnection of the connecting line. The recommended
installation torque is as follows:
Installation steps of pressure interface
for chuck or KF connection
-Select appropriate sealing accessories according to the
measured medium and input pressure
Select the opening position
-Put the seal into the installation position of the
according to the medium, with
gas at the top and liquid and corresponding connection
-Place the chuck connection or KF connection in the center
steam at the side or bottom.
with sealing device
-Then lock the hoop
1
It is forbidden to weld the
transmitter and the base together!
The deformation of the base caused
by welding shall be avoided, and
the waste slag shall be cleaned to
avoid scratching the measuring
diaphragm. (accessories need to be
purchased separately)
For high-temperature steam
measurement, it is recommended to
install a flexible buffer pipe
(zb02), and more than half of the
pipe cooling water (gas-liquid
temperature isolation) should be
injected into the cooling pipe in
advance. To ensure that the
temperature of the pressure
measuring point is controllable
Within the scope. (accessories need
to be purchased separately)
For the measurement of high-tem-
perature medium, a heat transfer
device, such as heat sink adapter
zb03, shall be installed between
the measuring pipe and the
measuring point to ensure that the
temperature of the pressure
measuring point is within the
controllable range.
(accessories need to be purchased
separately)
The thread length of the
pressure transmitter must be
greater than the thread
depth of the base to ensure
the effective sealing of the
Face seal end gasket.
The thread length of the
pressure transmitter must be
less than the thread depth
Root seal
of the base to ensure the
effective sealing of the
root gasket.
Raw tape or sealant is used.
After locking, there is a
small surplus in the thread
of the pressure transmitter.
Thread seal
Installation torque
Recommended Recommended
Interface
Interface
installation installation
type
type
torque（Nm） torque（Nm）
G1/4
M27*2 55～60 30～35
40～45 G1/2 45～50
M20*1.5
30～35 7/16UNF 16～20
M14*1.5
20～30 1/2NPT 2～3TFFT
M12*1.5
15～16 1/4NPT 2～3TFFT
M10*1.0
1/8NPT 2～3TFFT
Note: tfft is the number of turns the tool is
tightened after hand tightening
