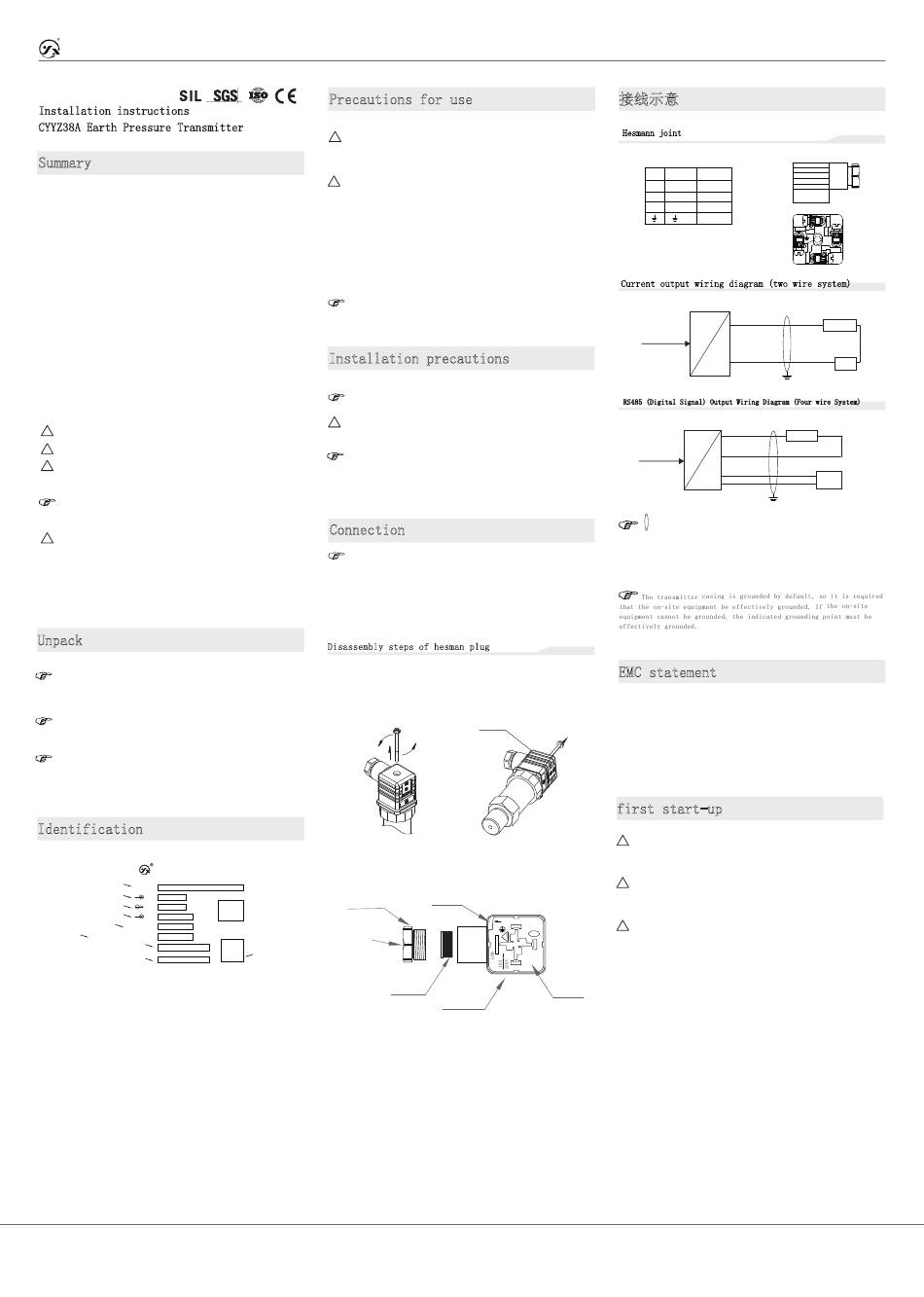

Star Meter CYYZ38A Installation Instructions

Installation instructions
CYYZ38A Earth Pressure Transmitter
Summary
Safety guidance
These installation instructions contain important information on how
to use the transmitter correctly. The transmitter installer shall
carefully read the installation instructions before operating the
transmitter. In case of further understanding or special problems,
which are not described in detail in this operation manual, please
contact our company to obtain necessary information.
Please pay attention to the warning signs on the instructions!
Operators must strictly follow the safety instructions in the
installation instructions. In addition, occupational safety rules,
accident prevention guidelines, national installation standards and
engineering specifications must be observed.
Please keep this instruction properly and store it in a convenient
place near the transmitter.
The copyright of these installation instructions is protected. The
installation instructions of this version are written according to
the functions that can be realized by the corresponding product
during printing, and describe the product functions and operation
steps as detailed and complete as possible. If you find mistakes, you
are welcome to criticize and correct them. The company is not
responsible for the possible wrong description and possible
consequences.
– reserve the right to modify the technical parameters –
Icon description
Danger! – A dangerous situation that could result in death or
！
serious injury.
Warning! – A potentially hazardous situation that could result
！
in death or serious injury.
！ Be careful! – A potentially hazardous situation that may
result in minor injury.
！ Reminder! – A potentially hazardous situation that may cause
personal injury.
Tips! – Tips and information to ensure trouble free operation
of the equipment.
User
！ Warning! These installation instructions are for technicians.
Limitation of liability
If the transmitter is damaged due to non-compliance with the
operation and installation instructions, improper use, self
modification and destruction, the company will not be liable for
compensation and will not provide warranty service.
Unpack
a) After unpacking, check whether the documents and accessories
are complete according to the packing list.
Packing documents: one copy of installation instructions.
One product certificate.
A warranty card.
b) When receiving the product, please check whether the package
is intact and check the transmitter type
Whether the number and specification are consistent with the products
you choose.
c) Observe whether the transmitter is damaged due to transportation
for proper use good at handling.
d) The user is expected to keep the "warranty card" properly and
do not lose it, otherwise it cannot be returned to the factory free
maintenance!
Identification
pressure sensor
星仪
model
model：
range
：
output
：
power supply
：
protect
protect ：
Protection level
Protection level ：
authentication
Tel
星仪传感器
24小时服务热线：400-600-4496
Precautions for use
danger
！
This product is not explosion-proof and can cause serious personal
injury and significant material damage when used in explosion-proof
areas.
！ Warning!
It is prohibited to measure media that are incompatible with the
material in contact with the transmitter.
! No modifications or changes can be made on the device.
! Please handle it gently and do not throw it randomly. Do not use
brute force when installing this transmitter.
! This product belongs to weak current equipment and must be laid
separately from strong current cables during wiring. It should comply
with the relevant national wiring standards (GB/T50312-2016) for
wiring.
Ensure that the power supply voltage meets the transmitter power
supply requirements. Ensure that the high pressure of the pressure
source is within the range of the transmitter;
Installation precautions
Try to install it in situations with minimal temperature gradient
changes.
！
Warning!
Equipment installation must be carried out without pressure or power
supply.
If the transmitter is installed in a harsh environment and may
encounter dangerous damage such as lightning strikes or overvoltage, we
recommend users to provide lightning protection and overvoltage protection
between the distribution box or power supply and the transmitter.
Connection
The user must ensure that the outer diameter of the
cable used is within the allowable range of the ferrule.
In addition, make sure that the cable is firmly installed
in the ferrule without gap. The locking diameter of
compression bolt is 5 ~ 6.5mm for hesman plug.
Be sure to install the socket correctly and properly to
ensure the degree of protection.
Disassembly steps of hesman plug
Pull out the wiring base inside the plug housing to connect.
The electrical connection method can be seen in the figure below.
a)Unscrew the cross pan
head m3 screw
Figure 1-1
Hold down bolt
Wiring diagram
Outlet hole
Product number
Rubber ring
c) Use a slotted screwdriver to insert and pry out the wiring base from
the removal slot.
d) After prying out, thread the shielded cable from the outlet hole in
Figure 1-3, connect the wiring at the wiring terminal on the back of the
wiring base according to the wiring diagram, and restore it to Figure
1-1 after wiring, and lock the compression bolt. After the wiring is
completed, the direction of the wiring base can be changed.
Plastic insert
b) Pull out the plastic insert
marked on the figure below
Figure 11-2
Removal slot
lift
1
+S
3
2
Wiring base
Plug housing
Figure 1-3
1
接线示意
Hesmann joint
ID Two wire Four wire
1
power supply+ power supply+
2 A
3
power supply- power supply-
B
Note: Lock wire diameter 5-6.5mm
Current output wiring diagram (two wire system)
Transmitter
red line（V+）
P
Pressure input
blue line（V-）
Power Supply(VDC)
+
red line（V+）
Transmitter
P
blue line（V-）
Pressure input
Yellow line（A）
White line（B）
Represents a shielded wire, and all marked grounding points
must be effectively grounded. It is recommended to choose shielded
twisted pair signal cables. In order to avoid grounding circuits, the
shielding layer adopts single ended grounding, insulated floating
grounding at the pressure transmitter end, and grounded at the control
cabinet end.
EMC statement
Applicable Directive: electromagnetic compatibility Equipment
Directive 2014 / 35 / EU.
CE marking indicates that the product meets the requirements of
applicable EU standards.
The user must ensure that the whole equipment meets all use standards.
first start-up
Warning!
！
a) Before startup, the user must check whether the transmitter is
installed correctly and whether there is obvious damage.
Warning!
！
b) The transmitter must be started and operated by professional
technicians who read and understand this operation manual.
Warning!
！
c) The transmitter is only applicable to the working conditions
that meet the technical requirements!
执行标准JB/T 10726-2007
www.star-sensor.com
星仪传感器
STAR METER
