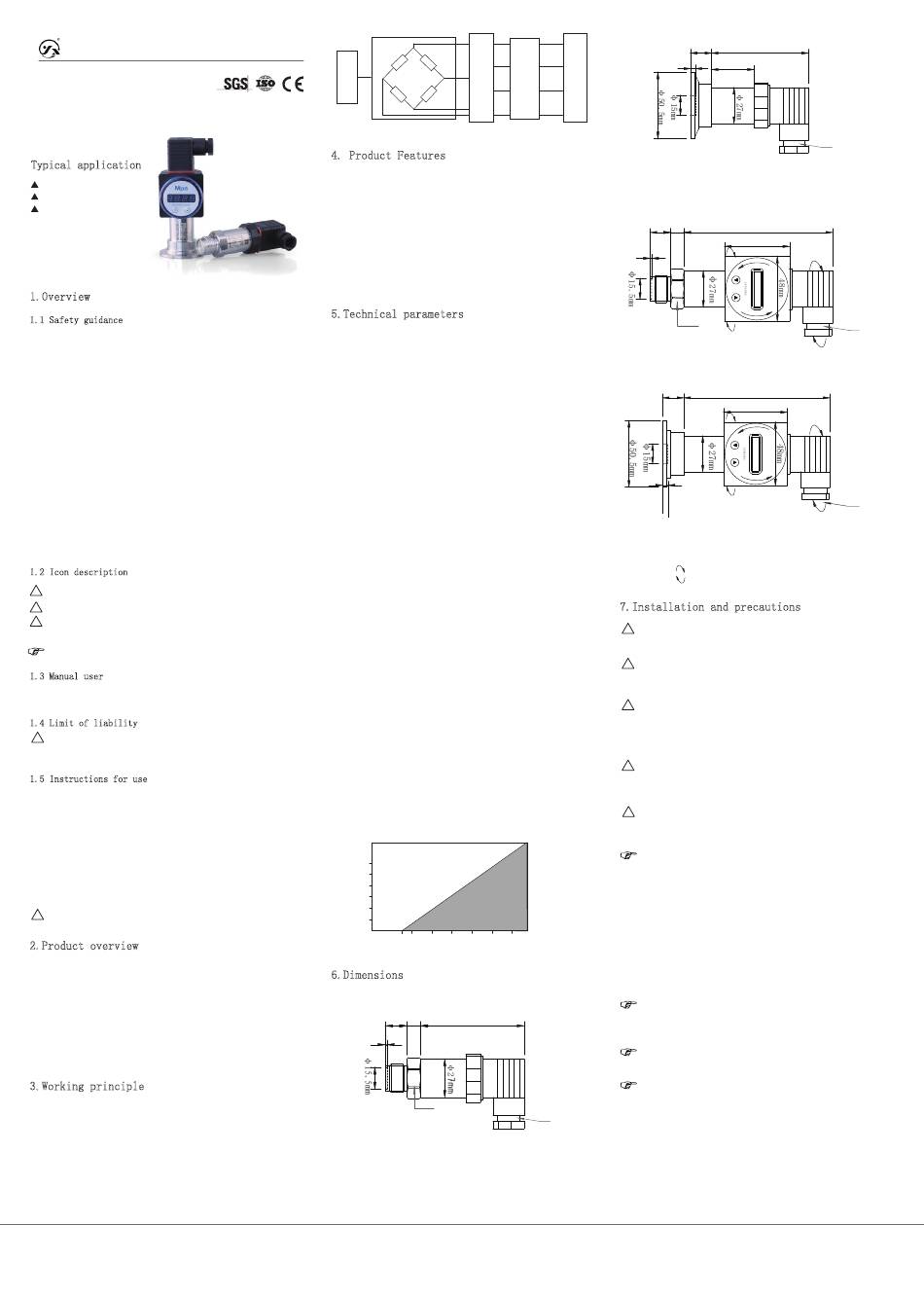

Star Meter CYYZ51 Instruction Manual

An instruction manual
CYYZ51 Flat membrane type
pressure transmitter
Typical application
Paper industry
Viscous and gelatinous media
Pigments and paints
1.Overview
1.1 Safety guidance
This operational manual contains important information on how to use the
transmitter correctly. The installation personnel of the transmitter should
read this manual carefully before operation. In case of further explanation
or special questions, which cannot be addressed in this manual, please
contact our company for assistance on necessary information.
Please pay attention to the warning signs on the manual! Do not use
crystallized or solidified measure medium, to avoid damaging of the sensor.
The operator must strictly follow the safety instructions and user's
manual during operation. Furthermore, the operator should comply with the
occupational safety rules, the accident prevention guidelines, the national
standards and engineering specifications as well.
Please keep this manual in a safe place near the transmitter for easy
access.
The copyright of this operational manual is protected. This version of
operational manual was edited according to the functions of corresponding
products, the product functions and operation procedures are described as
complete as possible. If there is any error, please don't hesitate to
contact us. The company is not responsible, in regard of any fault
description or its possible consequences.
–The right to modify the technical parameters is retained–
1.2 Icon description
！ Danger! - Hazard that may result in death or serious injury.
！
Warning!- Potential hazard that may result in death orserious injury.
！ Cautious!-Potential hazard that may cause minor injury.
Reminder!-Potential hazard that may result in personal injury.
！
Tips!-Tips and information for smooth operation of the equipment.
1.3 Manual user
Warning! This manual is suitable for technicians.
1.4 Limit of liability
！
The company will not be held responsible nor provide any warranty
service, in case of transmitter damages caused by failure to follow the
instruction manual, inappropriate use, self-modification or destruction.
1.5 Instructions for use
CYYZ51 series pressure transmitter for measuring pressure of a viscous
liquid. It is the responsibility of the operator to verify that the
equipment is suitable for the operating conditions of the application. If
you have any questions, please contact our sales department to ensure the
correct application of the transmitter. The company does not assume any
responsibility for the impact of improper selection.
The ordering model is suitable for measuring the viscous medium
described in the sample. The user must ensure that the measured media is
compatible with the transmitter contact material.
！ Warning!
Inappropriate use may lead to danger!
2.Product overview
CYYZ51 series pressure transmitter products use the OEM pressure sensor
which adopts stainless steel isolation diaphragm as the signal measuring
component, and are automatically measured by computer. The zero temperature
and sensitivity temperature compensation in a wide temperature range is
achieved through the laser resistor trimming process.The amplifier circuit
is fitted in a stainless casing, to convert the sensor signal into standard
output signal, which fully utilizes the technical advantages of the sensor.
As a result, the CYYZ51 series pressure transmitters have excellent
performances, which are strong anti-interference, overload protection and
shock resistance, low temperature drift, high stability, and high
measurement accuracy. It is the ideal pressure measuring device in
industrial automation field.
3.Working principle
The pressure sensors diffuses a wheatstone electric bridge on
mono-crystalline silicon, and stressed by the measuring media (liquid or
gas)to cause change of the bridge wall resistance value(piezoresistive
effect). In result, a differential voltage signal will be generated, which
converts the signal corresponding to the range into standard analog
signal(as shown in Figure 3-1)or digital signal.
STAR METER
24-hour service hotline：400-600-4496
星仪传感器
STAR METER
Pressure
source
Sensor
4. Product Features
a) Using diaphragm isolation technology
b) integrated chip, wide range of supplied voltage
c) Compact structure, easy installation，Anti clogging
d) Frequency cutoff design, strong anti-interference ability,
lightning protection
e) Current limiting, voltage limiting, reverse connection
protection(limiting current output)
f) High accuracy, good stability, fast response
5.Technical parameters
Measuring media : Viscous liquid(compatible with contact media)
Overall material: Diaphragm 316L stainless(contacted)
Process connection 304 stainless(contacted)
Casing
Seal component
Display case ABS engineering plastic(digital tube display)
Hessman connector ABS engineering plastic
Pressure range: 0kPa～10kPa～6MPa (read the range selection form
for details)
P r e s s u r e m o d e : Gauge pressure
O u t p u t s i g n a l : 4～20mA、RS485 (Standard Modbus-RTU protocol),
（0～10VDC、0～5VDC、1～5VDC、0.5～2.5VDC customized）
Supply voltage: 12～36VDC Normal
15～36VDC Normal(with display or output 0～10VDC）
3～5VDC Customized (Output 0.5～2.5VDC/RS485）
A c c u ra c y c l a s s: 0.1%FS （range≥100kPa customized）
0.25%FS（range≥100kPa customized）
0.5%FS （10kPa≤range＜100kPa default）
Device display accuracy class of 0.5, shown by (LED) digital tube
Working conditions: contact media temperature -40～85℃
Ambient temperature-40～85℃
Ambient humidity 0%～95%RH （ no condensation,no condensing ）
: -10-70 ℃ (accuracy of 0.25% FS, 0.5% FS, 1% FS)
Temperature compensation
-40-80 ℃ (accuracy of 0.1% FS)
: 10g(20...2000Hz)
Seismic performance
Overload capacity: 200% full scale or 120MPa（minimum value）
Response frequency: analog signal output≤500Hz, digital signal output ≤5Hz
Stability : ±0.1% FS/year
Temperature drift: ±0.01%FS/℃ （within the temperature compensate range）
Overall weight : no display ≈190g
Protection lever: IP65（no display）IP54（display）
Note: The above protection level refers to the level
achieved after the electrical connection is complete.
Power range : Current type≤0.02Us(W)
Digital type≤0.015Us(W)
Voltage type≤0.008Us（W）
Voltage type（output 0.5～2.5）≤0.001Us（W）
Note:Us=Supplied voltage
: Current type load ≤{（Us-7.5）÷0.02（Us=supply
Load characteristics
voltage）}Ω voltae type load ≥100kΩ
Loading resisitance
RL（Ω）
1200
1000
800
600
400
200
7 . 5 10 15 20
6.Dimensions
16mm 10mm
1mm
S=27
Figure 6-1 no display Threaded interface
Output
analog
Signal
Customer
quantity
processing
collecting
or
circuit
device
digital
signal
Figure 3-1
304 stainless
Nitrile rubber(contacted)
display ≈270g
（4～20）mA DC
Working zone
Us（VDC）
25 30 36 Working volt
Figure5-1
76mm
PG9
1
16mm
76mm
4mm
29mm
Figure 6-2 No display clamp interface
!Note: The total length of the digital signal output
will be increased by 33mm.
16mm 10mm
114
48mm
1mm
S=27
Figure 6-3 display Threaded interface
16mm
114
48mm
4mm
Figure 6-4 display clamp interface
!Note1: The total length of the digital signal output
will be increased by 33mm.
： Marked place can be rotated 360°
Note1:
7.Installation and precautions
！ Warning!
a)
Installed without pressure nor power supply.
Warning!
！
b)
Transmitter should be installed by technician who read and
understood this operational manual.
！ Danger!
c)
The transmitter uses diffused silicon oil-filled core, which may
cause explosions if in-properly handled. Do not measure oxygen for sake
of he safety.
！ Danger!
d)
This product is not explosion-proof, using in explosive area may
cause serious injury and significant loss.
Warning!
！
e)
It is prohibited to measure media that is not compatible with
the transmitter.
f)
Please check if the package is in good order when receiving
the product, confirm the transmitter model and specifications.
! g)
To avoid damage to the diaphragm, unpack and protect the cap
before starting the device. Please save the protective cap when the
product is shipped. Wear a protective cap on the pressure port
immediately after the device has been removed. Take extra care when
handling unprotected diaphragms, as unprotected diaphragms are very
sensitive and can be easily damaged.
! h)
Handle with care, do not throw, do not force during
installation of transmitter.
i)
Vertical installation is applicable when pressure is below
0.03MPa (except for gas),to avoid affecting themeasurement accuracy.
Others can be installed at any angle. In case the interface size does not
match, it is allowed to make connecting adaptor.
j)
When installing, the pressure interface should be installed
upward (for gas emission).
k)
If the pressure interface is upward or lateral when the
transmitter is installed, it is necessary to ensure that there is no
liquid flowing in the equipment shell, otherwise moisture and dirt
will block the air outlet near the electrical connection, or even
cause equipment failure. It is necessary to ensure that there is no
dust and dirt residue on the edge of threaded connection of electrical
connection.
version number20.4.23
Executive standard JB∕T 10726-2007
www.star-sensor.com
PG9
PG9
