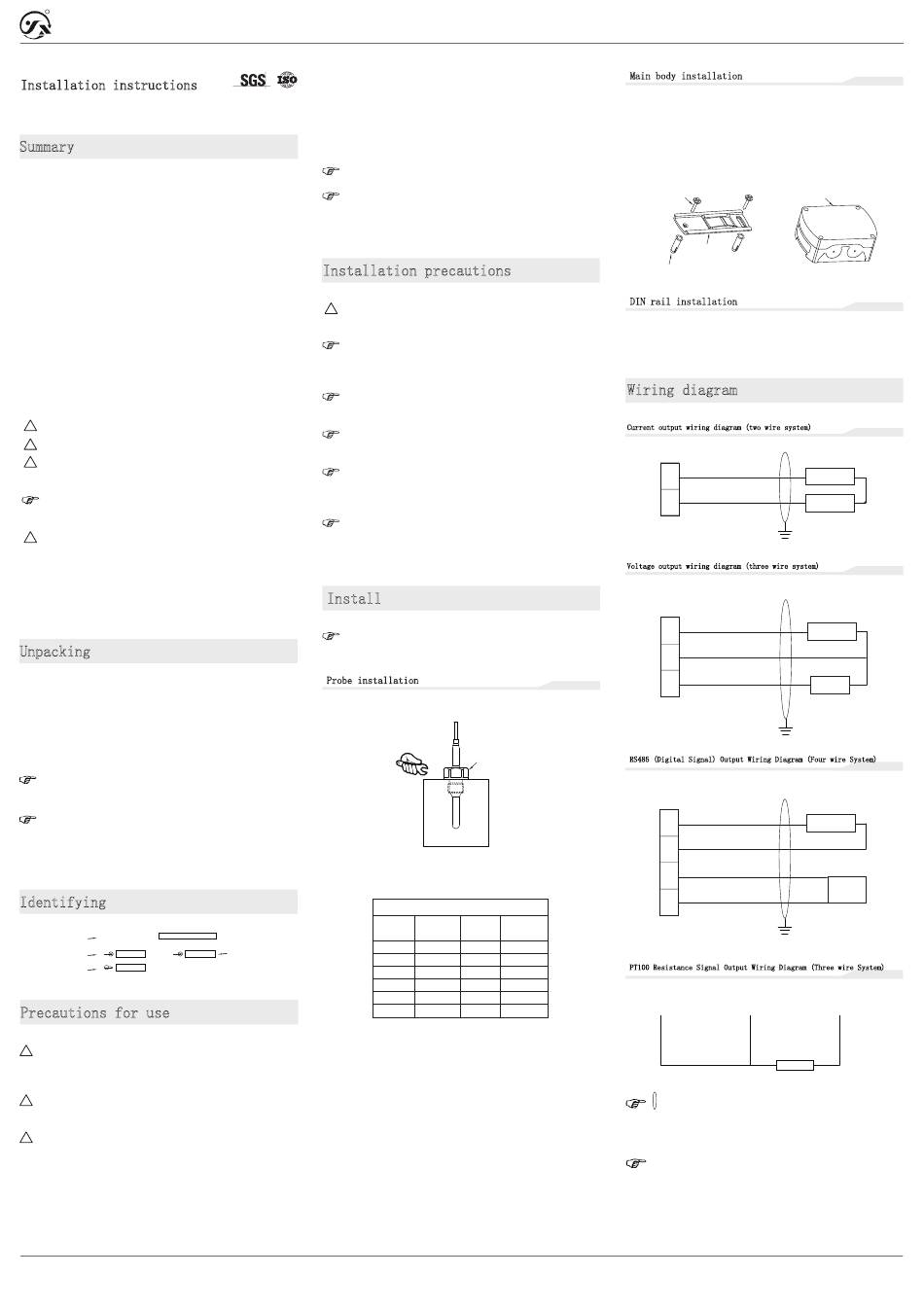

Installation instructions
CWDZ22 split type temperature transmitter
Summary
Safety guidance
These installation instructions contain important information on how
to use the transmitter correctly. The transmitter installer shall
carefully read the installation instructions before operating the
transmitter. In case of further understanding or special problems,
which are not described in detail in this operation manual, please
contact our company to obtain necessary information.
Please pay attention to the warning signs on the instructions!
Operators must strictly follow the safety instructions in the
installation instructions. In addition, occupational safety rules,
accident prevention guidelines, national installation standards and
engineering specifications must be observed.
Please keep this instruction properly and store it in a convenient
place near the transmitter.
The copyright of these installation instructions is protected. The
installation instructions of this version are written according to
the functions that can be realized by the corresponding product
during printing, and describe the product functions and operation
steps as detailed and complete as possible. If you find mistakes, you
are welcome to criticize and correct them. The company is not
responsible for the possible wrong description and possible
consequences.
– reserve the right to modify the technical parameters –
Icon description
Danger! – A dangerous situation that could result in death or
！
serious injury.
Warning! – A potentially hazardous situation that could result
！
in death or serious injury.
！ Be careful! – A potentially hazardous situation that may
result in minor injury.
！ Reminder! – A potentially hazardous situation that may cause
personal injury.
Tips! – Tips and information to ensure trouble free operation
of the equipment.
User
！ Warning! These installation instructions are for technicians.
Limitation of liability
If the transmitter is damaged due to non-compliance with the
operation and installation instructions, improper use, self
modification and destruction, the company will not be liable for
compensation and will not provide warranty service.
Unpacking
a) After unpacking, check whether the documents and attachments are
complete according to the packing list.
The packing document includes a user manual.
One product qualification certificate.
One warranty card.
The boxed accessories include:
Two self tapping screws and two plastic expansion pipes each.
b) When receiving the product, please check if the packaging is
intact and check if the transmitter model and specifications match the
product you have selected.
c) Observe whether the transmitter is damaged due to transportation
for proper handling.
d) Please keep the 'warranty card' properly and do not lose it,
otherwise it cannot be returned to the factory for free repair!
Identifying
Product model:
model
Temperature
range
output
Precautions for use
Warning!
！
The transmitter must be installed by professional
technical personnel who have read and understood this
operation manual.
Warning!
！
It is prohibited to measure media that are incompatible
with the material in contact with the transmitter.
danger！
！
This product is non explosion-proof and is strictly
prohibited from use in explosion-proof areas, as it may
cause serious personal injury and significant material
damage.
本文档中列出的规格数据仅代表本文档出版时产品的工程状态，我们保留修改产品规格和材料的权利。
追求品质/贴心服务/终身维护
24小时服务热线：400-600-4496
! No modifications or changes can be made on the device.
! Please handle it gently and do not throw it randomly. Do
not use brute force when installing this transmitter.
! This product belongs to weak current equipment and must
be laid separately from strong current cables during
wiring. It should comply with the relevant national wiring
standards (GB/T50312-2016) for wiring.
Ensure that the power supply voltage meets the
transmitter power supply requirements.
Prevent direct damage to sensors by chemical
reagents, oil, dust, etc. Do not use in extreme
temperature environments. Do not perform cold or hot
shocks.
Installation precautions
！ Warning!
Equipment installation must be carried out without power supply.
If the transmitter is installed in a harsh environment, it may
encounter hazards such as lightning strikes or overvoltage When damaged,
we suggest that users install lightning protection between the
distribution box or power supply and the transmitterStrike and
overvoltage protection.
Sensors should be in good contact with the tested medium or object
as much as possible to ensure good performance Good thermal conductivity.
Install in a stable environment, avoid direct sunlight, and stay
away from windows and air conditioning Heating and other equipment should
avoid facing windows and doors directly.
Transmitters and wires should be kept away from places with high
voltage and severe electromagnetic interference, and efforts should be
made toStay away from high-power interfering equipment to avoid inaccurate
measurements, such as frequency converters and motorsEtc.
Confirm whether the power supply voltage is correct, and whether
the positive and negative wiring of the power supply corresponds to the
positive and negative wiring of the product;Avoid installing in easily
bumped locations to avoid damaging the product.
Install
To avoid entanglement between the main body and the
probe connecting wire, the probe should be installed first
before the main body.
Probe installation
-Screw in installation
Use a wrench to tighten the probe from the hexagonal nut at
the bottom of the probe. The recommended installation torque
is as shown in the following figure:
Interface
type
M20*1.5
power supply
M14*1.5
M12*1.5
M10*1.0
M8*1.0
M6*1.0
Note: tfft is the number of turns the tool is
tightened after hand tightening
probe
安装扭矩
Recommended Recommended
Interface
installation installation
type
torque（Nm） torque（Nm）
G1/4 30～35
40～45
G1/2 45～50
30～35
7/16UNF
16～20
20～30
1/2NPT 2～3TFFT
15～16
1/4NPT 2～3TFFT
7～8
1/8NPT 2～3TFFT
2～3
第1/2页
Main body installation
The back of the transmitter is equipped with a guide rail mounting
plate. First, remove the mounting plate. The attachment is equipped
with two wall panel self tapping screws and two plastic expansion
pipes. First, drill two holes with a diameter of 6mm and a depth of ≥
30mm on the wall (please refer to the size diagram of the guide rail
installation plate for the hole positions). Insert the expansion tube
and fix the guide rail mounting plate to the wall using self tapping
screws, then slide it into the transmitter.
Self tapping screws
Guide rail mounting plate
Plastic expansion pipe
DIN rail installation
The back of the transmitter is equipped with a guide rail
mounting plate. First, remove the mounting plate. The
transmitter can slide directly into the DIN rail.
Wiring diagram
Current output wiring diagram (two wire system)
Power supply (VDC)
Red line (V+)
+
V24
Blue line (V -)
G
Voltage output wiring diagram (three wire system)
Red line (V+) +
V24
Blue line (V -)
G
Yellow line (OUT)
VO
RS485 (Digital Signal) Output Wiring Diagram (Four wire System)
Red line (V+)
+
V24
Blue line (V -)
G
Yellow line (A)
A
White line (B)
B
PT100 Resistance Signal Output Wiring Diagram (Three wire System)
Red B Red B
PT100
Represents a shielded wire, and all marked grounding points must
be effectively grounded. It is recommended to choose shielded twisted
pair signal cables. In order to avoid grounding loops, the shielding
layer adopts single ended grounding, insulated floating grounding at
the transmitter end, and grounded at the control cabinet end.
It is recommended to choose cables with an outer diameter
of 4-6 mm to ensure the level of protection.
执行标准JB∕T 12599-2016
www.star-sensor.com
星仪传感器
Star Meter
transmitter
-
U
A
collecting device
Power supply (VDC)
-
U
V
collecting device
Power supply (VDC)
-
U
collecting device
PC
White A
版号23.07.24
