Star Meter KPE 9039G Installation Instructions

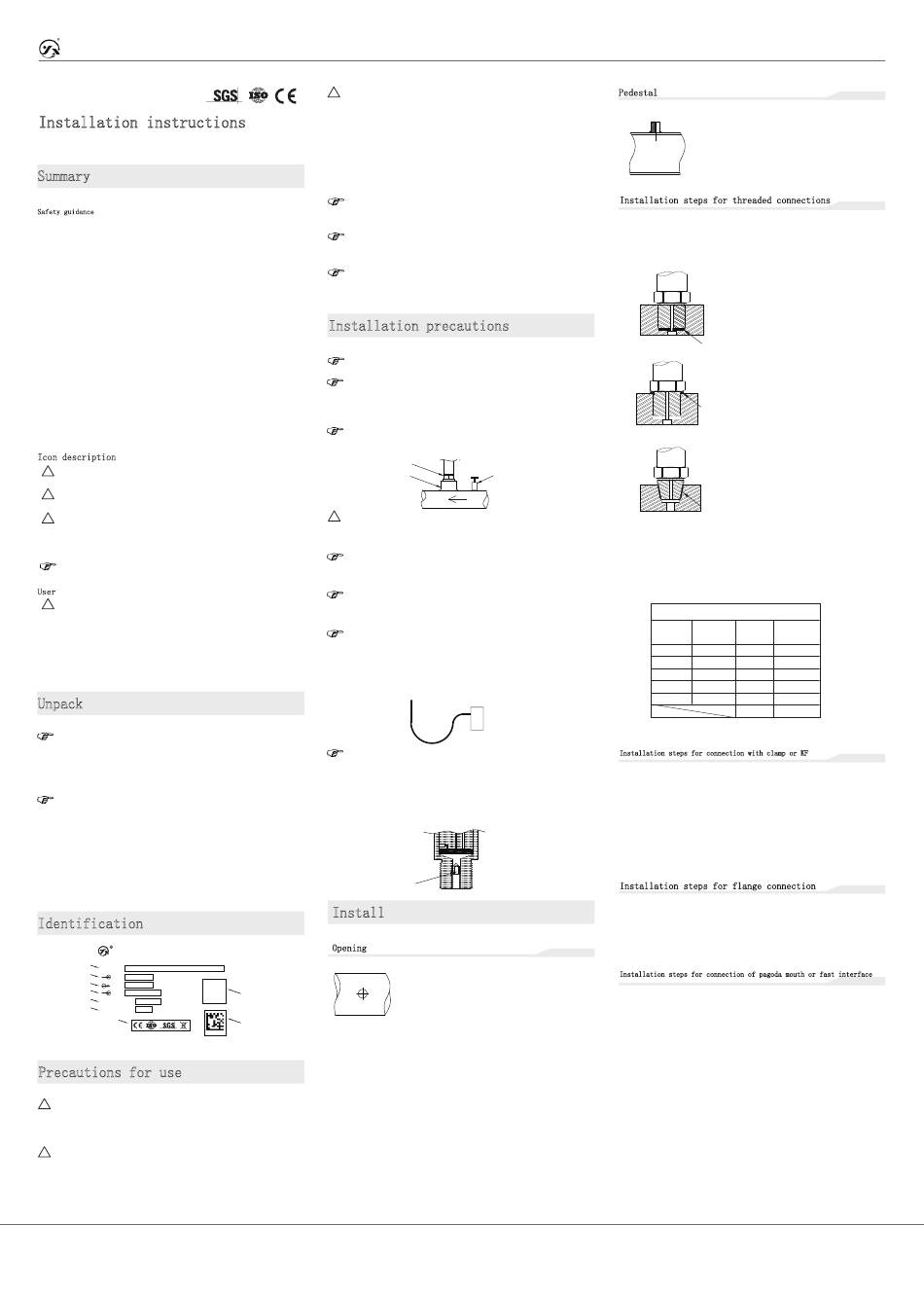

Installation instructions
CYYZ92 Exquisite Pressure Transmitter

Summary

Safety guidance

These installation instructions contain important information on how to
use the transmitter correctly. The transmitter installer shall
carefully read the installation instructions before operating the
transmitter. In case of further understanding or special problems,
which are not described in detail in this operation manual, please
contact our company to obtain necessary information.
Please pay attention to the warning signs on the instructions!
Operators must strictly follow the safety instructions in the
installation instructions. In addition, occupational safety rules,
accident prevention guidelines, national installation standards and
engineering specifications must be observed.
Please keep this instruction properly and store it in a convenient
place near the transmitter.
The copyright of these installation instructions is protected. The
installation instructions of this version are written according to the
functions that can be realized by the corresponding product during
printing, and describe the product functions and operation steps as
detailed and complete as possible. If you find mistakes, you are
welcome to criticize and correct them. The company is not responsible
for the possible wrong description and possible consequences.
– reserve the right to modify the technical parameters –
Icon description
Danger! – A dangerous situation that could result in death or
！
serious injury.
！ Warning! – A potentially hazardous situation that could result in
death or serious injury.
！ Be careful! – A potentially hazardous situation that may result
in minor injury.
！
Reminder! – A potentially hazardous situation that may cause
personal injury.
Tips! – Tips and information to ensure trouble free operation of
the equipment.
User
！ Warning! These installation instructions are for technicians.
Limitation of liability
If the transmitter is damaged due to non-compliance with the operation
and installation instructions, improper use, self modification and
destruction, the company will not be liable for compensation and will
not provide warranty service.

Unpack

a) After unpacking, check whether the documents and accessories
are complete according to the packing list.
Packing documents: one copy of operation manual.
One product certificate.
A warranty card.
b) When receiving the product, please check whether the package is
intact, and check whether the transmitter model and specification are
consistent with the product you choose.
c) Observe whether the transmitter is damaged due to transportation
for proper treatment.
d) The user is expected to keep the "warranty card" properly and do
not lose it, otherwise it cannot be returned to the factory for free
maintenance!

Identification

P R E S S U R E S e n s o r
model
Star Meter
model：
range
：
output
：
power supply
：
accuracy
accuracy ：
protect
protect ：
Product certification
Tel：4 0 0 - 6 0 0 - 4 4 9 6

Precautions for use

DANGER!
！
The transmitter adopts diffused silicon oil filled core, and improper
use will cause explosion accidents. To ensure safety, it is strictly
prohibited to measure oxygen.
DANGER!
！
This product is not explosion-proof, and its use in explosion-proof
area will cause serious personal injury and material loss.
星仪传感器
24小时服务热线：400-600-4496
Warning!
！
Do not measure media with incompatible materials in contact with the
transmitter.
! No modifications or changes can be made on the equipment.
! Handle with care and do not throw it at will. Please do not use
brute force when installing the transmitter.
! This product belongs to weak current equipment, which must be
laid separately from strong current cables, and shall be wired in
accordance with relevant national wiring standards (GB / t50312-2016).
Ensure that the power supply voltage meets the power supply
requirements of the transmitter. Ensure that the high pressure of the
pressure source is within the range of the transmitter;
During pressure measurement, pressurize and relieve pressure
slowly to avoid instantaneous increase to high pressure or decrease to
low pressure;
Please do not disassemble or touch the diaphragm when using, so
as not to damage the product.

Installation precautions

Try to install it in the place with small temperature gradient
change.
It is recommended to install a pressure stop valve before the
pressure measuring point to facilitate the maintenance and disassembly
of the transmitter. In addition, it can reduce the pressure impact
during the initial installation of pressure measurement.
After the pressure in the pipeline stabilizes, slowly open the
stop valve to start measurement.
Transmitter
Welded base
！
Warning!
The equipment must be installed without pressurization and power supply.
In the hydraulic system, pay attention to the upward installation
of the pressure interface of the equipment (for gas discharge).
If the transmitter is installed in a harsh site and will encounter
dangerous damage such as lightning stroke or overvoltage, we recommend
that the user carry out lightning stroke and overvoltage protection
between the distribution box or power supply and the transmitter.
In order to avoid liquid flowing along the cable, causing liquid
accumulation at the waterproof joint or entering the junction box,
a U-shaped ring shall be configured between the threading box and the
pressure transmitter as shown in the figure, and the bottom of the
U-shaped shall be lower than the pressure transmitter. It is considered
that sufficient length of electric cable shall be reserved for
maintenance and replacement.
A pulse buffer is installed inside the sensor. If the liquid
contains particles, the pressure hole may be blocked. Installing the
sensor in a vertical position can effectively avoid the blockage of
the pressure hole. After the pressure tap hole is blocked, the pulse
buffer can be removed with a 2.5 hexagonal wrench, cleaned and then
reassembled（ Do not use hard objects to poke the pressure sensing
film inside the pressure hole during disassembly)
fuel damper

Install

Opening

Wiring definition
Product number
Pedestal

Installation steps for threaded connections

-Select appropriate sealing accessories and sealing positions according
to the measured medium and input pressure
valve
-Ensure that the sealing surface connected to the equipment is smooth
and flat
-Use a wrench to tighten the transmitter from the hexagonal nut at the
bottom of the transmitter to avoid directly turning the upper part of
the equipment and causing the disconnection of the connecting line.
The recommended installation torque is as follows:
P

Installation steps for connection with clamp or KF

-Select appropriate sealing accessories according to the measured medium
and input pressure
-Put the seal into the installation position of the corresponding
connection
-Place the clamp connection or KF connection in the center with sealing
device
-Then lock the hoop

Installation steps for flange connection

-Select appropriate sealing accessories according to the measured
medium and input pressure(e.g. gasket)
-Place the seal between the equipment flange and the counter flange
-Install the equipment on the corresponding flange connection through
4-8 groups of bolts (according to the flange model)

Installation steps for connection of pagoda mouth or fast interface

Select the opening position
according to the medium, with gas
-Check whether the size of air pipe and interface match
at the top and liquid and steam
-After the air pipe is directly inserted into the interface, pull it
at the side or bottom.
slightly by hand to check the reliability, that is, the connection is
completed
1
Do not weld the base with pressure
transmitter! The deformation of the
base caused by welding shall be
avoided, and the waste slag shall be
cleaned to avoid scratching the
measuring diaphragm（ (accessories to
be purchased separately)
The thread length of the
pressure transmitter must be
greater than the thread depth of
the base to ensure the effective
sealing of the end gasket.
Face seal
The thread length of the
pressure transmitter must be
less than the thread depth of
Root seal
the base to ensure effective
sealing of the root gasket.
Raw tape or sealant is used.
After locking, a small part of
the thread of the pressure
transmitter is surplus.
Thread seal
Installation torque
Interface Interface
Recommended Recommended
type installation type installation
torque (nm) torque (nm)
M27*2 G1/4
55～60 30～35
M20*1.5 G1/2
40～45 45～50
M14*1.5 30～35 7/16UNF 16～20
M12*1.5 1/2NPT
20～30 2～3TFFT
M10*1.0 15～16 1/4NPT 2～3TFFT
1/8NPT
2～3TFFT
Note: tfft is the number of turns the tool is tightened after
hand tightening
版号23.06.27
执行标准JB/T 10726-2007
www.star-sensor.com
星仪传感器
STAR METER
