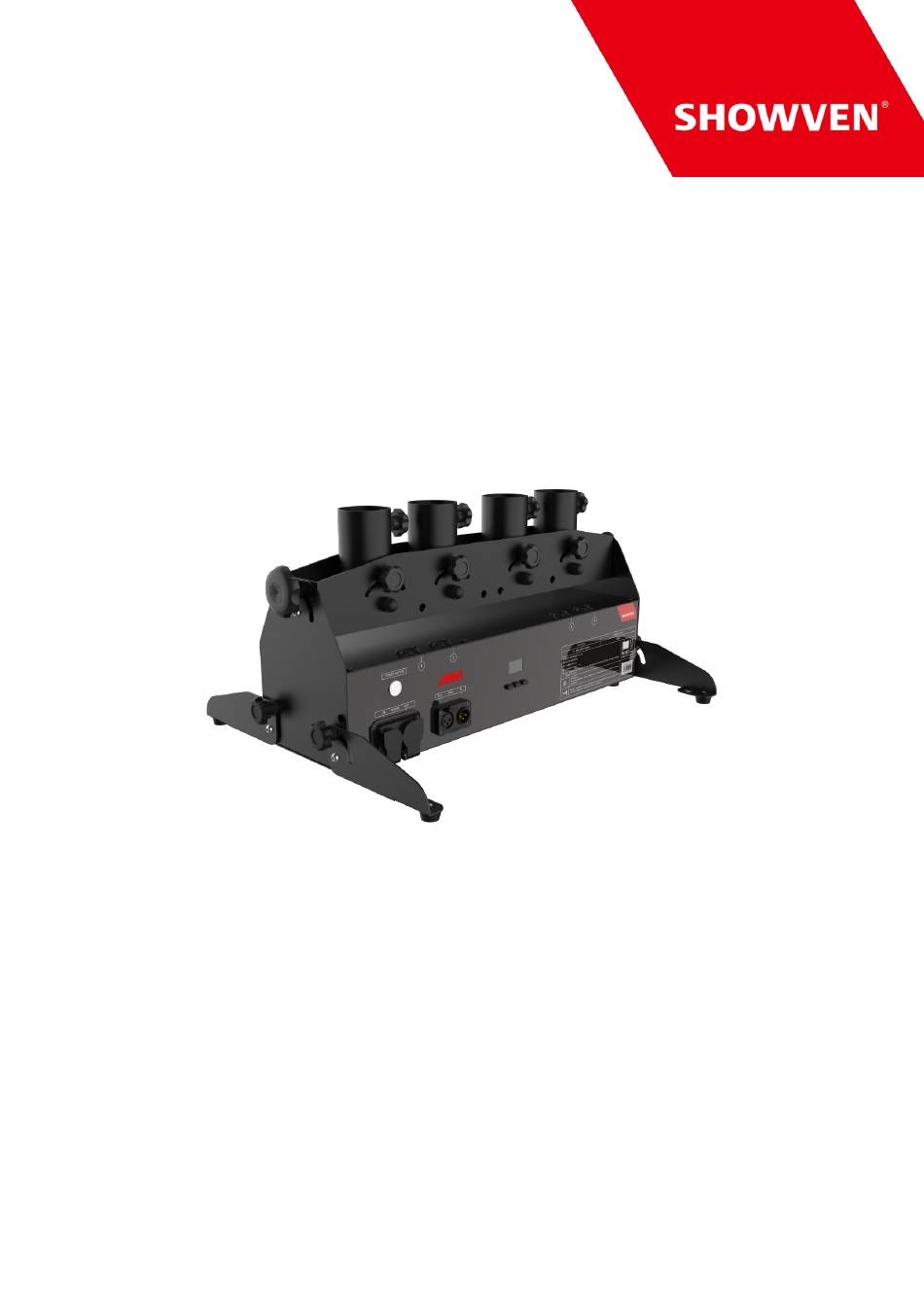

- Page 1 USER MANUAL uFetti Shot CL04 V1.0 2025/01/04 SHOWVEN Technologies Co., Ltd...
-
Page 2: General Safety Instructions
Thanks for choosing SHOWVEN uFetti Shot, we wish it will bring you lots of exciting moments. Please read the following user’s manual carefully before operating this product. Safety Instructions Δ 1. Safety icons explanation Safety instructions warn of hazards when handling equipment and provide information on how to avoid those hazards. -
Page 3: Technical Specifications
Technical Specifications Δ Model: uFetti Shot CL04 Dimension: 582 185 290mm Weight: 8.5kg Input: AC100-240V, 50/60Hz Work Power: 450W Interface: Color LCD ARM Indicator Light: Yes Control: DMX , Wireless remote DMX: 3-pin DMX IN / OUT (5-pin customizable) Battery Powered: Yes, 9*18650 battery (battery not included) -
Page 4: Rear Panel
“ARM STATE” is ON, there will be three status: ON: no DMX signal and Wireless OFF OFF: DMX signal input BLINK: DMX armed or Wireless ON 3. Welcome Interface SHOWVEN CL04-20241126 XXXXXXXXXXXX First Line: Manufacturer Second Line: Product Model and Software Version... - Page 5 4. Main Interface SAFE DMX_Connection 1. Status bar, 4 icons may appear in status bar DMX Channel Mode Icon: 4CH or 1CH depends on the setting of DMX Channel Mode Battery Charging Icon : it appears when charging Battery Volume Icon: : No battery;...
- Page 6 8. Monitor Interface Press and hold “-“ to enter monitor interface, press “MENU” switch between different items, press and hold “-“ to exit monitor interface. PCB:22 DC: 13.1V BAT:12.0V F1:0.0A F2:0.0A F3:0.0A F4:0.0A First Line: PCB temp. monitoring, DC voltage Second Line: Battery Voltage and Battery Volume Third Line and Fourth Line: maximum current output of each connector DMX CONTROL...
- Page 7 Wireless Remote interface. 1) Main interface YK02 Send 100% uFetti Shot CL04 ----------------------------- ID:A880 First Line: shows the wireless module remote use and battery voltage, when sending signal it will shows “send”. Second Line: receiver model name...
- Page 8 3) Key Function MENU: switch between different menu items. +: Parameters Up -: Parameters Down SET: pairing between FXmote and receiver uFetti Shot CL04 1-2: Output 1 and 2 firing together 3-4: Output 3 and 4 firing together 1: Output 1 firing...
-
Page 9: Operation
Always inspect the machine thoroughly before operating it. WARNING: Do not use the uFetti Shot if alterations have been made other than by or on behalf of SHOWVEN. WARNING: Make sure there are no objects that can be damaged by the machine within the output distance. - Page 10 b) Install the battery in correct direction, pay attention to the positive and negative pole. c) Press and hold the reset button (as show in the red circle below) for 1s to activate battery. You can also activate the battery by connect it with main power supply. d) Install back the battery box plate.
- Page 11 If firing cannons in angles please fix the machine make sure it won't tip over or drop due to recoil. 3.2 Install uFetti Shot CL04 on truss. Please make sure to install the safety rope of machine when mounted on truss.
- Page 12 Suggest to plug in a DMX terminator into the DMX OUT in last unit of machine to improve signal reliability. For distance >200m please use SHOWVEN DMX splitter 8 to amplify the signal. d) If not install battery inside machine. Please connect a power cable to the POWER IN socket of uFetti Shot.
- Page 13 6. Cannons for uFetti Shot Ufetti Shot work with electric confetti and streamer cannons. Please use SHOWVEN original cannons. The output distance shows in below sheet is use SHOWVEN original electric cannons and firing at an angle of 50 degree.
- Page 14 SFCAB258 EU NEUTRIK PowerCON TRUE1 cable - 3m SFCAB051 US NEUTRIK PowerCON TRUE1 cable - 3m RMMAN174 CL04 Manual FPSPA112 FXmote for CL04 RMBOT036 Safety loop M8 SFMET1890 Trolley case SHOWVEN original eletric cannons please contact info@showven.cn for detail information.
-
Page 15: Warranty Instructions
Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN... - Page 16 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
